HTHP Horizontal Tubular Dyeing Machine
-
Supplier: JOGINDRA INDUSTRIES PRIVATE LIMITED -
Region: Rajasthan, India -
Contact: Mr. Harmeet Singh -
Price: $10800.00 /set -
Min. Order: 1 set
| Power(W): | As per requirement; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Capacity: | 120 Kg; | Payment Terms: | L/C,T/T,Western Union; |
| Model Number: | JHD-06; | Dimension(L*W*H): | Customized; |
| Liquor Ratio: | 1:3-1:5; | Condition: | New; |
| Brand Name: | JOGSON; | Applicable Industries: | Manufacturing Plant; |
| Controller: | JOGSON DYEING PROGRAMMER or ENMOS SIMPLEX 263; | Place of Origin: | Delhi India; |
| Certification: | CE Marking; | Packaging Detail: | Export Packaging in wooden case if required.; |
| Voltage: | Optional; | Supply Ability: | 10 Set/Sets per Year; |
| Warranty: | 1 Year; | Automatic Grade: | Automatic; |
| Material: | 316L Stainless Steel; | After-sales Service Provided: | Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service; |
| Weight: | Customized; | Port: | Mumbai, India; |

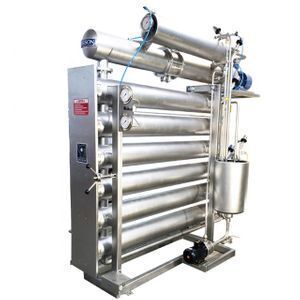

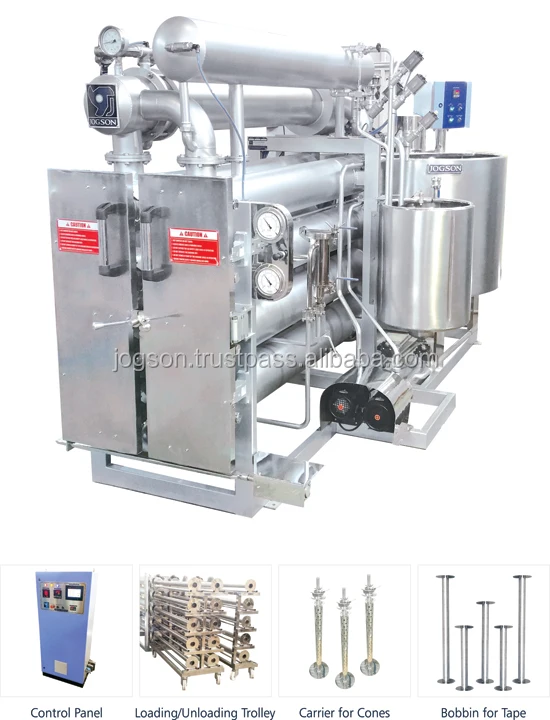

HTHP Horizontal Tubular Dyeing Machine is a front loading, low MLR dyeing machine suitable for dyeing of Polyester, Cotton, Viscose, Nylon, Acrylic, Texturized, Silk, Wool, etc. in various forms like Cone, Tape, Narrow Fabrics, etc. It caters to the needs of high productivity textile Industries. These machines are offered for capacities from 10 kg up to 650 kg per batch. However two machines can be coupled to give larger batch size up to 1300 kg. The coupled machines can be run as independent machine also at the press of a button.
Features
| * Machine body and all parts coming into contact with the dye liquor are made of AISI SS 316Ti/316L, highly corrosion resistant |
| * Double Stage Turbo Pump for liquor circulation (In-Out & Out-In) with Inverter Drive for varying speed |
| * Control Panel with PLC and Touch Interface |
| * Ultra low MLR of 1:3 |
| * Air pad System to insert air manually into the machine to create static pressure and to minimize the liquor ratio |
| * Colour addition tank with Injection Pump for dozing the dye liquor into the machinec |
| * Colour addition tank with Injection Pump for dozing the dye liquor into the machine |
| * Variable loading with flexible loading spindles or capacity reducing dummies |
* Sampling pot to check the dyeing result while machine is in operation |
* HT Drain - the machine can be drained at 130° C |
* Pneumatically operated front door locking / unlocking |
* Human/Machine safety interlocks |
Optional Features
| * Multiple fill, metered fill, ratio fill |
| * Multiple drain |
| * Various heating methods such as electric heaters, thermic fluid, steam & gas/diesel burner |
| * Full capacity Stock Tank with heating & mixing stirrer and transfer pump |
| * ph meter |
| * Hydro extraction device |
Advantages
| * Compact arrangement of JOGSON turbo pump, Heat exchanger and piping is the main key to floor space saving |
| * Ultra Low MLR of 1:3, consumes less dyestuff, chemicals, steam, water & produces less effluent discharge, hence it’s ECO friendly & reduces the Production Cost |
| * Inverter driven turbo pump for variable flow control; saves upto 40% power consumption hence more Energy Efficient |
| * HT drain at 130°C for oligomers elimination during polyester dyeing process |
| * Variable loading with dummies maintains constant MLR & flow rate |
| * Working platform is not required as the top most tube in which the carrier is to be loaded is at the height of 1.5 mtr approx |
| * Overhead hoist need not to be installed as the carriers are loaded from front in the machine |
| * Excellent dyeing result and levelness, reduces yarn loss |
| * Water level, pressure, distinctive temperature multiple safety interlock, ensures operational safety |
Technical Data
| * Maximum design pressure 5 bar |
| * Maximum design temperature 140°C |
| * Heating gradient 25°C - 130°C approx at 5°C /min. (Dry Saturated steam pressure at 7 bar) |
* Cooling gradient 130°C - 85°C approx at 3.5°C/min. (Cold water of 25°C at 3 bar) |
