Dimension(L*W*H): | Customized Size; | weight: | all available; |
Model Number: | Cold Storage; | Product name: | cold room for meat/fish/chicken/vegetable; |
Supply Ability: | 1000 Piece/Pieces per Month fishing equipment cold storage, frozen meat cold room; | Certification: | ISO9001; |
Power(W): | 5-50HP, all available; | cooling type: | air cooled; |
Brand Name: | XMK; | Port: | Huangpu port; |
Payment Terms: | L/C,T/T,Western Union,MoneyGram,Pay online; | After-sales Service Provided: | No after-sales service; |
size: | 10m3~10000m3; | Voltage: | 220V/380V; |
Warranty: | Commercial Running; | Place of Origin: | Guangdong China (Mainland); |
Dimension: | all available; | compressor: | bitzer, copeland; |
Packaging Detail: | Cold Storage Cold Room Cooling System , Blast Freezer Room For Meat And Fish Delivery Detail: within 25 days for cold storage room factory; | Temperature: | -40-+20; |
Product Type:: | cold room and freezer; | Weight: | Freezer (cold Room) Dimension; |
Condition: | New; | Refrigerant: | R-22 R-404A R-134A; |
Warranty: | NO; |

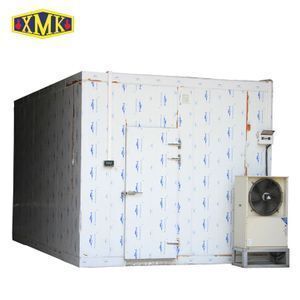

Cold Storage Cold Room Cooling System , Blast Freezer Room For Meat And Fish
Room size | small | middle | big |
volume range | <500m3 | 500m3~5000m3 | >5000m3 |
tempreture table for reference
cold storage goods | tempreture range |
processing room | 10C |
fruit, vegetable, dry food | 0C~-5C |
medicine, cake, pastry, chemical material | 0C~-5C |
ice storage room | -5~-10C |
fish, meat storage | -18~-25C |
deep freezer | -25C~-35C |
compressor type | bitzer(Germany) | refcomp(italy) | copeland(US) | manurope(France) |
condenser | air cooled | water cooled | evapoarating |
Panels information
office Foam panel | 50mm thickness |
processing room 10C | 50mm/ 75mm PU |
5C | 75mm/ 100mm PU |
-18C | 100mm/ 150mm PU |
-25C/ -35C | 150mm/200mm PU |
panel steel cover | SS, GI, aluminum etc |
Panel thickness: 100mm, 150mm Feature of modular cold room:
-- temperature range: -40~+15c are all available.
-- size: Customization..
-- functions: Fresh-keeping. Freezing, quick-freezing. Fire-proof. Air-conditioning are all available..
-- fully automatic control system. Components:
-- condensing unit: Bitzer, copeland, maneurop, fusheng.
-- evaporator: Eltess air-cooler.
-- insulation panel: Polyurethane (density is up to 40~46kg/m3 )
-- Other accessories: World-famous brands, like danfoss, castle, every control, Siemens,
Application: Food(meat, vegetable, fruit, dairy, drink), medicine, chemical, electronics, etc.
-- materials: Polyurethane and metal sheet. Metal sheet: It is can be with painted steel sheet and stainless steel sheet for choice..
-- with electric heating wire around doorframe to void icing..
-- safe doorknob inside..
-- positive plastic seal fixed to door to avoid cooling air losses..
