place of origin; place of origin: | Guangdong, China | model: | V12E12BS2B5-07 |
color: | Black | Fan type: | Axial fan 7 blades |
Bearing type: | double ball bearing | port: | Shenzhen Guangzhou |
type: | Axial Fan | Supply capacity: | 300 sets per day |
Voltage: | 12v | Blade material: | plastic |
Applicable industries: | Manufacturing plants, machine repair shops, food and beverage plants, domestic use, printing plants, construction works, energy and mining, advertising agencies | Install: | screw installation |
Warranty: | 1 year | MOQ: | 20 |
Customization support: | OEM production | Install: | Detached |
Material: | plastic frame | payment terms: | L/C, D/P, D/P |
After-sales service provided: | free spare parts | CPU cooling fan: | mobile phone cooling fan |
Key words: | silent fan | motor: | Violent fan 12V fan |
Current type: | direct current | Rated voltage: | 12v |
brand: | Huihai | | |
Product Description
Focus on 5v to 380v fans 1k speed to 1w speed fans
product name | Violent fan 12V fan |
Applicable industry | Applicable industry |
Install | Axial fan (stand-alone) |
current type | DC12V |
Blade material | Plastic PBT |
Voltage | DC12V |
warranty period | one year warranty |
color | from 40 |
custom packaging | 160 |
fan rotation | Counterclockwise from the direction of the fan blade |
Violent heat dissipation, large air volume, rapid cooling
Weight: 0.351kg Noise:70 dB(A)Speed regulation: support motherboard PWM speed regulation Speed measurement: support fan frame: one-time injection molding, PBT+30% glass fiber + VO level flame retardant; fan blade: one-time injection molding, PBT + 30% glass fiber + VO level flame retardant; fan Direction of rotation: counterclockwise from the direction of the bladeCurrent: 1.38A Power: 16.6W Speed 4500PRM Air volume: 200CFM (5.66337m3/min) Air pressure: 13.29 mm H²O (130.24 Pa)
Fan size is 120*120*38mm (40 pieces/box)Violent heat dissipation, super large air volume, extremely fast cooling.

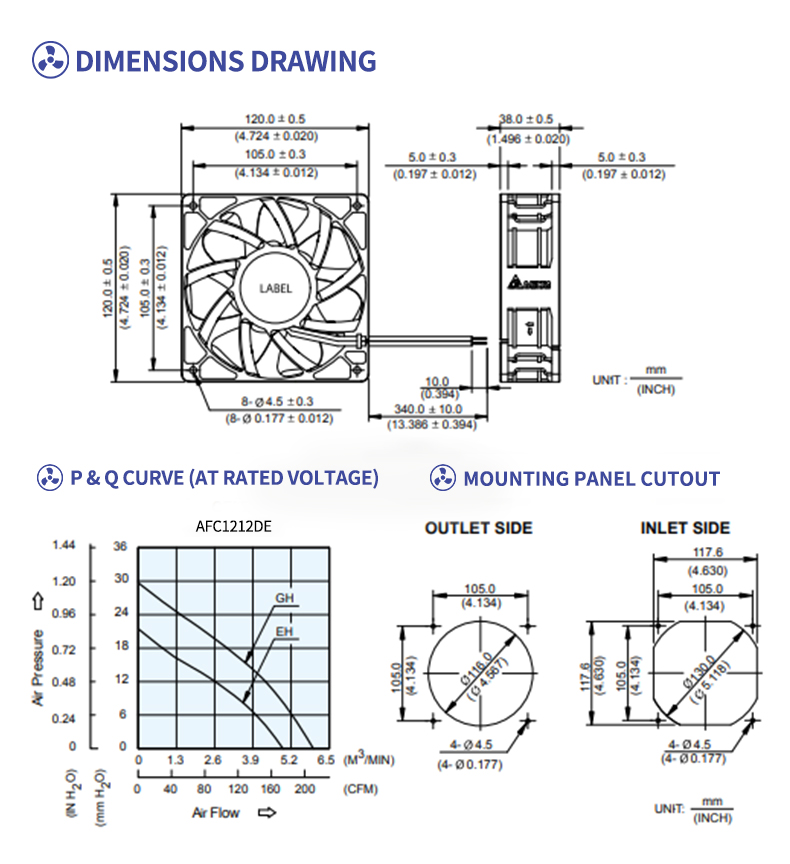

detailed drawing
Rated voltage: 5v 12v 24v According to customer requirements, air volume, wind pressure, speed, and rated voltage can be customized according to customer requirements. The fan has multiple functions, such as 3-wire tachometer signal output, alarm signal output, two-speed belt speed signal, temperature control, PWM, 4-wire FG+ alarm function, waterproof, etc...

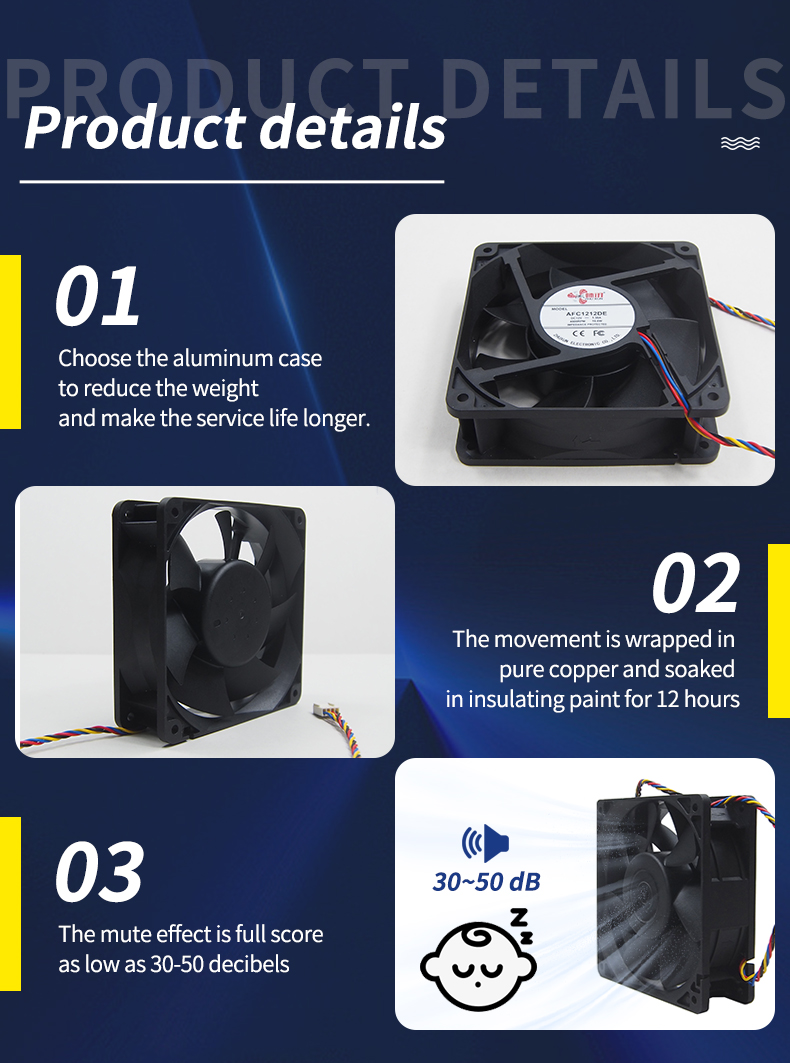

1. Aluminum shell is used to reduce weight and prolong service life. 2. The movement is wrapped in pure copper and soaked in insulating paint for 12 hours. 3. The sound effect is perfect, as low as 30-50 decibels
We have so many models that we cannot show them all. Pleasecontact usrecommend directly to you
