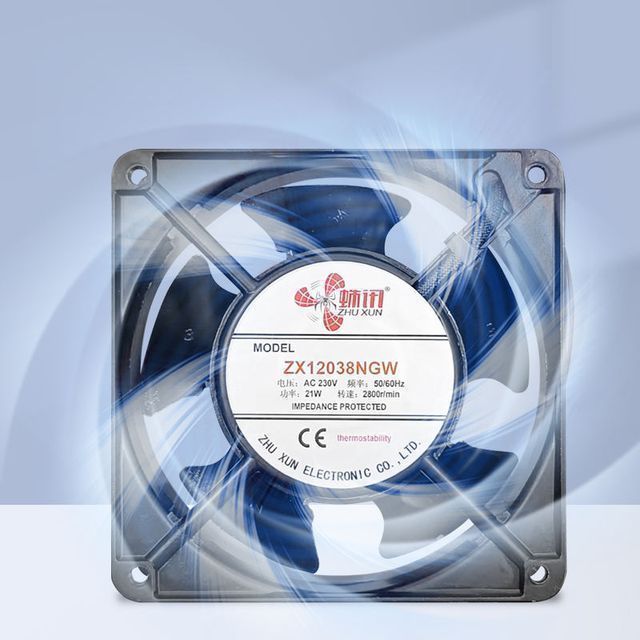

220V cooling fan ZX12038NGW 120x120x38mm axial flow fan (independent machine) cabinet AC mini axial flow cooling fan

Product details
Types of:Axial FanRated voltage:AC 220V
place of origin; place of origin:Guangdong, ChinaCurrent type:direct current
Install:DetachedPackaging Details:Carton
Key words:silent fanVoltage:12v, 24v, 36v
Bearing type:220V cooling fanInstall:screw installation
payment terms:L/C, D/P, D/Pbrand:Huihai
engine:DCMaterial:Aluminum frame + aluminum fan blade
MOQ:20Fan type:Axial Fan
Customization support:OEM productionCPU cooling fan:mobile phone cooling fan
Warranty:1 yearport:Shenzhen Guangzhou
After-sales service provided:free spare partsmodel:HX12038NGW
color:BlackApplicable industries:Manufacturing plants, machine repair shops, food and beverage plants, domestic use, printing plants, construction works, energy and mining, advertising agencies
Blade material:plasticSupply capacity:300 sets per day
Product Description

Focus on 5v to 380v fans 1k speed to 1w speed fans
product name
Violent fan 220V fan
Applicable industry
Applicable industry
Install
Axial fan (stand-alone)
current type
Cooling fan 220V
Blade material
Aluminum frame + aluminum fan blade
AC voltage
AC 220V
warranty period
one year warranty
custom logo
from 40
custom packaging
160
fan rotation
Fan frame: aluminum alloy thickened and durable outer frame Baidu high temperature resistance, 200 ℃ high temperature wire fan rotation:
Seen from the direction of the fan blade, it is counterclockwise;
Model
Voltage
FREP
current
watt
speed
CFM (air volume)
m³/min (air volume)
noise
weight
ZX12038NGW
200-240VAC
50/60 Hz
0.14A
21W
2500 rpm ±10%
90.57 CFM
2.57 cubic meters per minute
40 decibels
320 grams
Violent heat dissipation, large air volume, rapid cooling
Weight: 0.384kg
Noise: 38DBA
2 wires lead out 20CM without plug
Fan frame: Aluminum alloy thickened and durable outer frame Baidu high temperature resistance, 200 ℃ high temperature line Fan rotation: Viewed from the direction of the fan blade, it is counterclockwise; Current: 2.18A Power: 25.2W Speed ​​6000PRM Air Volume: 210.38CFM (5.957m3/min) Air Pressure: 29.18 mm H²O (285.964 Pa)
Fan size is 120*120*38mm (40 pieces/box)

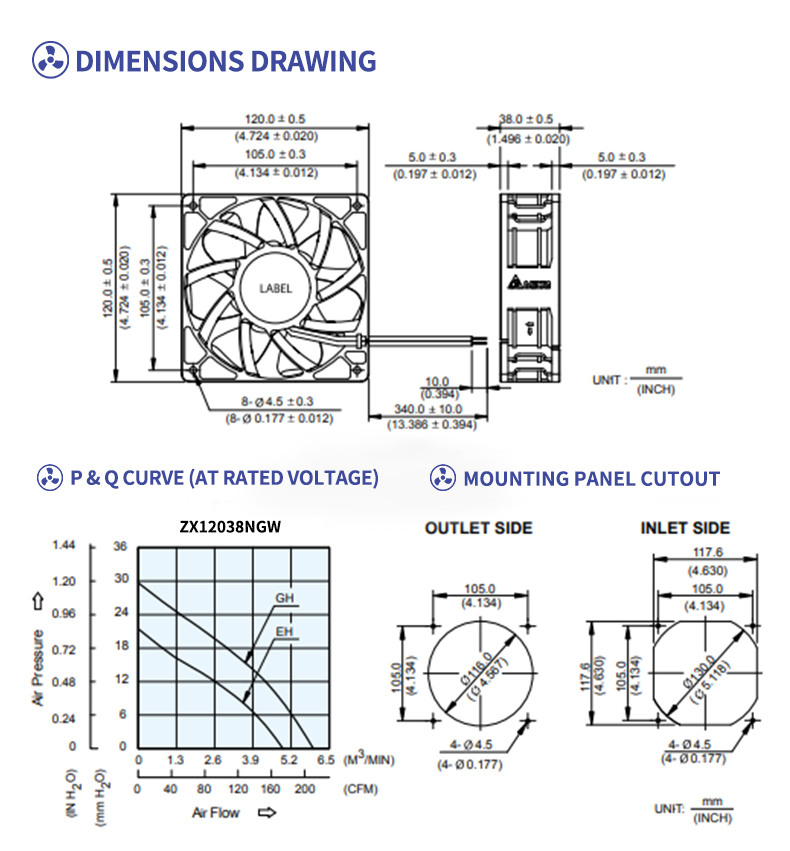

detailed drawing
Rated voltage: 5v 12v 24v According to customer requirements, air volume, wind pressure, speed, and rated voltage can be customized according to customer requirements. The fan has various functions, such as 3-wire tachometer signal output, alarm signal output, two-speed belt speed signal, temperature control, PWM, 4-wire FG+ alarm function, waterproof, etc...

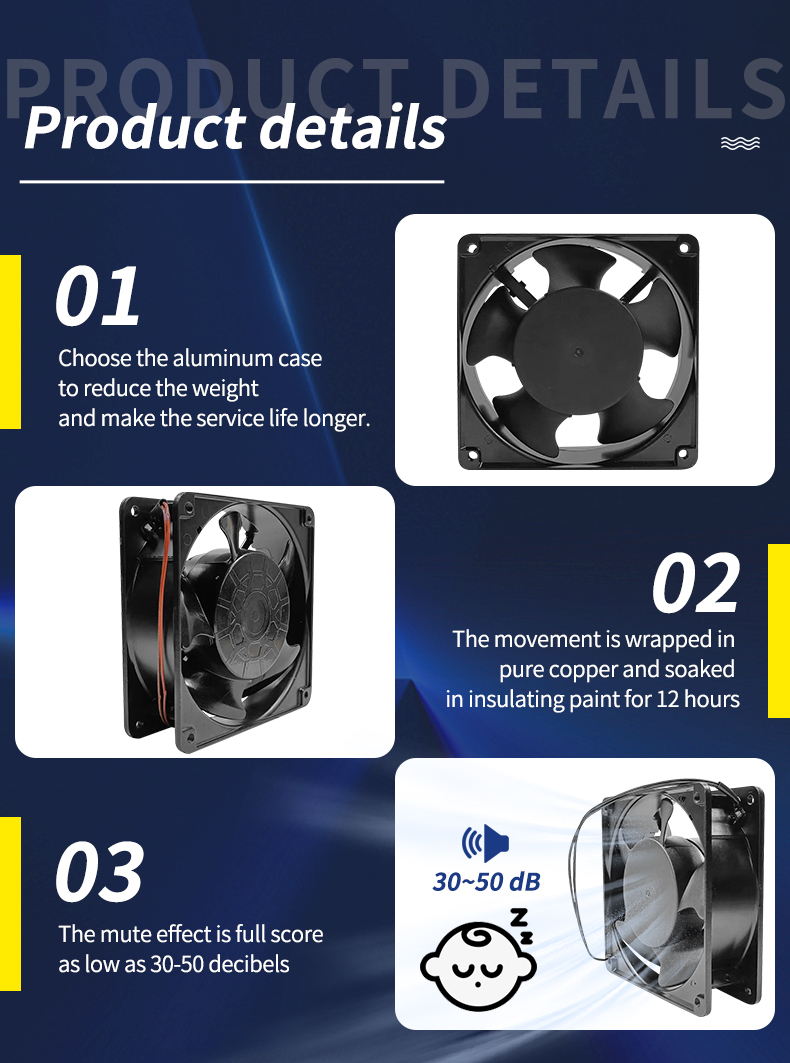

1. Aluminum shell is used to reduce weight and prolong service life. 2. The movement is wrapped in pure copper and soaked in insulating paint for 12 hours. 3. The sound effect is perfect, as low as 30-50 decibels

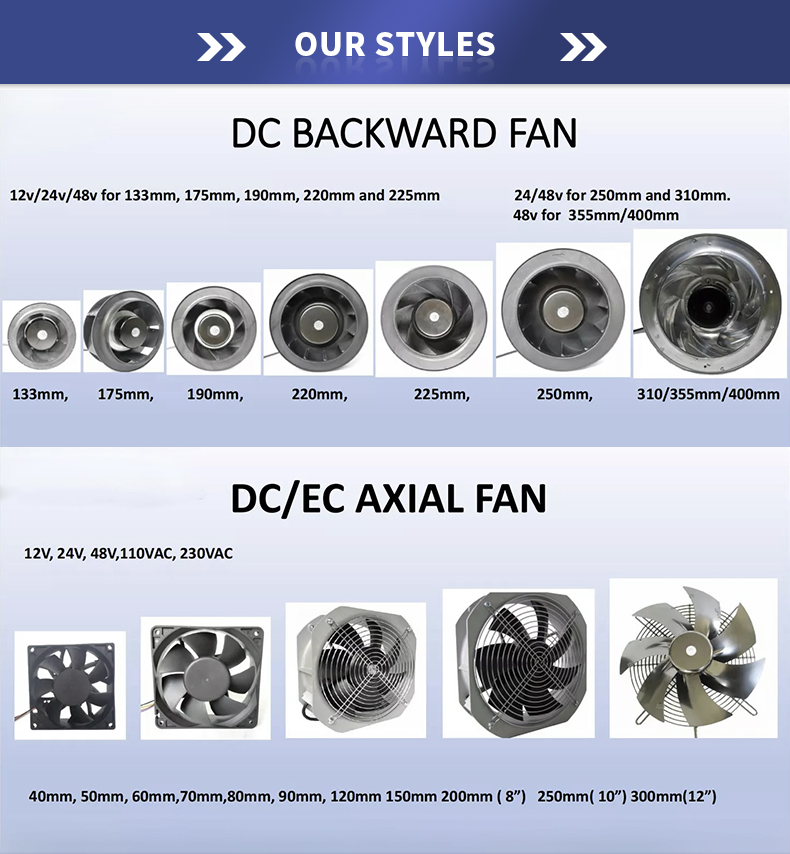

We have so many models that we cannot show them all. Pleasecontact usrecommend directly to you
