TVS Diodes 5KP188A Series 5KP Voltage Transient Suppressor

Product details

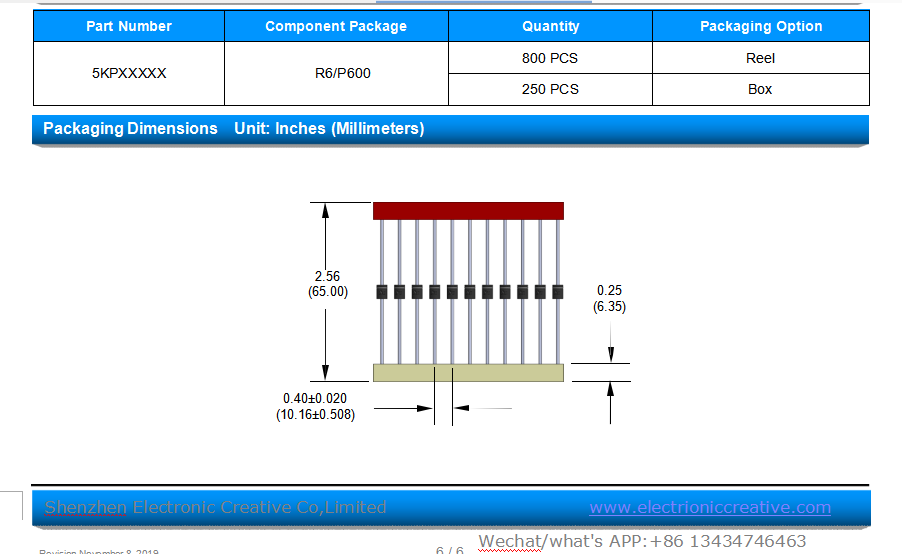

payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramPackaging Details:3000 pcs/roll
Card:Cport:Shenzhen/Hong Kong
Part Number:5KP190Amodel:5KP190A
in stock:Yestype:TVS diode
place of origin; place of origin:ChinaSupply capacity:10000000000 pieces per week
Packaging/Case:5KPpack:DO-214AA (SMB)
sample:free samplePackage preview:

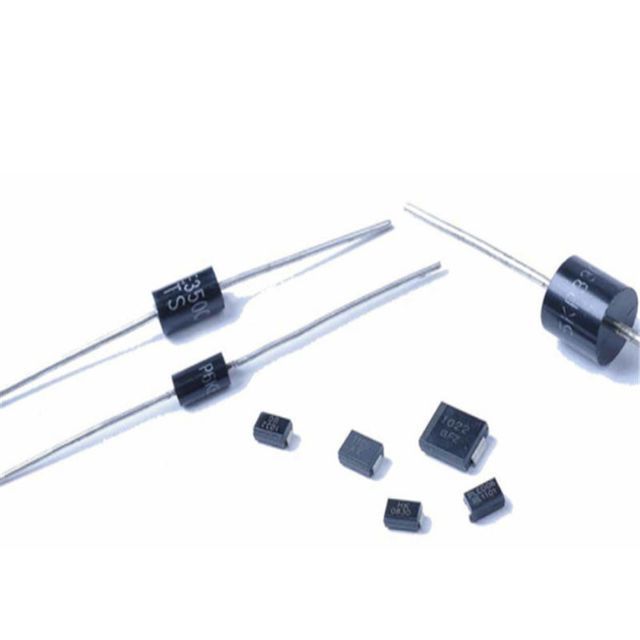

TVS Diode 5KP188A Transient Voltage Suppressor 5KP Series



Axial guideShort-livedVoltageSuppressor (TVS)



The 5KP Series is specifically designed to protect sensitive electronic equipment from voltage transients caused by lightning and other transient voltage events.





Glass passivated chip junction in uP600 package

u low leakage

u One-way and two-way units

u Excellent clamping ability

u 5000W 10×1000µs waveform peak power capability Repetition rate (duty cycle): 0.01%

u Fast response time: usually less than 1.0ps from 0 V to VBR min

Typical IR above 12V is less than 5μA.

u High temperature soldering: 260°C/40 seconds at the terminal

u Typical maximum temperature coefficient ΔVBR = 0.1% ×

VBR@25°C×ΔT

u plastic packaging with Underwriters Laboratory Flammability 94V-0

u Matte tin lead-free plating

u Halogen-free and RoHS compliant

u The typical failure mode is a short circuit caused by excessive voltage or current

u Whisker tests are performed according to Table 4a and 4c of JEDEC JESD201A

u IEC-61000-4-2 ESD 15kV(Air), 8kV(Contact)

u Data line ESD protection complies with IEC 61000-4-2 (IEC801-2)

Data line EFT protection according to IEC 61000-4-4 (IEC801-4)

TVS devices are ideal for protecting I/O interfaces, VCC buses, and other

Vulnerable circuits used in telecommunications, computers, industrial and consumer products

electronic applications.



scope

the symbol

value

unit

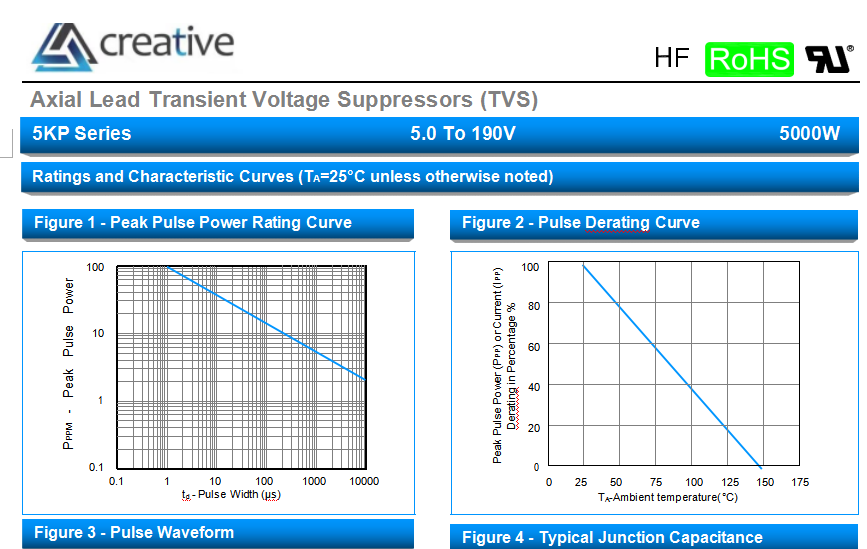

Peak Pulse Power Consumption for 10/1000µs Waveform (Figure 1) (Note

1), (Note 2)

PPPM

5000

Watts

Peak pulse current with 10/1000µs waveform. (Note 1, Figure 3)

independent production plan

see table below

ampere

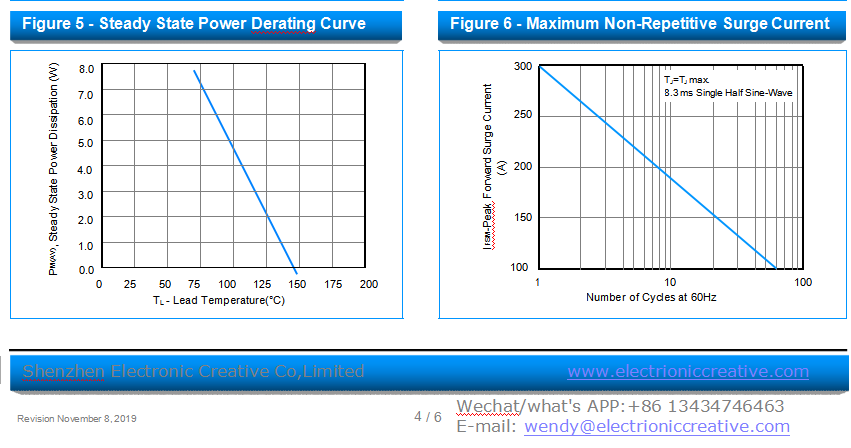

Power dissipation with infinite heat sink at TL=75°C

Afternoon (Video)

8.0

watt

Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3)

IFSM

500

ampere

Maximum instantaneous forward voltage at 25A in one direction only

(Note 4)

frequency conversion

3.5/5.0

Voltage

operating junction and storage temperature ranges.

TSMC

-55 to +150

Celsius

notes:

1. Non-repetitive current pulses, according to Figure 3, with derating above TA = 25°C according to Figure 2.

2. Mounted on 5.0mm x 5.0mm (0.03mm thick) copper pads on each terminal.

8.3ms single half sine wave, or equivalent square wave, duty cycle = 4 pulses per minute max. 4. VF < 3.5V for VBR < 200V and VF< 6.5V for VBR > 201V



Provide free samples

If you have any questions please contact us

Wendy

WeChat/What APP: +86 13434746463

Email: wendy "at" electroniccreative.com

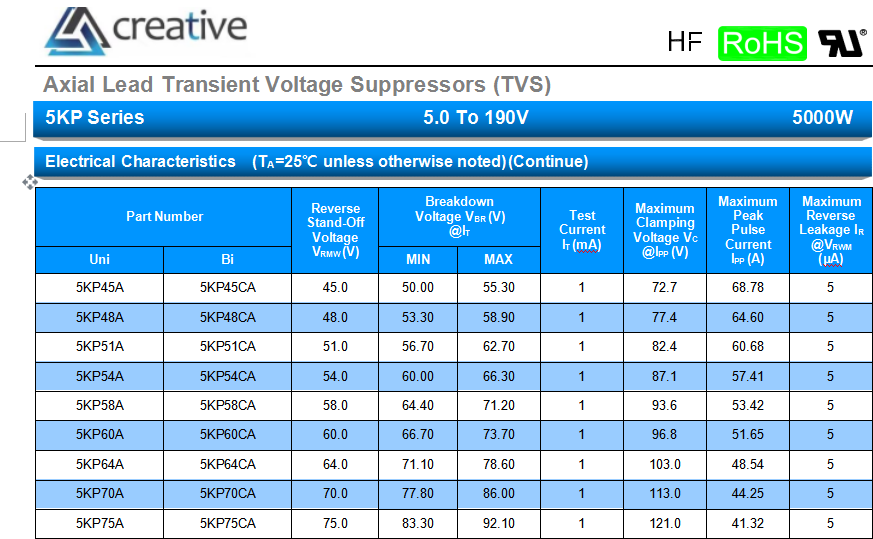

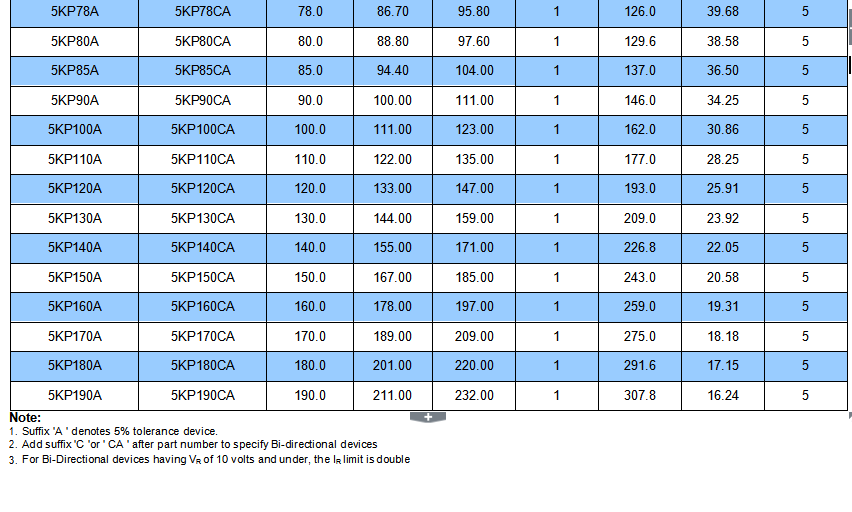

electric feature (TOne=25unless otherwise famous)
