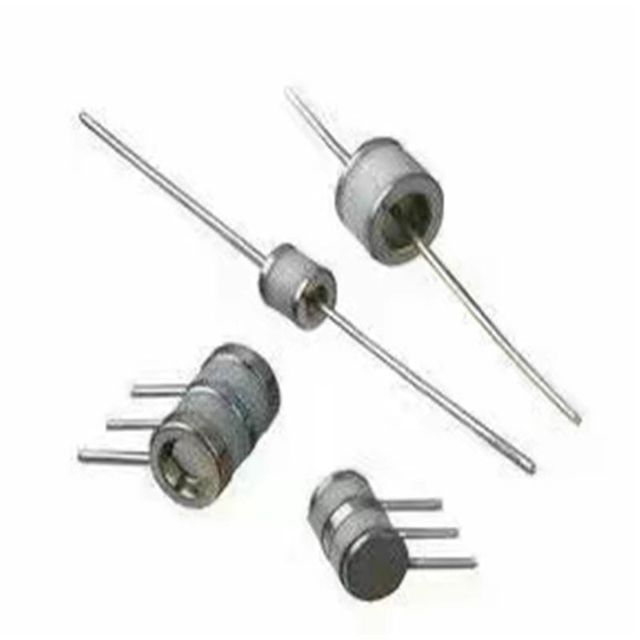

10KA 230V GDT Gas Discharge Pipe GDT GDT High Voltage S Brand Circuit Protection Gas Pipe PCB Board

Click here to contact
Product details
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramSupply capacity:10000000000 pieces per week
pack:8*10model:230V
Origin:Guangdong, Chinatype:gas discharge tube
Packaging Details:3000 pcs/rollMaximum capacitance @1MHz:1.5pF
Packaging/Case:dipArc voltage @1A:25V
Minimum insulation resistance:1 GΩ (at 100V DC)brand:OEM production
DC breakdown voltage:±20%size:2E8
sample:Provide free samplesport:Shenzhen/Hong Kong
Number of poles:2

10KA V 8*6Mm GDT gas discharge tube GDT high pressure gas tube for circuit protection PCB board

DC breakdown voltage@100V/SDC: 470V±20%

Maximum pulse breakdown voltage @100V/μS: 900V

Maximum pulse breakdown voltage @1KV/μS: 1000V

Minimum Insulation Resistance: 1 GΩ (at 100V DC)

Maximum capacitance @1MHz: 1.5pF

Arc voltage@1A:25V

Nominal impulse discharge current @8/20μs±5 times: 20KA

Maximum impact discharge current @8/20μs 1 time: 25KA

Nominal AC discharge current@50Hz 10 times in 1 second: 20A

Pulse life @10/1000μs 300 times: 200A

Packing: φ8*10mm







Provide free samples



contact information:

WeChat/What APP: +86 13434746463
Email: wendy(at)electriccreative.com
