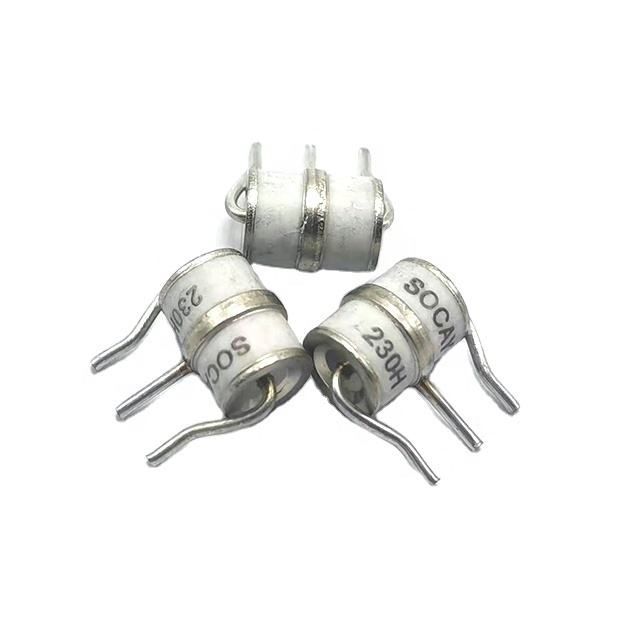

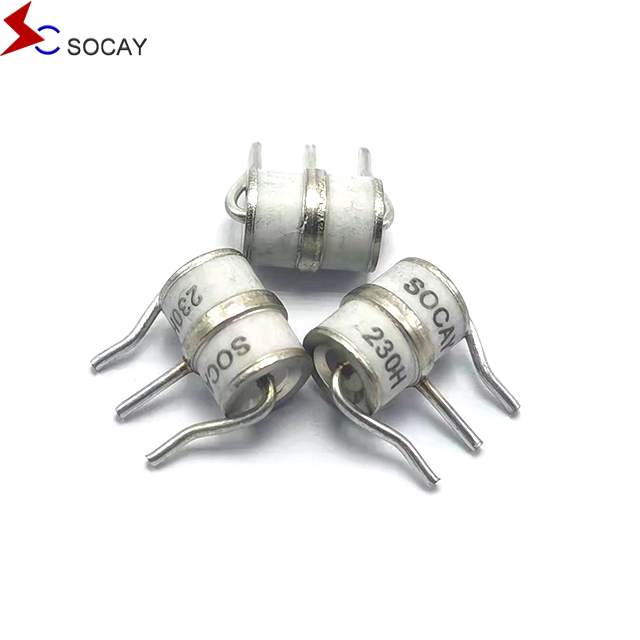

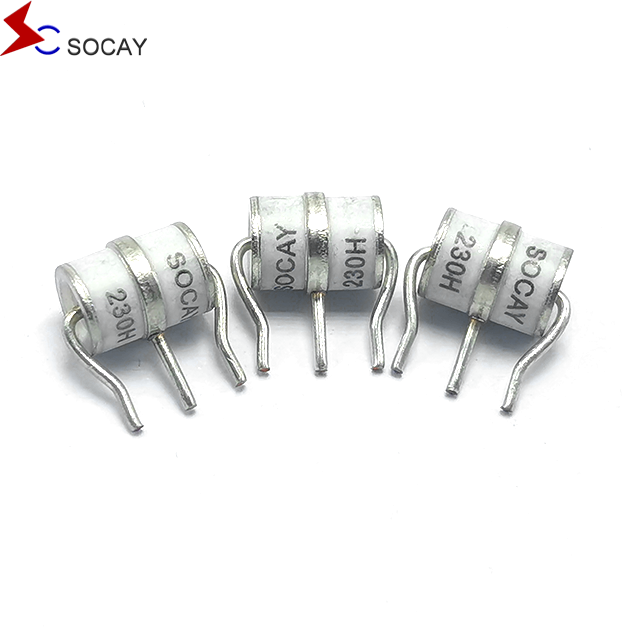

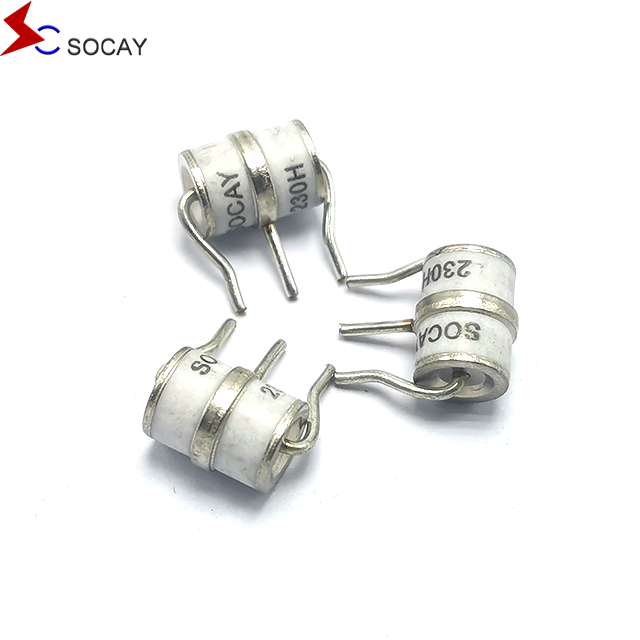

5KA 10KA 20KA 470V three-electrode GDT 3E8 2E8 gas discharge tube arrester
-
Supplier: Shenzhen Socay Electronics Co., Ltd. -
Region: Guangdong, China -
Contact: Mr jerry wang -
Price: $0.20 / >=1000 pieces -
Min. Order: 1000 pieces
Product details
| model: | United Nations 3E8 | application: | Communication products, 2RJ high capacitor |
| model: | SC3E8 series | brand: | Sokai |
| type: | gas discharge tube GDT, gas discharge tube | Place of origin: | Guangdong, China |
| Package: | standards, safety | payment terms: | Western Union, wire transfer, MoneyGram |
| AC discharge current: | 10KA | brand: | Sokai |
| capacitance: | Generally less than 1.5pF | delivery time: | 7-15 days |
| Supply capacity: | 50 million gas discharge tubes UN3E8 per month | Packing/box: | Radial |
| Material: | ceramics | color: | grey |
Features
Material | Nickel plated tape tinned wire |

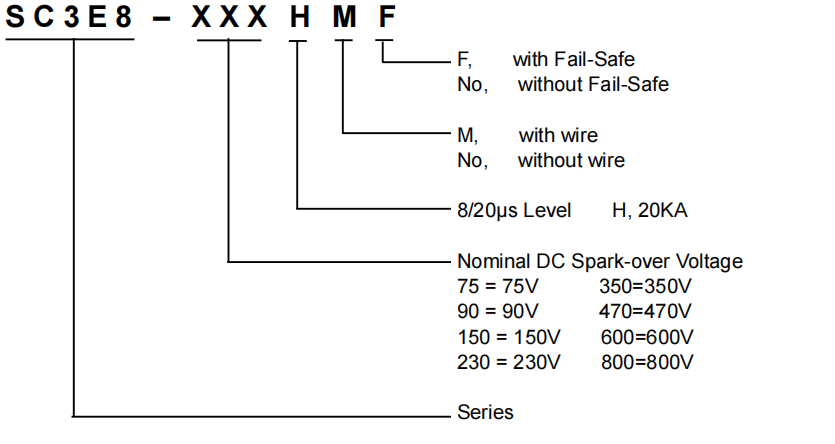

product mark | Sokai XXXH XXX-nominal voltage H-20KA |
Glow to arc transition current | ~1 Amp |
glow voltage | ~70 volts |
Storage and operating temperatures | -40 to +90°C |

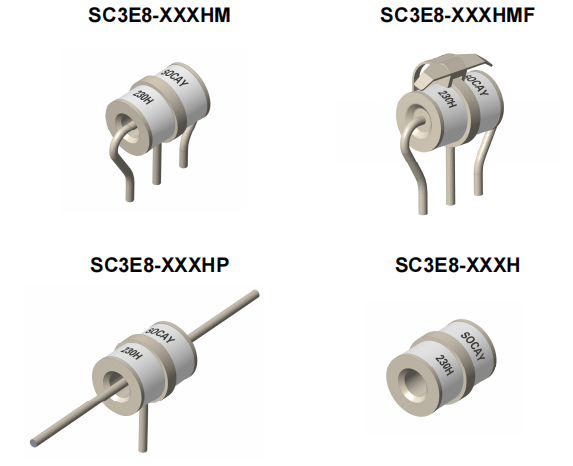

weight | SC3E8-XXXHM ~2.0g SC3E8-XXXHMF ~2.3g SC3E8-XXXHP ~2.1g SC3E8-XXXH ~1.8g |
Climatic category (IEC 60068-1) | 40/ 90/ 21 |
feature | -Non-radioactive -Compliant with RoHS directive -Low insertion loss - Excellent response to fast rising transients -Ultra low capacitance -20KA surge capability test 8/20μs - Pulse defined by IEC 61000-4-5 - Thermal fail-safe option available (add "F" suffix to part number) |
Application areas | -Communication equipment -Cable TV equipment -Test equipment -data cable -power supply -Telecom SLIC protection -Broadband equipment -ADSL equipment, including ADSL2+ -XDSL equipment -Satellite and cable TV equipment -Consumer electronics products |

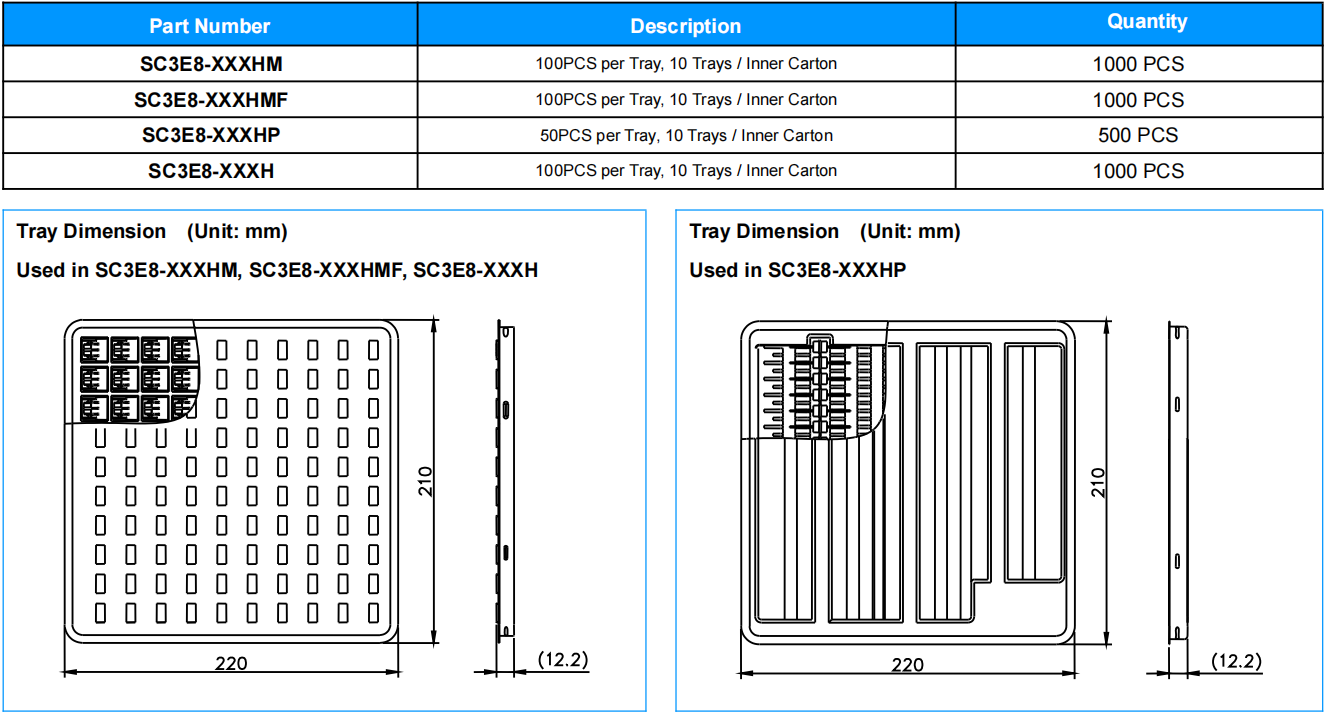

Packaging Information

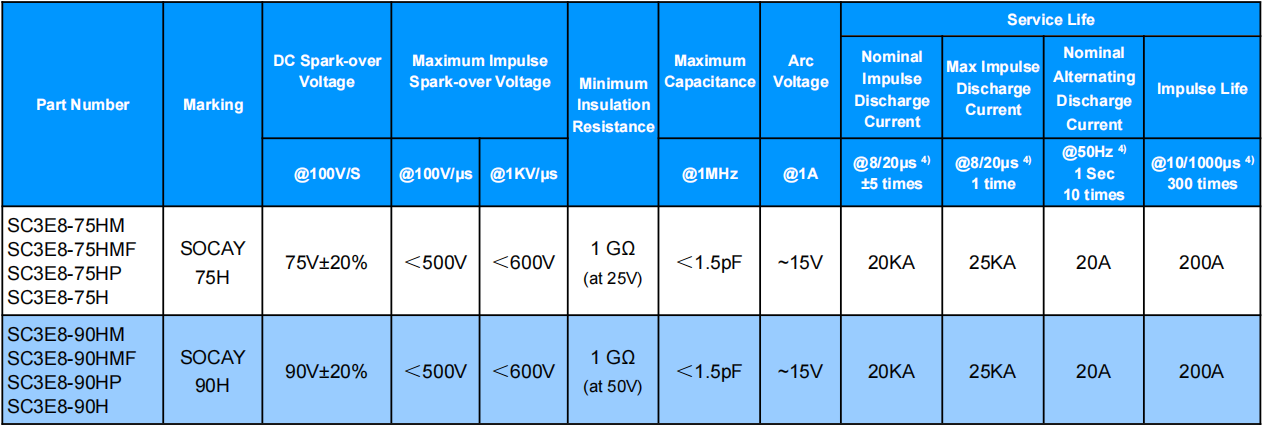

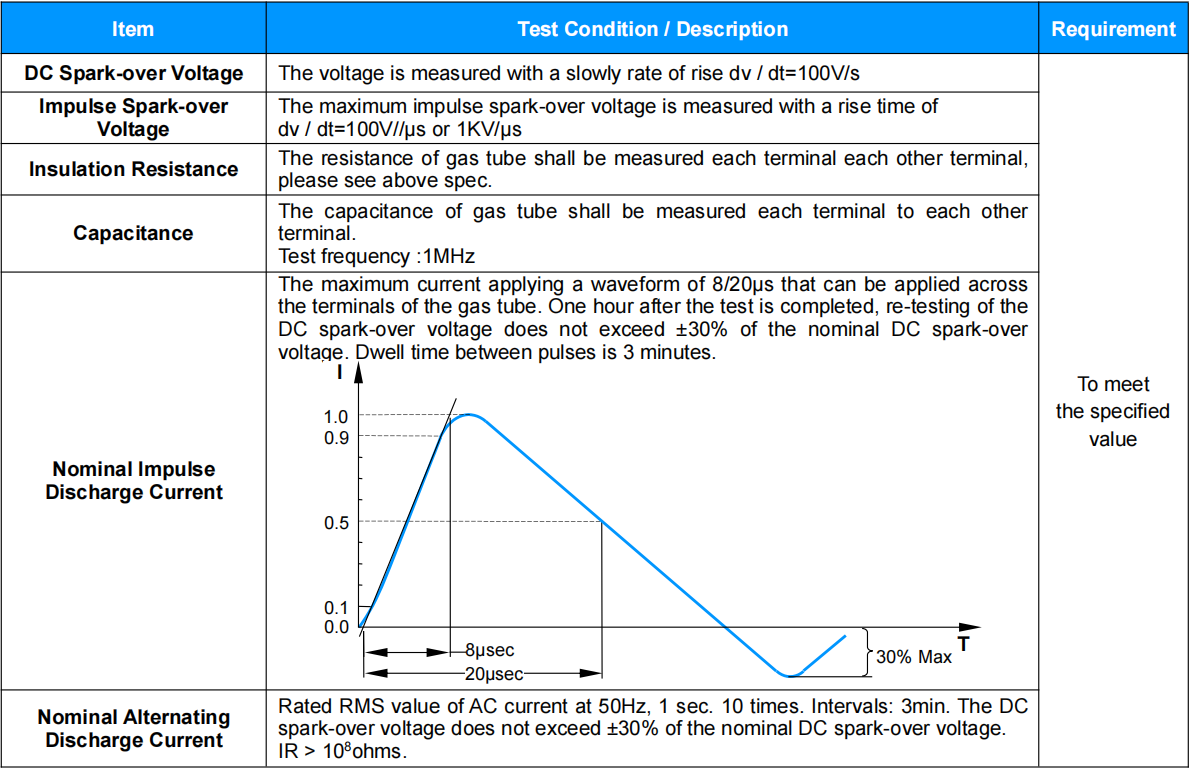

Electrical characteristics

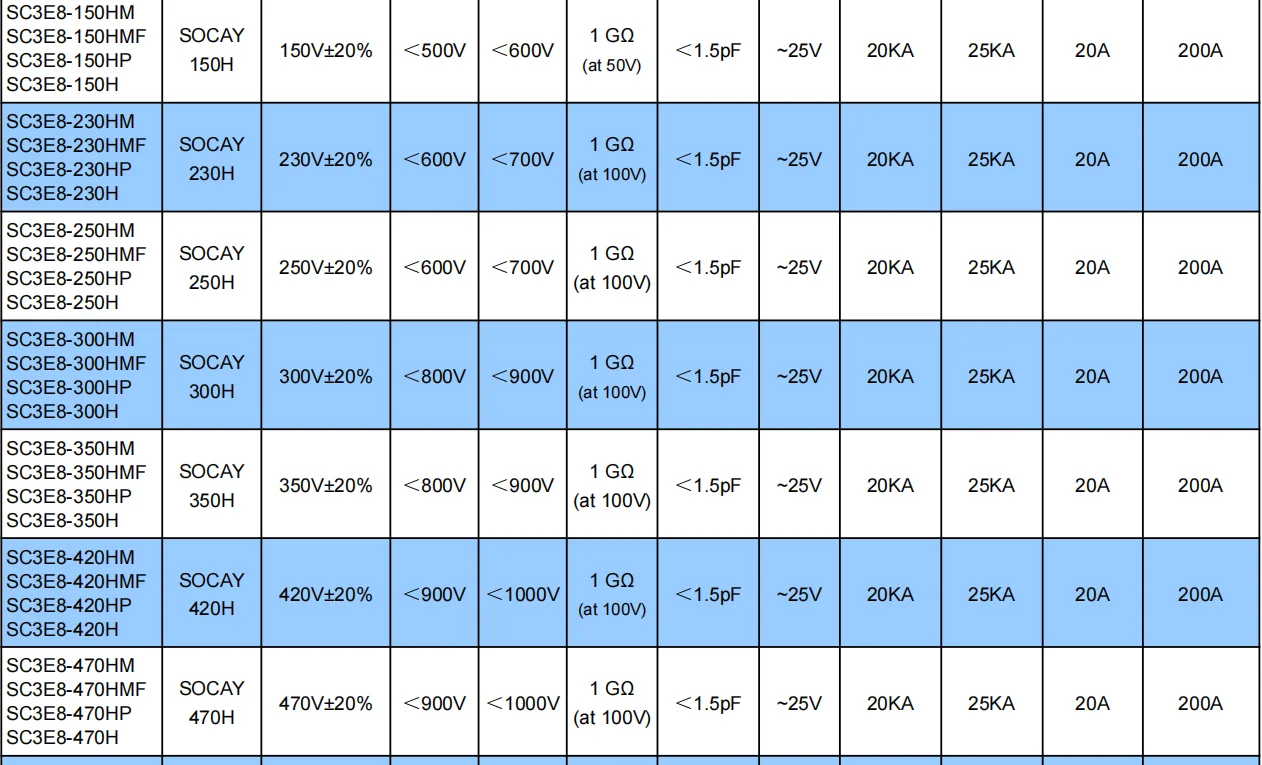

Electrical ratings
