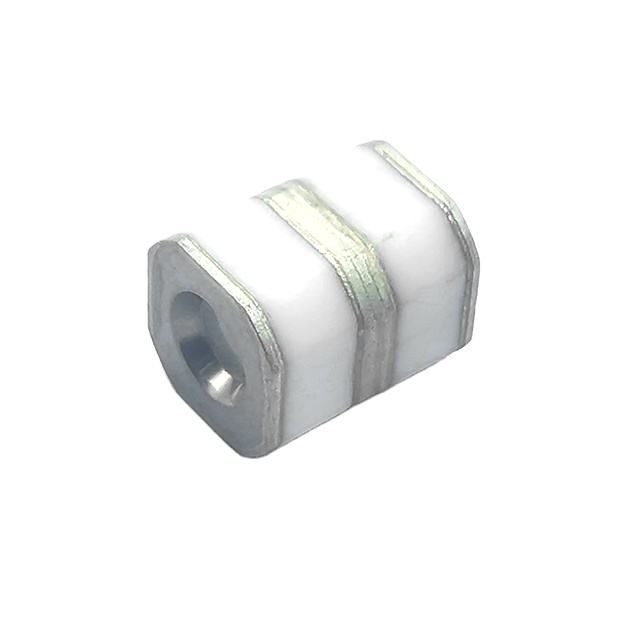

Gas discharge tube (GDT) 3E8 Three-electrode series three-electrode gas discharge tube for consumer electronic power supplies

Product details

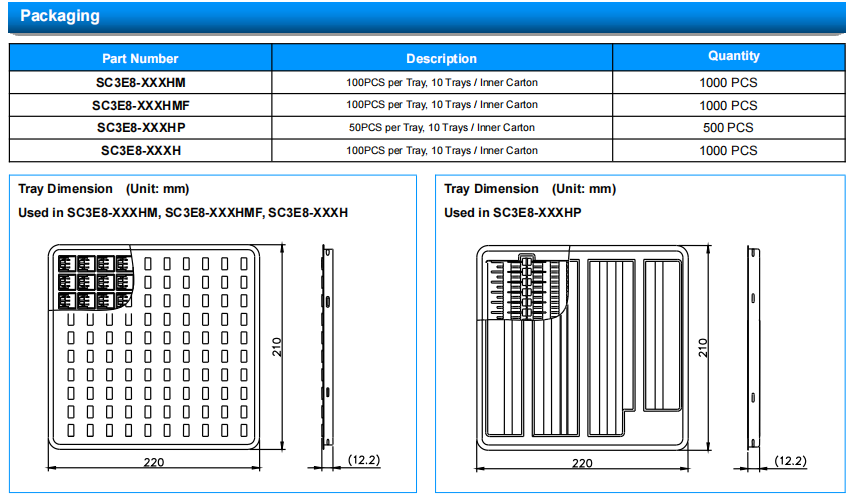

Packaging Details:100 pcs/rollDC breakdown voltage:90V±20%

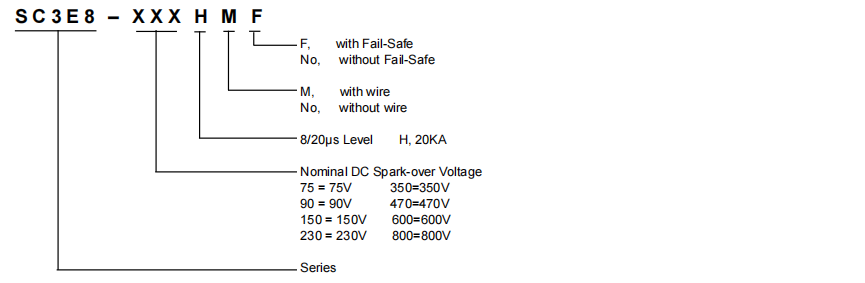

model:SC3E8-230MNominal pulse discharge current:20KA
brand:Sokaisample:usable
payment method:wire transferport:Shenzhen/Hong Kong port
Packaging/Case:MounterCard:social contact
type:gas discharge tubeSupply capacity:50000000 pieces per month
Material:ceramicspayment terms:Western Union, T/T, MoneyGram
application:Communication Products,delivery time:7-10 days
place of origin; place of origin:Guangdong, ChinaPackage:standard security


feature
non-radioactive
RoHS Compliant
low insertion loss
Excellent Response to Fast Rising Transients
ultra low capacitance

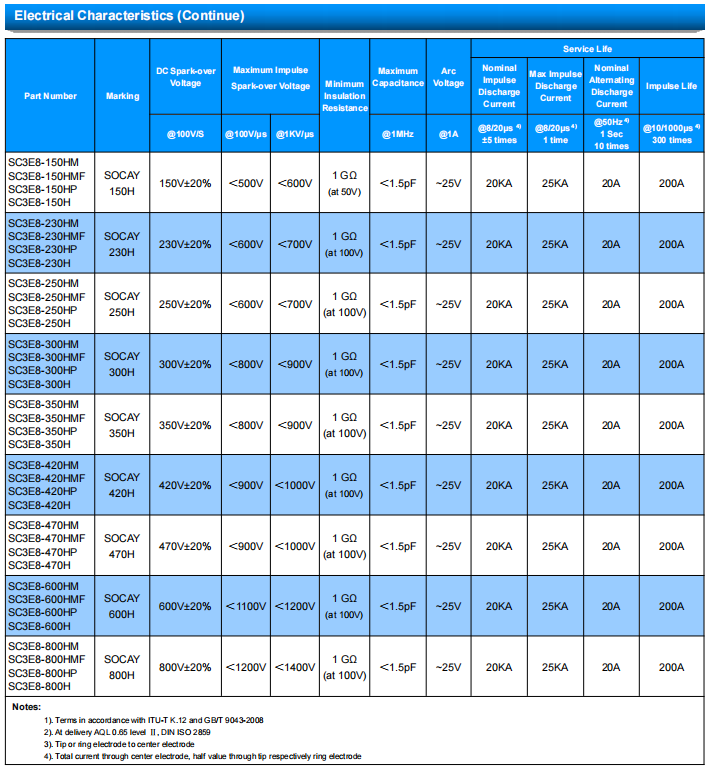

According to the definition of IEC 61000-4-5, use 8/20μs pulse to test 20KA surge capacity
Thermal fault protection option available (add "F" suffix to part number)




application
 Communication equipment
 Cable TV equipment
 Test equipment
 Data cable
 Power supply
 Telecom SLIC protection
 Broadband equipment
 ADSL equipment, including ADSL2+
 XDSL equipment
 Satellite and cable TV equipment
 Consumer Electronics
