High Speed China Automatic Thread Nail Machine Z94-4C
-
Supplier: Wuxi Shenda Nail Machinery Factory -
Region: Jiangsu, China -
Contact: Ms ECHO SHI -
Price: $6000.00 /set -
Min. Order: 1 set
Product details
| Showroom location: | not any | Power (kW): | 4 |
| Marketing Type: | New Products 2020 | Supply capacity: | 90 sets per month |
| Video shipment inspection: | if | Production capacity: | 800 pieces/year |
| Main selling points: | automatic | Core component warranty: | 1 year |
| Health status: | new | Applicable industries: | Building material stores, manufacturing plants, construction projects |
| payment terms: | L/C, Western Union, T/T, MoneyGram | place of origin; place of origin: | Jiangsu, China |
| brand: | Shen Yida | After-sales service provided: | Engineers available to service machinery overseas |
| Warranty: | 1 year | Mechanical test report: | if |
| Weight (kg): | 2100 kg | port: | Shanghai |
| Packaging Details: | Plywood box or customized | Core components: | motor |
Product overview

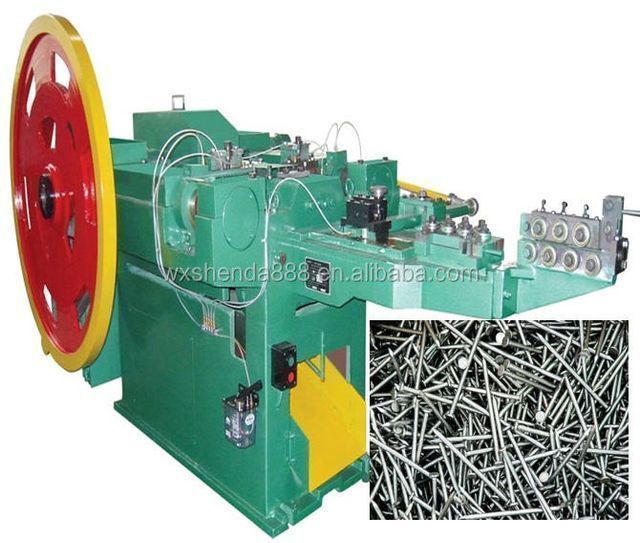

China automatic thread nail making machine Z94-4C
Wuxi Shenda Nail Making Machinery Factory is an experienced factory specializing in the export of various machinery and equipmentsince 1995. It has won a high reputation for quality and service.
Our main products include:
1. Nail making machine production line,
2. Wire drawing machine production line,
3. High-speed thread rolling machine,
4. High-speed nail rolling machine.
1. Nail making machine production line,
2. Wire drawing machine production line,
3. High-speed thread rolling machine,
4. High-speed nail rolling machine.
List of functions
Main nail making process
1. Produce nails with a nail making machine
2. Polish your nails with a nail polisher
3. Wrap nails
3. Wrap nails
Machine use:
It can make the following nails:
It can make the following nails:
1. Wire nails,
2. Cloud nails,
3. U nails,
4. Double-headed nails,
5. Roofing nails,
6. Concrete Nails,
7. Rivets
2. Cloud nails,
3. U nails,
4. Double-headed nails,
5. Roofing nails,
6. Concrete Nails,
7. Rivets
right level
left elevation
Front view
product specification
Model | Z94-2C | Z94-3C | Z94-4C | Z94-5.5C |
1. Nail diameter | 1.2-2.5mm | 1.8-3.4mm | 2.8-4.5mm | 3.7-5.5mm |
2. Nail Length | 16-50mm | 30-75mm | 50-100mm | 80-150mm |
3. Motor power | 2.2kw | 2.2kw | 4 kW | 5.5kw |
4. Nail speed | 350 pieces/min | 320 pieces/min | 280 pieces/minute | 200pcs/min |
5. Measure the size | 1.6*1.1*1.3m | 1.8*1.26*1.46m | 2.2*1.54*1.59m | 2.4*1.6*1.6m |
6. Weight | 1200Kg | 1400Kg | 2000Kg | 2500Kg |
product configuration
nailing system
The machine is compact
high quality gear
Drawing die
Wire drawing die: used in wire drawing production line to change wire diameter.
Wire drawing die: used in wire drawing production line to change wire diameter.
Grinding wheel
It is mounted on a knife grinder for sharpening nail clippers
It is mounted on a knife grinder for sharpening nail clippers
nail spare parts
Nail mold: clip wire,
Nail mold: clip wire,
Nail clippers: cut the wire to make nail tops,
Punching needle: make nail head
nail polisher
Used for manicure machines to polish nails after manicure
it makes nails clean and bright
it makes nails clean and bright

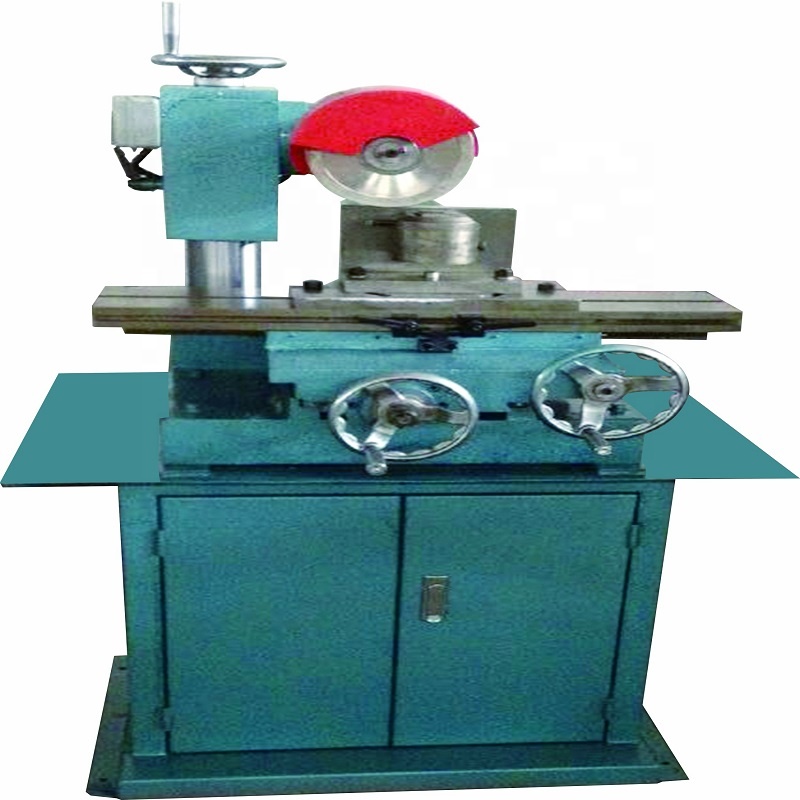

nail clipper grinder
Resharpen your nail clippers after they are pointless.
It is a new type of nail grinding machine, which is automatic and easy to operate.

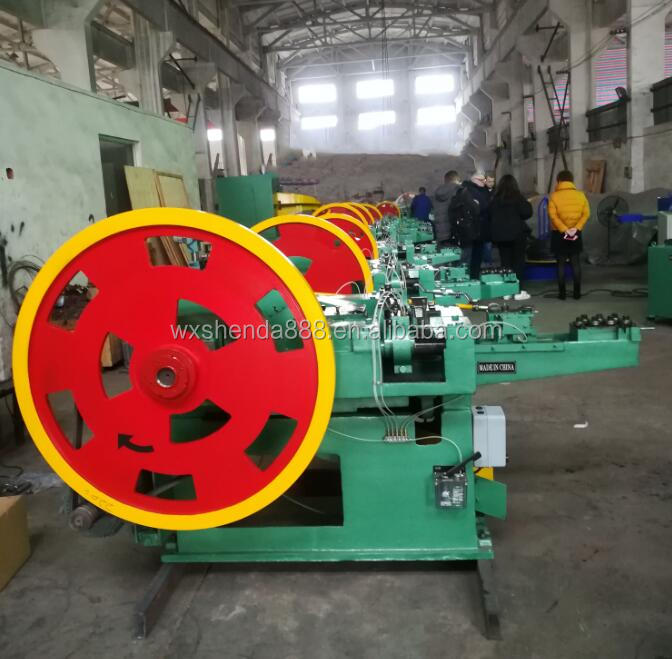

successful project
guinea project
Kenya project
Indonesian project
