High-speed steel wire nail machine automatic low-cost nail/screw production line

Supplier: Shanghai Qipang Industrial Co., Ltd.
Region: Shanghai, China
Contact: Ms Anne Zhao
Price: $2668.00 / 1 - 99 pieces
$998.00 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

Power (kW):	5.5	Core component warranty:	1 year
volume:	1.551.31.1m	Main selling points:	High precision nail making machine
Weight (kg):	750,750 kg	Packaging Details:	wooden box
brand:	checkerboard	Core component warranty:	1 year
Production capacity:	10 rad/month	Video shipment inspection:	if
Showroom location:	not any	Mechanical test report:	if
Warranty:	1 year	After-sales service:	online support
Supply capacity:	10 acres per month	Marketing Type:	New Products 2020
Origin:	China	Health status:	new, new
payment terms:	Western Union, D/P, D/A, T/T	Core components:	gear
Power (kW):	5.5	port:	Shanghai Port
maximum. diameter. nail:	5.5mm	Applicable industries:	manufacturing plant

Product Description

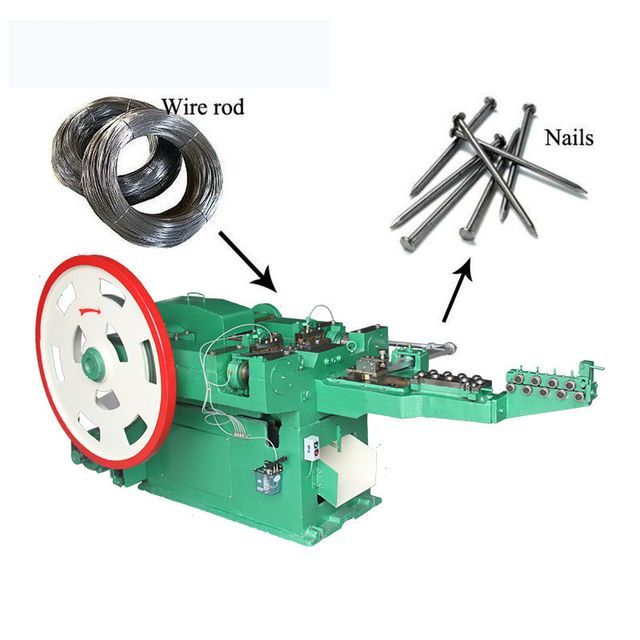

High-speed steel wire nail machine automatic low-cost nail/screw production line

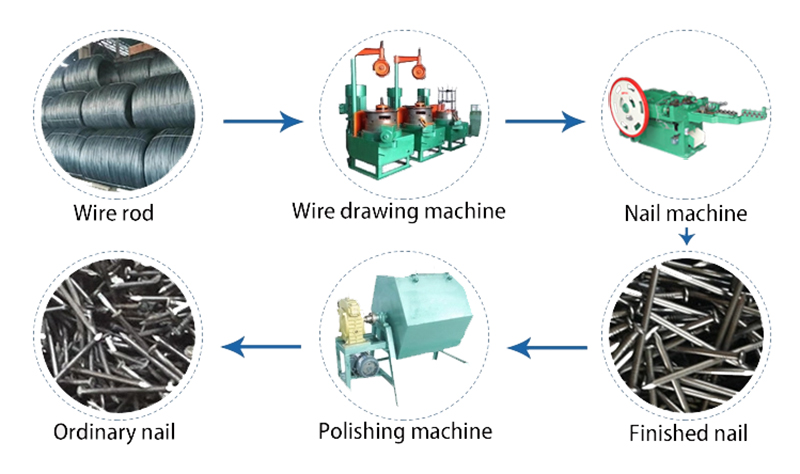

Nail making machines are all from the user's point of view. The raw materials for making nails include scrap steel heads,
Flat material, square material, screw material, old cold-drawn wire, old iron wire, etc.
These materials are first drawn to the diameter required for nail making by the "steel wire drawing machine" produced by our factory.
Then sent to the "nail making machine" to produce nails, polished and packaged for delivery
"Polishing machine" can be put into production with only 20 square meters of workshop.

Specification

Model	maximum. diameter. Nailed	minute diameter. Nailed	maximum. nail length	minute nail length	lengthwidthheight	weight
Z94-5C	5.5mm	3.8mm	150mm	80mm	2.51.81.5m	2.2 tons
Z94-4C	4.5mm	2.8mm	100mm	50 mm	2.21.61.65m	2 tons
Z94-3C	3.1mm	1.8 mm	75mm	30mm	2.01.41.4m	1.5 tons
Z94-2C	2.8mm	1.2mm	50mm	16mm	1.91.3561.4m	1 ton
Z94-1C	1.6 mm	0.9mm	25mm	9 mm	1.551.31.1m	750 kg
