Warranty: | 1 Year; | Weight: | 120kg; |
Usage: | wire straightening; | Packaging Detail: | Wooden frame; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Voltage: | 380V/440V; |
Certification: | ISO9001; | Function: | straighten; |
Main Market: | Europe; | Use: | Straightening and cutting; |
Power(W): | 1.5KW; | Supply Ability: | 100 Acre/Acres per Month; |
Brand Name: | QIPang; | After-sales Service Provided: | Online support; |
Material: | Carbon Steel; | Applicable Industries: | Energy & Mining; |
Place of Origin: | Shanghai China; | Condition: | New; |
Port: | shanghai; | Type: | Automatic straightening; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal; | Name: | wire straigtener; |
MOQ: | 1 Set; | Dimension(L*W*H): | 700mm*260mm*600mm; |
Product Keywords: | Flat Wire Straightener; |
Wire Straightener
Type :JZQ 1.5-4/18AV
Note: Please feel free to contact us if you need any customization.
Product Parameter
Wire Straightener parameter list | ||||
Product model | Wire diameter | Roller number | Roller diameter | Customizable |
JZQ0.1-0.3/24,AV | φ0.1-0.3 | 24 | 7 | |
JZQ0.3-0.5/34,AV | φ0.3-0.5 | 34 | 12 | |
JZQ0.5-0.8/26,AV | φ0.5-0.8 | 26 | 16 | |
JZQ0.8-2.0/18,BV | φ0.8-2.0 | 26 | 23 | 14,18,22 |
JZQ2.0-4.0/18,AV | φ2.0-4.0 | 18 | 30/32 | 14,22 |
JZQ4.0-7.0/18,AV | φ4.0-7.0 | 18 | 44/50 | 10,14,22,26 |
JZQ7.0-12.0/18,AV | φ7.0-12.0 | 18 | 47/70 | 10,14,22,26 |
JZQ12.0-20.0/18,AV | φ12.0-20.0 | 18 | 70 | 10,14,22,26 |
JZQ0.8-4.0/5,AV | φ0.8-4.0 | 5 | 23/30/32 | |
JZQ4.0-10.0/5,AV | φ4.0-10.0 | 5 | 42 | |
JZQ4.0-10.0/18,BV | φ4.0-10.0 | 18 | 42 | 10,14,22 |

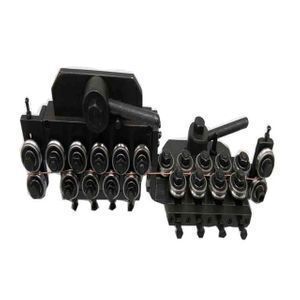

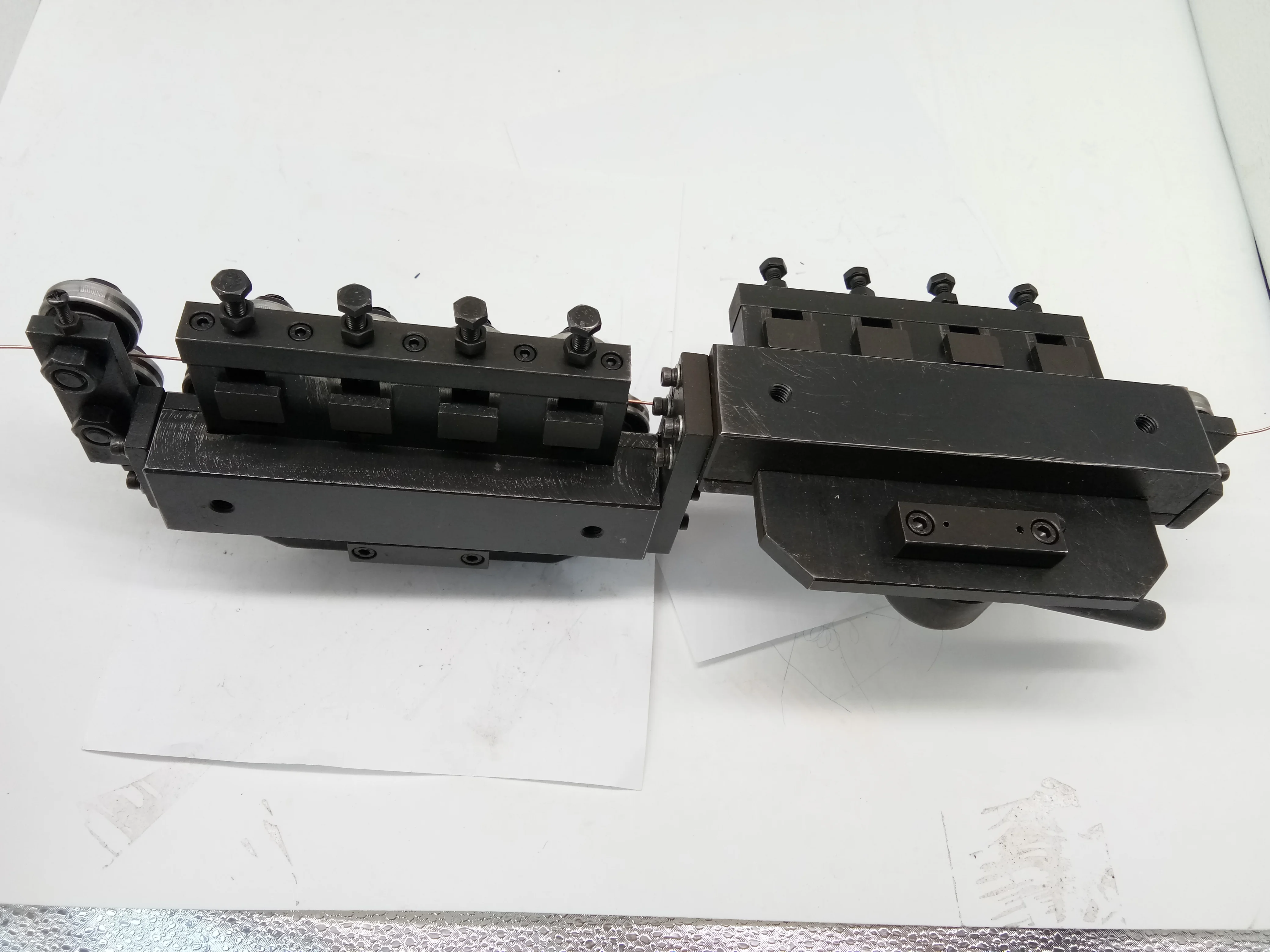

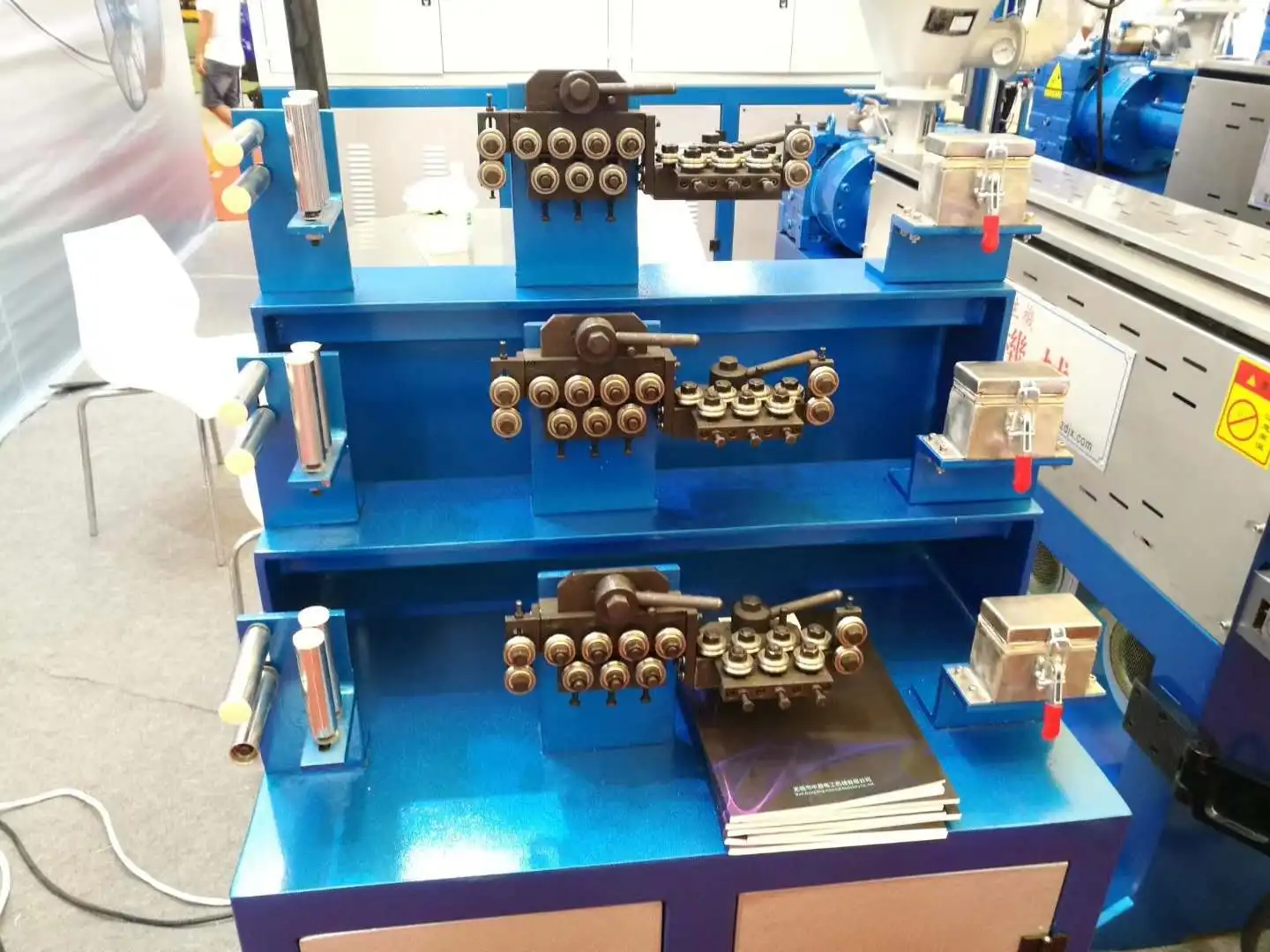

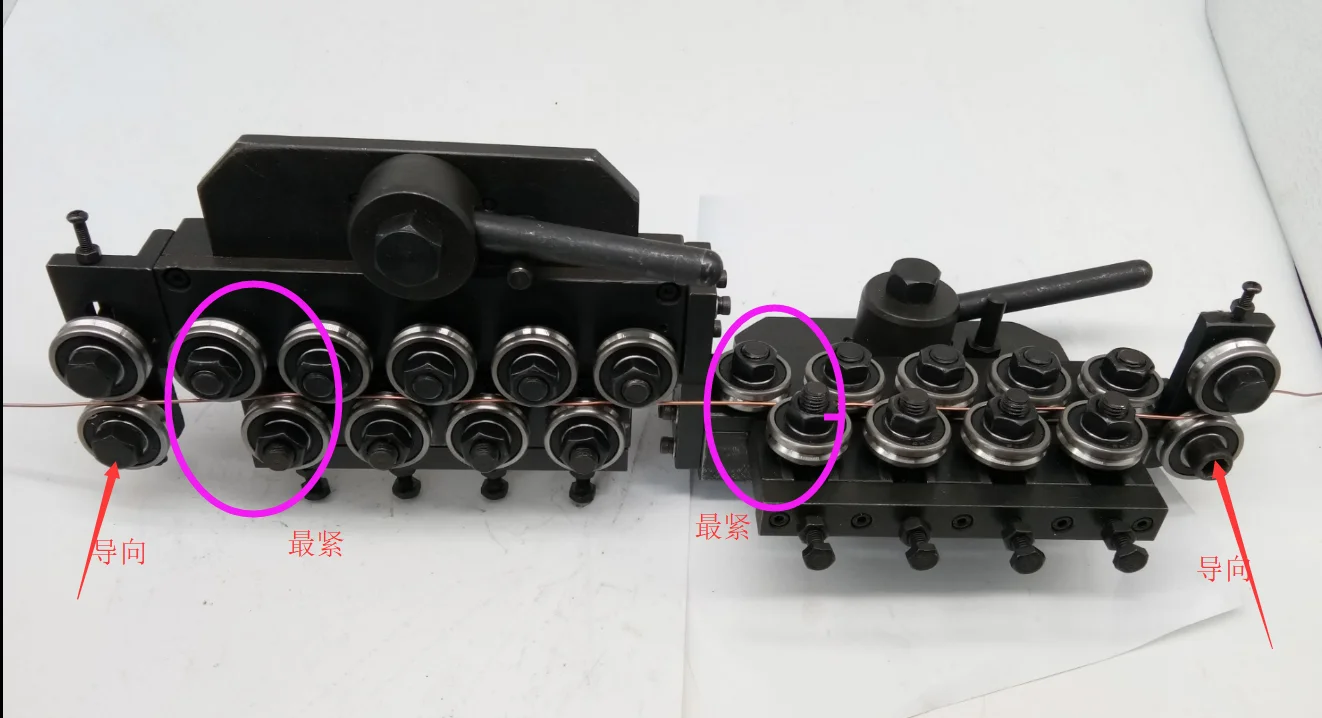

Product Picture
Our company and Cooperative partner
Shanghai Qi Pang Industrial Co., LTD is a professional manufacturer which is specialized in making rolling ring linear drives (traverse unit, rolling ring drive, linear actuators, linear motion assemblies), The company is located in the JiaDing district ,Anting Town, which is the world financial center in Shanghai.
We always adhere to the talent oriented and honest business principles since our company established . Our company will continue to attract talents in various fields and advance foreign advanced technology to make our products have a high quality and precision. Our company developed a new type machine in 2015. It is a new type of machine : Frequency Take-up machine.
We always adhere to the principle of quality first, credit first and customer first. We sincerely welcome our old and new customers to cooperate and create a better future.
