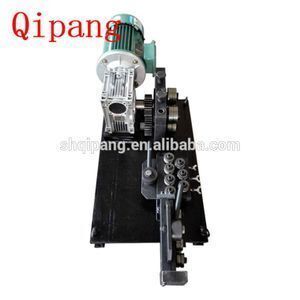

Automatic wire straightening machine factory and cutting machine for steel wire

Supplier: Shanghai Qipang Industrial Co., Ltd.
Region: Shanghai, China
Contact: Ms Anne Zhao
Price: $3.75 /pair
Min. Order: 1 pair

Click here to contact

Product details

Straightening wire material:	low Carbon Steel Wire;	Feeder:	Roller Feeder;
Local Service Location:	Egypt,Canada,Turkey,United Kingdom,none;	Brand Name:	Qipang;
Certification:	ISO9001;	Warranty of core components:	1 Year;
After-sales Service Provided:	yes,Video technical support,Online support;	Single gross weight:	68.0 KG;
Place of Origin:	Shanghai China;	Key Selling Points:	Easy to Operate;
Applicable Industries:	Manufacturing Plant;	Product name:	Rebar Straightening;
Single package size:	95X55X55 cm;	Function:	Straigthen Wheel;
Straightening material:	wire and pipe;	Use:	wire straight;
Application:	Stainless Steel straightener;	Warranty:	1 Year;
Video outgoing-inspection:	Provided;	Core Components:	traction;
Dimension(LWH):	955050cm;	Selling Units:	Single item;
Straightening Speed:	12m/min;	Machinery Test Report:	Provided;
Marketing Type:	Ordinary Product;	Type:	Straightener & Cutter;
After Warranty Service:	Video technical support;	Motor power:	220/380/110v;
Power:	Electrical;	Condition:	New;
Showroom Location:	Egypt,Germany,Indonesia,Thailand,none;	Weight:	150KG;
Package Preview:	;	Voltage:	220V/380V;
Material:	steel;	Packaging Detail:	Carton boxes, packing boxes, wooden and foam;

Product Description

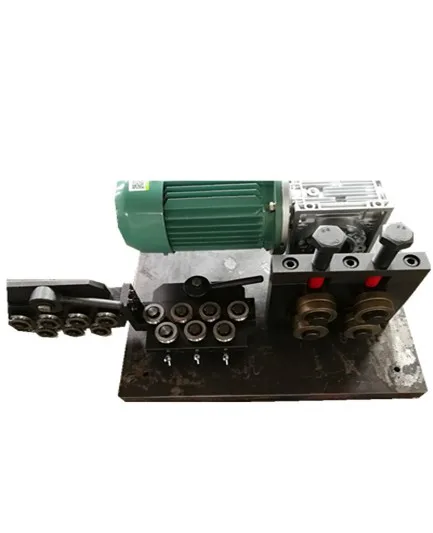

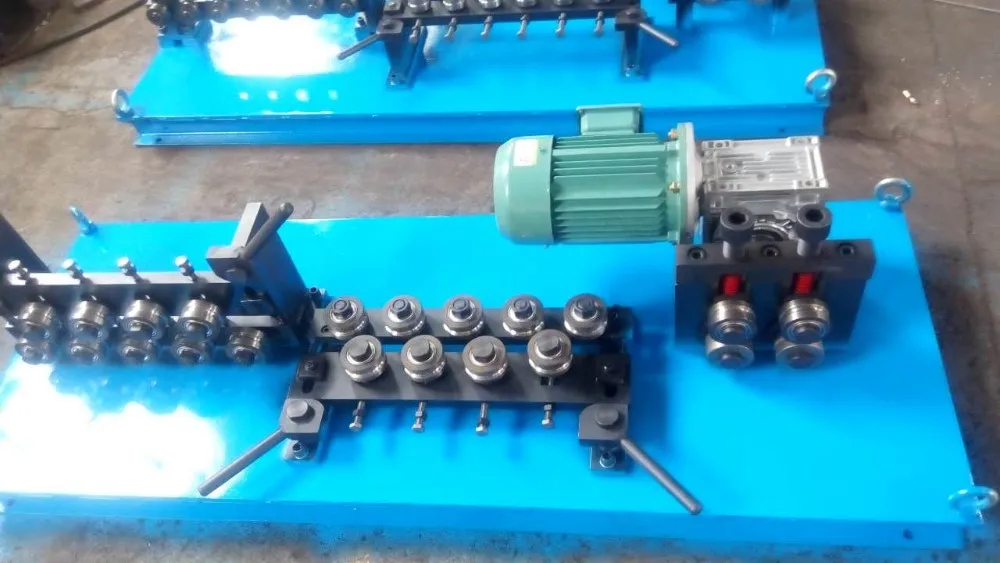

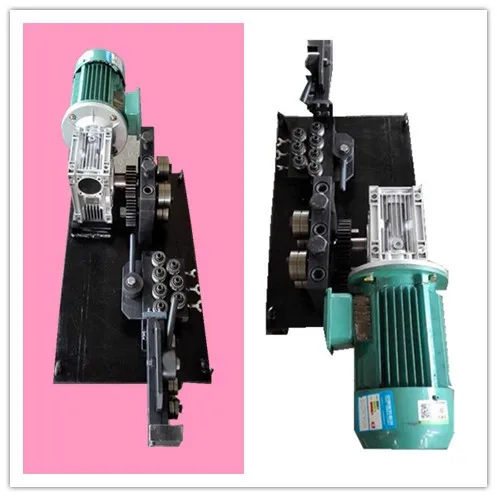

High quality automtic wire straightening and cutting machine, power copper strip straightener unit for 2-6mm wire.

Specifications

High quality automtic wire straightening and cutting machine, power copper strip straightener unit for 2-6mm wires

Model: JZQ--14/37 with a guide for the line between 2-6mm material oh.., and we also have more straighteners with more rollers such as:10, 18, 22, 26, rollers.
(Note: two pieces: the 5 rounds, a total of 5 rounds according to customer requirements)
Specification: suitable for 0.8--4mm wires
School of linear material: low, medium and high carbon steel wire, copper wire, molybdenum wire, wire, wire. Welding wire, wire, etc.
Diameter of straightening wheel is: 30mm
The wheels is smooth and no grooves.
Number of straightening wheel: 5 wheel ----22
Straight line material form: single group: horizontal straightening device; combination: vertical or horizontal or pneumatic straightening form.
The straightening wheel is separate to adjust, it is easy to find the centre.
Straightening device total quality: bare metal 6KG, even the packaging of about 8 kg.
The size of the straightening device is: 5 rounds of one: 165mm*110mm*33mm

Models represent:

Straightening machine type letter explanation: for example: J Z Q---5/30
JZQ--- straightener (first letter).
The number of 5------ alignment wheels is 18;
Diameter of 30------ straightening wheel.
A------- points: A type straightening device is the overall opening and closing form; B is a single straightening wheel independent movement adjustment; T is a special straightening device.
V------- is the groove of the straightening wheel; V, R, U and custom.

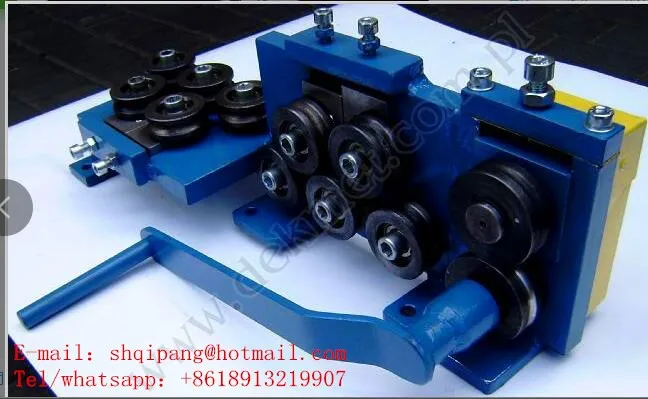

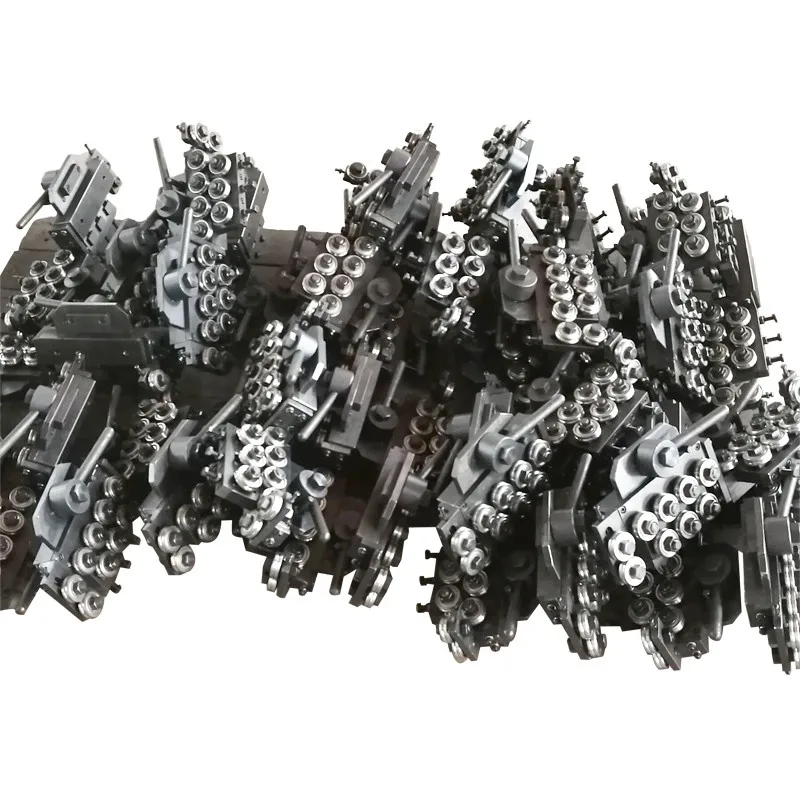

Besides this one, we have different straighteners with: 7+7 rollers, 9+9 rollers, 11+11 rollers, 13+13 rollers. We can customized the machine according you diameter and material.

parameter list

Product model	Wire diameter	Roller number	Roller diameter
JZQ0.1-0.3/24.A.V	0.1-0.3	24	7
JZQ0.3-0.5/34.A.V	0.3-0.5	34	12
JZQ0.5-0.8/26.A.V	0.5-0.8	26	16

JZQ0.8-2.0/18.B.V	0.8-2.0	26(14, 18,22 rollers)	23
JZQ2.0-4.0/18.A.V	2.0-4.0	18(14, 22rollers)	30
JZQ4.0-7.0/18.A.V	4.0-7.0	18(10, 14, 22, 26 rollers)	44/50
JZQ7.0-12.0/18.A.V	7.0-12	18(10, 14, 22, 26 rollers)	47/70

JZQ12.0-20.0/18.A.V	12-20	18(10, 14, 22, 26 rollers)	70
JZQ0.8-4.0/5.A.V	0.8-4	5	23
JZQ 4.0-10.0/5.A.V	4-10	5	42
JZQ 4.0-10.0/18.B.V	4-10	18(10,14,22rollers)	42

Related products

Other Products

Our Company

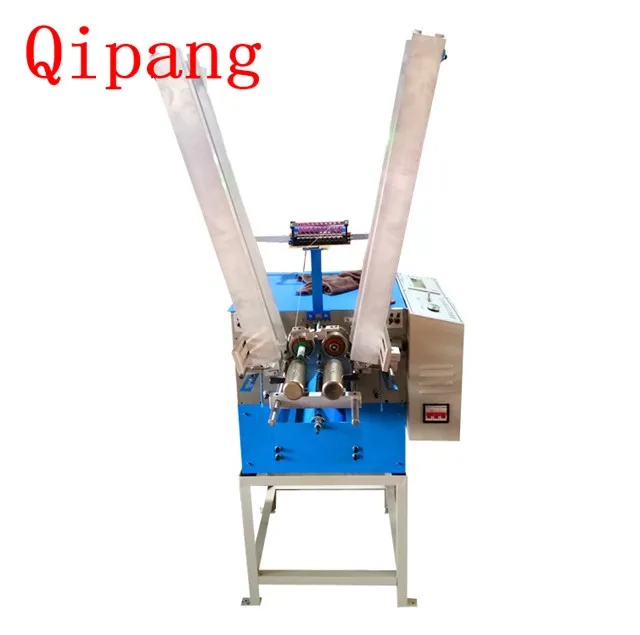

Shanghai Qi Pang Industrial Co., LTD is a professional manufacturer which is specialized in making rolling ring linear drives , Wire straightener , Take-up Machine , Winding Machines , winding machine and coiling machine (traverse unit, rolling ring drive, linear actuators, linear motion assemblies), The company is located in the JiaDing district ,Anting Town,
