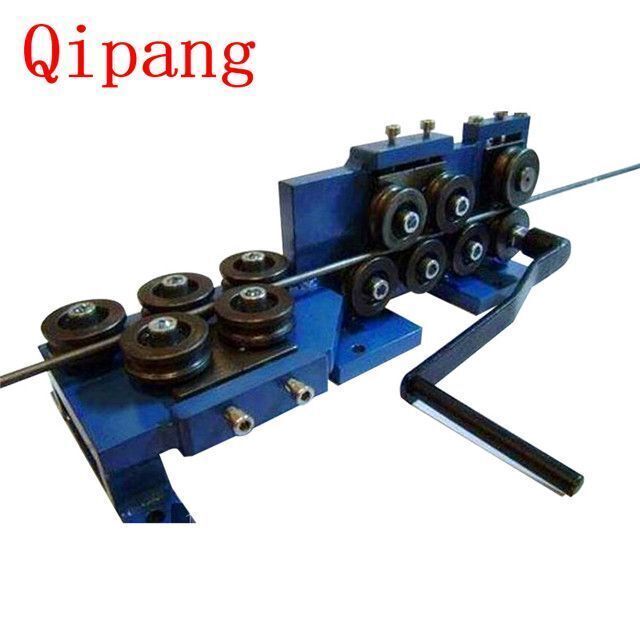

0.5-12mm rotary wire straightener steel plate straightening machine

Supplier: Shanghai Qipang Industrial Co., Ltd.
Region: Shanghai, China
Contact: Ms Anne Zhao
Price: $335.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Certification:	ISO9001;	Voltage:	380V;
After-sales Service Provided:	Engineers available to service machinery overseas;	Single gross weight:	15.0 KG;
Warranty:	1 Year;	Dimension(LWH):	320mm33mm110mm;
Marketing Type:	Ordinary Product;	Local Service Location:	None;
Applicable Industries:	Food & Beverage Factory,Food Shop,Printing Shops,Advertising Company;	Core Components:	Bearing;
Wire Material:	copper/steel/aluminum;	Material:	Steel Material;
Machinery Test Report:	Provided;	Warranty of core components:	1 Year;
Machine Type:	manual;	MOQ:	1;
Showroom Location:	None;	Condition:	New;
Single package size:	40X25X25 cm;	Packaging Detail:	Carton and wooden carton;
Place of Origin:	Shanghai China;	Power:	Electrical;
Product name:	metal straightening machine;	Video outgoing-inspection:	Provided;
Size:	320mm33mm110mm;	After Warranty Service:	Video technical support;
Use:	Other;	Usage:	wire straight;
Type:	Other;	Brand Name:	Qipang;
Weight:	22,22kg;	Selling Units:	Single item;
Key Selling Points:	Easy to Operate;	Straightening wheel:	steel;

Product Description

0.5-12mm rotary wire straightener steel plate straightening machine

Specification

Model	wire diameter	rollers number	roller dia/mm	remark
JZQ0.1-0.3/24.A.V	0.1-0.3	24	7
JZQ0.3-0.5/34.A.V	0.3-0.5	34	12
JZQ0.5-0.8/26.A.V	0.5-0.8	26	16
JZQ0.8-2.0/18.A.V	0.8-2.0	18	23	also can provide 5，10，14，18，22、26 rollers
JZQ 0.8-4.0/18.A.V	0.8-4.0	18	30	also can provide 5，10，14，18，22 rollers
JZQ4.0-7.0/14.A.V	4.0-7.0	14	42	also can provide 10,18,22,26rollers
JZQ4.0-10.0/5.A.V	4.0-10.0	5	42	also can provide 7.10、14、18、22、26rollers
JZQ 4.0-20.0/14.A.V	4.0-20.0	14	42/50/70	7.14.10.18.22rollers

Product Detail

Straightening wheels are made from bearings,made of Alloy roller set, Carbamide wheel, According to product specifications and
customer requirements to Configuration. You can do V groove, U groove.

Title goes here.

0.1-0.2mm

JZQ---wire straightener 38------ The number of straightening rollers is 38 7------ The diameter of the straightening roller
A------- A Type:The straightener is the integral open and close function .B Type:Single straightening wheel moves independently.
V-------The groove type of straightening roller; V,R,U,and customization Straightening wire specification：Φ0.1mm----Φ0.3mm Total
weight of straightener：The machine is 2.7 kg, including package about 3 kg Straightener size：length 220mm×width 120mm×height 120mm

JZQ0.5-0.8/26.A.V detailed parameters

JZQ---wire straightener Straightening wire specification：Φ0.5mm----Φ0.8mm 26------ The number of straightening rollers is 26
16------ The diameter of the straightening roller V------- The groove type of straightening roller; V,R,U,and customization
A------- A Type:The straightener is the integral open and close function .B Type:Single straightening wheel moves independently.
Straightener size：length 330mm×width 90mm×height 90mm Total weight of straightener：The machine is 6 kg, including package about 7
kg Applicable to solid wire of 0.5 -0.8mm

JZQ0.3-0.5/34.A.V detailed parameters

JZQ--- wire straightener 34------ The number of straightening rollers is 34 12------ The diameter of the straightening roller
A------- A Type:The straightener is the integral open and close function .B Type:Single straightening wheel moves independently.
V------- The groove type of straightening roller; V,R,U,and customization Straightening wire specification：Φ0.3mm----Φ0.5mm Total
weight of straightener：The machine is 3.6 kg, including package about 5 kg Straightener size：length 310mm×width 110mm×height 110mm
Applicable to solid wire of 0.3-0.53mm

0.8-1.5mm	7+7roller， dia in 23mm
1.5-3mm	7+7roller， dia in 30mm
0.8-1.5mm	9+9roller， dia in 23mm
1.5-3mm	9+9roller， dia in 30mm
