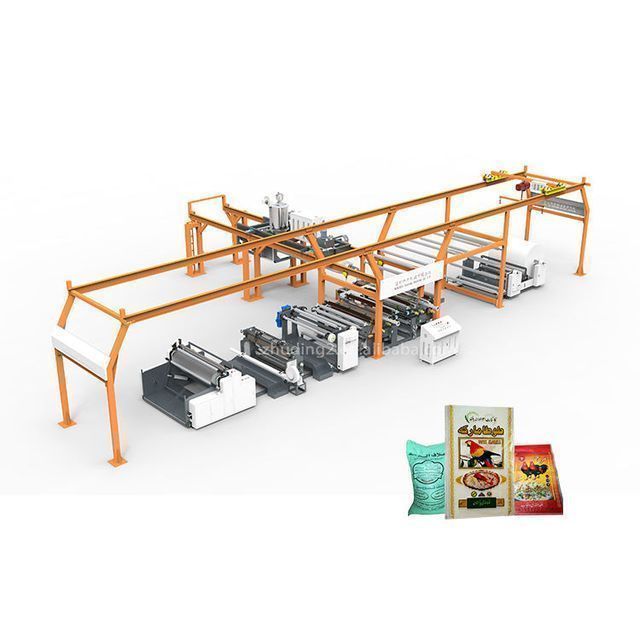

Wenzhou automatic woven fabric coating machine

Supplier: Wenzhou Zhuding Machine Co., Ltd.
Region: Zhejiang, China
Contact: Ms Sarah Shay
Price: $50000.00 / 1 - 4 sets
$45000.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	manufacturing plant	weight:	5500 kg
Marketing Type:	2019 Hot Products	brand:	bamboo top
Showroom location:	not any	Core components:	PLC, bearings, motors, gears
type:	coating machine	Voltage:	220/380/440
payment terms:	L/C, Western Union, T/T	type of packaging:	case
Supply capacity:	15 sets per month	Packaging Details:	Mechanical surface film packaging, can also be packaged according to customer requirements.
Function:	Laminator	Core component warranty:	1 year
Package preview:		Warranty:	1 year
Post-warranty service 3:	spare parts	Materials used for packaging:	wood
place of origin; place of origin:	Zhejiang, China	Driver type:	electrical
Video shipment inspection:	if	port:	Ningbo/Shanghai
Dimensions (LWH):	1380060002500mm	feature:	fully automatic
Main selling points:	easy to operate	After Warranty Service 4:	On-site maintenance and repair services
product name:	Coating compound machine	Mechanical test report:	if
application:	textile	Automatic level:	automatic
Health status:	new	usage:	coating
After Warranty Service1:	Video Technical Support	Post-warranty service 2:	online support

Product Description

Type/Item	Extruder screw diameter	Screw aspect ratio	Number of molds	Mold width	Total power(kw)	Extruder motor power (kw)	weight
SJ-FMF105/1000B	105	28:1	2	1000	58	18.5	5500 kg
SJ-FMF105/ 1200B	105	28:1	2	1200	70	18.5	6000 kg

product description:

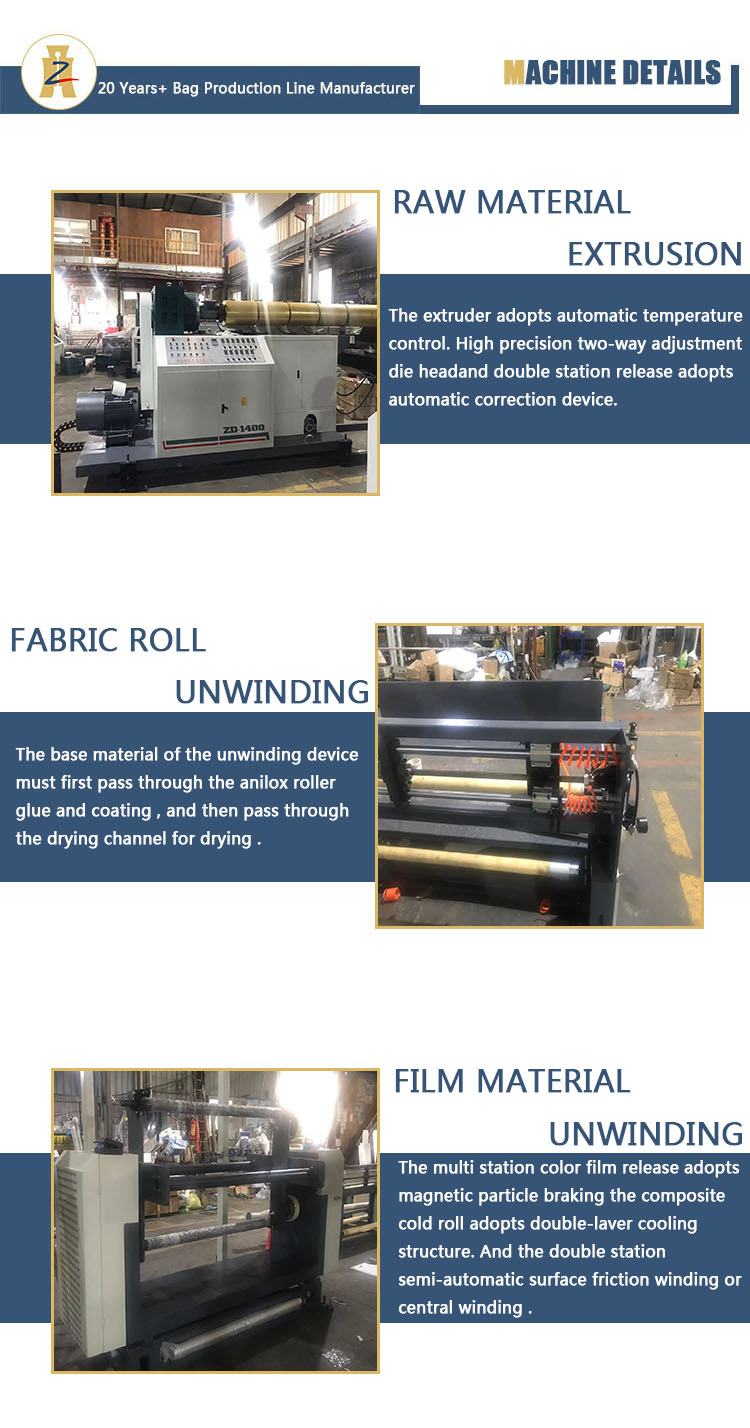

(1) This non-woven fabric compounding machine utilizes the good adhesive performance of polypropylene and polyethylene when melting, the machine adheres printing paper or color printed OPP and CPP film to the non-woven fabric, with helical gear reducer steel The extruder adopts an automatic temperature control system to adjust the melting temperature, and the screw and barrel are made of 38CRMOAIA alloy steel and are nitrided.

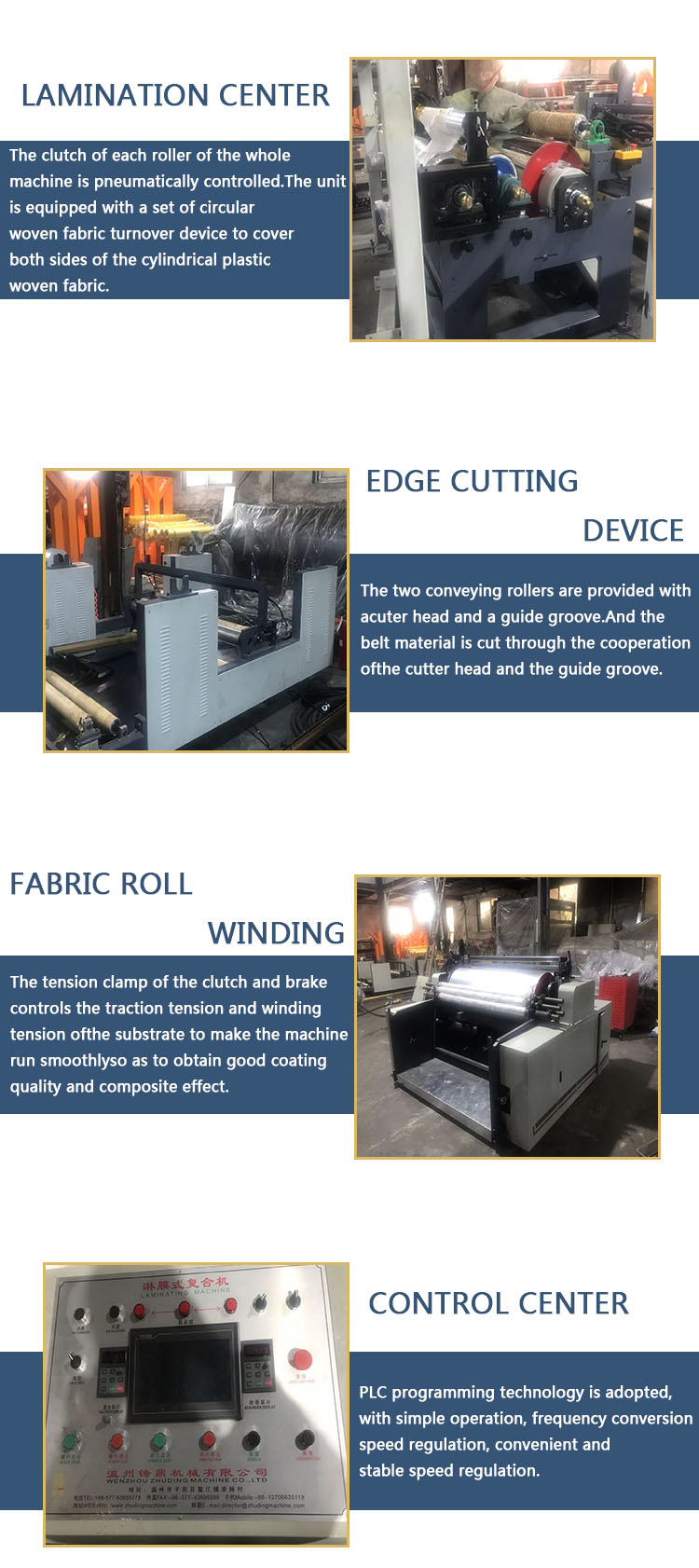

(2) Double-die head can be used for one-sided or double-sided coating, the width of coating and lamination can be adjusted, the speed of coating thickening and lamination can be controlled, and automatic edge trimming, edge blowing, cutting and winding devices are available.

(3) This machine has automatic feeding and refueling functions, PLC control system, automatic weight control system, human-machine operation interface, and is a high-quality supplier in the same industry.

1. Q: How soon can your engineer come to our factory?

A: Within one week after everything is ready (machine arrives at your factory, non-woven material, power supply, air compressor, etc. ready).

2. Q: How many days will you finish the installation?
A: We will complete the installation and training within 15 days.

3. Q: What should we charge for your engineer?
A: Air tickets, hotels, meals for our engineers, and their wages are 80USD/person per day.

4. Q: How long is the warranty period of your machine?
A: All of our machines have a half-year warranty for electrical parts and a one-year warranty for mechanisms, starting from the completion of installation.

5. Q: What if the parts are broken within the warranty period?
A: We will replace the parts for free during the warranty period.

6. Q: What do you do after one year warranty?
A: We can also provide service for you, but you need to pay the salary of USD 80/day per person for our technicians.

7. Q: Do your engineers understand English?
A: Our engineers know a little English. All of our engineers have more than five years of experience in machine installation.

8. Q: Can you help us find any engineer in our location?
A: Of course, we will verify and inform you as soon as possible.

9. Q: How can we solve the machine problem after your engineers leave?
A: Generally speaking, there will be no problems after the installation is complete. If you have any questions, you can contact our sales staff at any time. Our engineer will shoot the solution video according to your description.
