Applicable industries: | other | Main selling points: | automatic |
Mechanical test report: | if | Showroom location: | not any |
Video outbound inspection: | if | Automatic level: | automatic |
application: | Release film | weight: | 13000 kg |
MOQ: | 1 set | brand: | leap |
Drying method: | heat | After Warranty Service: | Video Technical Support |
product name: | Solvent-free silicone oil coating machine | Warranty: | 1 year |
Core component warranty: | 1 year | type: | coating machine |
Core components: | PLC, engine, pressure vessel, gear | Origin: | Zhejiang, China |
Dimensions (L*W*H): | 13000*2800*3800mm | Driver type: | electrical |
Materials used for packaging: | plastic paper | port: | Ningbo/Shanghai |
Health status: | new | payment terms: | L/C, Western Union, T/T |

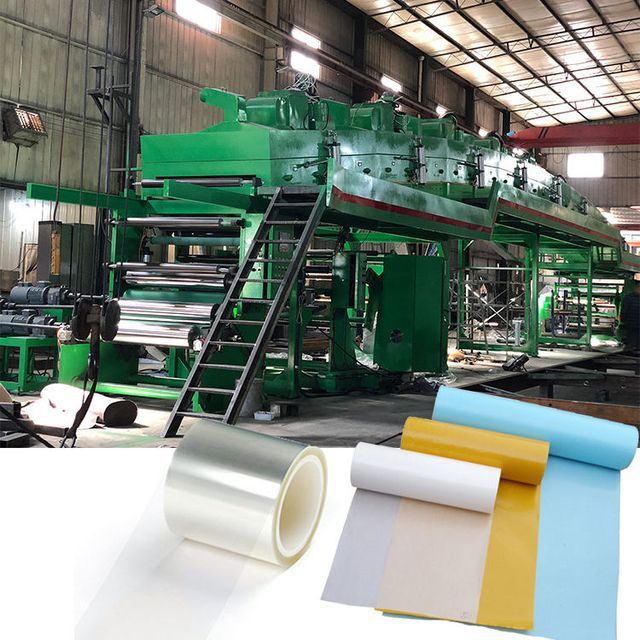

Model | TB600-2500 Solvent-free Silicone Oil Coating Machine |
Coating method | Comma blade coating/gravure roll coating/Meyer rod coating/air knife coating/five-roll coating/blade knife coating/slot die coating/micro gravure coating (customizable) |
Coating width | 600-2500MM (can be customized) |
Unwinding diameter | 600-1500MM (can be customized) |
Winding diameter | 600-1500MM (can be customized) |
Coating thickness | 2-300 g/m2 |
Coating speed | 10-300m/min (depending on the material) |
heating method | Electric heating, oil heating, natural gas heating |
We produce all kinds of coating machines, welcome to consult
Customized machines according to different requirements of customers (limited width 600-2500mm)

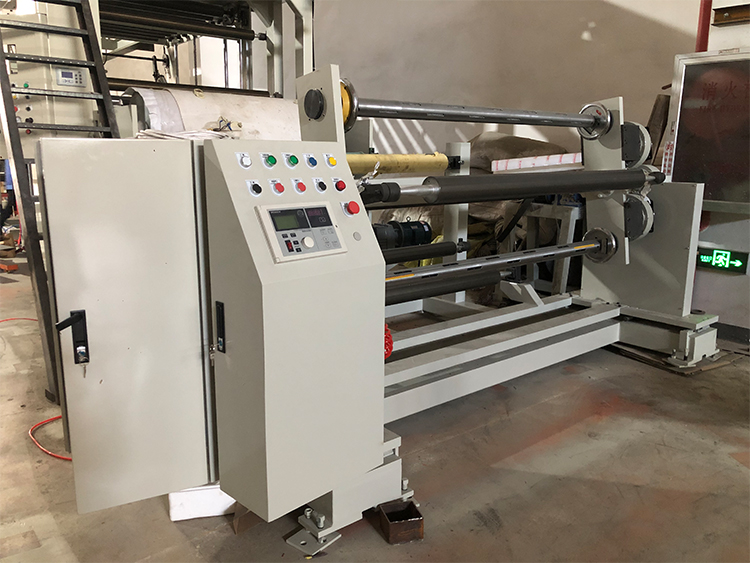

rewind
Single station (hydraulic type, climbing type) double station (non-stop automatic splicing system, non-stop manual splicing system) optional

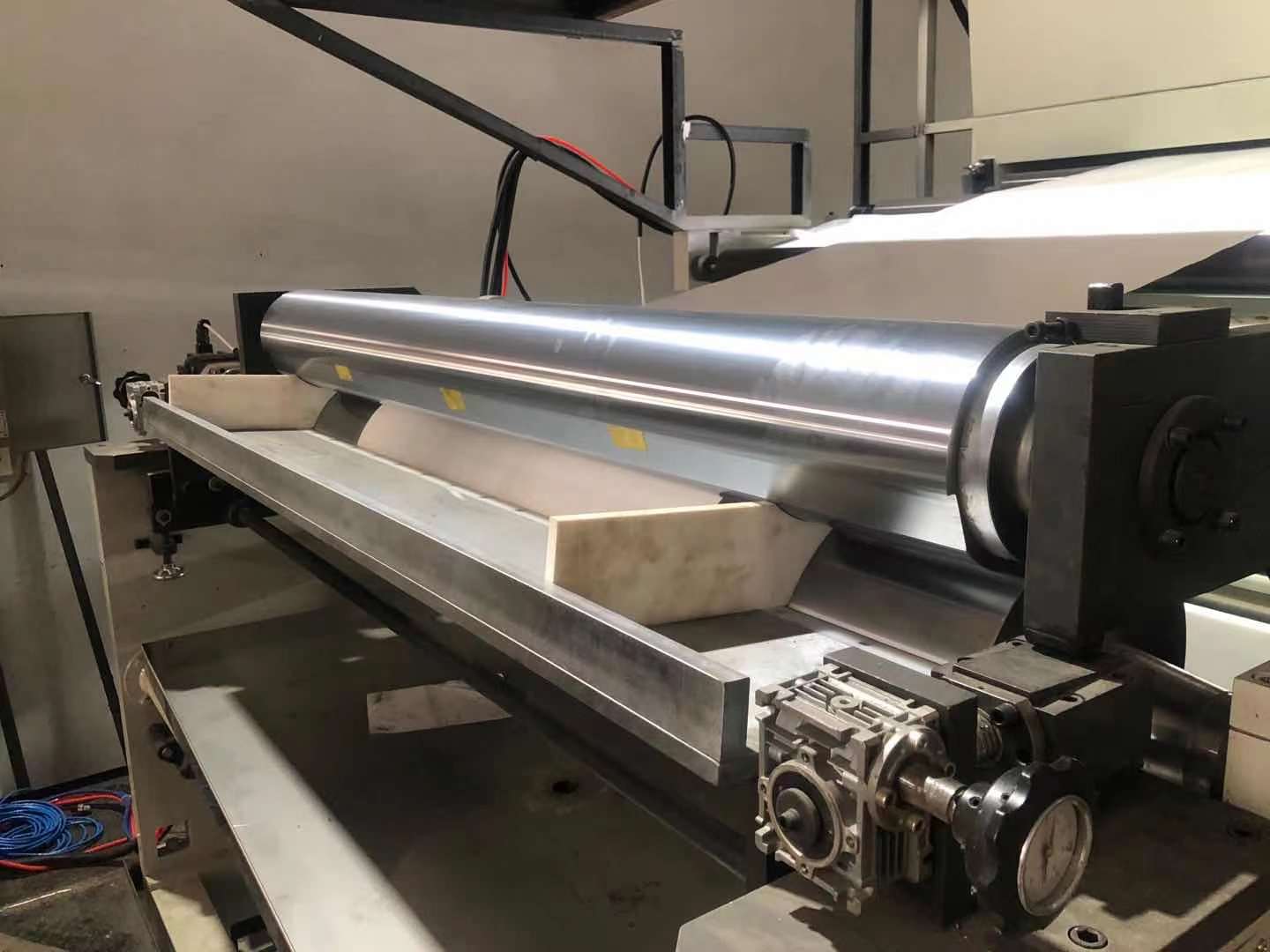

coating
Comma blade coating/gravure roll coating/Meyer rod coating/air knife coating/five-roll coating/blade blade coating/slot coating
Die coating/micro gravure coating (customizable)

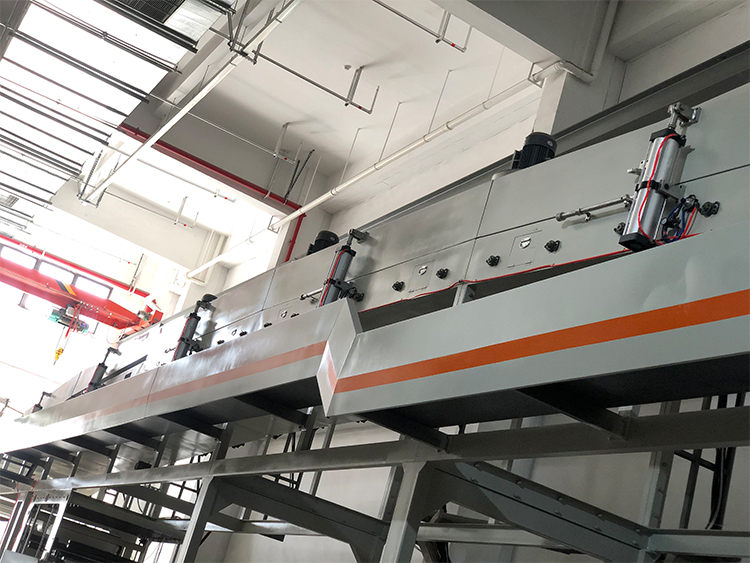

oven heating
Oven heating method: electric heating, thermal oil heating, gas heating, steam heating, etc. are available for customers to choose

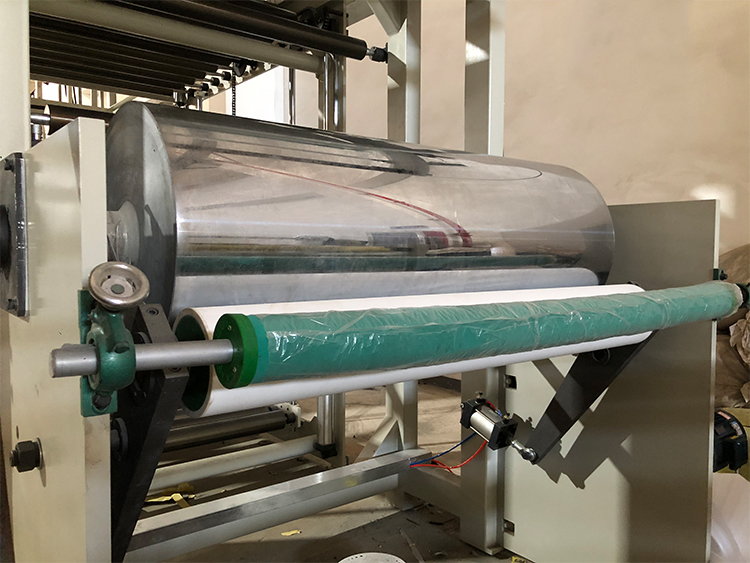

cool down
High-precision upward pressure traction device, steel roller cooling adopts water circulation, so that the film surface is smoother and more orderly. In order to achieve a good cooling effect.

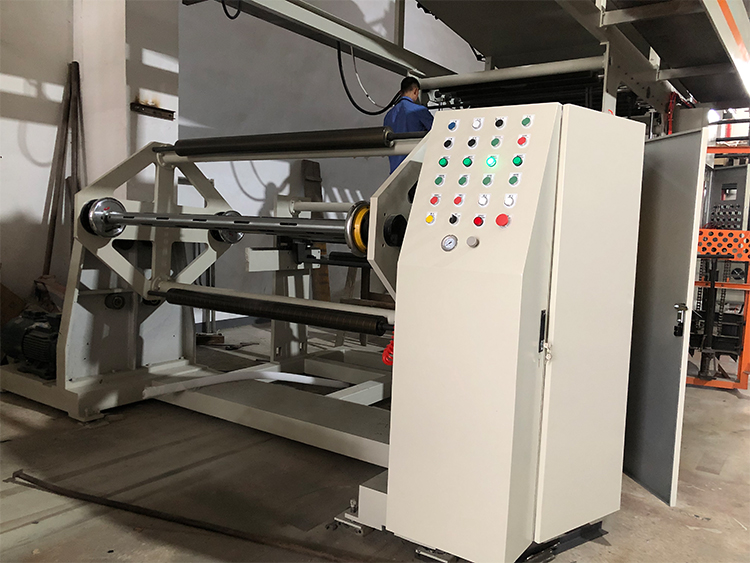

Unwind:
Single station (hydraulic type, climbing type) double station (non-stop automatic splicing system, non-stop manual splicing system) optional

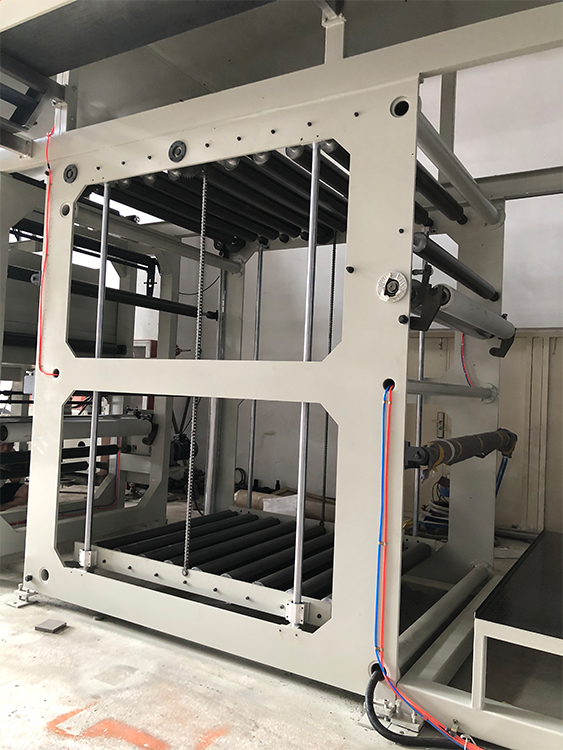

accumulator

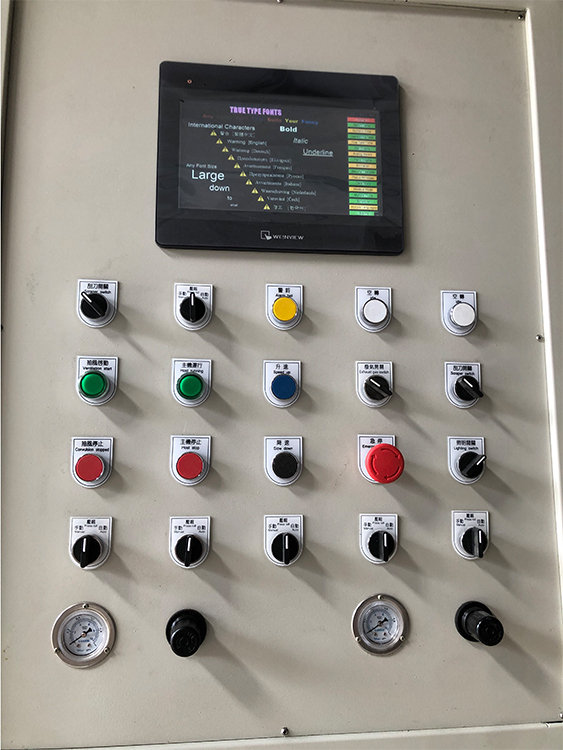

touch screen

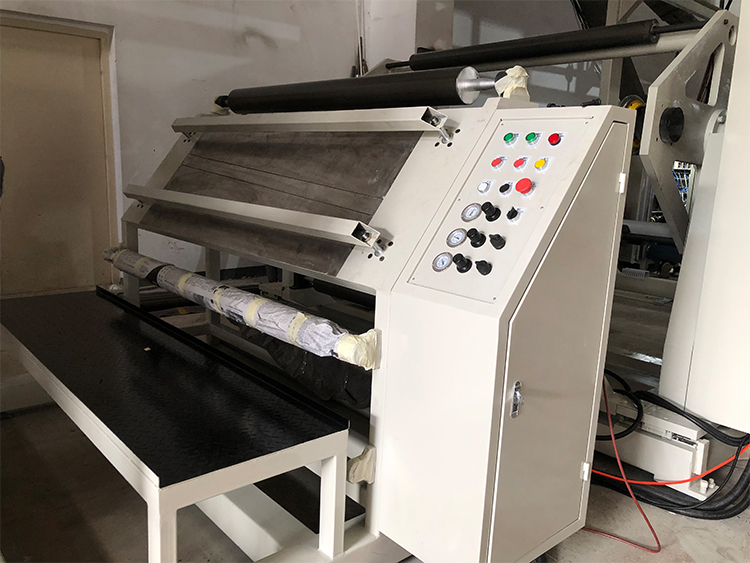

splicing table
Machine Specifications:
1. The whole machine is controlled by 4 frequency conversion motors, and the whole machine adopts automatic tension control to keep the speed synchronous. 2. The feeding rack is independent and adopts magnetic powder automatic tension control. 3. The pattern coating method, the coating scraper shaft adopts a heavy-duty double-axis machine to swim independently. The adjustment method of the scraper is manual and pneumatic, and the angle can be adjusted arbitrarily. The amount of coating depends on the mesh of the screen roll. Different mesh rolls can change different coating amounts. 4. The oven is 10 meters long, and the temperature is controlled independently in 4 sections. Electric heating hot air enters the drying system. The heating box is external, and the heating tube is made of stainless steel with heat sink. Adjustable internal circulation suction and exhaust device, adjustable. The air intake and exhaust are strong, and the drying is complete. 5. The guide wheel in the oven is actively synchronized with the main machine, and the transmission is carried out by synchronous belt wheel transmission, which reduces the tension and deformation of the material. The cylinder open-top oven and the film-through operating platform make it easy for the operator to work. 6. The tension of coating roller and traction steel roller adopts automatic tension control of floating swing arm. 7. Automatic meter counting speed control device; 8. EPC air-sensitive edge correcting machine is used to correct the deviation to keep the material neatly rolled. 9. The key-type air-expanding shaft is used for storage and storage, which is convenient for material handling. 10. High-precision upward pressure traction device, steel roller cooling adopts water circulation type, through the cooling roller, the film is smoother, more scratchy, and has a better cooling effect.
