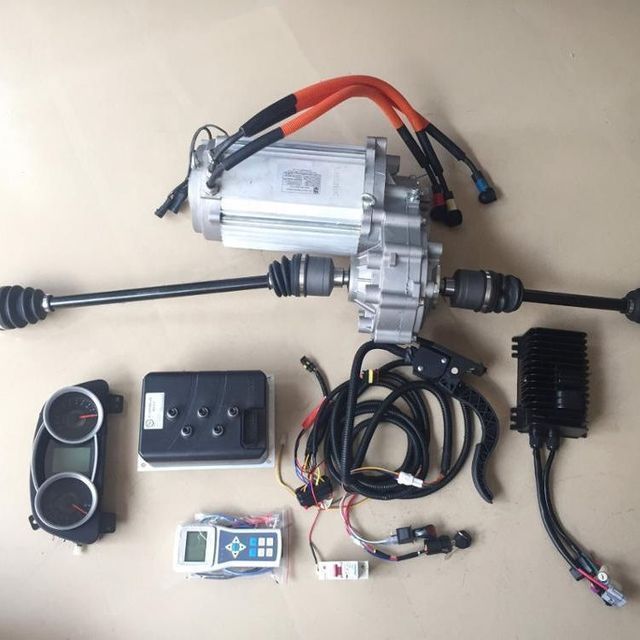

96V 10KW AC Motor Electric Vehicle Complete Conversion Supplier EV Traction Motor

Supplier: Guangdong Shinegle New Energy Technologies Co., Ltd.
Region: Guangdong, China
Contact: Ms SHINEGLE CN
Price: $1000.00 / 1 - 9 sets
$950.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Rated voltage:	96V	model:	10 kW
place of origin; place of origin:	Guangdong, China	weight:	45 kg
Supply capacity:	10000 sets per month	Protection class:	IP65
Packaging Details:	Seaworthy packaging	brand:	shine
Rated speed:	3000 rpm	Rated current:	108A
cool down:	air cooled	Duty system:	S1
Card:	shiny	port:	Shenzhen/Guangzhou/Foshan
rated power:	10 kW	payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
maximum. speed:	6800 rpm

Product Description

Applications

SHINEGLE motors, controllers, gearboxes, batteries, chargers, etc. are widely used in electric modified vehicles

25 ton crawler excavator specifications
motor	Rated power: 7.5/10/15KW	Responsibilities: S1	Maximum speed: 7500 rpm
	Rated voltage: 72/96/108V	Net weight: 35~50kg	Speed sensor: 64 pulses
		Rated speed: 3000~4500rpm
controller	Rated voltage: 72/96/108V	Rated output current: 100/120	Maximum output current: 500A
	Efficiency: 98%	Protection class: IP65	Packing: wooden box
	Net weight: 5~10kg	Ambient temperature: -40 ~ 50°C	HS:8714990000
gearbox	Speed Capability: 9000 rpm	Ratio: 6:1/8:1/10:1/12:1	Packing: wooden box
	Torque capacity: 180N.m	Center distance: 50~106mm	HS:7326909000
	Noise: ≤65dB	EST. Net weight: 15~30kg

main feature

1) Large torque and fast speed

2) Hands-on instruction, installation and use

3) Provide customers with the fastest system solutions

4) Calculate and test with customer

5) The system testing time is long and the product maturity is high

certified

detailed image

Mechanical Parts

Name:motor

Card:shine

The original:China

Maintenance-free motor. It is the most promising motor for electric vehicles. Compared with DC motors, AC motors have greater advantages such as higher torque.

main feature

Name:controller
Card:shine
The original:China
Vector control is one of the best ways to control motors. We have tested this system for more than 10 years, and the current stability is very high.

Mechanical Parts

Name:gearbox
Card:shine
The original:China
Low noise and high transmission efficiency are the two advantages of the gearbox

main feature

Name:Batteries and Chargers
Card:shine
The original:China
At present, my country's lithium-ion battery cell production technology is in the leading position in the world. We can provide customers with a guarantee of 100,000 kilometers.

our service

pre-sale service

* Customers send inquiries

* Customize suitable system

* Sample testing support.

After-sales service

* Timely technical communication

* Result feedback and improvement

Packaging and Shipping

Package
size	1280(L)456(W)789(D)
weight	1.2 tons
packaging details	The normal packing is wooden case (size: LWH). If to European countries, wooden boxes will be fumigated. If the container is too tall, we will use PE film for packing or packing according to customer's special requirements.

Bale
size	123(L)456(W)789(D)
weight	100 kg
packaging details	The normal packing is wooden case (size: LWH). Sometimes we choose cartons when we ship by air
