PWM Technology 15000w 108v EV Car Motor Kit and Controller

Supplier: Guangdong Shinegle New Energy Technologies Co., Ltd.
Region: Guangdong, China
Contact: Ms SHINEGLE CN
Price: $499.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	China;	Protection Grade:	IP67;
Rated Power:	15kw;	Packaging Detail:	Seaworthy Packing;
Output Power:	15kw;	Model Number:	Brushless Motor Controller;
Delivery Detail:	15 days after payment received;	Phase:	Three-phase;
Rated Voltage:	108v;	Type:	Asynchronous Motor;
Weight:	55kg;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Brand Name:	Shinegle;	Protect Feature:	Waterproof;
Rated Speed:	3000r/min;	Supply Ability:	10000 Set/Sets per Month;
Frequency:	100Hz;	Name:	ev car kit;
Rated Torque:	65N.m;	AC Voltage:	108v;
Application:	Electric Vehicle or Boat;	Efficiency:	IE 2;
Peak Torque:	150N.m;	Port:	Shenzhen, Guangzhou or Foshan;
Certification:	CCC,CE,ROHS,UL;	Max. Speed:	7500r/min;

Product Description

About US

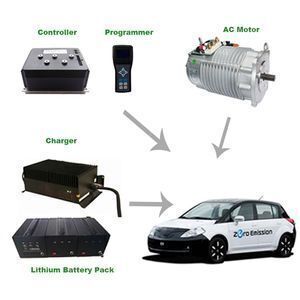

We are a provider of electric vehicle components, including motor, controller (with programmer and accelerator), charger and battery pack.

Our driving system is suitable for various types of electric vehicle, like low speed electric vehicle (golf cart, tricycle), delivery car and modified car, in which, 7.5/10/15kw is especially for modified car. Moreover, the controller and motor can be applied to electric boat.

SHINEGLE motor,controller,gearbox,battery,charger,etc.are widely used in electric conversion vehicles

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
Motor	Rated Power:7.5/10/15kw	Duty:S1	Max. Speed:7500rpm
	Rated Voltage:72/96/108v	Net Weight:35~50kg	Speed Sensor:64 Pulse
		Rated Speed:3000~4500rpm
Controller	Rated Voltage:72/96/108v	Rated Output Current:100/120a	Max. Output Current:500a
	Efficiency:98%	Protection Grade:IP65	Packing:wooden box
	Net Weight:5~10kg	Ambient Temperature:-40 ~ 50℃	HS:8714990000
Gearbox	Speed Capacity:9000rpm	Ratio:6:1/8:1/10:1/12:1	Packing:wooden box
	Torque Capacity:180N.m	Center Distance:50~106mm	HS:7326909000
	Noise:≤65dB	Est. Net Weight:15~30kg

Main Features

1) High torque and fast speed

2) Hands-on instruction, installation and use

3) Provide customers the fastest system solutions

4) Work with clients to calculate and test

5) Long time system testing, product maturity

Certifications

Detailed Images

Name: Motor

Brand: SHINEGLE

Original: China

Maintenance-free motor. It is the most promising motor for electric vehicles. Compared with DC motor, AC motor has more advantages, like larger torque.

Name: Controller
Brand: SHINEGLE
Original: China
Vector control is one of the best ways to control motor. We have tested this system for more than 10 years, and the current stability is very high.

Name: Gearbox
Brand: SHINEGLE
Original: China
Low noise and high transmission efficiency are the two main advantages of the gear box.

Name: Battery and Charger
Brand: SHINEGLE
Original:China
At present, China's lithium-ion battery cell production technology is in the world's leading position. We can provide 100,000km protection for our customers.

Our Service

Pre-Sales Service

* Customer sends inquiry

* Tailor the right system

* Sample testing support

After-Sales Service

* Timely technical communication

* Result feedback and improvement

Packing & Delivery

Packing
Size	1280 (L) * 456 (W) * 789 (D)
Weight	1.2 T
Packing Details	Normal packing is wooden box(Size: LWH). If to European countries,the wooden box will be fumigated. If container is too high,we will use PE film for packing or pack it according to customers special request.

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	100kg
Packing Details	Normal packing is wooden box(Size: LWH). Sometimes we choose cartons when by air

Electric Vehicle Conversion Kit

AC Motor Controller

DC Motor Controller

To meet customers’ needs is our aim. Feel free to contact us if you have any problem for we have confidence in providing an ideal solution for you with 15-year experience in developing motor and motor control system.
