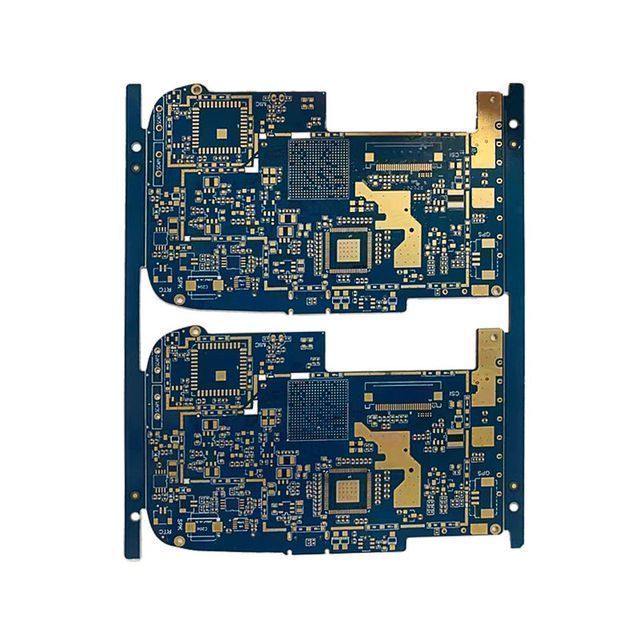

China High Quality Customizable Multilayer Gold Immersion FR4 HDI PCB Printed Circuit Board Manufacturer

Supplier: Shenzhen Beton Technology Co., Limited
Region: Guangdong, China
Contact: Ms Penny Chen
Price: $1.98 / 1 - 99 pieces
$1.76 / 100 - 499 pieces
$1.48 / >=500 pieces
Min. Order: 1 piece

Click here to contact

Product details

Supply capacity:	40000 square meters per month	Minute line width:	0.075 mm
port:	Shenzhen	Packaging Details:	Desiccant+vacuum packing+carton
Copper thickness:	0.3 oz - 5 oz	Minute line spacing:	0.075 mm
brand:	Beton	type:	HDF
Board Dimensions:	custom made	Plate thickness:	1.6
model:	High density board PCB-101	place of origin; place of origin:	Guangdong, China
Surface treatment:	ENIPIG	payment terms:	Western Union, T/T, Paypal
Silkscreen:	white	Solder Mask:	blue
Substrate:	FR4	Minute Hole Size:	0.01mm

Specification

model	Custom Printed Circuit Board China
type	motherboard pcba
place of origin; place of origin	Guangdong, China
supplier type	PCB board manufacturing
PCB project	PCB, flexible PCB, flexible PCB, HDI PCB, high frequency PCB, aluminum/metal core PCB, ceramic PCB
laminated material	FR4, High TG FR4, High Frequency, Alum, FPC
layers	1-48 floors
Serve	Printed Circuit Boards and PCB Assembly
plate thickness	0.1-4mm±10%
copper weight	0.5-30z
Drilling size	Minimum 0.2mm
Solder mask color	Green, white, black, red, blue
Maximum size of veneer	700*460mm
surface treatment	HASL, ENIG, immersion silver, immersion tin, OSP

Product Description

Multilayer PCB Board Manufacturing Custom Printed Circuit Board China

About Beton What can BETON do?BETON is a professional PCB / PCBA manufacturer in Shenzhen, China. After 20 years of development, FASPCBA has become a first-class PCB/PCBA manufacturer. From multilayer boards to flexible printed circuit boards, BETON is your one-stop shop. We provide PCB fabrication, PCB assembly and parts sourcing services to our customers to save your time and cost.

BETON was selected as "Excellent Partner of the Year" by many well-known enterprises, and has obtained many domestic and foreign authorized certification system standards such as China's high-tech project certification, ISO9001, ISO14001, ISO13485, IATF16949 quality management, and can customize CE, UL, FCC and other product certification.

Application industry

BETON PCB factory products are widely used in communication equipment, industrial control, automobile, medical equipment, security electronics, consumer electronics, aerospace and other high-tech fields.

aerospace

car

Consumer electronics products

industrial equipment

led light

Maritime application

medical equipment

Safety and Security Equipment

Telecommunications equipment

Circuit board manufacturing

As an 18-year PCB manufacturer in China, BETON provides the electronics industry with the latest printed circuit board technology and the highest quality standards. You can trust us to meet your needs, from small batches to high-volume production, whether it is the simplest or the most complex PCB boards.18 years experienceAccepted Standards: IPC III, Military, Automotive, Medical, We Provide You with Extended PCB Capabilities: PCB, Flex, Flex, HDI Board, High TG PCBPrototype PCBs up to 48 layersManufacture PCB boards up to 56 layers, raw materials: Fr4, Rogers, Arlon, Teflon, Taconic, Nelco, Isola, Ceramic, Metal coreMass production up to 18 layersSupport PCB surface technology: HASL-LF, ENIG, Plating gold, Immersion tin, Immersion silver, ENIPIG, OSP

rigid-flex board

soft board

HDF

ceramic plate

High frequency circuit board

rigid-flex board

Aluminum/Metal Core PCB

soft board

BETON PCB production capacity
article	describe	skillfully
laminated material	FR-4, High TG FR-4, Halogen Free material, KB, ITEQ, ShengYI, PTFE, Rogers, Arlon, Taconic, Teflon, etc. Materials according to customer needs.
PCB type	HDI PCB board, Flexible PCB (FPC), Rigid-Flex PCB, High Frequency PCB, Alu/Metal Core PCB, Ceramic PCB
surface treatment	HASL, ENIG, ImAg, ImSn, LF-HASL, OSP, electrolytic flash gold, electrolytic soft gold, electrolytic hard gold
panel length	shortest	300*300
panel length		longest	1400*610
plate cutting	layers	1-48
plate cutting		Minimum inner layer thickness (except copper thickness)	0.07mm
plate thickness	standard	0.3-8mm
		minute	Single/Double: 0.0080.004
				4 layers: 0.01±0.008
				8 layers: 0.01±0.008
		bow and twist	Not more than 7/1000
copper weight	Copper Weight	0.5-10 0Z
copper weight		Copper inner weight	0.5-12 0Z
Solder mask	color	Green, white, black, red, blue...
		Minimum Solder Mask Clearance	0.003' (0.07mm)
		thickness	0.008-0.55mm
Sikh wire mesh	color	White, black, yellow, blue...
Sikh wire mesh		smallest size	0.006*(0.15mm)
golden finger	gold thickness	0.025-1.51
golden finger		bevel	15°-60°
drilling	Minimum drilling size	0.15mm
		HDI laser drill	0.1 mm
		aspect ratio	20:01
		drill into metal	0.15(<8L)-0.175(≥8L)
Board Outline	Square, round, irregular (with jig)

PCB Assembly

BETON is a PCB assembly manufacturer in China, providing complete PCB assembly services in Shenzhen, BETON is able to provide turnkey and partial turnkey printed circuit board assembly services. For complete turnkey, we take care of the entire process, including fabrication of printed circuit boards, sourcing of components (100% original), PCBA testing, continuous monitoring of quality and final assembly.Flexible volume assembly alternatives:· Prototype PCB assembly · Low-volume, high-mix PCB assembly · High-volume PCB assembly · Rapid turnkey PCB assembly

Various PCB Assembly (PCBA)

BETON Detailed PCB Assembly Capabilities
feature	ability
quantity of order	The MOQ is 5 pieces.
delivery time	24-hour urgent service is available. PCBA prototype orders usually take 3-4 days. When we quote for you, we will give you the exact delivery time.
Printed Circuit Board Specification Requirements	maximum. Sheet size: 500mm X 400mm
		Circuit board type: rigid PCB, flexible PCB, metal core PCB
		Surface treatment: lead/lead-free HASL, immersion gold, etc.
Assembly type	surface mount
		through hole
		Mixed technology (SMT and through-hole)
Component procurement	Full turnkey (all components sourced by BETON ELECTRONICS)
		part turnkey
		Complete set/consignment
component type	BGA 0.25mm pitch with X-ray inspection
		passive components
		Hard Metric Connectors
		Wire and Cable
		piece
Introduction of SMT Parts	cutting tape
		part scroll
		reel
		tube
		tray
		Laser cut stainless steel
cable assembly	We provide custom cables, cable assemblies, wire harnesses/harnesses and power cords to a variety of industries including automotive, security, mining, medical and entertainment.
template	Stencil with or without frame (free from BETON PCBs Factory)
quality inspection	Vision inspection; AOI inspection; BGA placement – X-ray inspection

Component procurement

We can purchase according to the supplier designated by the customer. It also helps customers review and improve supply chains, determine the specifications of electronic components, reduce costs and avoid the introduction of any defective products.

about us

Our advantage

BETON PCBs Factory started in 2003, now we have 18 years of PCB manufacturing experience, with advanced production equipment and professional engineering team and production staff, now we focus on multilayer PCB, HDI board, high frequency PCB, flexible PCB ( FPC) and rigid-flex PCB manufacturing. So no doubt, we are your professional PCB manufacturer's choice.
