type of battery: | ni-cd 4/5sc1200mah rechargeable battery | port: | Hongkong |
Packaging Details: | Export parcels by sea or air and express according to UN standards. | brand: | new jump |
size: | ni cd sc 1200mah rechargeable battery 1.2v,23(D)*43mm(H) | Termination voltage: | 1.0 volts |
Supply capacity: | 300,000 pieces per day | Shipping Details: | 7-25 days |
type: | Nickel Cadmium | Charges: | 0.1C about 16 hours |
payment terms: | L/C, T/T, Western Union, MoneyGram | OEM and ODM service: | supply |
place of origin; place of origin: | Guangdong, China | model: | ni cd sc 1200mah rechargeable battery 1.2v |
capacity: | 1200mAh | fast charging: | 0.2C about 7 hours |
Continuous working current: | 3C | Cycle life: | More than 500 cycles (IEC61951-2) |
fast charging: | 0.5C about 2.4 hours | Nominal capacity: | 1200mah |
standard: | 1.2V |
huanyu ni-cd 4/5sc1200mah vacuum cleaner rechargeable battery
1. Specifications:
2. Nominal specification |
|
2-1. Nominal voltage | 1.2V |
2-2. Nominal Capacity* | 1200mAh |
2-3. Minimum Capacity* | 1150mAh |
2-4. Charging** |
|
standard charge | 0.1C 16 hours |
fast charging | 0.2C 7 hours |
fast charging | 0.5C 2.4 hours, –ΔV=5mV/cell |
2-5. Discharge termination voltage | 1.0V/battery |
2-6. Temperature (recommended) |
|
Charges | 0~40 degrees Celsius |
fast charging | 10~40 degrees Celsius |
fast charging | 10~30 degrees Celsius |
freed: | 0~50 degrees Celsius |
Storage: less than 30 days | -20~50 degrees Celsius |
less than 90 days | -20~40 degrees Celsius |
less than 1 year | -20~30 degrees Celsius |
2-7. Relative humidity | 45~85% |
2-8. Weight | about 26 grams |
2. Transportation:
1) To ensure the safety of the battery during transportation, the SOC (state of charge) must be lower than 35%,
The internal temperature of the container must not exceed 35°C. The product holder should be
If the above conditions cannot be fully met, the company will be responsible for any loss that may be caused during the transportation process.
2) If the customer requires the SOC (state of charge) to be higher than 35%, the internal temperature of the container must be lower than 20°C,
The distance between the battery outer boxes in the container should not be less than 10cm, and a forced air cross ventilation system is required inside the container to ensure that each outer box has an even temperature. If the above conditions cannot be fully met, the product holder shall bear the possible accidental losses by itself

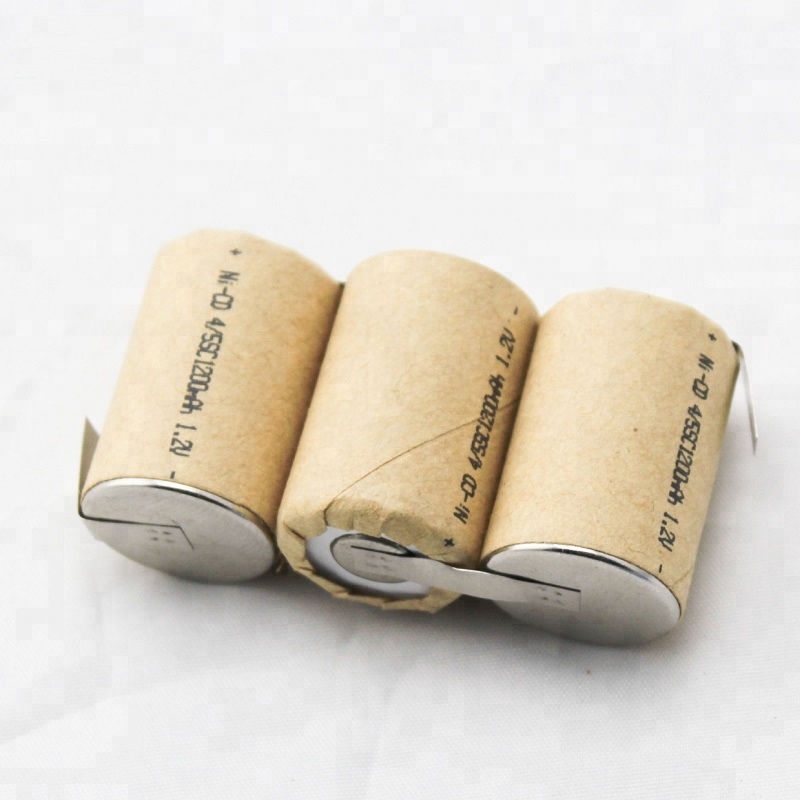

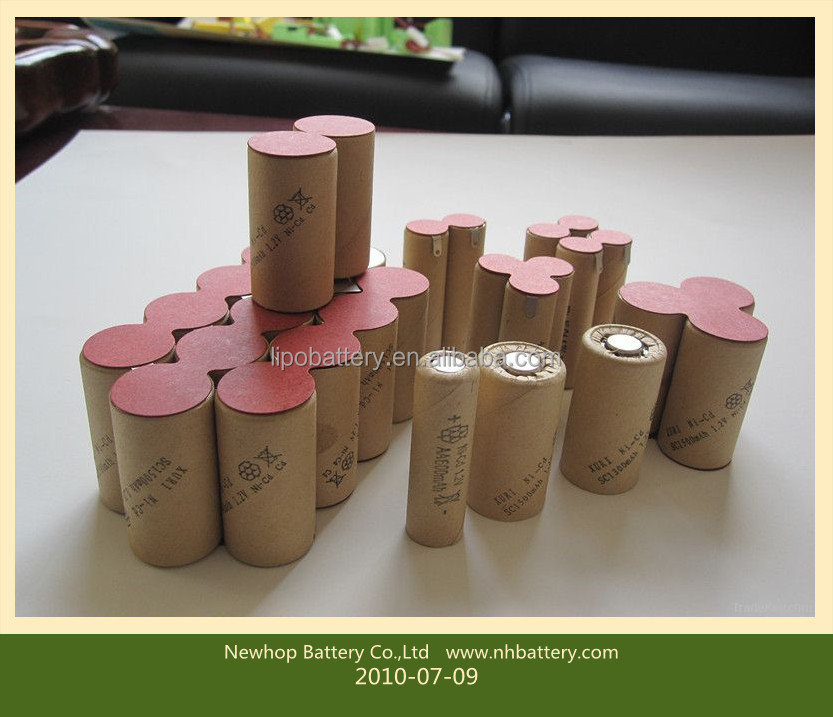

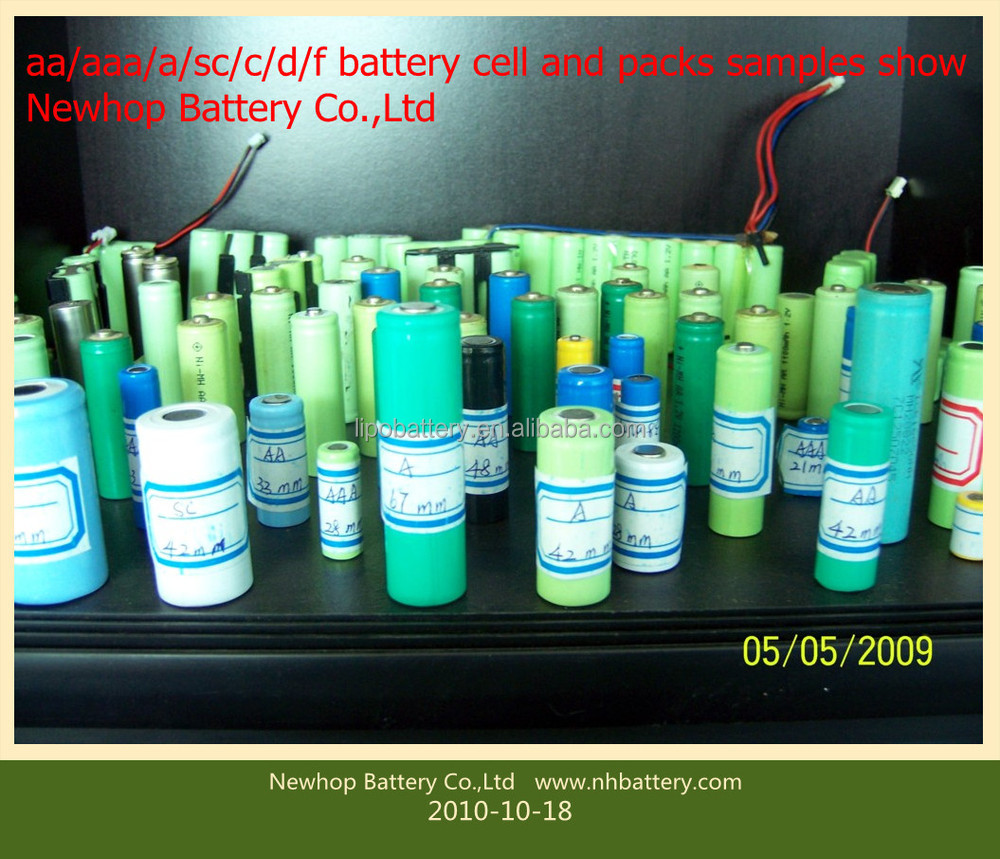

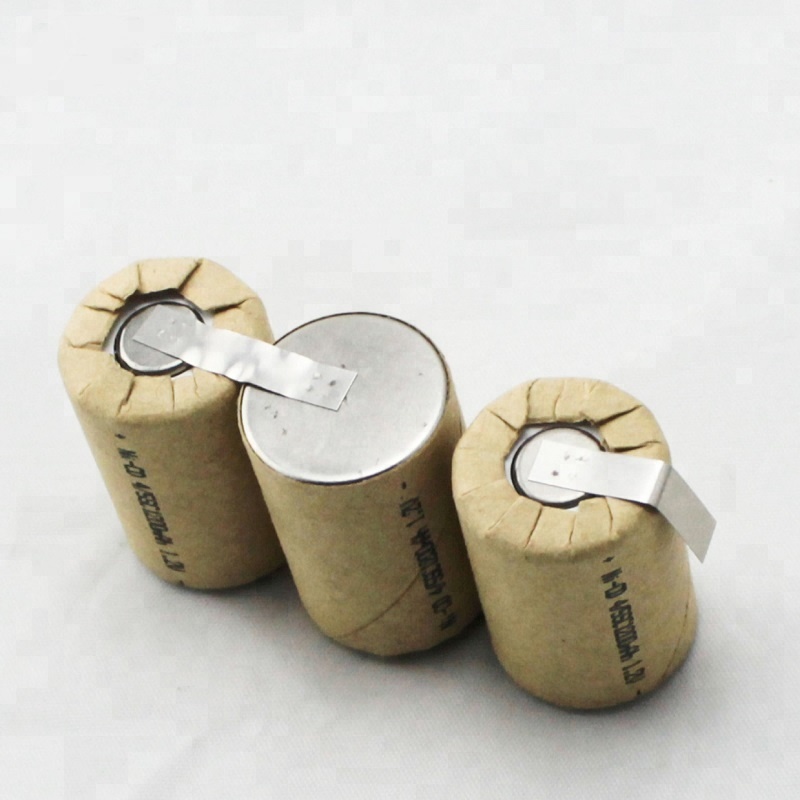

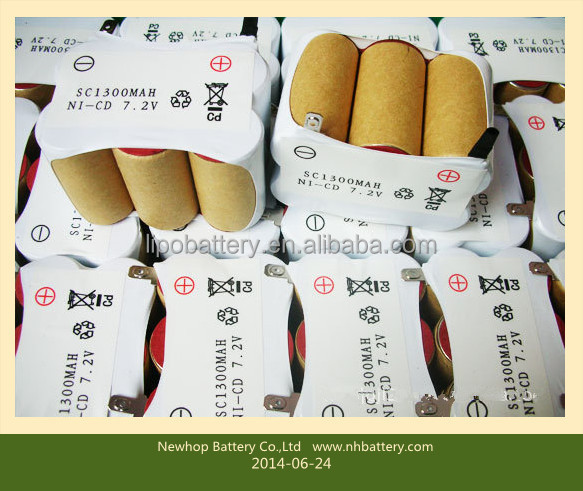

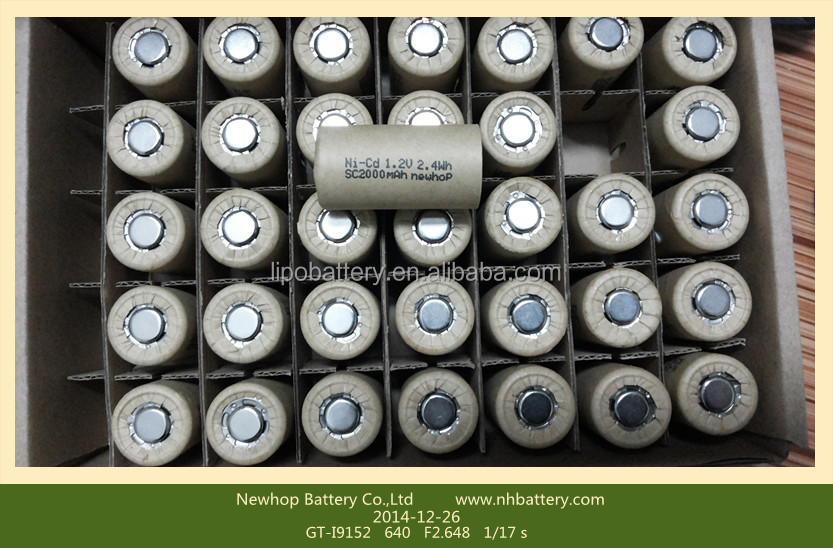

3. Product pictures

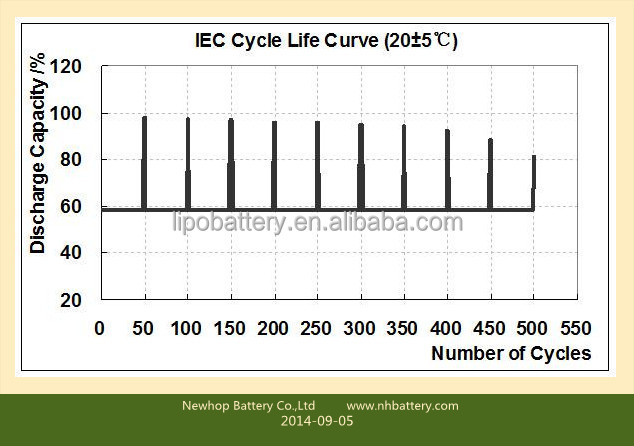

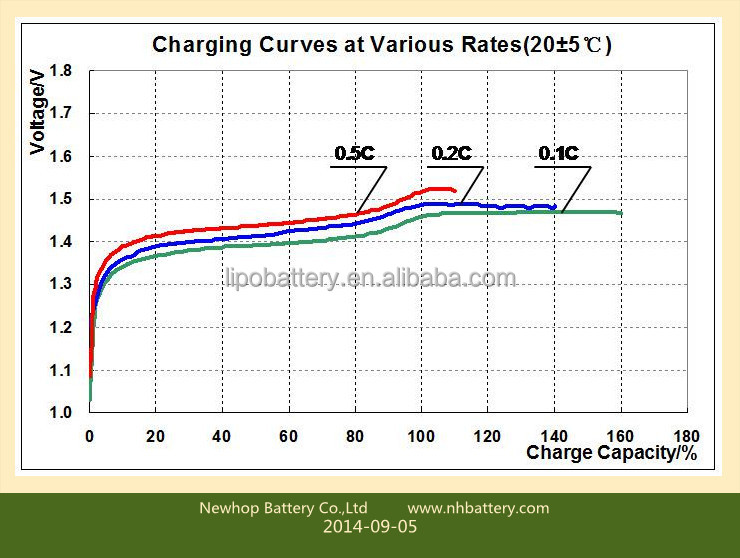

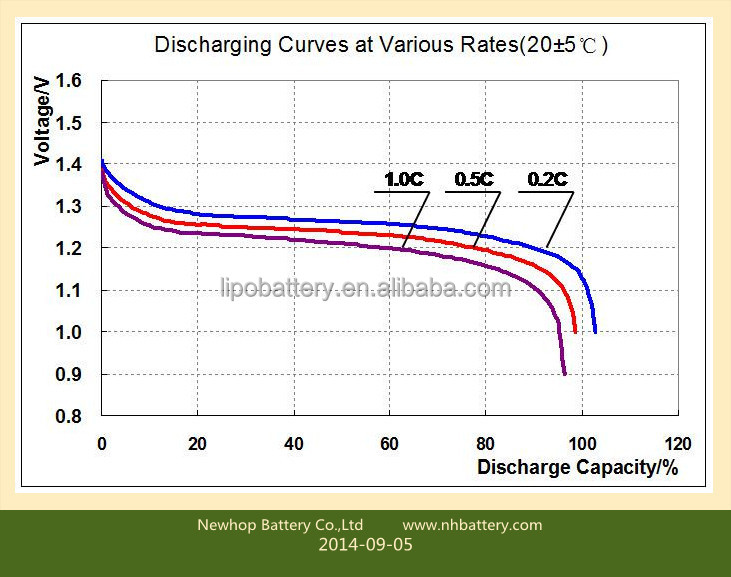

4. Battery curve and performance:

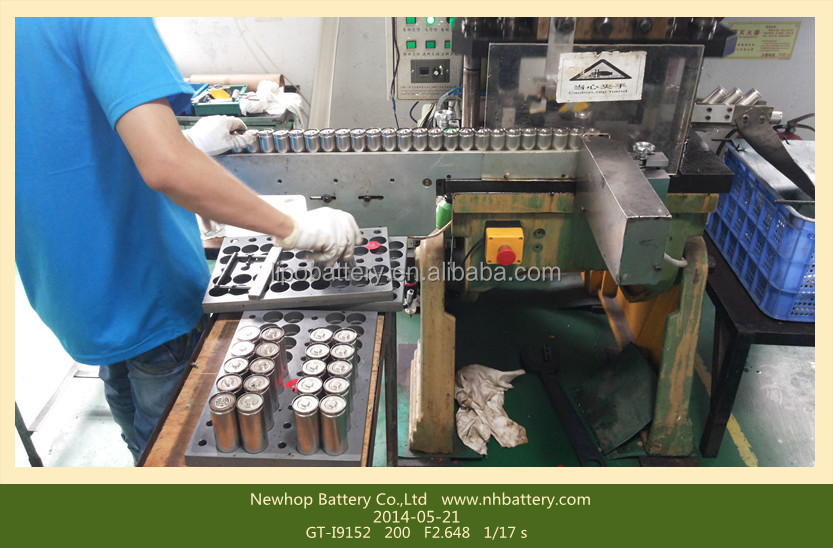

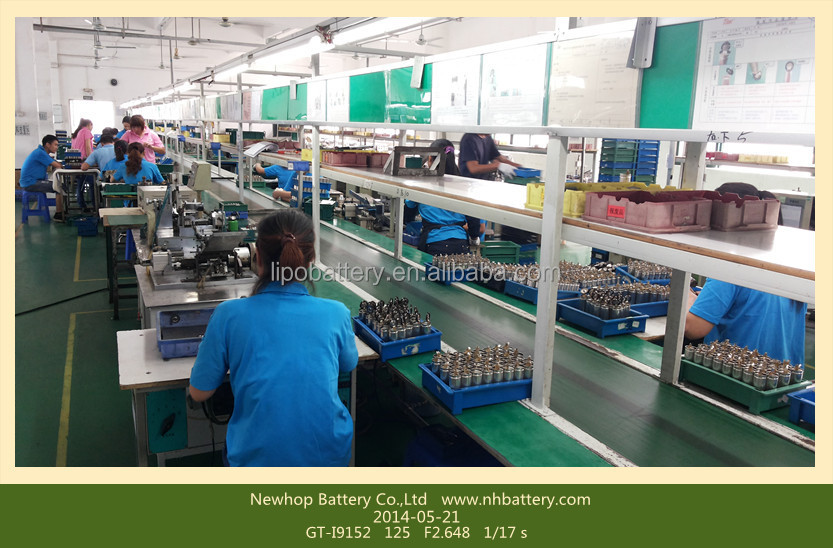

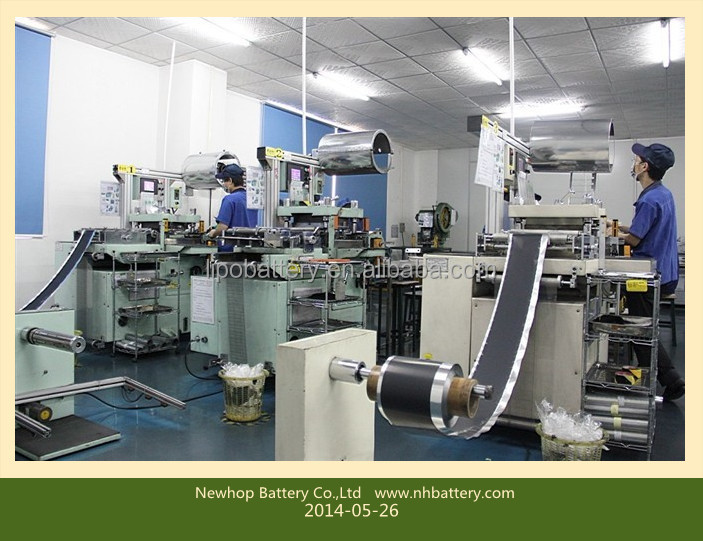

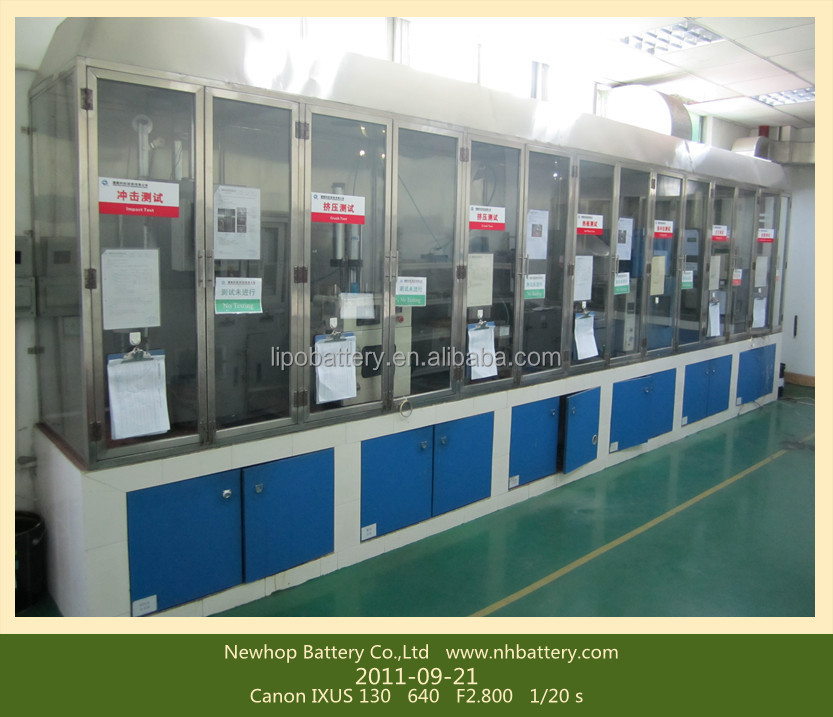

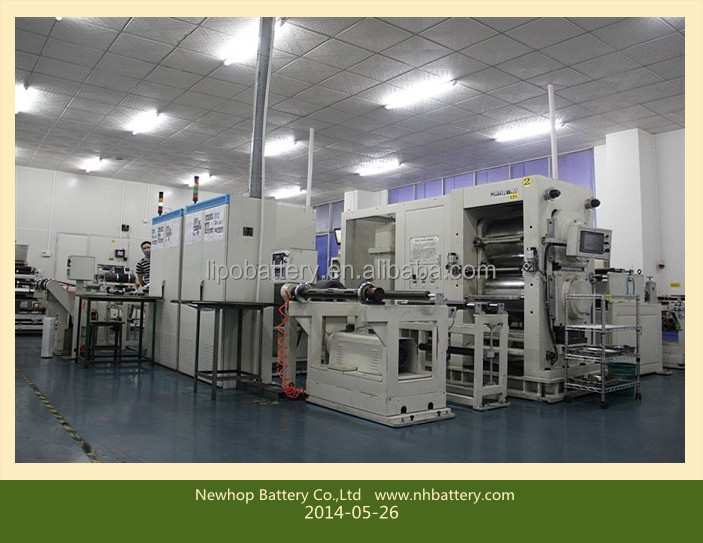

5, We are battery pack, battery charger, battery BMS manufacturer in Shenzhen!You are always welcome!
6. We Approved Certifications!
7. Exchange policy:
1). We provide one year warranty.
2). If the item is defective, please inform us within 3 days after delivery.
We believe quality is the soul of our company! Quality is our company culture! With us, your business is safe, your profits are safe, and your money is safe.
