Rechargeable battery nimh size d 7.2v 6500mah for EV/HEV cars

Product details
Certification:Material Safety Data SheetWarranty:12 months, 3 years
port:HongkongPackaging Details:nimh battery size d 7.2v 6500mah export packing by sea or air and express according to UN standard.
model:NiMH d 7.2v 6500mahbrand:new jump
OEM and ODM service:supplyCharges:0.1c about 16 hours
fast charging:0.5c about 2.4 hoursCycle life:More than 500 cycles (IEC61951-2)
place of origin; place of origin:Guangdong, ChinaCustomized service:supply
weight:1KGInternal resistance:60momh
Supply capacity:300,000 pieces per dayfast charging:0.2c about 7 hours
thing:NiMH battery size d 7.2v 6500mahpayment terms:L/C, Western Union, T/T, MoneyGram
application:Electric tools/lamps/vacuum cleaners, electric tools, boats, electric bicycles/scooters, electric forklifts, electric vehicles, electric wheelchairs, power systems

nimh rechargeable battery size d 7.2v 6500mah for vacuum cleaner



Product Description

1. Ni-MH battery size d 7.2v 6500mah specifications:

2. Nominal specification



2-1. Nominal voltage

7.2V

2-2. Nominal Capacity*

7000mAh

2-3. Minimum Capacity*

6500mAh

2-4. Charging**



standard charge

0.1c 16 ​​hours

fast charging

0.2c 7 hours

fast charging

0.5c for 2.4 hours, –ΔV=5mV/cell

2-5. Discharge termination voltage

1.0V/battery

2-6. Temperature (recommended)



Charges

0~40 degrees Celsius

fast charging

10~40 degrees Celsius

fast charging

10~30 degrees Celsius

freed:

0~50 degrees Celsius

Storage: less than 30 days

-20~50 degrees Celsius

less than 90 days

-20~40 degrees Celsius

less than 1 year

-20~30 degrees Celsius

2-7. Relative humidity

45~85%

2-8. Weight

about 150 grams

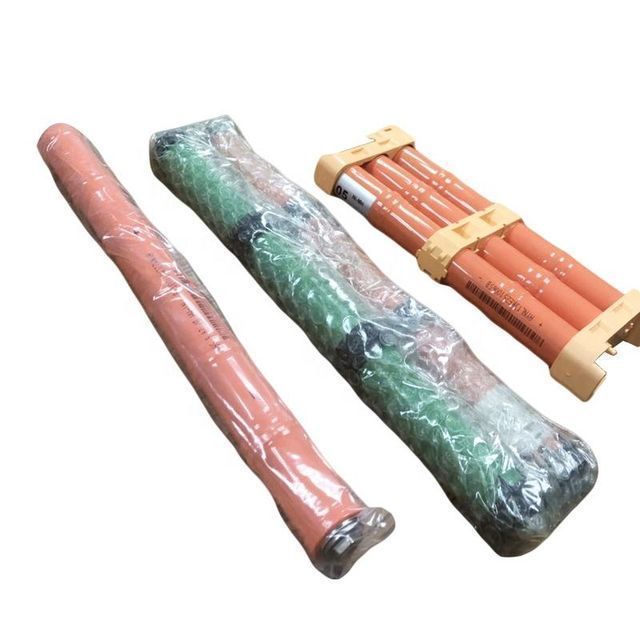

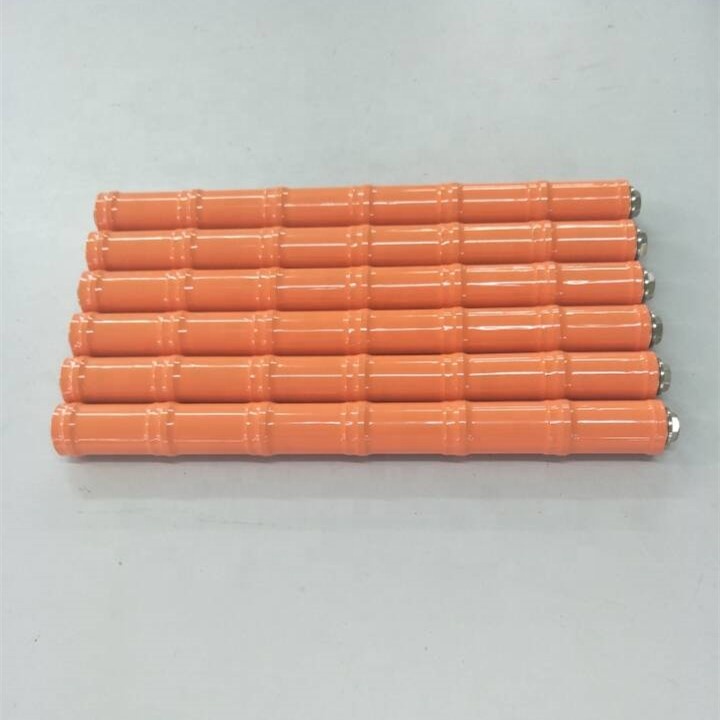

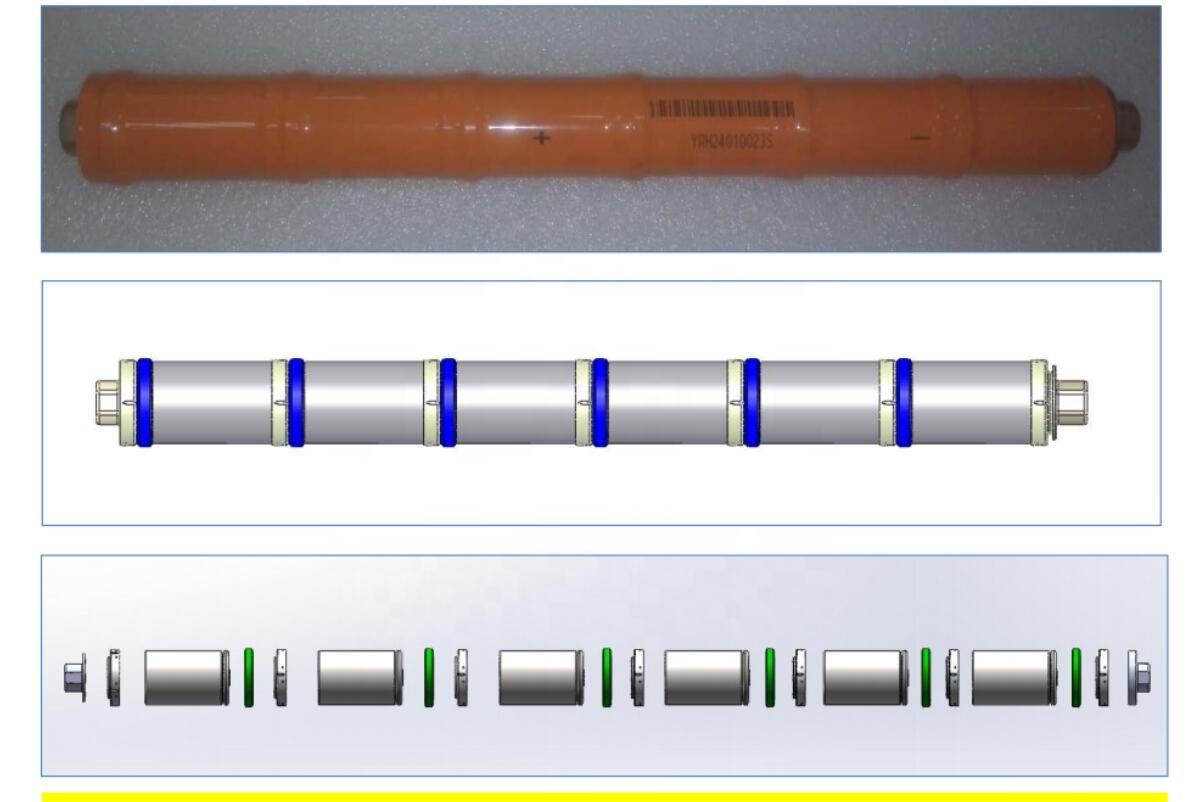

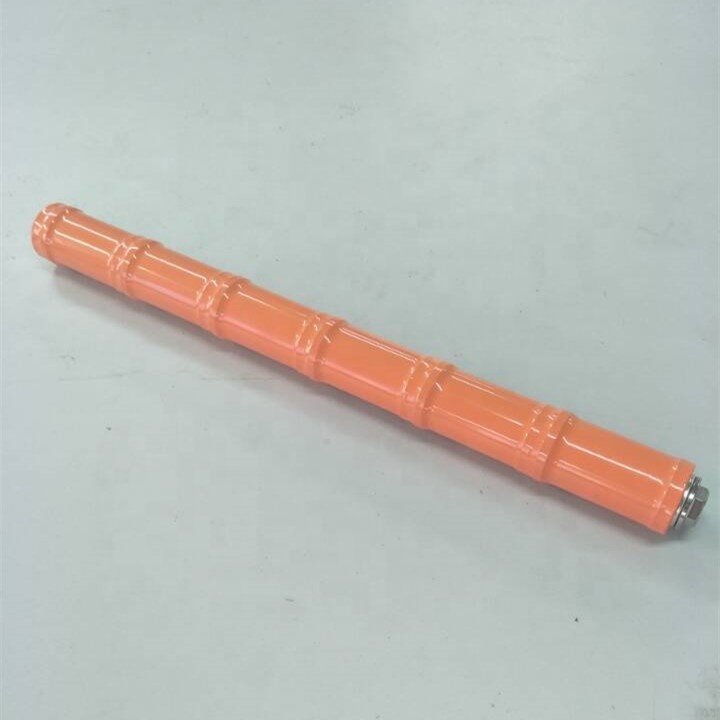

2. nimh battery size d 7.2v 6500mah product picture:

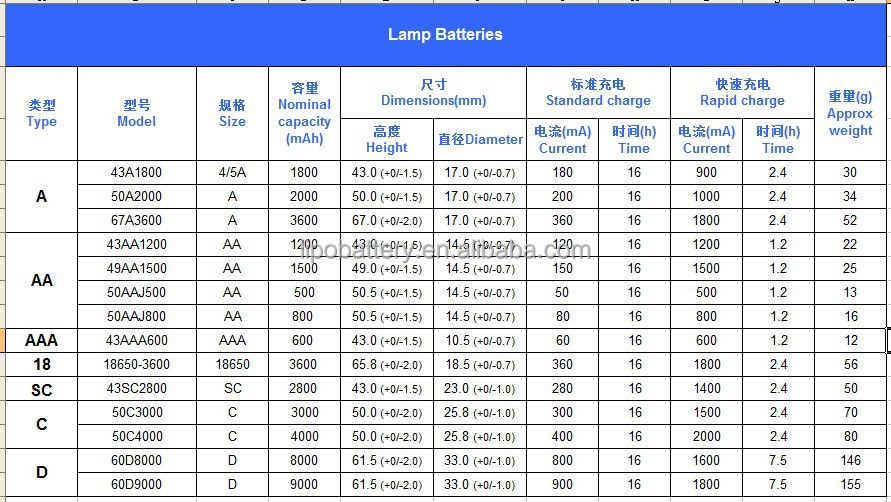

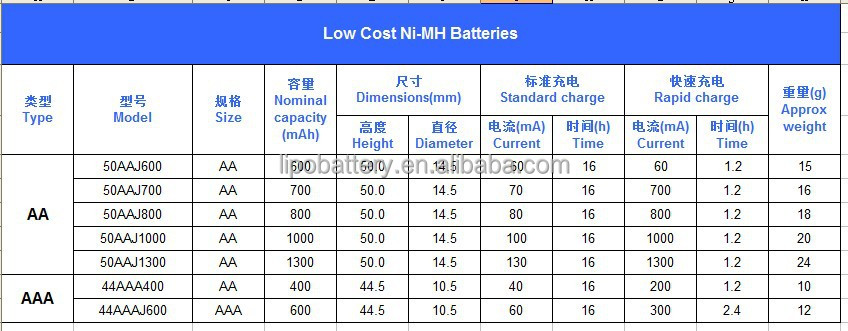

Partial cell list





transportation:

1) To ensure the safety of the battery during transportation, the SOC (state of charge) must be lower than 35%,

The internal temperature of the container must not exceed 35°C. The product holder should be

If the above conditions cannot be fully met, the company will be responsible for any loss that may be caused during the transportation process.



2) If the customer requires the SOC (state of charge) to be higher than 35%, the internal temperature of the container must be lower than 20°C,

The distance between the outer boxes of batteries in the container should not be less than 10cm, and a forced air cross ventilation system is required inside the container to ensure that the temperature of each outer box is uniform. If the above conditions cannot be fully met, the product holder shall bear the possible accidental losses by itself
