Huawei NE40E-X3 NE40E-X8 NE40E-X16 NE40E X3 X8 X16 Router

Supplier: REDLINK TELECOM CO., LTD.
Region: Phnom Penh, Cambodia
Contact: San lee
Price: $3000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply Ability:	100 Piece/Pieces per Week;	Type:	Wired;
Packaging Detail:	Packaging Details 1. Original carton package 2. As customer's requirement Delivery Time About 3-7 days after receive the payment.;	Switching Capacity NE40E-X16A:	81.92 Tbit/s;
Certification:	CE FCC ROHS;	Model Number:	NE40E-X3 NE40E-X8 NE40E-X16;
Port:	Shenzhen/Hongkong;	Forwarding Performance NE40E-X16:	5,760 Mpps;
Forwarding Performance NE40E-X8A:	9,600 Mpps;	Forwarding Performance NE40E-X3:	360 Mpps;
Switching Capacity NE40E-X8A:	25.16 Tbit/s;	Brand Name:	Huawei;
Function:	Firewall,QoS,VPN;	Application:	Enterprise;
Switching Capacity NE40E-X8:	7.08 Tbit/s;	Delivery Detail:	3-7 Working days after received the payment;
Forwarding Performance NE40E-X8:	2,880 Mpps;	Switching Capacity NE40E-X3:	1.08 Tbit/s;
Place of Origin:	Guangdong China (Mainland);	Products Status:	Stock;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Switching Capacity NE40E-X16:	12.58 Tbit/s;
Forwarding Performance NE40E-X16A:	48,000 Mpps;

Certifications

Hong Telecom Equipment Service LTD (HongTelecom) is formal distributor of Huawei, ZTE and Emerson. Our team come from Huawei, ZTE, Emerson, CISCO, Alcatel, Ericsson, Fiberhome mostly. So we have established very good cooperative relationship with Huawei, Ericsson, Nokia, NSN, ZTE, Vertiv, Emerson, Fiberhome, Cisco, Juniper, HPE, DELL, Alcatel-Lucent, Nortel, H3C. We can provide one-stop purchasing platform for our customer with very good price and very fast delivery.

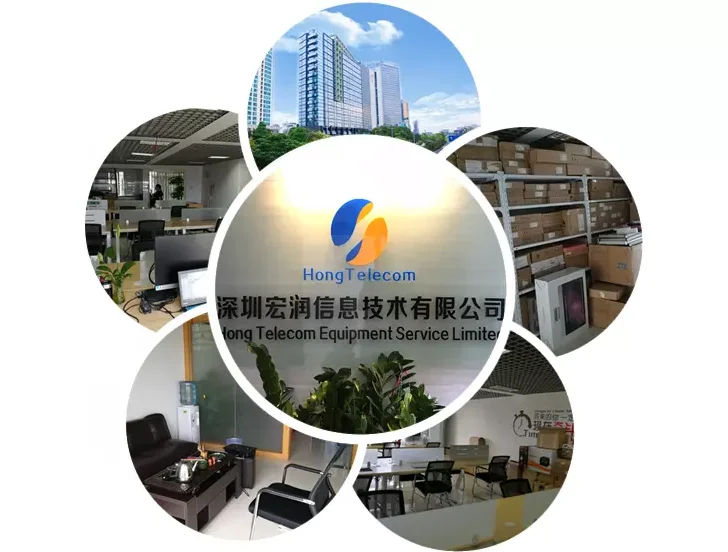

Our Company

Hong Telecom Equipment Service LTD (HongTelecom) & REDLINK TELECOM CO., LTD. (REDLINK) are formal distributor of Huawei, ZTE and Emerson. Our team come from Huawei, ZTE, Emerson, CISCO, Alcatel, Ericsson, Fiberhome mostly. So we have established very good cooperative relationship with Huawei, Ericsson, Nokia, NSN, ZTE, Vertiv, Emerson, Fiberhome, Cisco, Juniper, HPE, DELL, Alcatel-Lucent, Nortel, H3C. We can provide one-stop purchasing platform for our customer with very good price and very fast delivery.

HongTelecom & REDLINK offer full range of telecom infrastructure products, our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.

Product Description

Product Overview

The NE40E series Universal Service Router (USR) is a high-end network product that features line-rate forwarding capability, a well-designed Quality of Service (QoS) mechanism, strong service-processing capability, and excellent expansibility. It can be deployed at the edges of Internet Protocol (IP) backbone networks, IP Metropolitan Area Networks (MANs), Internet Data Center (IDC) networks and other large-scale IP networks. The NE40E can provide comprehensive services for enterprises and residential areas as a universal edge device.

Based on distributed hardware forwarding and non-blocking switching technologies, the NE40E provides maximum 480G line cards to satisfy the increased demand for bandwidth.

Product Appearance

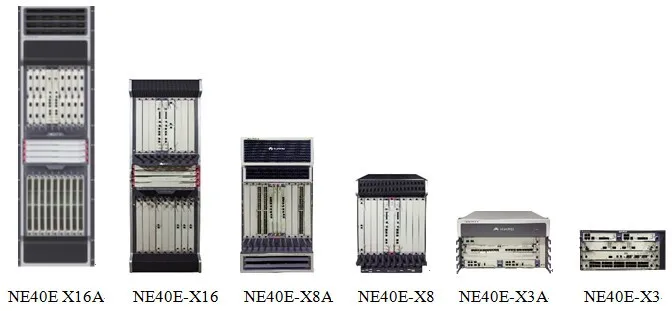

The NE40E series includes the NE40E-X16A/X16, NE40E-X8A/X8, and NE40E-X3/X3A models to satisfy requirements for networks at various scales.

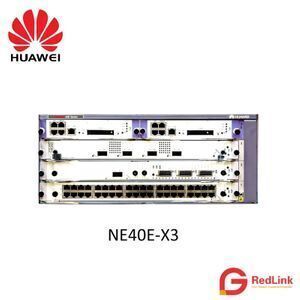

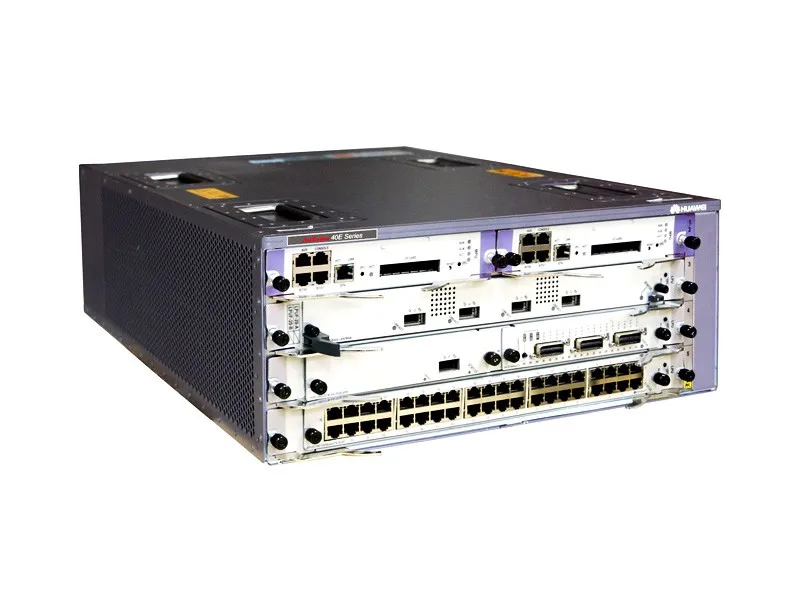

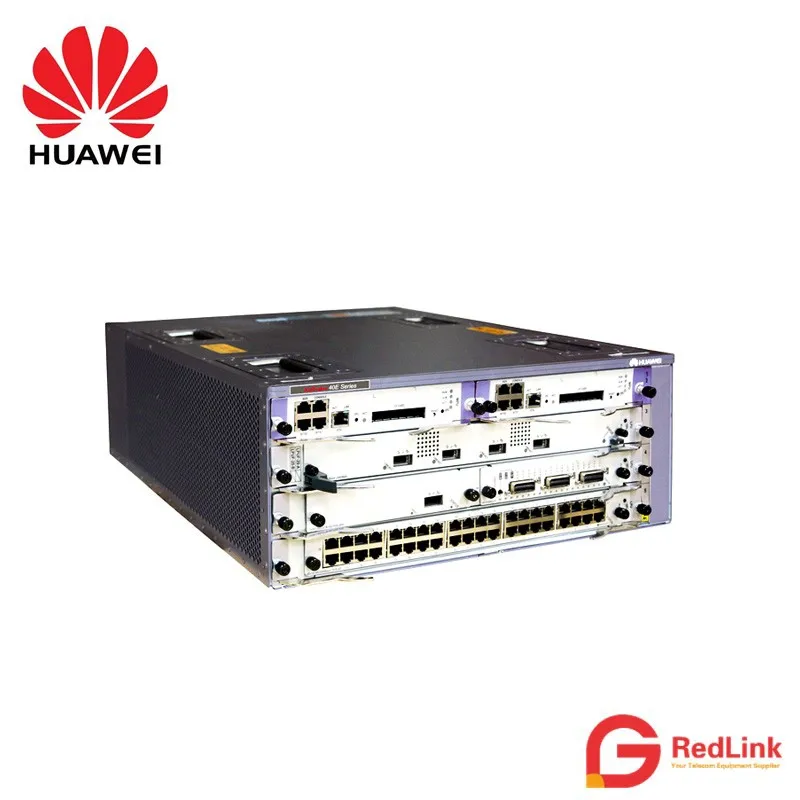

NE40E-X3

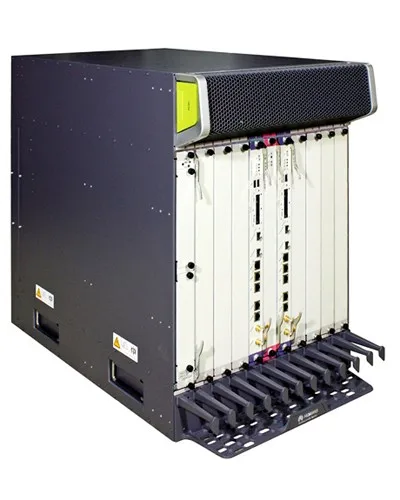

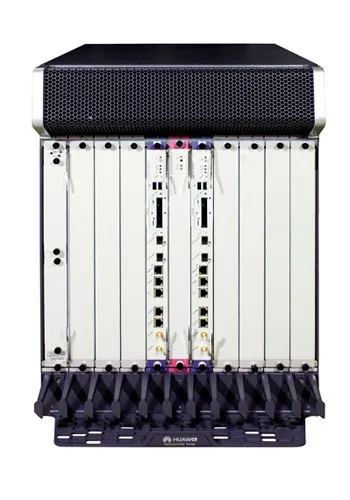

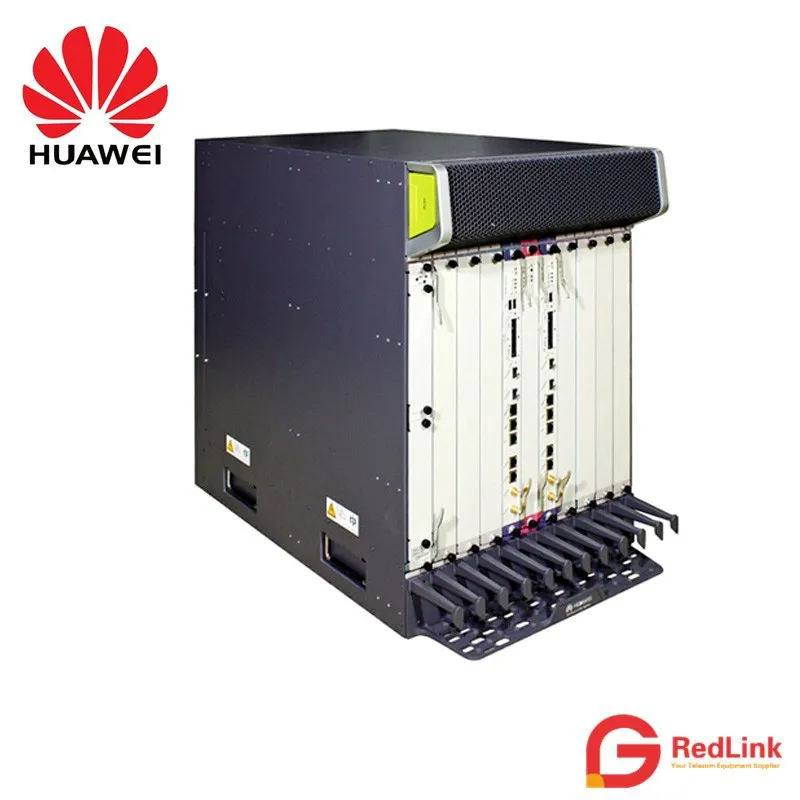

NE40E-X8

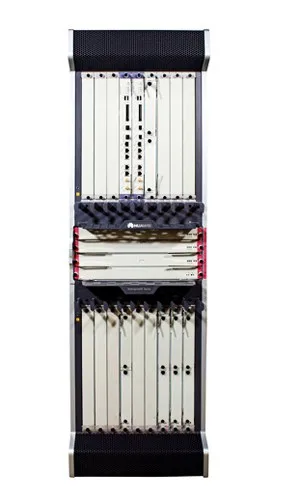

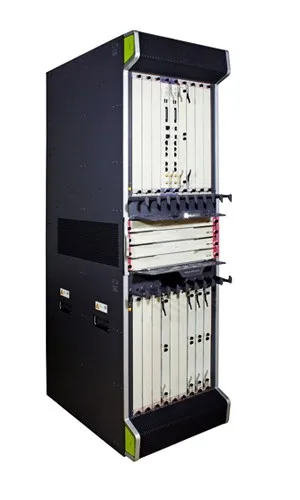

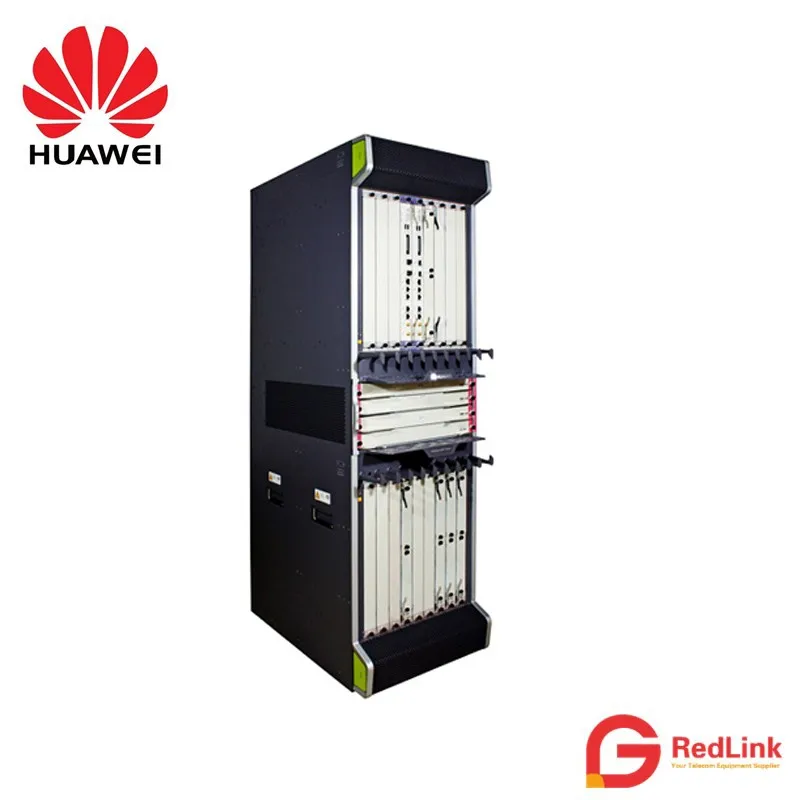

NE40E-X16

Product features

The NE40E has the following table Specifications:

Item	NE40E-X16A	NE40E-X16	NE40E-X8A	NE40E-X8	NE40E-X3A	NE40E-X3	NE40E-M2H
Switching Capacity	81.92 Tbit/s	12.58 Tbit/s	25.16 Tbit/s	7.08 Tbit/s	4.19 Tbit/s	1.08 Tbit/s	960G
Forwarding Performance	48,000 Mpps	5,760 Mpps	9,600 Mpps	2,880 Mpps	900 Mpps	360 Mpps	330 Mpps
Number of Slots	22 slots, including2 MPUs (1:1 backup), 4 SFUs (3+1 backup), and 16 LPUs	22 slots, including 2 MPUs (1:1 backup), 4 SFUs(3+1 backup), and 16 LPUs	12 slots, including 2 SRUs (1:1 backup), 2 SFUs(3+1 backup), and 8	11 slots, including 2 SRUs (1:1 backup), 1 SFUs(2+	5 slots (for 3 LPUs and 2 MPUs)	5 slots (for 3 LPUs and 2 MPUs)	2 slots
Dimensions (H x W x D)	442 mm x 650 mm x 1,778 mm (40U)	442 mm x 650 mm x 1,420 mm (32U)	442 mm x 650 mm x 934 mm (21U)	442 mm x 650 mm x 620 mm (14U)	442 mm x 664 mm x 264 mm (6U)	442 mm x 650 mm x 175 mm (DC, 4U); 442 mm x	442 mm x 220 mm x 89 mm (2U)
Power Consumption	9,040W (480G)	4,610W (120G) 7,970W	4,770W (480G)	2,340W (120G) 4,100W	600W (200G)	1,070W (AC) 920W (DC)	537W (AC) 499W (DC)
Weight (in full configuration	356 kg (480G)	246 kg (120G) 279 kg (240G)	186 kg (480G)	119 kg (120G) 136 kg	75 kg (200G)	42 kg (DC) 52 kg (AC)	11 kg (DC) 12 kg (AC)

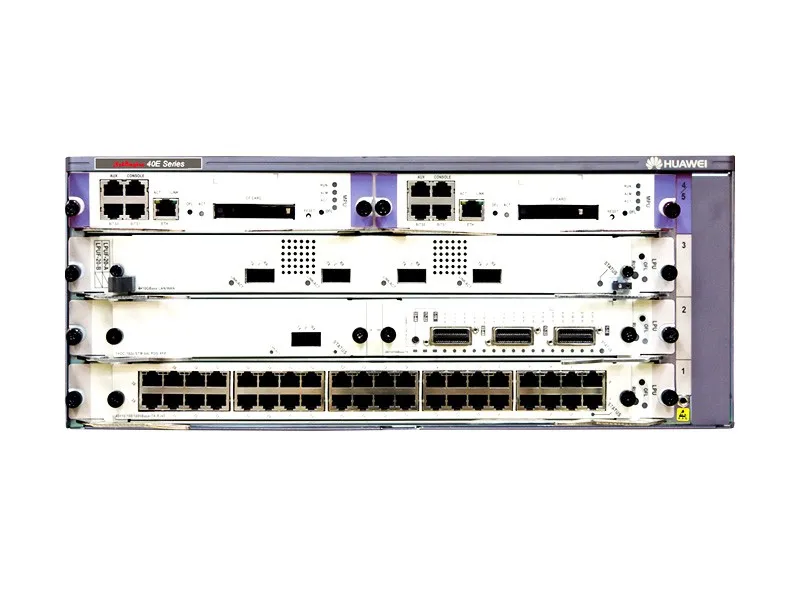

NE40E-X3

NE40E-X8

NE40E-X16

Quality Control

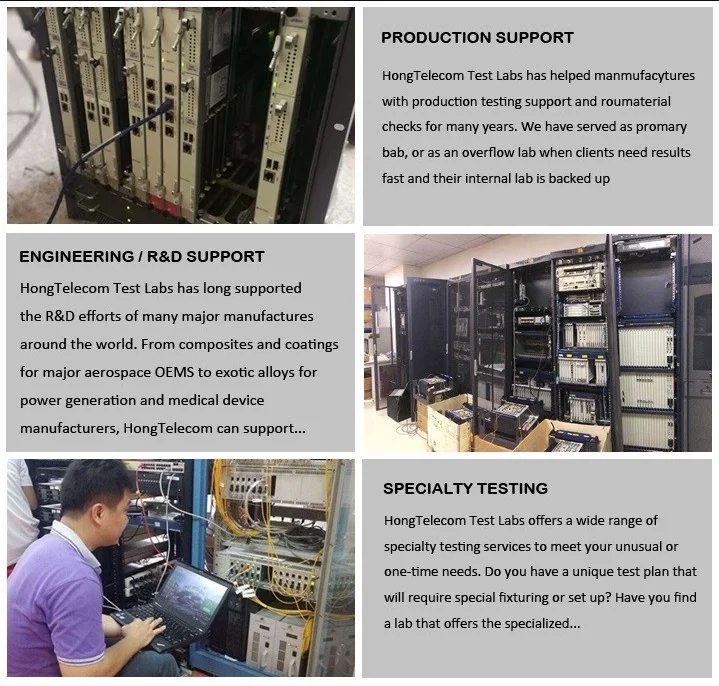

Test Lab

Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.We are capable to provide our business partners bestselling products.

Group Introduction

Our Sales Team

We have never stopped developing and actively participated in the training of Huawei and ZTE. We have passed many examinations and obtained Career Certification.

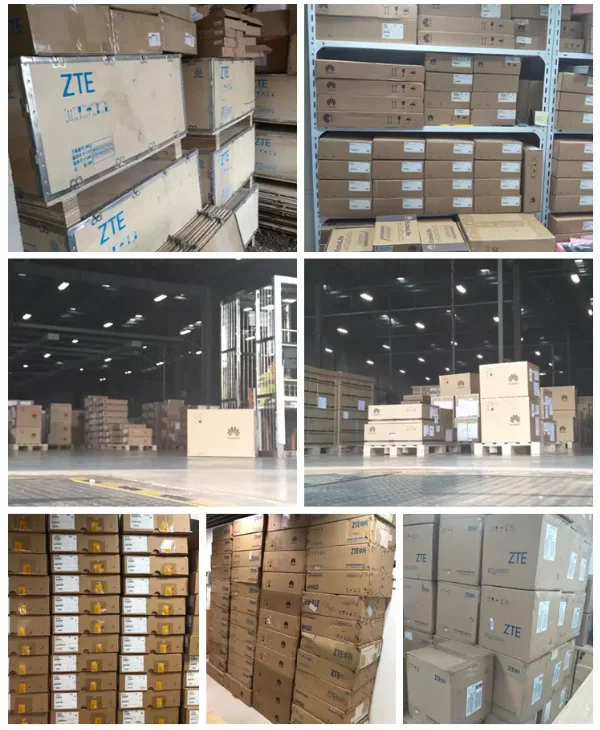

Our Warehouse
