Accuracy class: | C3 | payment terms: | wire transfer |
cable length: | 3 meters | place of origin; place of origin: | Guangdong, China |
usage: | Electronic balance | theory: | Resistive Sensors, Resistive Load Cells |
brand: | whole cell | capacity: | 3kg~100kg |
Types of: | load cell | describe: | L6N small capacity single point load cell |
Material: | aluminum alloy | Package preview: | |
output: | Analog millivolt signal output | Packaging Details: | Cartons with cardboard foam pallets to protect the products from deformation during transportation. One unit per box, 20 units per carton. |
model: | L6N | Supply capacity: | 1000 pieces per month |
port: | Shenzhen, Ningbo | Output Sensitivity: | 2.0±0.2mV/V |
Recommended excitation voltage: | 5~12V(DC) | Protection class: | Protection class 65 |
Maximum platform size: | 400 mm x 400 mm |

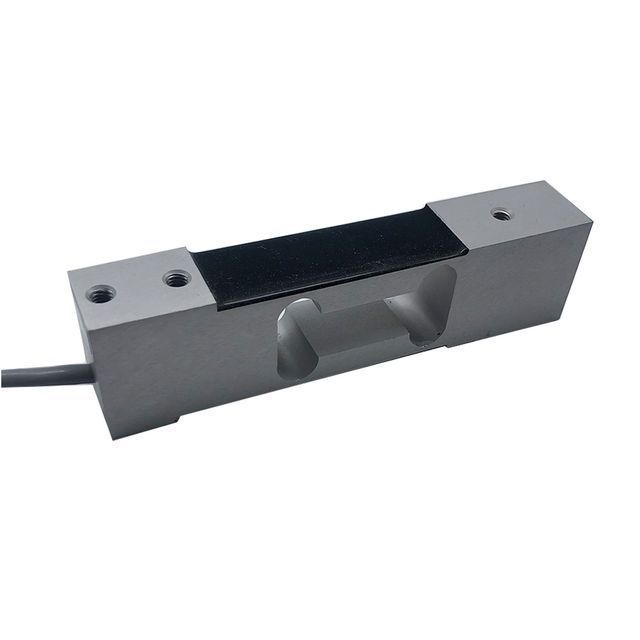

• Aluminum alloy IP65 single point load cell
• Colorless anodized
• Applicable to electronic balances, pricing scales, platform scales, etc.
• Maximum platform size: 400 x 400 mm
•application:Electronic pricing scales, platform scales and other electronic weighing scales.
The most popular single-point load cell, the perfect load cell for retail scales such as bench scales, counting scales, pricing scales, and ideal load cells for unattended retail weighing solutions.
capacity | Kilogram | 3/5/8/10/15/20/30/40/50/75/100 | ||
accuracy | C3 | C4 | C5 | |
output sensitivity | (mV/V) | 2.0±0.2 | ||
combination error | (%FS) | ±0.02 | ±0.015 | ±0.01 |
creep | (%FS/30 minutes) | ±0.0167 | ±0.0125 | ±0.01 |
Effect of Temperature on Sensitivity | (% full scale/10℃) | ±0.0175 | ±0.0131 | ±0.01 |
Effect of Temperature on Zero | (% full scale/10℃) | ±0.02 | ±0.012 | ±0.009 |
zero balance | (%FS) | ±2 | ||
Temperature compensation | (℃) | -10~+40 | ||
Operating temperature | (℃) | -35~+65 | ||
input resistance | (Ω) | 406±6 | ||
output resistance | (Ω) | 350±3 | ||
Recommended excitation voltage | (Fives) | 5-12(DC) | ||
Maximum excitation voltage | (Fives) | 18(DC) | ||
safety overload | (%FS) | 120 | ||
extreme overload | (%FS) | 150 | ||
degree of protection | IP65 | |||
Cable Specifications | (mm) | φ4.8 | ||
cable length | (Meter) | 3 | ||
Recommended platform size | (mm) | 400x400 | ||
corner correction |
0.02% load value/100mm |
