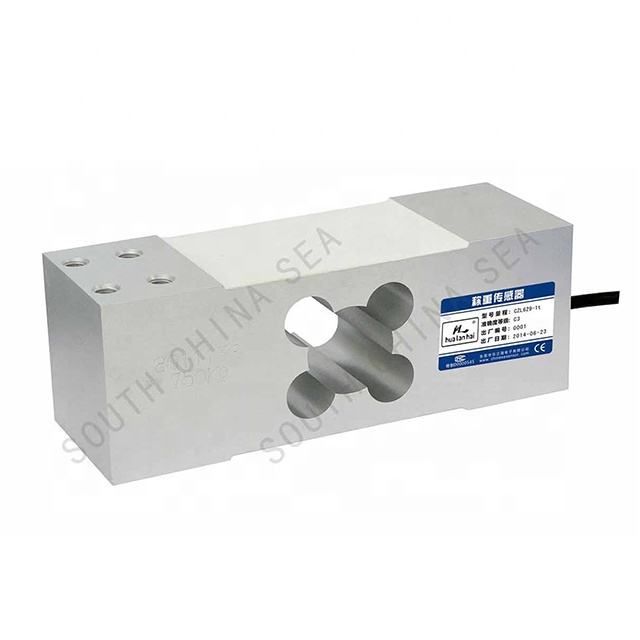

1t single point load cell

Specification:
1. Rated load (Kg): 100-500
2. Rated output (mV/V): 2.0
3. Zero balance (%FS): ±1
4. Input resistance (Ω): 400±10

5. Output resistance (Ω): 350±3
6. Excitation voltage (VDC): 9-12

7. Nonlinearity (%FS): 0.02

8. Hysteresis (%FS): 0.02

9. Repeatability (%FS): 0.02

10. Creep (30min) (%FS): 0.02

11. Working temperature (Celsius): -20 to +65

12. Effect of temperature on zero position (%FS/10): 0.03

13. The influence of temperature on the range (%FS/10): 0.02

14. Insulation resistance (MΩ): 5000 (50VDC)

15. Safe overload (%FS): 120

16. Material: aluminum alloy

17. Protection level: IP65

(Dimensions: 150(L)x45(W)x40(H)mm; Recommended platform size: 400x400mm)
