brand: | night beauty | Showroom location: | not any |
Supply capacity: | 1000 sets per month | Warranty: | 1 year |
Weight (kg): | 280 | Marketing Type: | normal product |
Other names: | drum jack | State of health: | new |
Packaging Details: | film wrap | painting: | powder coating |
Video shipment inspection: | if | capacity: | 520 kg |
Material: | manganese steel | Key words: | Drum tilter |
Applicable industries: | Mechanical repair shop, manufacturing plant, food and beverage factory, farm, restaurant, food store, printing shop, construction work, energy and mining, food and beverage store, advertising agency | Core component warranty: | 1 year |
port: | Shanghai or Ningbo | Core components: | Bearings, motors, pressure vessels, gears, pumps |
product name: | drum dump truck | place of origin; place of origin: | China Shanghai |
Mechanical test report: | if | payment terms: | L/C, T/T |
Roller size: | 55 gallon steel drum/210L plastic drum | | |

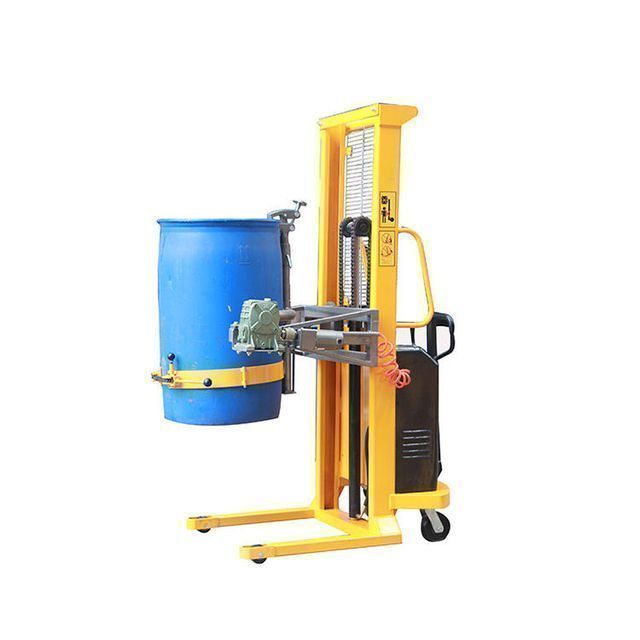

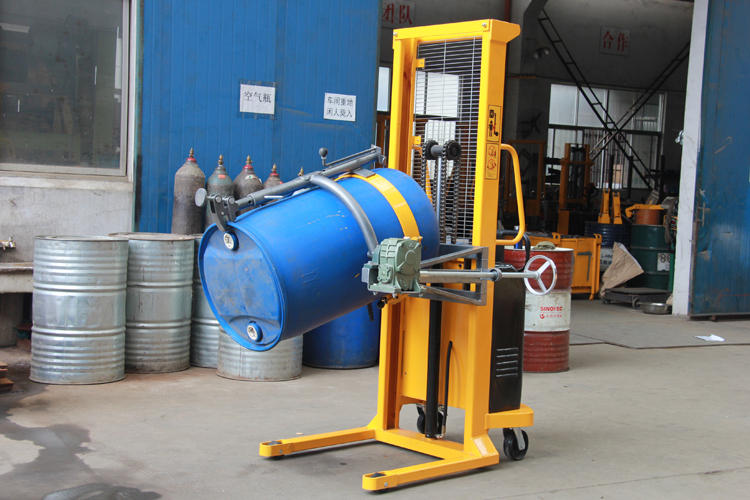

YL520 Semi Electric Drum Dump Truck
▲ Unique multi-function: lifting, carrying, flipping, dumping, easy and safe operation.
▲Tightly lock the oil drum in horizontal or vertical position by locking the left and right handles for easy dumping
or no overflow.
▲High-quality hydraulic power unit and maintenance-free battery; C-shaped frame with special rolling process, strong safety;
▲The structure design of the oil drum truck is simple and light, combined with the structure of the eagle clip and the anchor lug, it is suitable for the operation of steel oil drums and PE oil drums, and the operation is convenient and labor-saving.
YL520: manual movement, electric lift, electric tip.
YL520-1: manual movement, electric lift, electric tip, with weighing scale.
YL520A: manual movement, electric lift, manual tip.
YL520A-1: Manual handling, electric lifting, manual tip, with weighing scale.
Model | | YL520 | YL520-1 | YL520A | YL520A-1 |
loading capacity | Kilogram | 520 | 520 | 520 | 520 |
Lifting height | mm | 1500 | 1500 | 1500 | 1500 |
Drum size | | 55 Gallons ((Ø572x900) Steel, 210L Plastic | | | |
wheel size | mm | Ø80x55 / Ø150x50 | Ø80x55 / Ø150x50 | Ø80x55 / Ø150x50 | Ø80x55 / Ø150x50 |
Front leg width (inside/outside) | mm | 640/800 | 640/800 | 640/800 | 640/800 |
leg length | mm | 630 | 630 | 630 | 630 |
Turning radius | mm | 1620 | 1620 | 1750 | 1750 |
lift motor | kilowatt | 1.5 | 1.5 | 1.5 | 1.5 |
Battery parameters | Ah/V | 120/12 | 120/12 | 120/12 | 120/12 |
boost speed | mm/s | 120 | 120 | 120 | 120 |
Weighing accuracy | | / | ±3‰ | / | / |

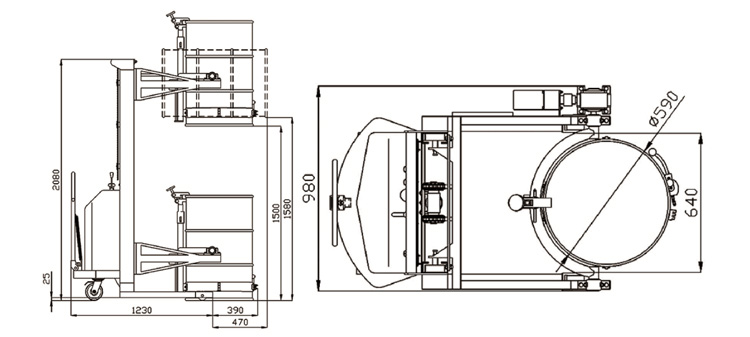

DimensionsLxWxH | mm | 1400x980x2080 | 1400x1000x2080 | 1400x950x2060 | 1400x1000x2080 |
net weight | Kilogram | 280 | 308 | 269 | 274 |
Q1: Are you a manufacturer?A 1: Yes, we also export for several cooperative factories in China to manufacture forklifts, hand pallet trucks, table lifts, rollers and roll handling equipment, our product range is so wide that no one factory can produce all of them product.Q2: Product warranty?A2: 12 months warranty for main parts.Q3: What about the delivery time for the products shown on the website?A3: Usually 15-35 days after down payment. Most compact small machines are in large stock and can be shipped in about 5 days.Q4: How many days do we need to send the shipping documents?A4: Usually within 5 days after ship out.Q5: Can you add our own logo or use our design on the product?A5: Yes, of course you can add your logo on the products you buy, on the condition that you will issue a brand authorization letter. We provide OEM/ODM service. Plus, we promise your designs will be protected by law, and we won to tell others about it. This is your own copyright.Q6: Can you send the machine to my factory in other cities for container loading?A6: Yes, please tell us the detailed address, we can arrange timely delivery to your factory with reasonable shipping charges.Q7: How to send the machine to us?A7: Most of our products are heavy and big, and its cylinders are filled with hydraulic oil. So in terms of cost, it is only suitable for sea freight.
