360 Degree Rotatable Light Control DC 12V, 24V, 48V Photocell Light Sensor IP66 Day & Night Switch

Supplier: Wenzhou Weituo Precision Mould Co., Ltd.
Region: Zhejiang, China
Contact: Ms Jessie Lu
Price: $1.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Protection class:	IP66/IP67	standard:	ANSI C136.10
brand:	optimal	model:	OPT-06
specified load:	1000W/1800VA	Rated voltage:	85-305V
Packaging Details:	1PC/white box, 100pcs/carton	frequency:	50/60 Hz
describe:	photocell	Operating temperature:	-40 to 70 degrees
place of origin; place of origin:	Zhejiang, China	Package preview:
usage:	outdoor lighting	port:	Ningbo, Shanghai
theory:	Illumination sensor	Types of:	ambient light sensor
Supply capacity:	10000 pieces per week	Certificate:	CE certification
payment terms:	Western Union, T/T, MoneyGram

Product Description

The light controller can automatically switch the lights according to the ambient light; our products are widely used in the street
lighting, garden lighting, area lighting, other outdoor lighting, etc.
This product is designed with an electronic circuit with a photodiode sensor and a surge arrester (MOV) is provided. Its faster response with a 3-10 second delay provides an easy-to-test feature. This model light control can provide wide voltage range for customer application with almost power supply.

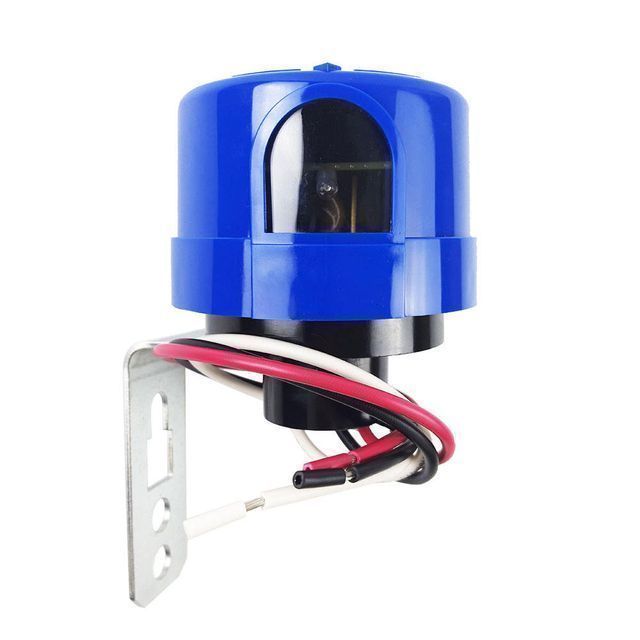

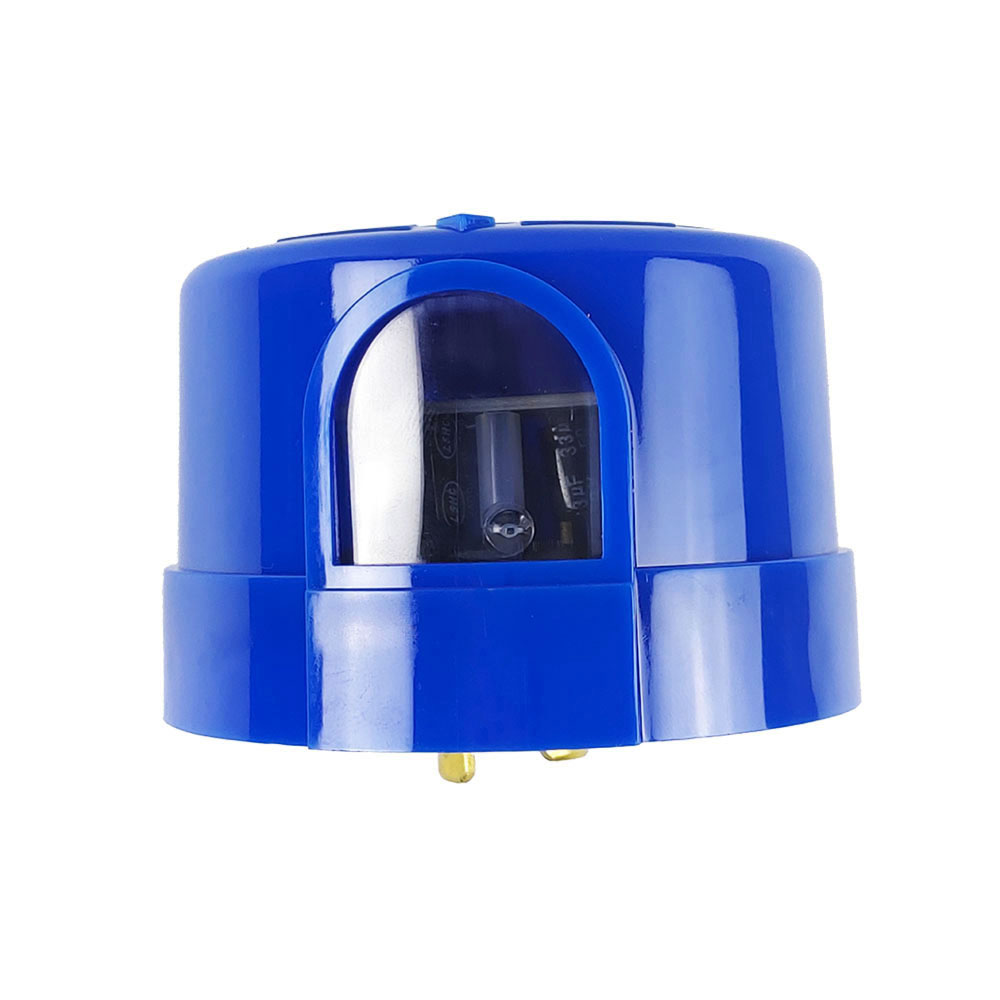

detailed drawing

product specification

Model	OPT-06
standard	ANSI C136.10 & UL773
controller type	Electronics
Certificate	CE, ROHS
voltage range	85-305V
specified load	1000W/1800VA
change	>5000 on/off operations at rated load
ambient temperature	-40°C -70°C
turn on light level	10-16 Lux on, <30 Lux off
time delay	3-10 seconds
cover	UV resistant Resistive polycarbonate (PC)
according to	High temperature resistance Polybutylene terephthalate (PBT)
ingress protection	IP66/IP67
