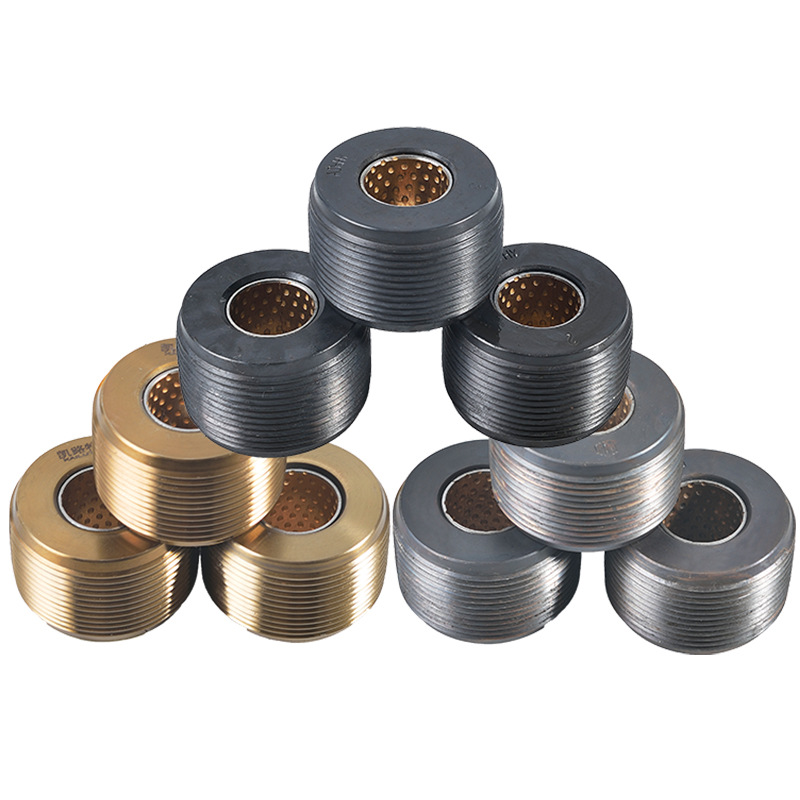

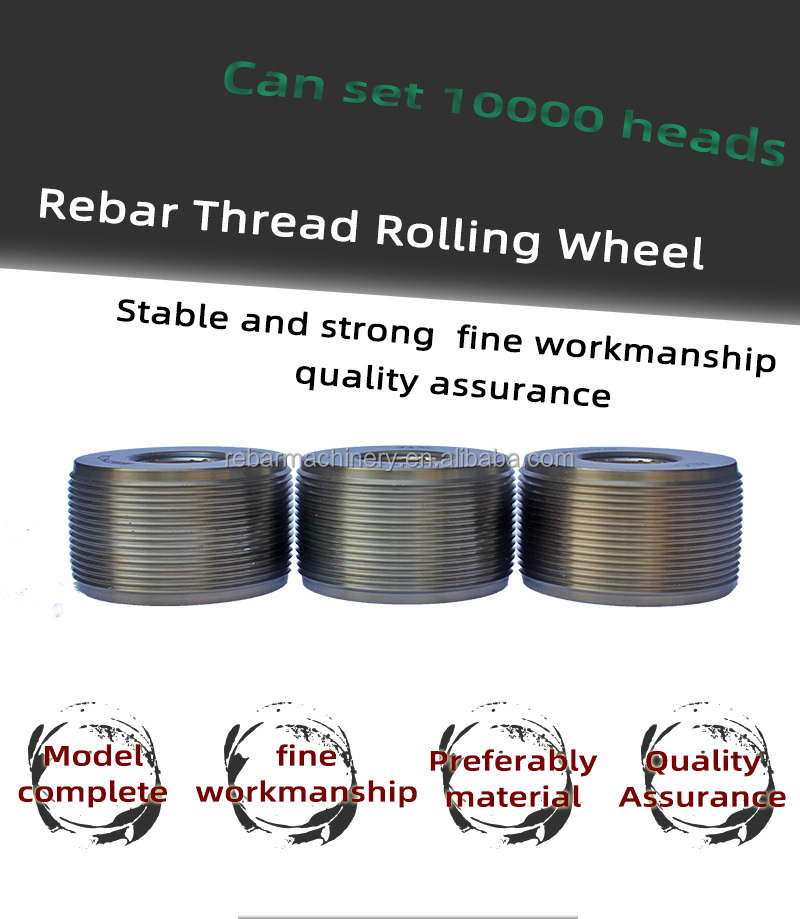

Keruien steel bar thread rolling machine with round tooth roller die roller

Supplier: Henan Kairuien Machinery Manufacturing Co., Ltd.
Region: Henan, China
Contact: Ms Carrie KAIRUIEN
Price: $45.00 / 1 - 99 sets
$40.00 / 100 - 999 sets
$25.00 / >=1000 sets
Min. Order: 1 set

Click here to contact

Product details

place of origin; place of origin:	Hainan, China	Showroom location:	not any
brand:	Karen	thickness:	45mm
angle:	60/75°	Applicable steel bar diameter:	16-40mm
Package preview:		State of health:	new
Model:	KRE-40/45/50	Video shipment inspection:	if
thing:	Thread rolling machine	Core component warranty:	1 year
Package:	wooden box	Packaging Details:	wooden box. Steel bending machine
Warranty:	1 year	the inside diameter of:	3 mm
Applicable industries:	Building Materials Stores, Mechanical Repair Shops, Home, Retail, Construction, Energy & Mining, Other	Mechanical test report:	if
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Cash, etc.	Core components:	engine
Main selling points:	easy to operate	asphalt:	2.5/3.0/3.5
usage:	Construction Rebar Screws	application:	Construction Rebar Screws
weight:	4	Marketing Type:	factory
port:	Qingdao. Steel bending machine	Outer diameter:	60/70/78.5MM
Supply capacity:	5000 sets per month

Product Description

Keruien steel bar thread rolling machine with round tooth roller die roller

Model	asphalt	Bar diameter	outer diameter	the inside diameter of	thickness	angle
Steel bar rolling wheel	2.5	16-22mm	78.5mm	30mm	45mm	60/75°
		3.0	25-32mm	70mm	30mm	45mm	60/75°
		3.0/3.5	36-40mm	60mm	30mm	45mm	60/75°

The advantagesHigh-speed steel bar rolling machineSteel bar thread rolling machine

1. Reasonable design and easy maintenance. Changing the blade takes only 5 minutes.
2. The blade cutter adopts an automatic opening and closing structure. It takes 30 seconds for the thread processing to complete, which is very efficient.
3. The cold rolling process ensures high forming precision of the end of the steel bar.
4. This machine does not cut the steel base material, and the strength of the thread end is higher than that of the base
Material.
5. This machine adopts No. 45 high-quality steel, special manufacturing process, high dimensional accuracy and reliable quality

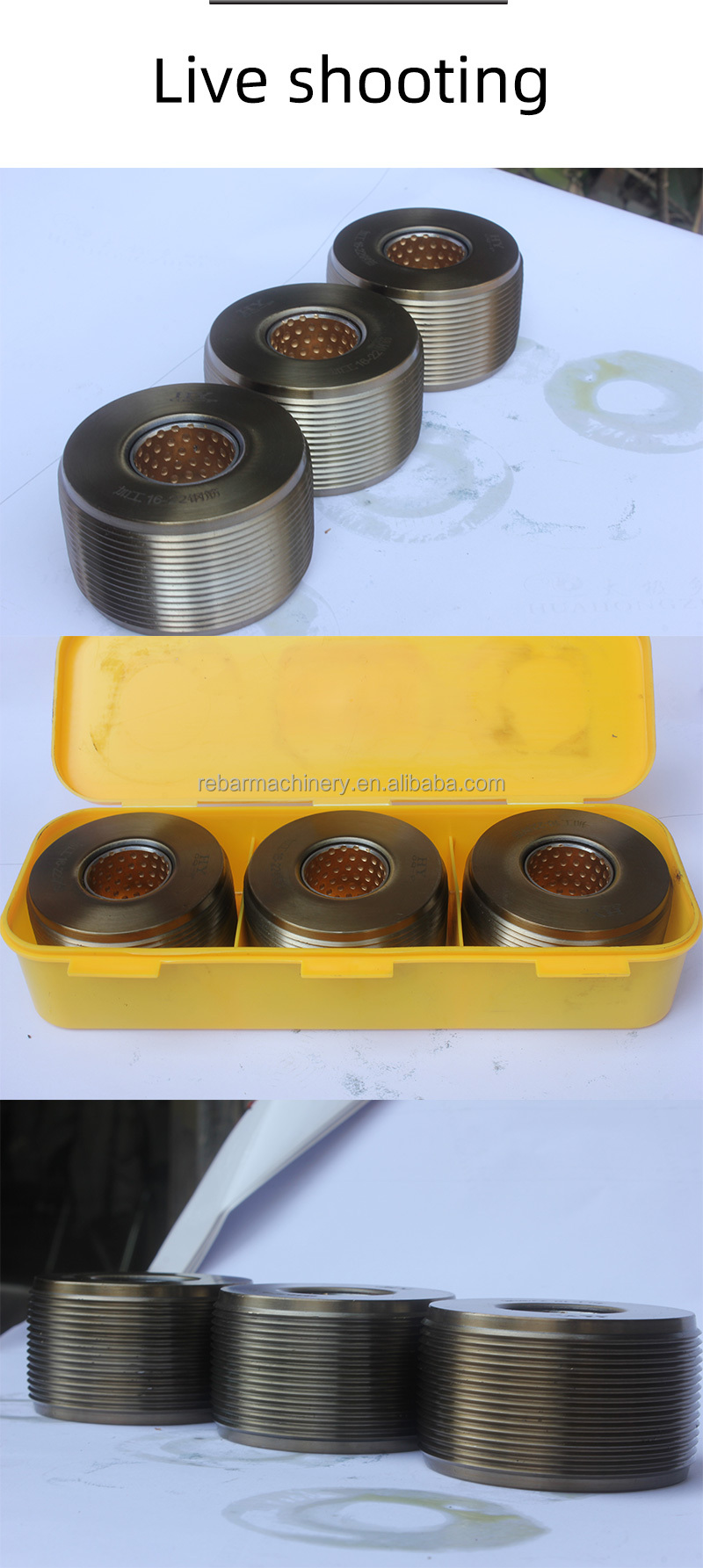

detailed drawing
