Product details

Product Description

Hydraulic thread rolling machine

Thread rolling machines are mainly used for cold rolling forming. The cold rolling process is an advanced breastless processing technology. This process uses rolling tools for extrusion molding. The rolling metal fibers are continuous, and the diameter produced during rolling is The directional pressure can effectively improve the surface quality of the steel wire. The smoothness, hardness and strength of the workpiece can improve the work efficiency several times or even dozens of times compared with cutting processing. It can also save materials and make it easier to realize automated processing.

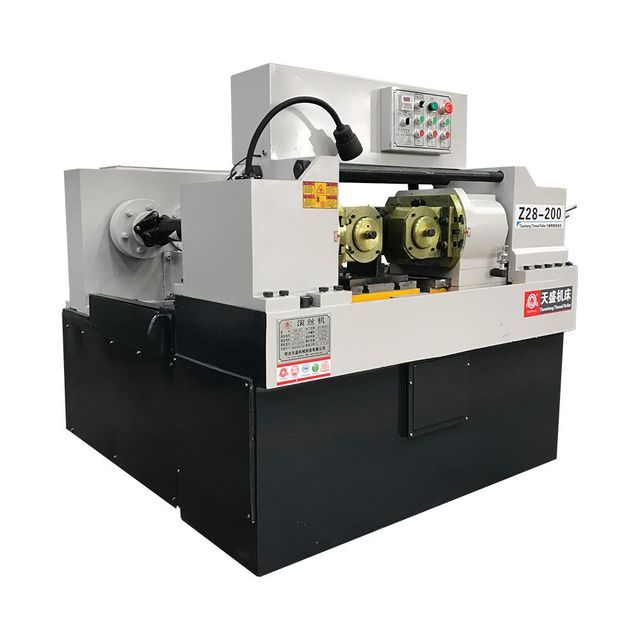

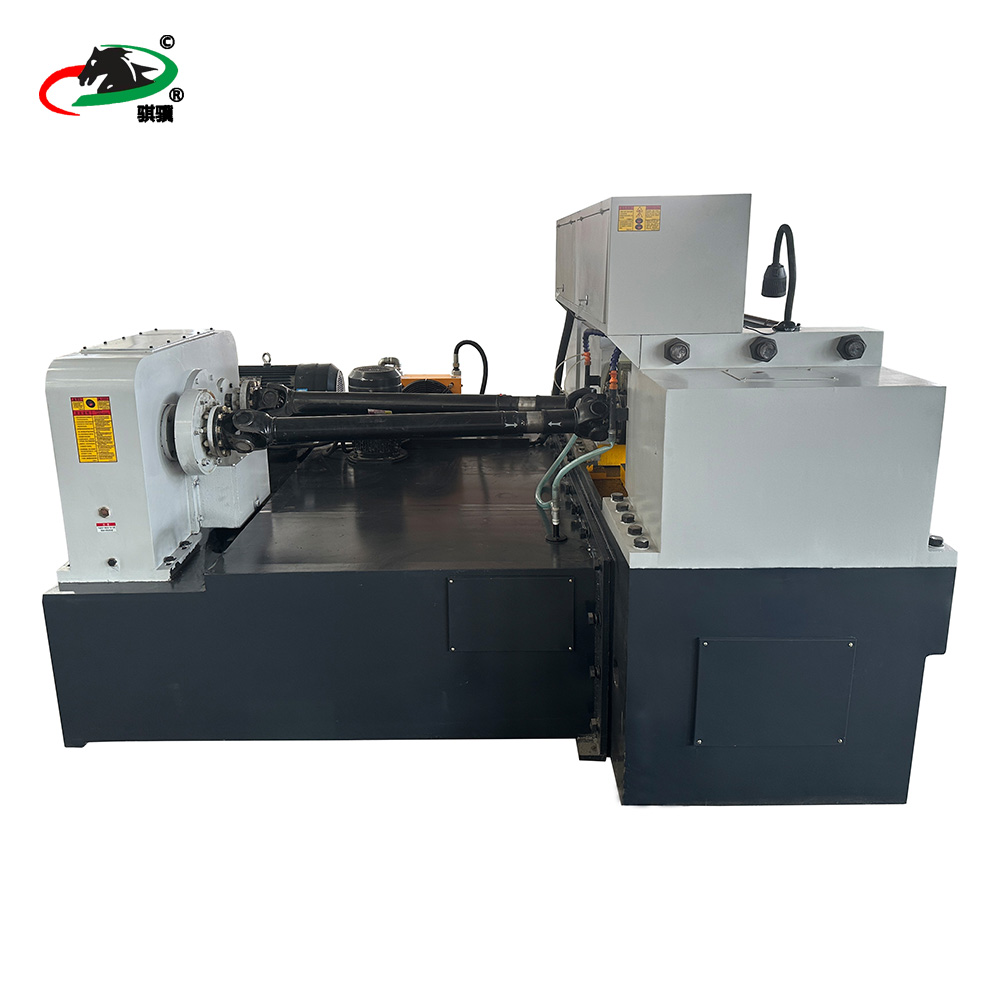

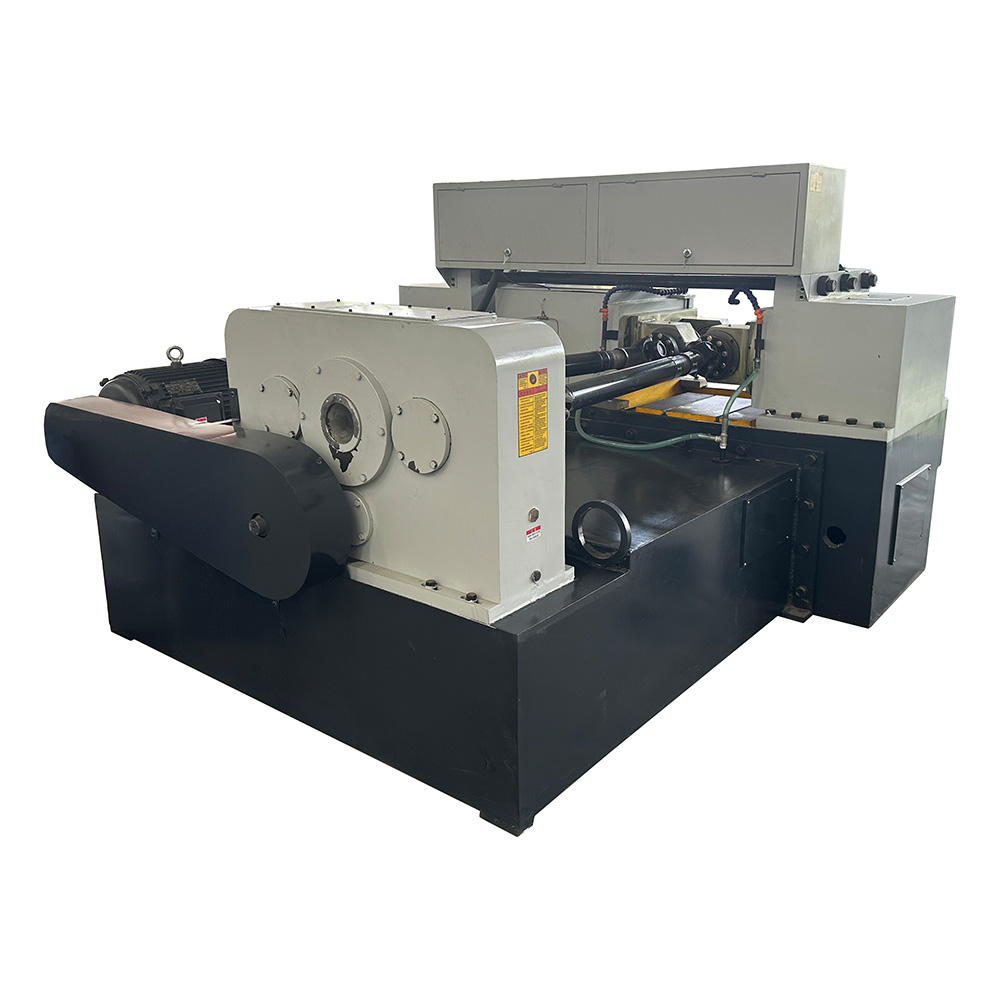

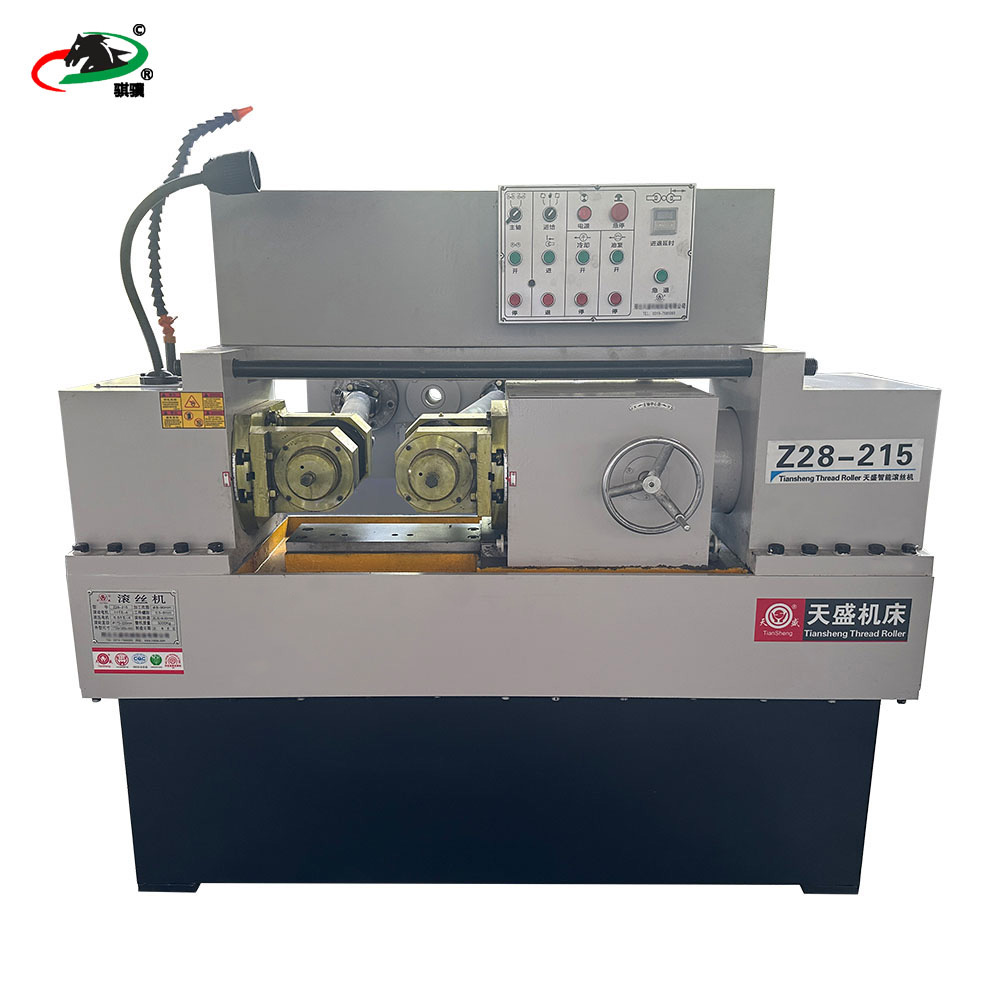

Product display

Product parameters

Product number	QJ—215
Hydraulic thread diameter	8-100mm
rolling pitch	0.5-8mm
Spindle tilt angle	±15°mm
Maximum rolling pressure	300KN
Spindle speed	26, 35, 48, 62 rpm
Rolling wheel outer diameter	170-220mm
Roller hole diameter	75mm
Maximum width of rolling line	150mm
Spindle drive power	11KW/1450 rpm
Hydraulic transmission power	5.5KW/1450 rpm
aspect	220019501650mm
weight	3800kg

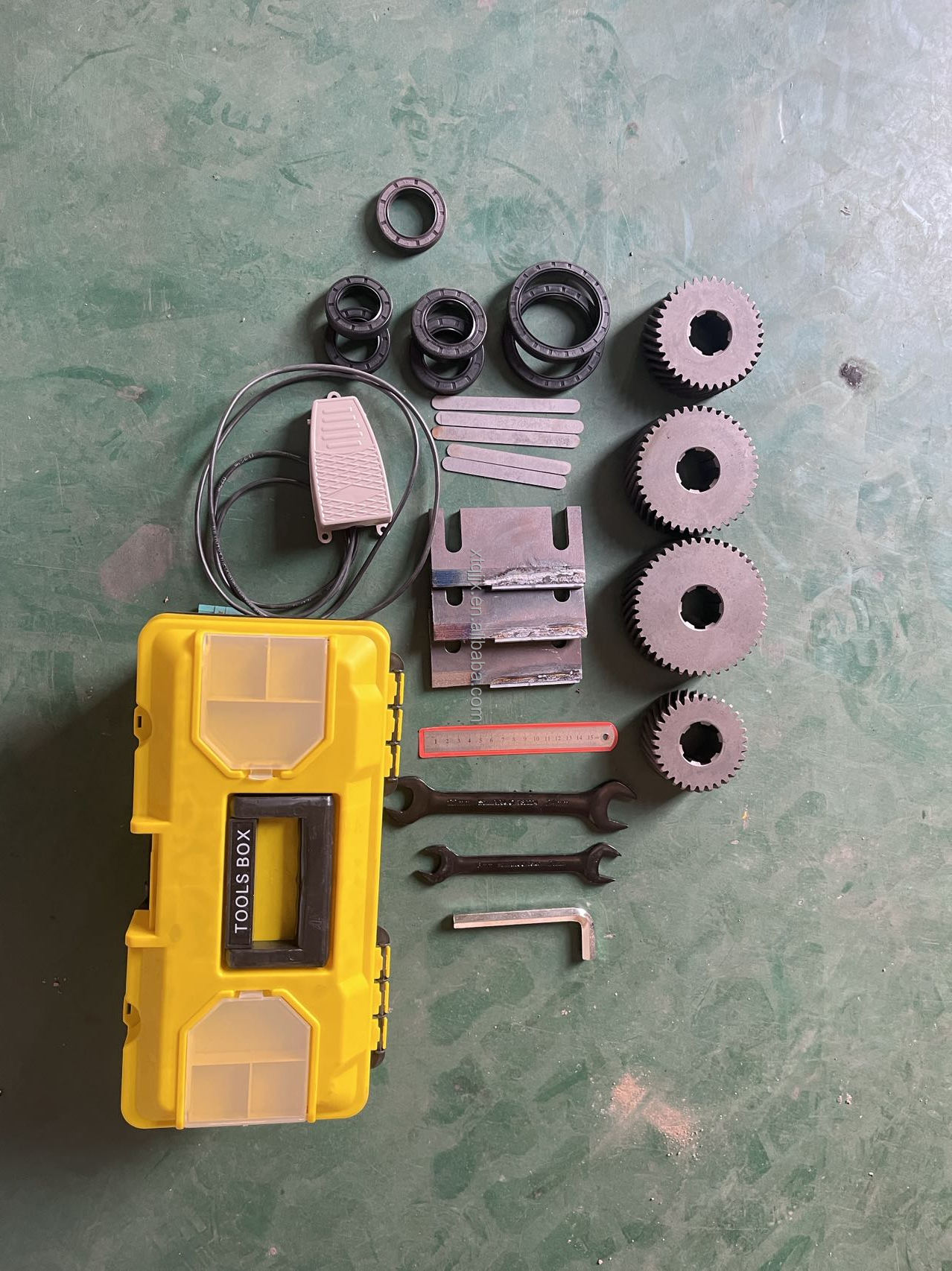

Configuration display

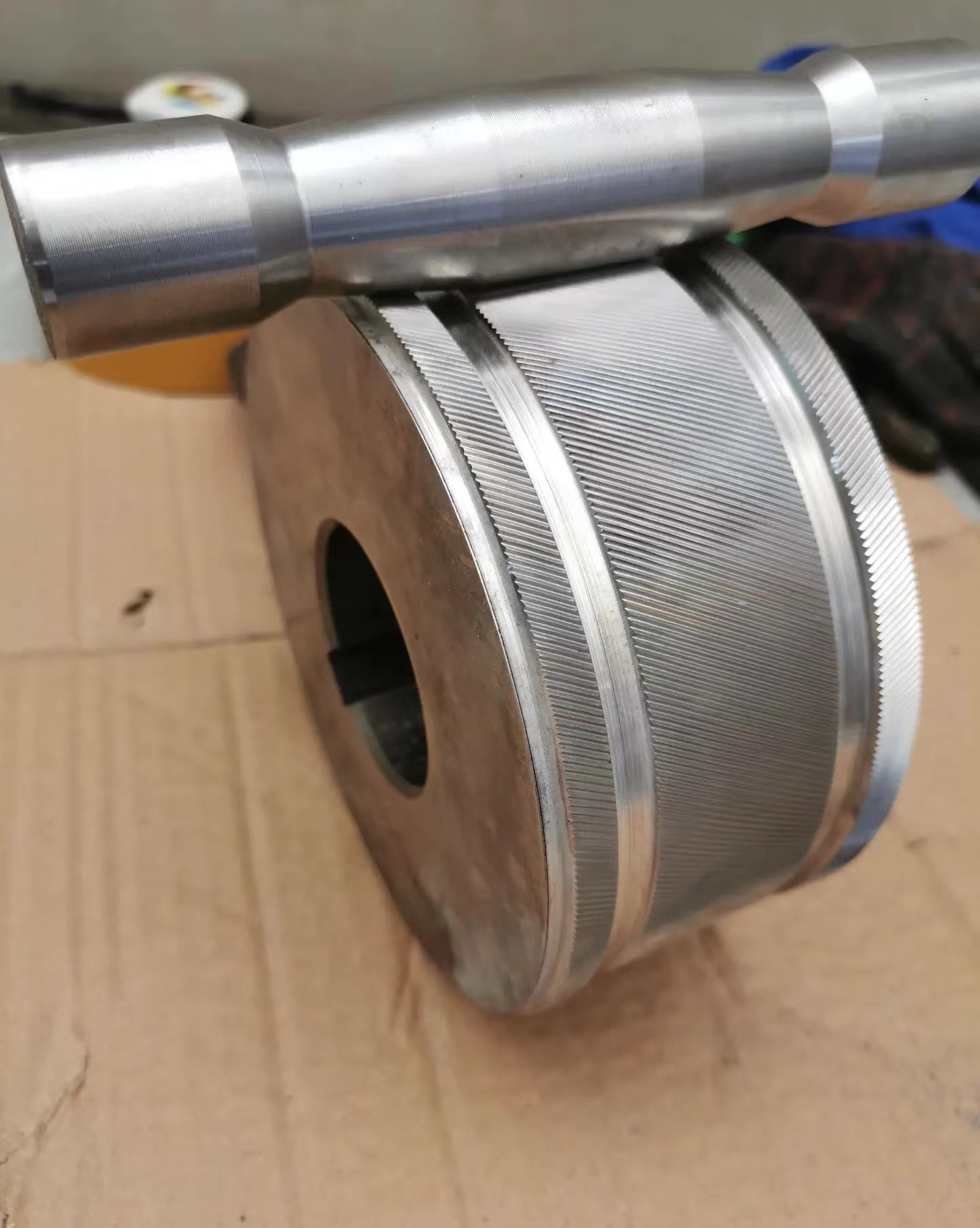

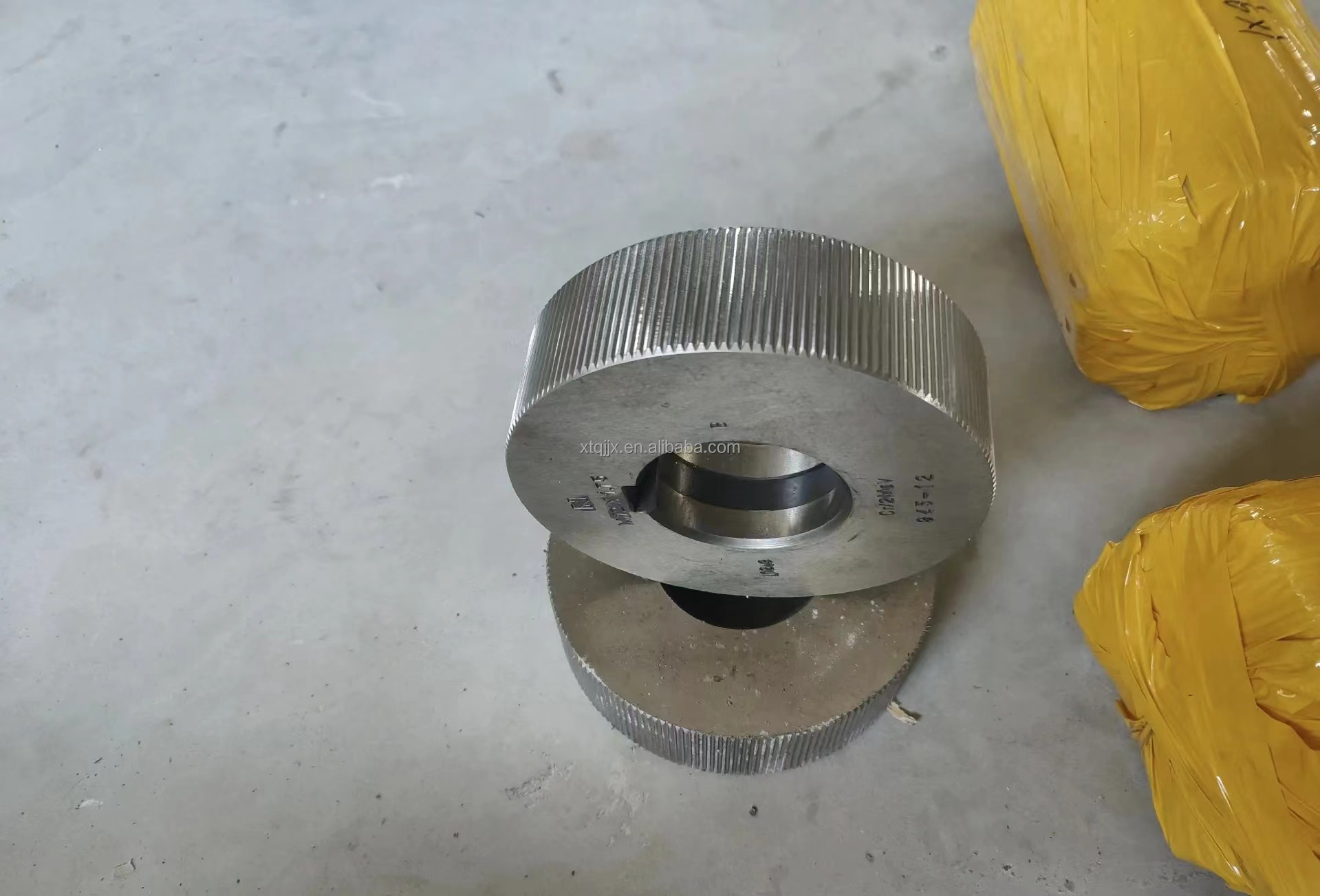

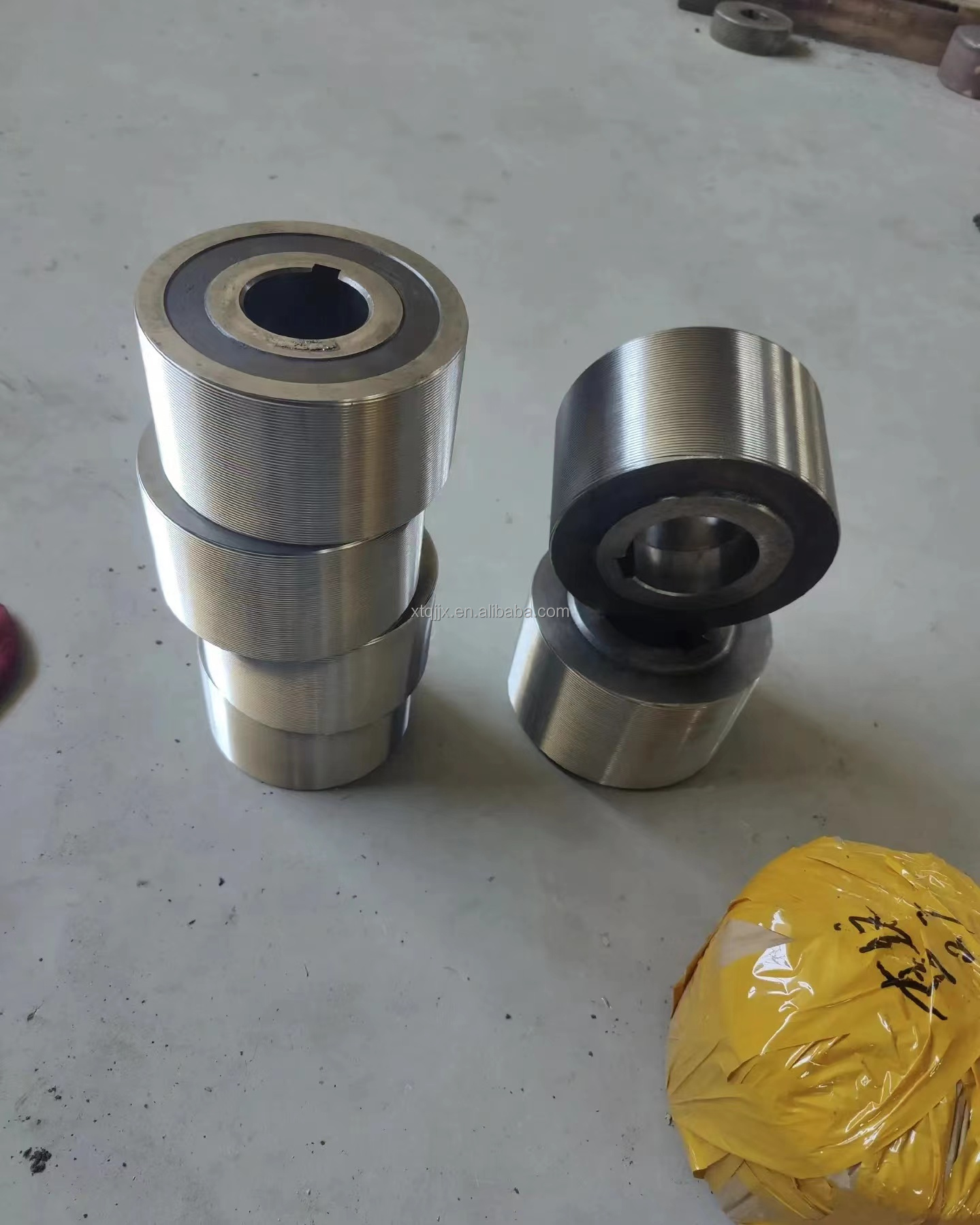

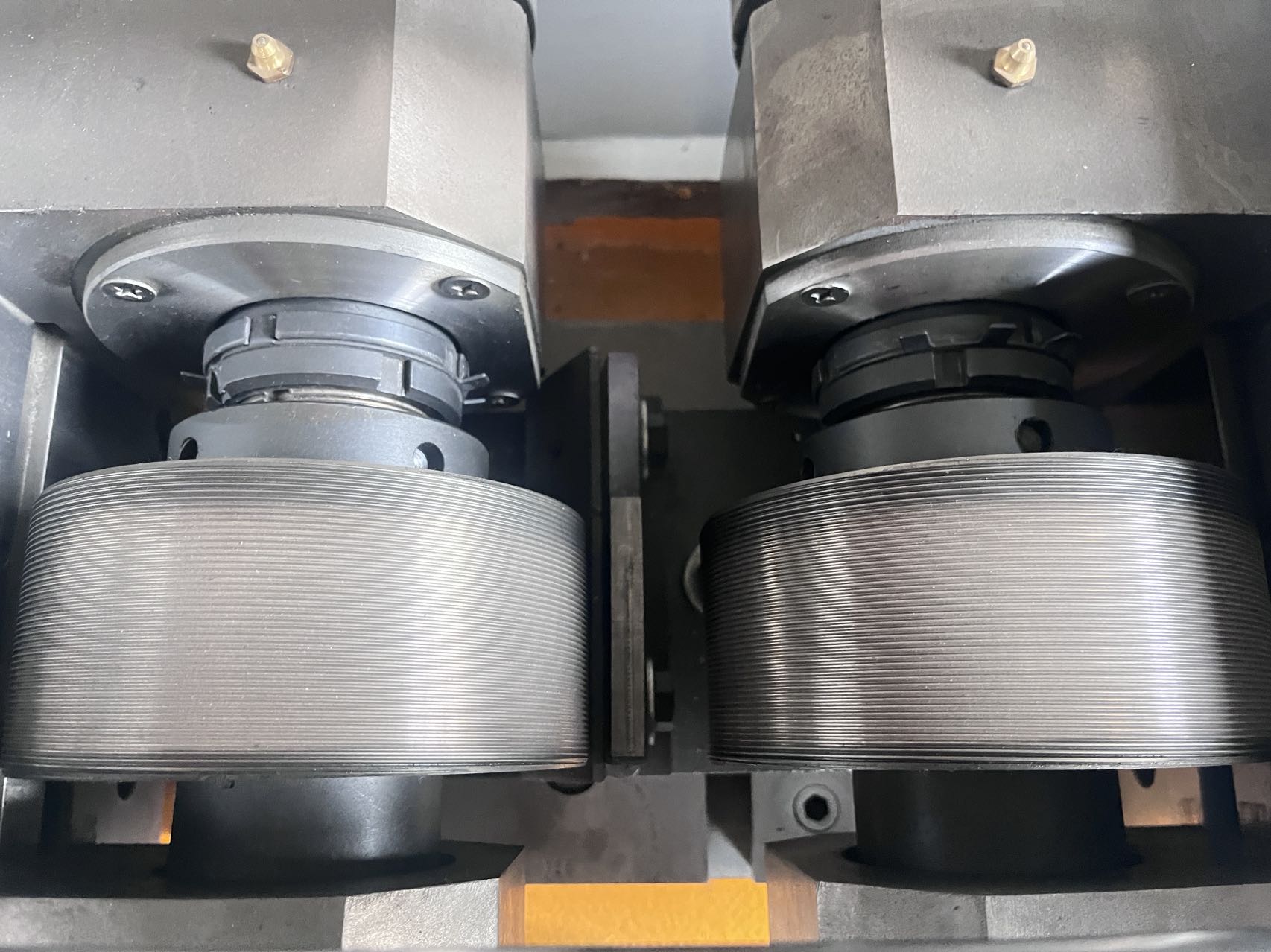

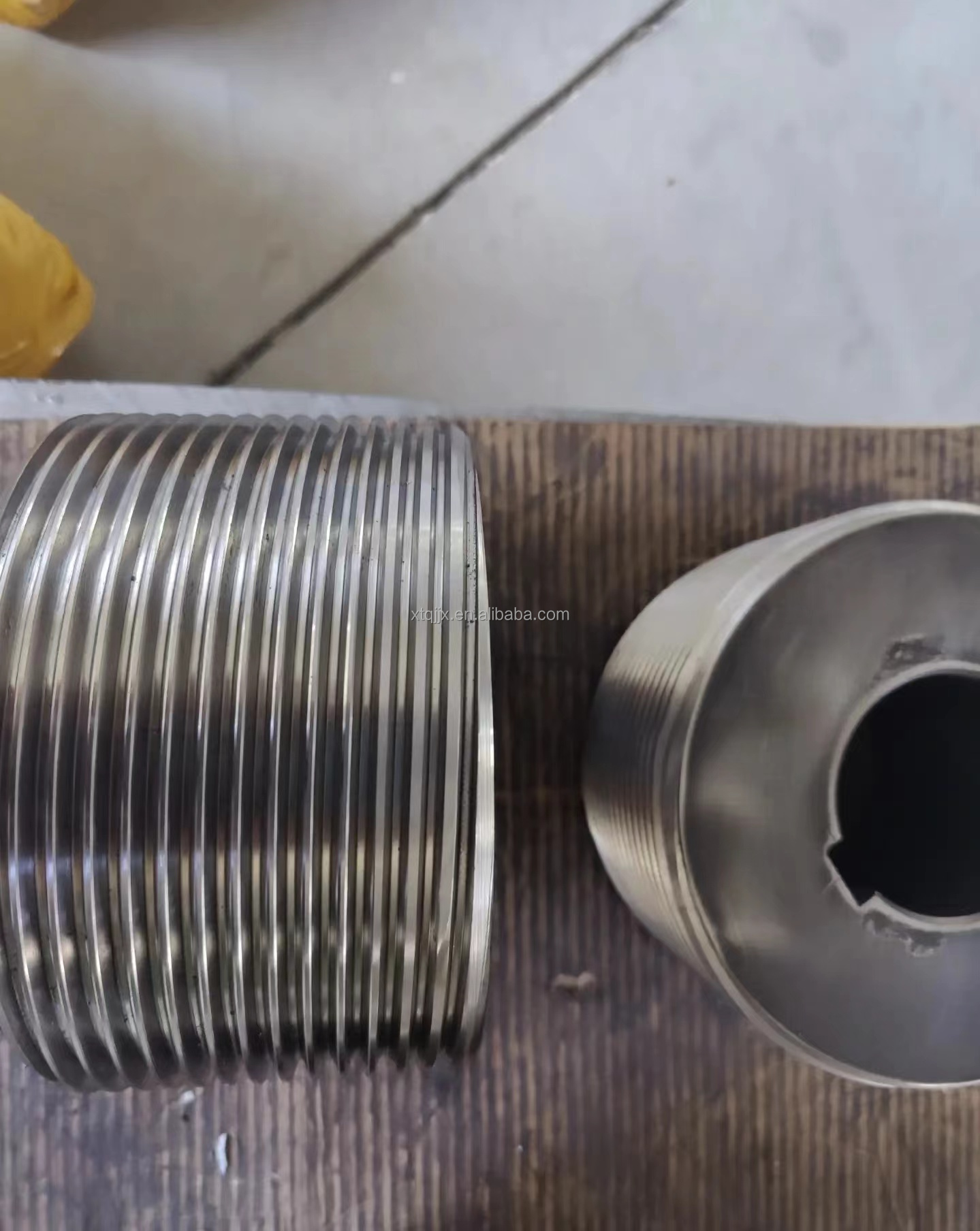

Threaded roller

As a thread rolling tool, the thread rolling abrasive tool is more specific. The hardness of the suitable thread rolling workpiece material should not be higher than HRC37, preferably below HRC25, the elongation should be greater than 10%, and the compressive hardness should be less than 100KGF/MM (square). Carbon steel, alloy steel and non-ferrous metals

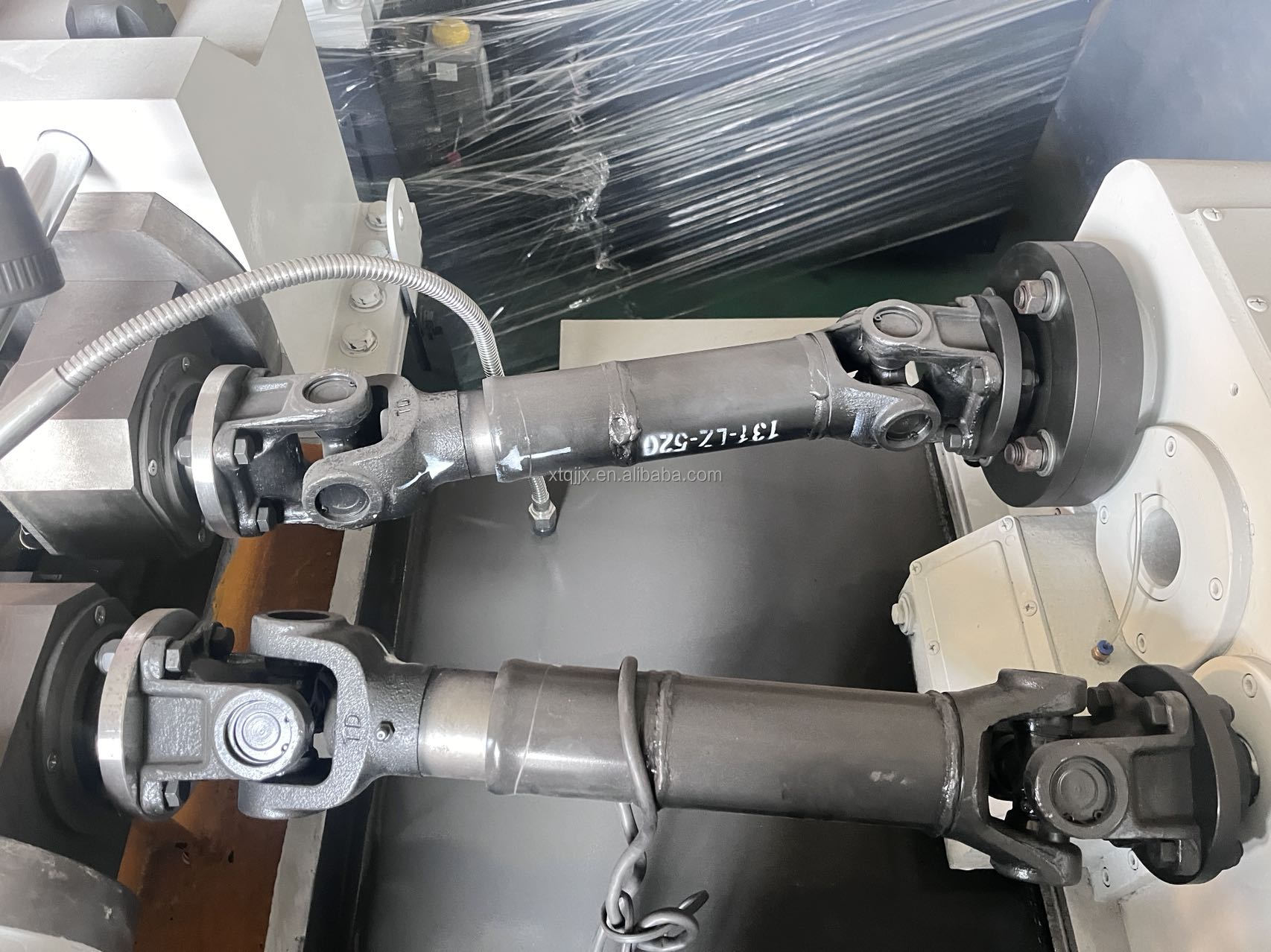

transmission shaft

The transmission part of the machine is that the main motor transmits power to the gearbox through the V-belt, and then through the gearbox, the power is transmitted to the two main shafts through the output shaft and universal transmission shaft. Same direction.
