YD11 automatic computer control leveling thermoplastic road marking paint road marking machine road marking

Product details
place of origin; place of origin:Liaoning, ChinaVideo shipment inspection:if
brand:LiyuanWarranty:1 year
Unique selling point:Fully automatic computer controlpayment terms:L/C, D/P, T/T
Drive System:American SauerSupply capacity:10 sets per month
Paint can capacity:320 kgline width:100-500mm
Core component warranty:1 yearCore components:engine
Marketing Type:New Products 2021Line type:flat/solid/dashed
strength:22Hp Japanese Honda gasoline engineMechanical test report:if
Dimensions (L*W*H):21Hp Japanese Honda gasoline enginePackage preview:
Applicable industries:construction works, road markingAfter warranty service:spare parts
Packaging Details:Standard export fumigated plywood caseapplication:screed
feature:work fastShowroom location:not any
Driving speed:0-15km/hGlass bead tank capacity:50 kg
State of health:newBucket size:100-500mm
port:Dalianweight:1100 kg
company information









Product Description

YD11 automatic driving ride computer control screed thermoplastic road line painter road marking machine road marking

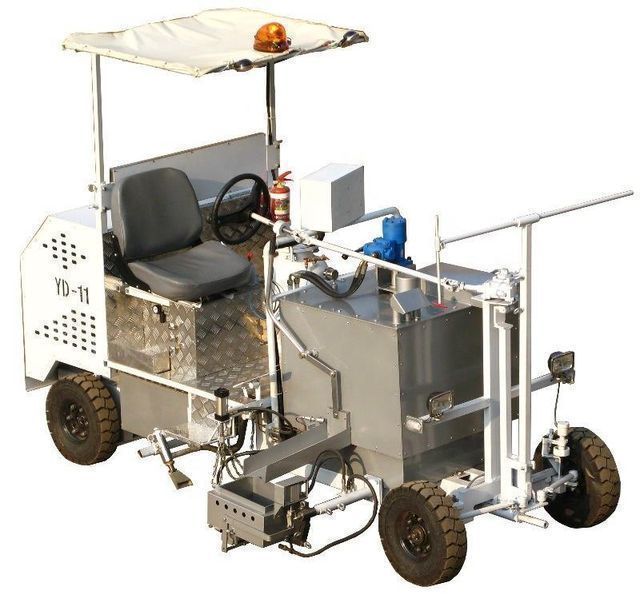

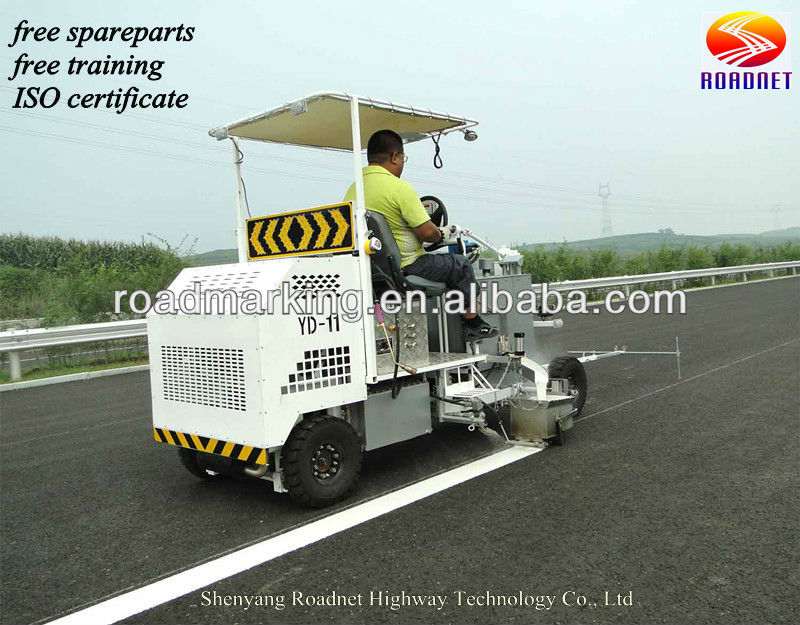

YD11 is a screed road marking machine with compact structure and flexible operation.

Under the premise of sufficient melting material, it also has high construction efficiency.

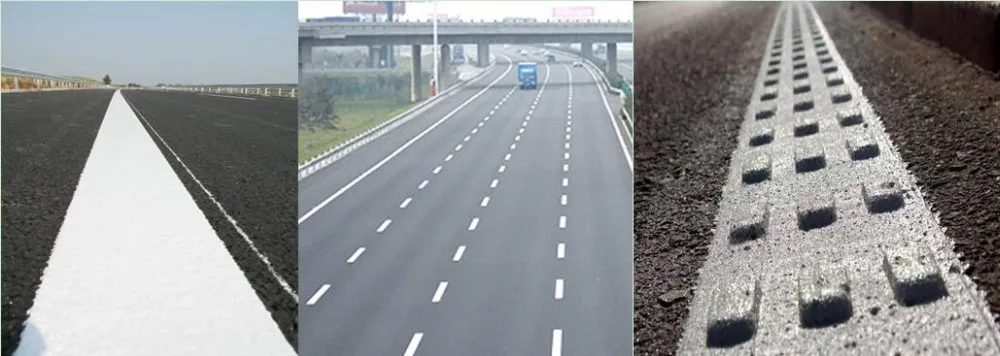

Type I is flat and Type II is flat and convex.

1. It is an ideal equipment for large and medium-sized road marking operations in cities.

2. Advanced hydraulically driven continuously variable speed control system with accurate speed regulation.

3. The optimized design of its driving device can effectively control the operation of the machine and ensure the safety in emergency situations.

4. The leveling structure makes the marking line straight and beautiful

5. Sensitive, accurate and stable computer control system can realize all operations conveniently.



Technical data:

Automatic computer controlled screed thermoplastic road marking machine for expressway marking

Model

YD11 automatic computer control leveling thermoplastic road marking machine

engine

21Hp Japanese Honda gasoline engine

Drive System

Original imported American SAUER transmission system, with automatic brake device, forward, backward, stop operation freely

Driving speed

0-15km/h

Maximum gradeability

15°

way to heat up

LPG, automatic ignition control system

steering system

Smooth and reliable mechanical control

Glass bead spray system

air jet

Control System

computer control system

Paint tank capacity

320 kg

Glass bead tank capacity

50 kg

line width

100-500mm

line thickness

1.5-2.5mm

application

screed type

Alarm function:

Equipped with warning light and electronic flashing warning light

size

3100mm (length)*1250mm (width)*1650mm (height)

weight

1100kgs (not including fuel tank, with 150mm shoe)



Computer Control Line Type





Main features:

1. Engine: Japan Honda 22HP air-cooled electric start single-cylinder gasoline engine.



2. Transmission system: Original imported American SAUER variable speed transmission system, with automatic brake device, forward, backward, stop operation freely



3. Marking method: equipped with hydraulic leveling and marking shoes; the structural plate is made of imported special steel plate, which is resistant to high temperature (200°C), anti-oxidation, and anti-deformation. It has better stability after stamping. The base is a pneumatic leveling structure made of special alloy steel. The ground knives in direct contact with the ground use imported hard tungsten steel cutter heads. Precision technology ensures better sensitivity, wear resistance and sturdiness. The convex shape of the marking line is more regular, the edge of the bottom line is straighter, and the head is perfect. The standard configuration of marking boots is 150mm. (Other sizes can be selected according to customer needs).



4. Glass bead spraying system: 55kgs glass bead tank. Equipped with a jet-type single glass bead spray gun, the pressure, flow rate and spray width can be adjusted to make the glass bead spraying more firm, more uniform and more economical.



5. Electronic control: set a variety of standard line control methods to realize microelectronic intelligent control; the space between the gap lines can be adjusted freely.



6. Air compressor: 0.6m3/min piston air compressor. The pressure-adjustable air tank is equipped with automatic safety venting device.



7. Warning function: The flashing frequency (or strobe) of the warning light can be adjusted freely to improve the safety of marking operations.

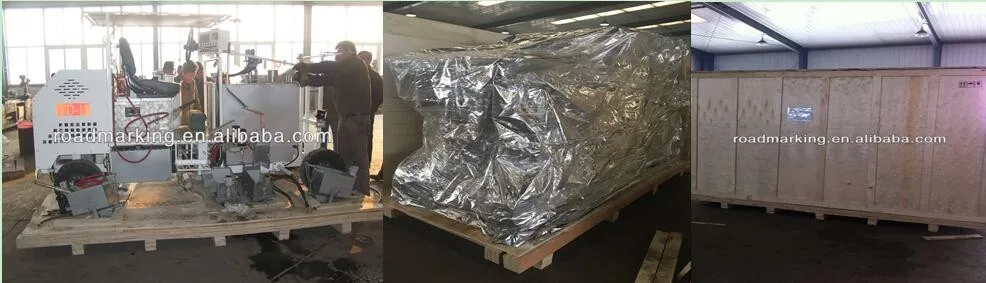

Packaging and Shipping

Packed in plywood box, free from fumigation. The package will protect the machine well during the long sea shipment.





our service

1. 12 months warranty: any damaged parts within the warranty period will be provided for free

2. Provide overseas training
