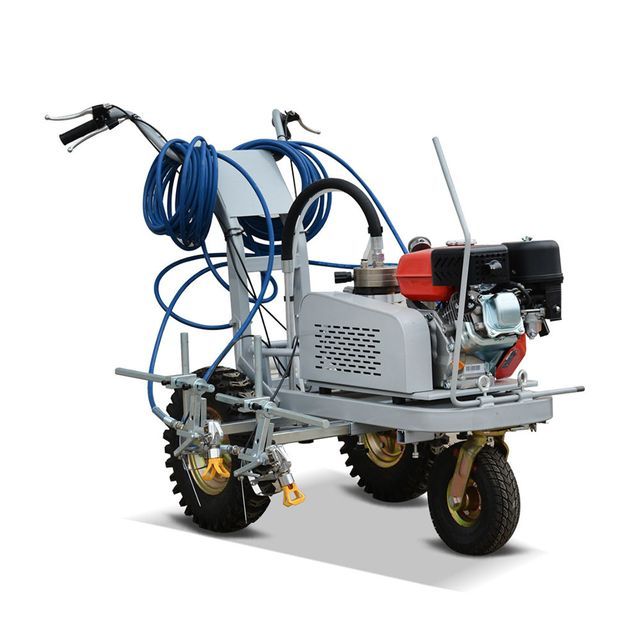

High working efficiency road paint machine marking road marking machine

Supplier: Jininig Zt Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Mia Zhang
Price: $480.00 /set
Min. Order: 1 set

Click here to contact

Product details

Health status:	new	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Showroom location:	Thailand	port:	Qingdao/Shanghai
Marketing Type:	2020 New Products	Origin:	Shandong Province, China
Warranty:	1 year	Mechanical test report:	if
Maximum flow:	3.8 L/min	Supply capacity:	600 sets per month
Core component warranty:	1 year	line width:	50-550mm
type:	1 or 2 paint guns cold paint	Unique selling point:	high operating efficiency
Nozzle Type:	217/517	Video outbound inspection:	if
weight:	100 kg	Core components:	engine
Maximum line speed:	122m/min	Key words:	road marking machine
brand:	ZT	Applicable industries:	farm, construction, other

Product Description

1. The marking machine adopts the airless spraying technology of gasoline engine driven high-pressure pump, the marking line is clear, smooth, saturated and uniform, and the working efficiency is high. 2. Both sides of the spray gun are equipped with limited paint boards to ensure that the lines have no burrs. This kind of board can be lifted by the pull wire when turning, and the rotation is flexible. 3. The spray gun can be easily disassembled, different nozzles can be replaced, and the line width can be controlled. It is suitable for ordinary airless spraying of marks or labels. 4. Carrying out the operation, the steering is convenient, the orientation is reliable, and the steering is flexible. The front swivel wheel cold paint marking machine adopts a solid frame, the swivel wheel is at the front, you can control the director very easily, we also added 6 damping blocks to reduce vibration, and the line will be very straight. We also use a high powered pump and the lines are very crisp. 5. The new road marking machine adopts a strong frame, thicker material, and stronger. You can use 1 spray gun or 2 spray guns. We can also add an apron to adjust the line width. 6. According to different work requirements, the road marking machine can use 1 nozzle, 2 nozzles, or use a baffle, and the spraying width is 50mm-500mm. 7. According to different marking machines and customer requirements, we will provide gasoline engines with different power and brands. Generally, we use Chinese Zongshen and Honda engines.

•Small size, very convenient to transport the machine. •The weight is right, 2 people can easily lift the machine. •Super load-bearing capacity, the sturdy frame can carry 150-200 kg. •Excellent spray efficiency, maximum 5000m/h. •A variety of marking paints are available: professional marking paints, latex paints, paints, anti-corrosion paints, anti-vibration paints, anti-rust paints, blending paints, ordinary paints, road marking paints, water-based paints.
