Transformer oil tank corrugated fin forming machine

Supplier: Shanghai Tongli Electrical Engineering Equipment Factory
Region: Shanghai, China
Contact: Mr wei Gu
Price: $150000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	Manufacturing plants, machinery repair shops	Corrugated fin width:	300~1600mm
place of origin; place of origin:	China Shanghai	After-sales service provided:	On-site maintenance and repair services
Fin height (mm):	50-400	Steel coil inner diameter:	470~520mm
Corrugated board:	1~4	Material Width (mm):	300-1600
port:	Shanghai port	Showroom location:	not any
Warranty:	1.5 years	Total weight (T):	10
Steel plate thickness:	1.0~1.5mm	Core components:	Programmable Controllers
Corrugated fin height:	50~400mm	Mechanical test report:	if
payment terms:	L/C, D/P, D/P, T/T	brand:	Tongli
Package preview:		Bending height:	15~300mm
Uncoiler loading:	6000	Main selling points:	automatic
Internal clearance of corrugated fins:	6 mm	Core component warranty:	1 year
State of health:	new	Video shipment inspection:	if
Packaging Details:	Airworthiness export standards. Bare goods or wooden box packing.	Corrugated Fin Spacing:	>40mm
Maximum outer diameter of steel coil:	1000 mm	Fin spacing (mm):	40
Marketing Type:	2019 Hot Products	Supply capacity:	30 sets per year
Material Thickness (mm):	1.0-1.5

Product Description

Corrugated tank wing folding machine

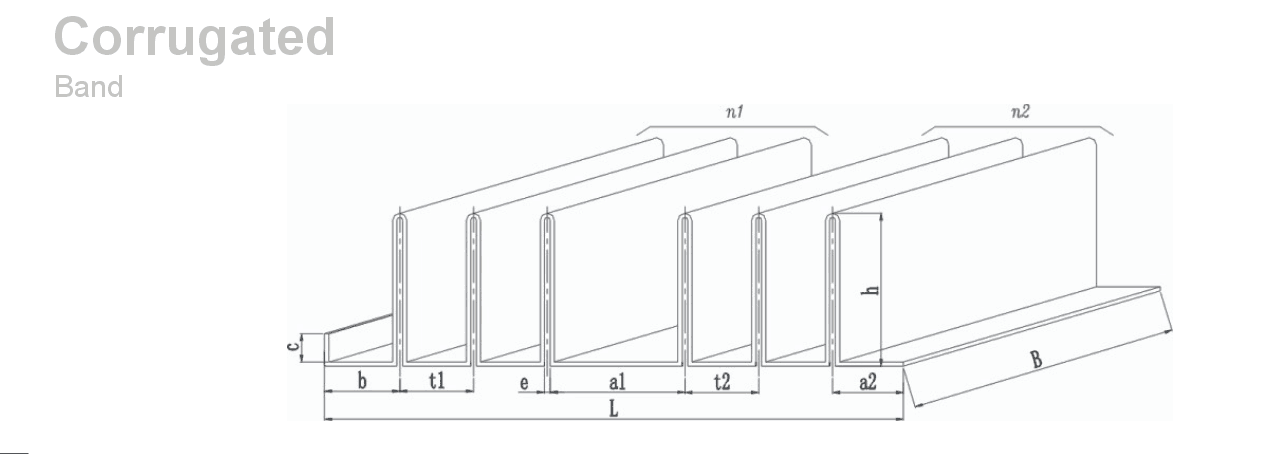

Product parameters

thing	the code	parameter
Model		BW-1300	BW-1600
Corrugated fin width	Second	300~1300mm	300~1600mm
Steel plate thickness	small	1.0~1.5mm
Corrugated Fin Height	h	50~350mm	50~400mm
Internal clearance of corrugated fins	Europe	6mm
Corrugated Fin Spacing	Ton	>=40mm
corrugated sheet	no	1~4
Corrugated board length		<=2000mm
bending height	C	15~300mm
back section	A sort of	>=40mm
Front section	b	>=40mm
Steel coil inner diameter		470~520mm
Maximum outer diameter of steel coil		1000mm
total power		43Kw

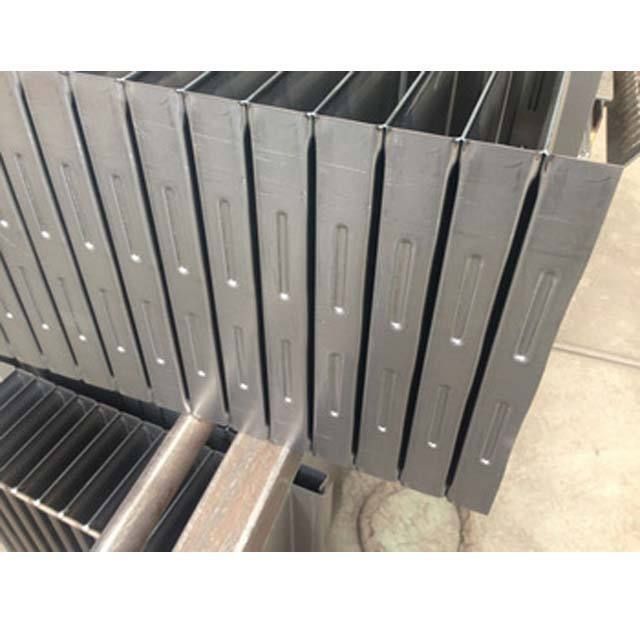

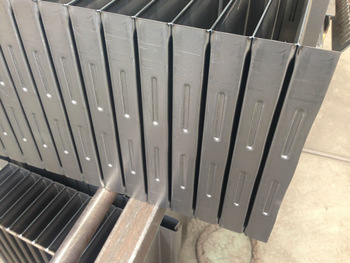

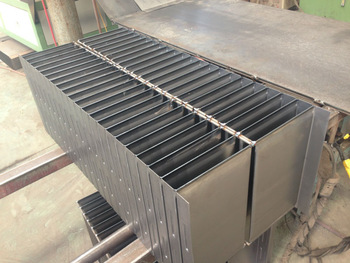

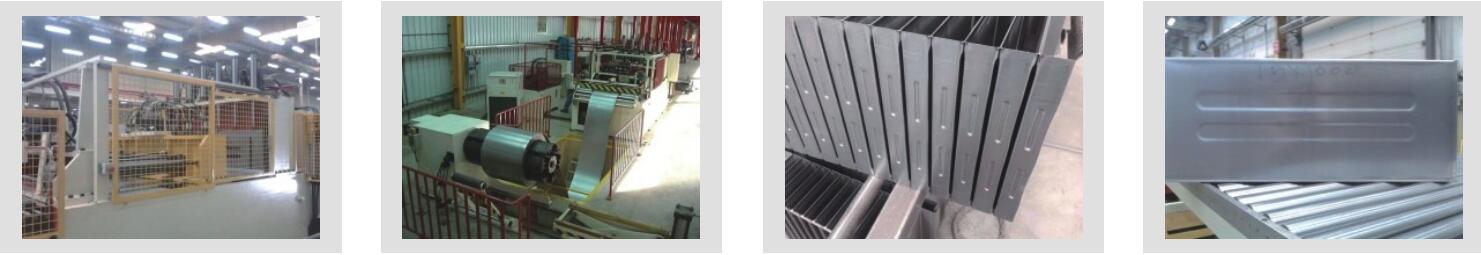

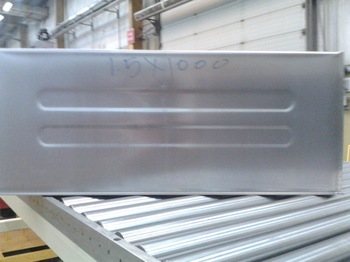

production pictures

Main technical parameters of BW-1600 corrugated belt forming machine

(1) Steel plate width: B 300 ~1600mm
(2) Steel plate thickness: S 1.0 ~1.5mm
(3) Corrugation height: H 50~400mm
(4) Corrugation spacing: t≥40mm
(5) Clearance between corrugations: e 6mm
(6) Number of corrugated belt groups: n 1~4
(7) Corrugated belt length: L≤2000mm
(8) Folding height: C 15~300mm
(9) Length of box plate tip (front clearance): a≥40mm
(10) Length of the tip of the box plate (rear notch): b ≥ 40mm
(11) Total motor power: W 35Kw
(12) Total weight: 25500Kg
(13) Floor area: 13000×7100mm
(14) Equipment operating frequency: 50,60Hz
(15) Voltage: 380V,
(16) Spreader Max. Loading weight: 12000Kg
(17) Loading weight of feed elevator: 12000Kg
(18) Roll Coil inner diameter range: 470~520mm (Axis unrolleris hydraulic Braking up and shrink)
(19) Coil Max. Diameter: 1200mm
(20) Unwinder speed: 12rpm
(21) The corrugated belt forming machine needs to meet the function of strong rib embossing (including providing relevant templates)

BW corrugated oil tank fin folding machine is a special equipment for producing corrugated oil tank transformer corrugated plates by coiling flat steel plates. The machine includes uncoiler, wing folding device, hydraulic system, electric control system, conveying system, etc. The wing folding device is composed of guiding, feeding, limit, front pressing, front pressing, edge folding, back pressing, bending, cutting and other parts. The corrugated wing folding machine has the characteristics of beautiful appearance, reasonable structure, high practicability, high precision, convenient operation (1-2 people/shift), hydraulic drive, automatic control, low noise, low maintenance, and stable operation. And friendly man-machine interface image display. In the running mode, the computer completes all processes such as cutting, folding, and hemming at one time according to the input parameters.
