Fully automatic radiator corrugated fin wall forming welding machine

Supplier: Shandong Darling Machinery Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Martin Hoo
Price: $138000.00 / 1 - 4 sets
$108000.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Fin spacing (mm):	40	Main selling points:	competitive price
raw material:	SPCC, ST12, ST13, ST14 cold rolled sheet	Ripple height:	Corrugated fin forming machine 50~500mm
Type of machine:	corrugator	application:	Transformer oil tank fan production
payment terms:	L/C, Western Union, D/P, D/A, T/T	Local service location:	Malaysia, Australia, Kenya, Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria, Romania, South Africa, Kazakhstan, Ukraine, Nigeria, Uzbekistan, Egypt, Canada, Turkey, United States, France, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand
Video shipment inspection:	if	Total weight (T):	16
Uncoiler loading:	3-5 tons	Fin height (mm):	400
Package preview:		Plate width:	300~1300mm
Mechanical test report:	if	Forming speed:	3 pieces/minute
Total power (kW):	45	Material:	SPCC, ST12, ST13, ST14 cold rolled sheet
Ripple pitch:	≥40mm corrugated fin forming machine	Steel plate thickness:	1~1.75mm
Marketing Type:	normal product	Material Thickness (mm):	1-1.75mm
Core components:	PLC, motor	brand:	Darling Machinery
Packaging Details:	1. The spare parts of the whole machine are packed in fumigation-free wooden boxes. 2. The main body is packed with waterproof film to prevent rust. 3. If there are special requirements, it can be packed in a fumigation-free wooden box. Or make wooden pallets. 4. If necessary, we can go to the customer's factory to provide installation, commissioning and training for our automatic radiator corrugated fin wall forming welding machine	After warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services
Showroom location:	Kenya, Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria, Romania, South Africa, Kazakhstan, Ukraine, Nigeria, Uzbekistan, Malaysia, Australia, Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Vietnam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Brazil	Material Width (mm):	1300
port:	Qingdao port corrugated fin forming machine	Strength Tendon Groove:	2 slots
After-sales service provided:	Free spare parts, online support, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support	Health status:	new
Warranty:	over 5 years	Supply capacity:	300 sets/year corrugated fin forming machine
Dimensions (LWH):	18x2.1x1.8 meters	product name:	Corrugated fin forming machine
Origin:	Shandong China	Applicable industries:	Building material stores, machinery repair shops, manufacturing plants, construction works, other, energy and mining, transformer plants
Core component warranty:	3 years	delivery time:	Corrugated fin forming machine 20-60 days

Fully automatic radiator corrugated fin wall forming welding machine

Watch the machine working video directly (video link):

YouTube: https://youtu.be/aTBajPM232o

QQ video: https://v.qq.com/x/page/q3215n0xtko.html

Baidu video: https://haokan.baidu.com/v?vid=4837981227745538508&bfe=1

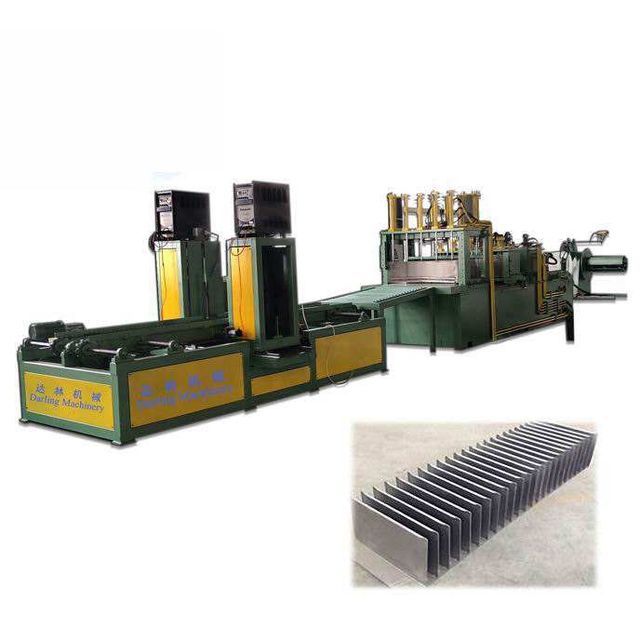

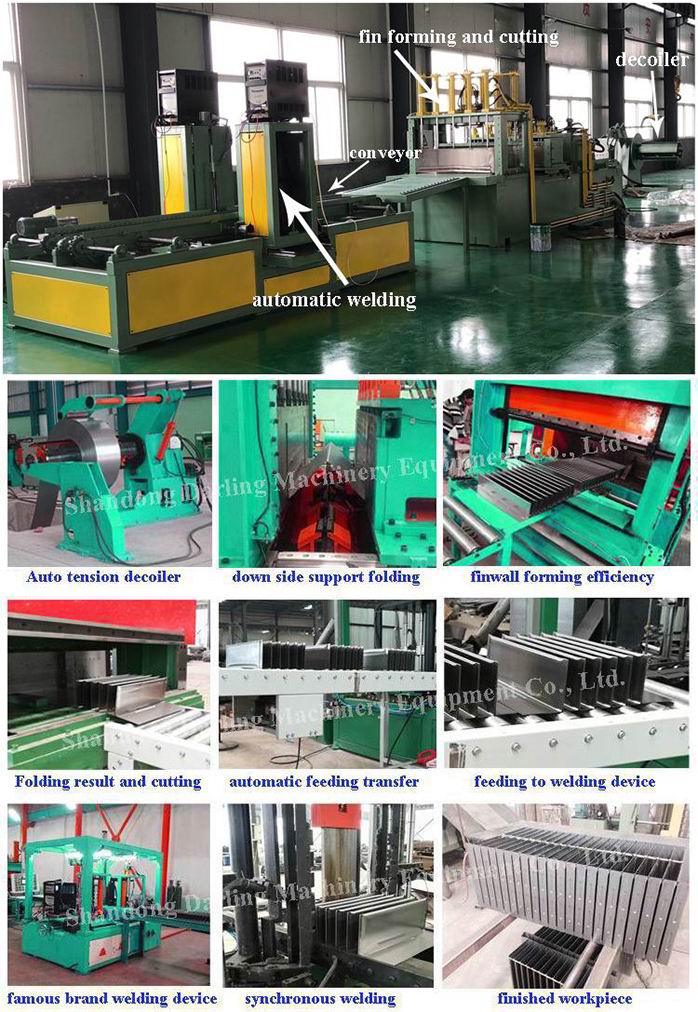

The equipment is mainly composed of feeding mechanism, guiding mechanism, hydraulic forming, hydraulic shearing, automatic welding and other components. The fuselage is an all-steel welded structure.

Device parameters

thing	the code	parameter
raw material	SPCC, ST12, ST13, ST14 cold rolled sheet
Steel plate width	Second	300~1300mm
Steel plate thickness	small	1~1.75mm
Ripple height	h	50~500mm
Corrugation pitch	Ton	≥40mm
Clearance between corrugations	electronic	6mm
Number of corrugated belt sets	no	1~4 sets
Corrugated belt length	large	≤2000mm
folded height	C	15~300mm
Box plate tip length (front clearance)	b	≥40mm
Box plate tip length (back clearance)	A	≥40mm
Corrugated fin strength groove		2 is the most (according to customer requirements)
Corrugated fin spacing error		±0.25mm
Forming speed		≤20s (3-4 wave/min)
Motor total power		45kW (including 2 welding machines)
Voltage		380V, three phase, 50HZ
gross weight		20000 kg
construction area		9000x6000(mm)
Air source (customized)		Pressure: 0.8Mpa, displacement: 100L/min.
Expand max. Bearing weight		6000 kg
Maximum feeding hoist load capacity		6000 kg
Coil inner diameter range		470-520mm (the shaft of the unwinding machine is hydraulically opened and closed)
Maximum coil diameter		1000mm
Uncoiler speed		12rpm

Main configuration

No.	Name	brand
1	Programmable Controllers	Mitsubishi
2	Encoder	Omron
3	touch screen	Schneider or Xinjie
4	route guide	Taiwan HWIN/Chinese famous brand
5	The electromagnetic valve	northerners
6	pump components	Rexroth
7	cylinder	Imported sealing ring
8	Photoelectric switch	Omron/Chinese famous brand
9	air switch	Schneider/Chinese famous brand
10	AC contactor	Schneider/Chinese famous brand
11	Intermediate relay	Schneider/Chinese famous brand
12	bearing	SKF
13	Pneumatic solenoid valve	SMC/Chinese famous brand
14	servo motor	Mitsubishi / Chinese famous brand
15	track, screw	Taiwan Shangyin/Chinese Famous Brand
16	Welding machine	Panasonic/Chinese famous brand

our service

1. Pre-sale:We will provide you with professional guidance to help you buy the right machine, and let you get the maximum profit by using our machine after you choose our machine.

2. In terms of sales:We will feedback you about your order with photos and videos. Put your heart in your stomach.

3. After sales:We will go to your factory to give you training, teach you how to use our machines, or we will give you video training. If there is our local agent and office, we will have our local engineers come to your factory to give you training.

4. Our quality assurance:All our machines use life.

For local office support, please contact our company:

Shandong Darling Machinery Equipment Co., Ltd.
Address: Shacun Industrial Park, Licheng District, Jinan City
Contact: Martin Hoo +86-15253156158 (WhatsApp)
Skype/WeChat: martinhoo936 QQ: 613252158
Website: www.darlingmachinery.com

We will be the best partner

Although we are in different countries, our hearts are always together. we do not'Not only sell machines, we also sell service, technology and brand. Once cooperation, forever friends!

Our cooperation is a win-win result.

® Our purpose is to:

By using our machines, you can make better products and earn more money!
