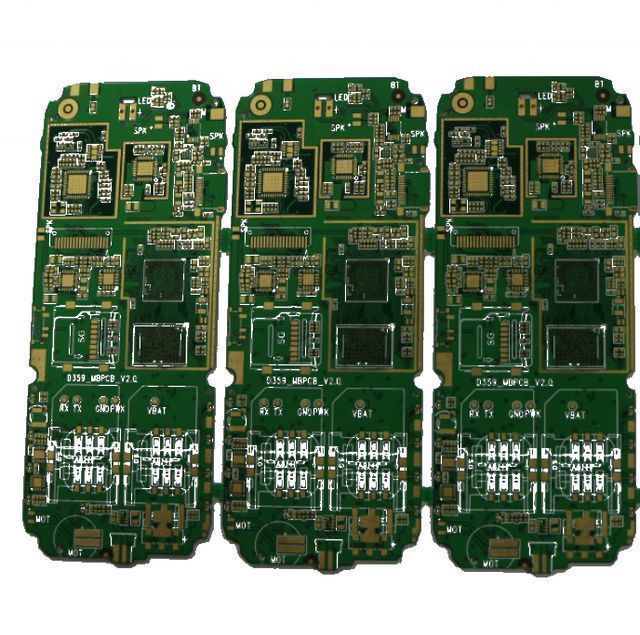

Low cost electronic circuit board fast delivery PCB charger for mobile phone PCB manufacturing

Product details
port:Shenzhen/Hong Kongplace of origin; place of origin:Guangdong, China
payment terms:L/C, Western Union, T/T, Paypal; EscrowSurface treatment:sinking gold
pay:L/C;T/T;Western Union;Paypal;ESCROW,etc.needed file:Gerber file
Substrate:FR-4Board Dimensions:45x73mm
Supply capacity:50000 square meters PCB FPC MCPCB PCBA per monthPackage preview:
thing:Buried Blind High Density Multilayer Boardlayer:1-30L
Plate thickness:1.0mmport:Shenzhen/Hong Kong
Types of:Buried and blind vias, multilayer boardsMinute line width:0.1mm
model:XP-5886Material:FR4
Layers:2-30 floorsSurface treatment:HASL; lead-free HASL; OSP; immersion silver; immersion gold
brand:OEM productionSolder mask color:Green oil; red; yellow. Optional
Sample order:acceptableMinute Hole Size:0.25mm
Packaging Details:Inner packing: vacuum packing/polybag Outer packing: standard carton packingMinute line spacing:0.1mm
Copper thickness:Hoz-5oz
Aikesen Circuit Factory has 14 years of experience and more than 1,000 employees

Multilayer PCB board, rigid PCB, flexible PCB, MCPCB
1) Material: FR4;

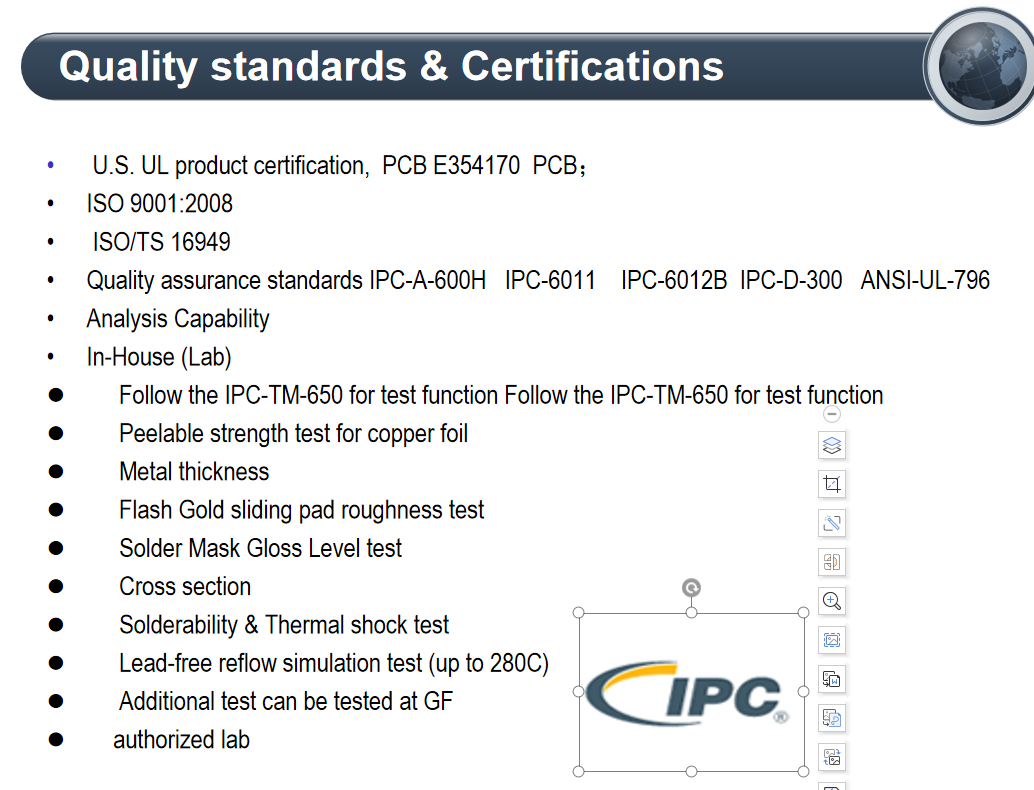

2) Certificate: UL, ISO, TS16949;
3) T/T, Western Union, PayPal;
4) OEM service;
5) High quality.

Multilayer PCB HDI circuit board



1. One-stop service

 2. OEM service

 3. Gerber files are required

 4. PCB cloning with samples

 5. Quality assurance and professional after-sales service

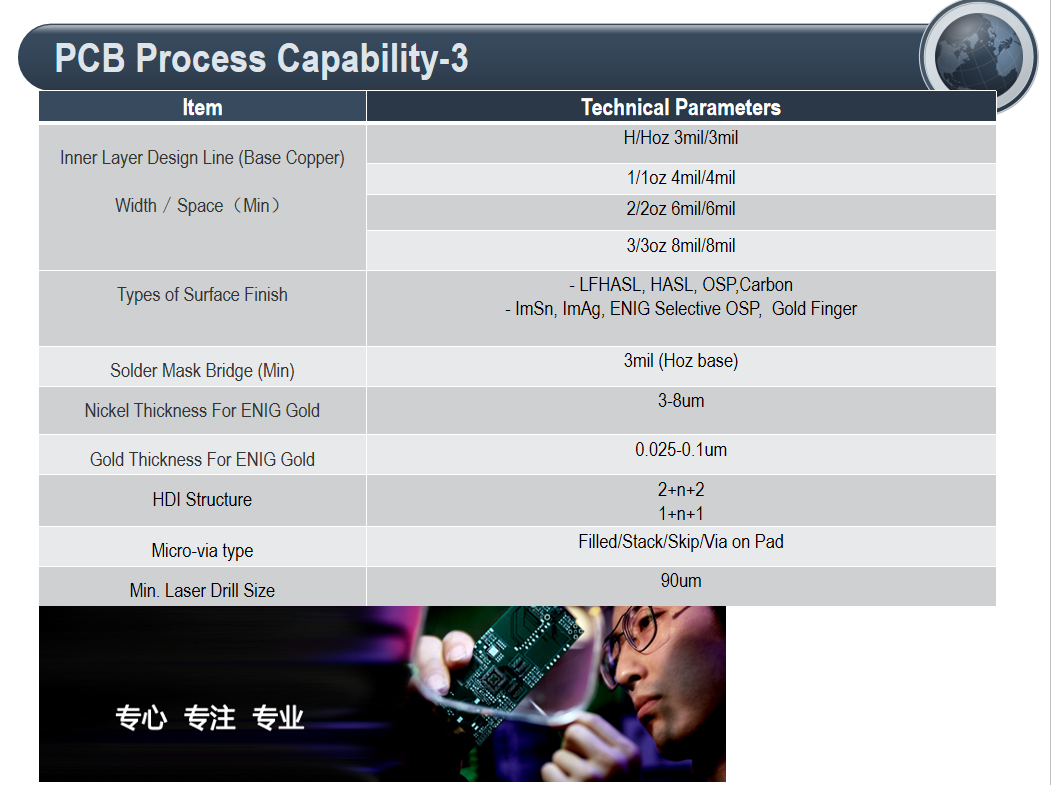

Reference - Our Multilayer PCB/Rigid Board Production Capabilities
thing
Multi-layer PCB high-density circuit board
layers
1-30 floors
Material
FR4(High TG, Halogen Free, high frequency), CEM1, CEM3,BT,Al base material,etc.
Suppliers: SY, KB, ITEQ, Isola, Nelco, Rogers, Grance, Mitsui
Maximum panel size
32±20(800mm±508mm)
Minimum width/spacing(min)
4 million/4 million
copper weight
Inner layer 140um(4oz)
Outer layer 175um(5oz)
Minimum Drill Size
0.2mm (8 million)
Via type
blind/buried/plugged
Finished plate thickness
0.20-6.0mm
tolerant
Inner alignment: ±3mil
Hole position accuracy: ±2mil
Drill groove tolerance: ±3mil
PTH diameter tolerance: ±3mil
NPTH Diameter Tolerance: ±2mil
PTH hole copper thickness: 0.4-2mil
Image to Image Tolerance: ±3mil
Etching tolerance: ±1mil
Solder mask registration tolerance: ±2mil
Finished board: Thickness<=1.0mm: +/-0.1mm
Thickness>0.1mm: +/-10%
Contour Router: +/-0.1mm
Contour fraction: +/-0.2mm
Solder mask color
Green, black, blue, red, white, etc.
surface treatment
HASL,HASL Free Lead Free,OSP ,Immersion Gold, Immersion Ti, Immersion Sliver, Flash gold, Selective Gold plating (gold thickness up to 120u),Gold Finger,Carbon Print, Peelabe Mask
Solder hardness
>=6H
Outline completed
CNC, V-CUT, punching
Wire Peel Strength
≥61B/inch
twist and twist
≤0.7%
