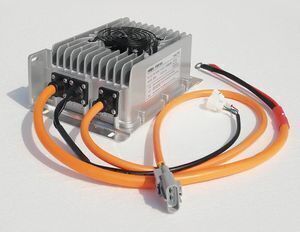

2KW 24V EV on board charger

The chargers are designed with integrated die-casting structure. They are suitable for flooded lead-acid batteries, sealed (colloidal) lead-acid batteries, lithium batteries, nickel-metal hydride batteries, nickel-cadmium batteries, etc. They can be used to cycling charge and floating charge the battery in electric car, electric motorcycle, sightseeing car, patrol car, forklift, communication, electric power, ship,etc.

Technical parameters

. Ac input voltage range: 180-260VAC;45-65HZ

. AC max input current:  12A@220VAC

. Power factor: ≥0.98

. Max Efficiency: 93% (Full Load)

. Noise: ≤55dB

. Protection grade: IP67

. Net weight: 4.5kg

. Working temperature: -30°C~+55°C

. Storage temperature: -40°C~+95°C

. Can be with CAN bus; Can be added with 12v auxiliary power supply; Can be connected with three-color indicator light; Charging lock function (The vehicle power system can be locked through the relay during charging process.); Meet the requirements for various occasions.

. Can be with National or European standard charging station signals

Protective function

. Output overcurrent protection         . Input overvoltage protection

. Output overvoltage protection         . Input undervoltage protection

. Output short circuit protection         . Over temperature protection

. Output no-load protection             . Fully charge automatic shutdown

. Output reverse connection protection   . CAN failure protection

Mechanical Size

Model List

In order to confirm if our charger is suitable for your battery pack, please send the following infomations to us by email:

(1) battery type:

(2) number of cells in series:

(3) capacity of battery pack(AH):

(4) The maximum charge voltage:

(5) AC input volt:

(6) with CAN or enable:

(7) if with CAN, tell us the BMS brand

AC cable and DC cable: matching socket without AC/DC cable.
