ISO sea container lift mobile mechanism trolley with drawbar for short distance transport

Product details
Advantage:Foldable and easy to handlepayment terms:wire transfer
size:1840mm*1140mm*1750mmPackage preview:
promote:300mm-420mmTypes of:heart wheel
fetal:solid rubber tireMaterial:rubber, steel
Shaft diameter:8 inchesSupply capacity:500 pieces per month
product name:ISO Sea Container Mini Trailerplace of origin; place of origin:Hebei china
Key words:Container Mobile Skeleton Systemusage:container movement
style:flat freewidth:3/4 inch
model:hd trailerCarrying capacity:11-13 tons/set
Packaging Details:According to customer requirementsport:Newport
Product Description

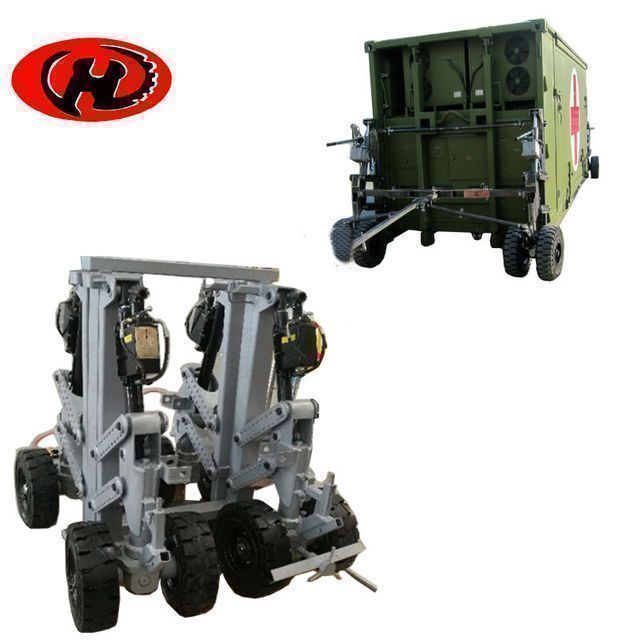

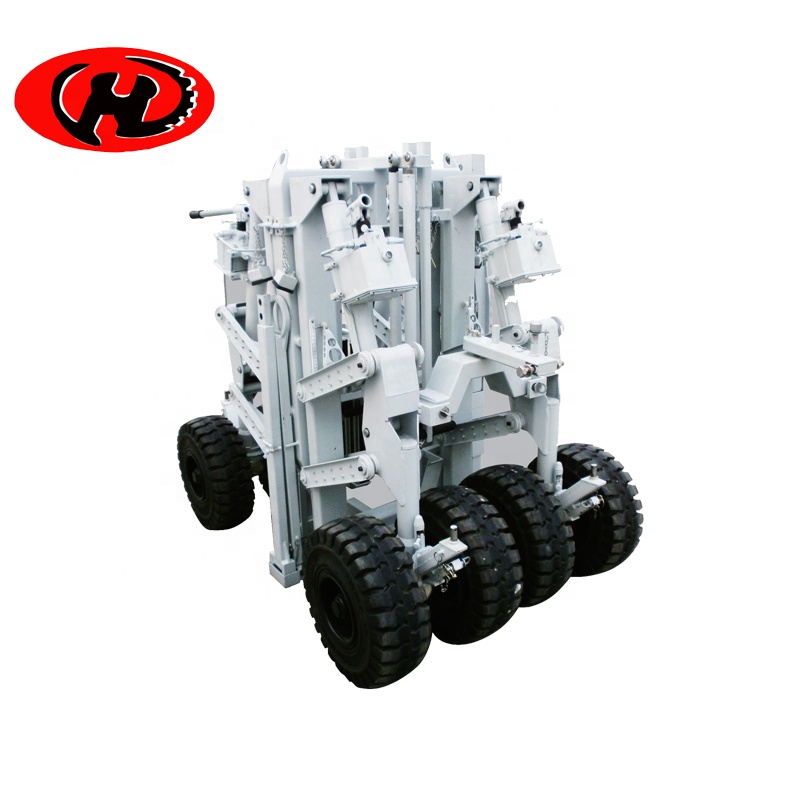

Product name: ISO shipping container mobile trolley (mini container trailer)

Tires: Solid Rubber Wheel Core Material: Steel Lifting Height: 300-420 mm Maximum Wheel Speed: 10 km/h Wheel Diameter: According to your requirements Tow Bar: With Tow Bar

Trolley weight: 980kgs Color: white, green or other required colors Guarantee period: one year

Working environment: -20℃~+55℃

Overall size: 1840mm×1140mm×1750mm Application: ISO shipping container 20ft, 40ft
complex and loaded shelters.

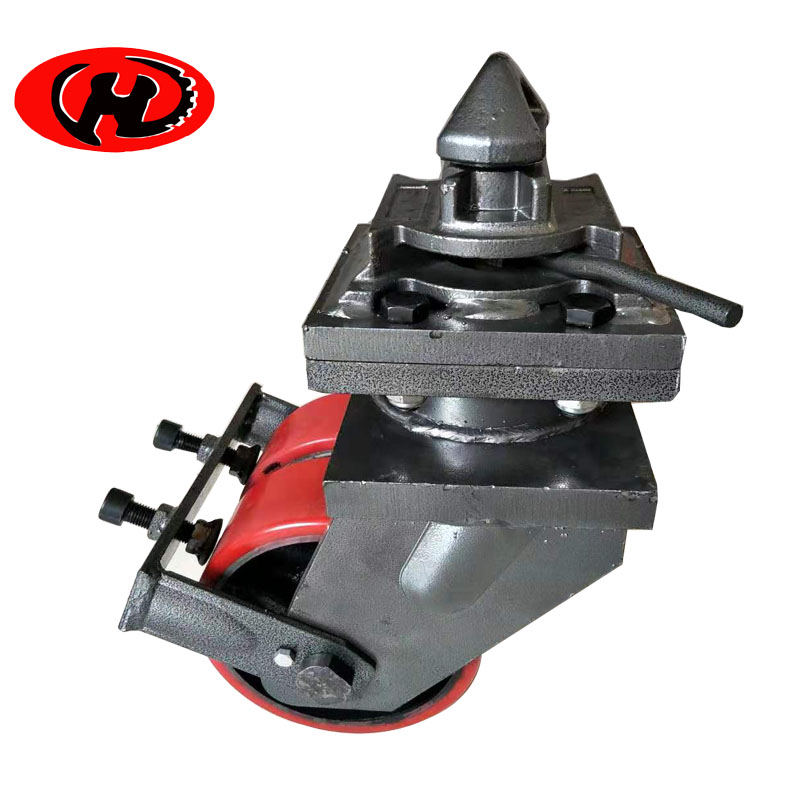

A set of wheel lifting mechanism is mainly composed of wheels, drawbar, steering rod and steering rod. The crawler-type traveling mechanism is suitable for low-speed loading and unloading of containers and shelters, and is mainly suitable for transporting containers and shelters on paved roads or moving in and out of warehouses. So if you are looking for a container mover, wheel lifts are the best choice for you. Features 1. The walking system has a wide range of applications and can be installed in any shelter with corner holes. 2. The plug-in installation connection makes the wheel lifting mechanism have the advantages of convenient and fast operation and reliable linkage. 3. Various traction methods, so that both locomotives and rickshaws can be towed to the pallet. 4. All the parts of the mobile walking mechanism can be installed on the supporting brackets, which occupy a small area and can be pushed and moved:


Operation instructions: 1. First move the wheeled lifting mechanism to the front and rear corners of the shelter; then insert the lock head into the corner hole and rotate; finally tighten the lock nut. 2. Install the steering rod to the detachable wheels. After the connection is completed, the towing rod and the steering rod are at the front, and the manual oil pump is operated to lift the shelter to the required height.


Related Names Oscillating lift, Container moving device
