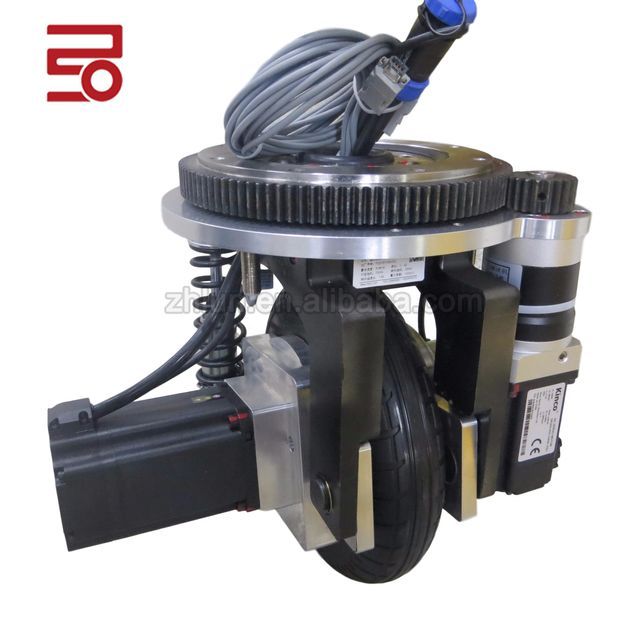

AGV DC motor drive wheel ZL-B320 mobile transportation integrated shock absorber wheel series

main advantage

1. Double support structure, stable operation and uniform force.

2. Multi-stage planetary reducer, high transmission efficiency and quieter.

3. Compact structure, high integration, more convenient control.

4. The wheel surface is made of composite polyurethane, which has high friction and strong grip.

Springs in the shock-absorbing suspension bumper structure will keep the drive wheels in tight contact with the ground. When encountering complex road conditions, due to the floating of the driving unit and the compression of the spring, it can prevent the driving wheel from hanging or slipping, causing the AGV to jack up without losing power, so as to overcome the uneven passage caused by instability ground.

The reaction force of the spring keeps the driving wheel in close contact with the ground, and the ground always provides the friction and adhesion required for the traction of the driving wheel, ensuring that the vehicle body will not lose power due to uneven road surfaces.

Why choose us

Rich industry application experience and reasonable overall layout of AGV solutions.

Possess strong design and integration capabilities to help projects land more easily.

Customized service: We can carry out customized development according to the project application, and provide fast corresponding overall solutions and technical support services before, during and after sales, fully considering customer needs.

1. Installation service: During installation and commissioning, we will provide training for effective operation and maintenance.

2. Technical service: We have a capable technical team that can assist customers in solving various technical problems. We have rich experience in production line transformation projects.

3. Warranty service: We provide free after-sales service, except for any quality problems within our 12-month warranty period, the engineer's travel expenses are excluded.
