Whee AGV Drive, 130mm, lower steering wheel, engine, CFR Quality

Supplier: Guangzhou Wisdom Wheel Science Technology Ltd.
Region: Guangdong, China
Contact: Mr Victor Liu
Price: $2500.00 / 1 - 9 sets
$2000.00 / 10 - 29 sets
$1500.00 / >=30 sets
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	not any	feature:	wheel
After warranty service:	Video technical support/online support	Local service location:	not any
Origin:	Guangdong, China	Warranty:	2 years
Video shipment inspection:	if	aftersale service provided:	Engineers available to service machinery overseas
Mechanical test report:	if	Weight (kg):	40
Applicable industries:	Clothing store, building supply store, manufacturing plant, machinery repair shop, food and beverage factory, farm, restaurant, retail store, food store, print shop, construction, energy and mining, food and beverage store, advertising agency	brand:	zhlun
Dimensions (LWH):	550x550x130mm	Core component warranty:	1 year
Supply capacity:	500 sets per month	Core components:	Engines, bearings, gearboxes, motors, gears, pumps
Health status:	new	port:	Guangzhou
payment terms:	L/C, T/T	application:	Industrial automation, AGV
Marketing Type:	New Products 2020	Packaging Details:	Packing: wooden box Gross weight: 30-40 kg/set Size: 300mmX300mmX300mm/set
Serve:	OEM/Design and Manufacturing

introduce

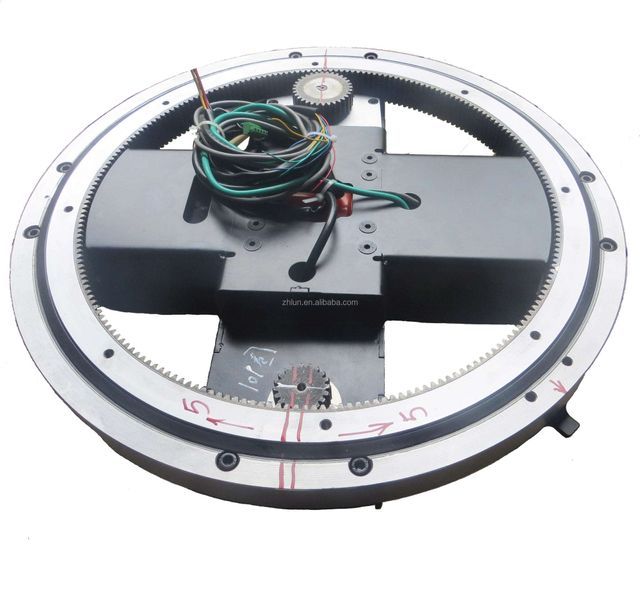

The total height of the 130 series driving wheel is only 130mm. It is currently the smallest installed driving wheel in the world, suitable for AGV trolleys that do not require high height.

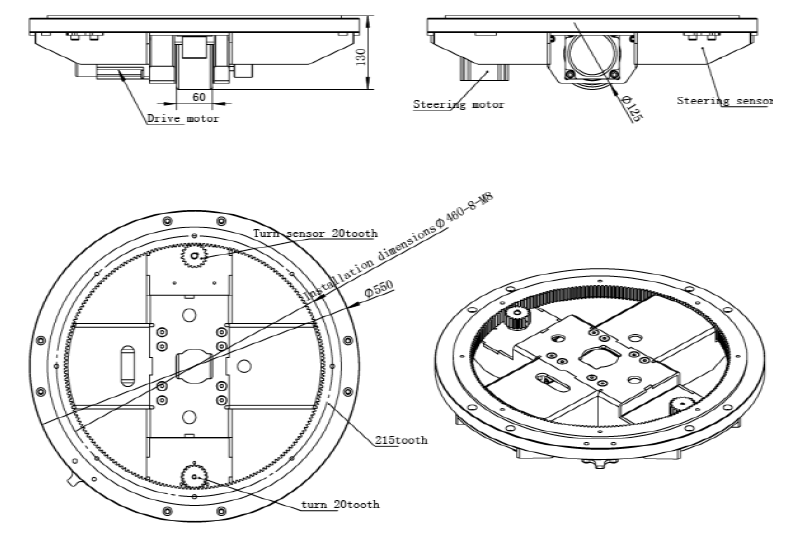

painting

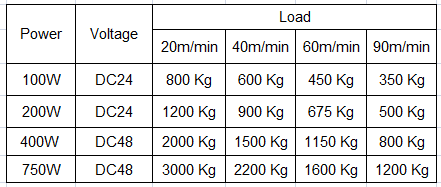

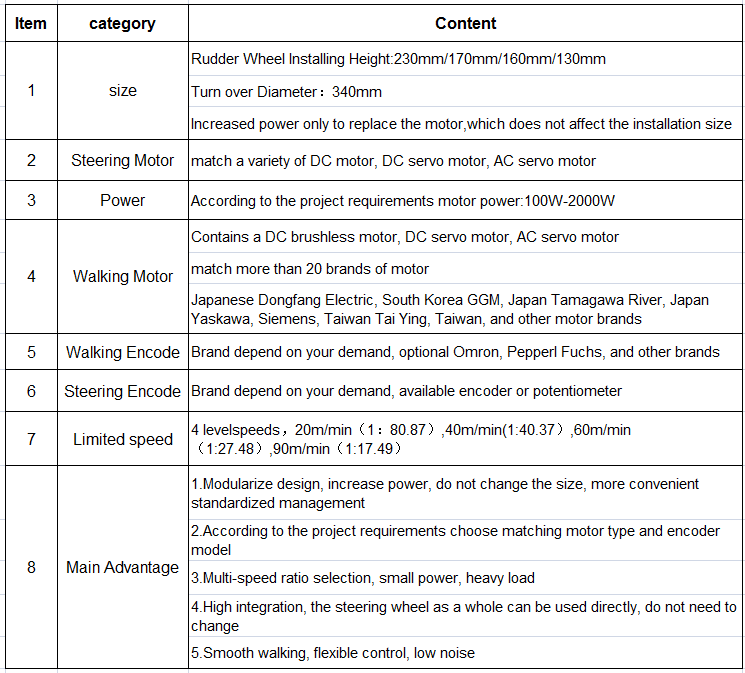

Specification

total height	130mm
wheel diameter	120mm
speed ratio	1:17-1:100
speed	10m/min-100m/min
maximum load	1500 kg
Largest traction	5000 kg
motor	Replaceable, matching 100w to 2000w motors, a large number of brand motors
steering motor	Replaceable, matching 50w to 400w motor, a large number of brand motors
motor voltage	DC24V, DC48V, AC110V, AC220V
turn 1	Built-in mechanical steering limit, 120° on both sides
turn 2	To the limit switch, position reminder
Angle sensor	Replaceable, matching various brands of potentiometers, incremental encoders, absolute encoders
walk encoder	Replaceable, matching various brands of encoders
brake	Replaceable, matching various brands of brakes
