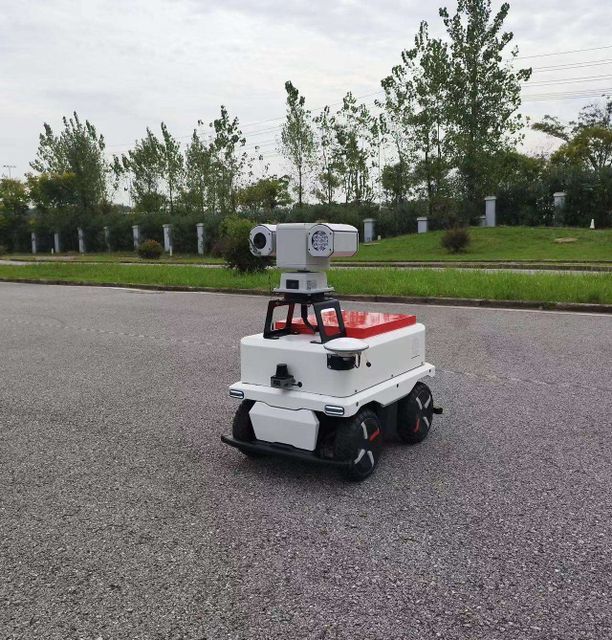

Auto chassis patrol robot thermal imaging patrol robot camera robot

Supplier: Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Lisa Si
Price:
Min. Order: 1 piece

Click here to contact

Product details

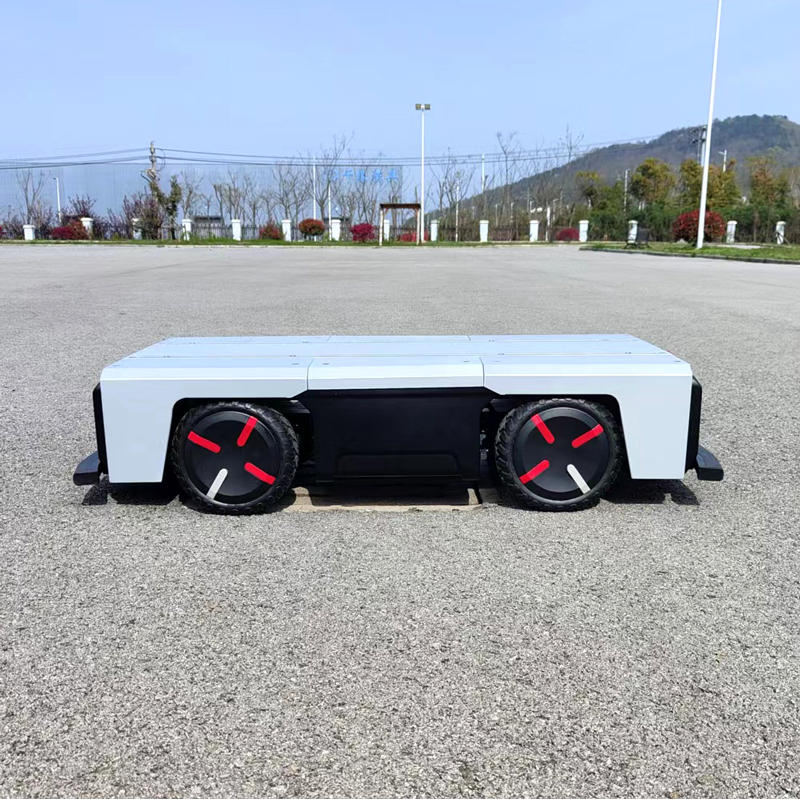

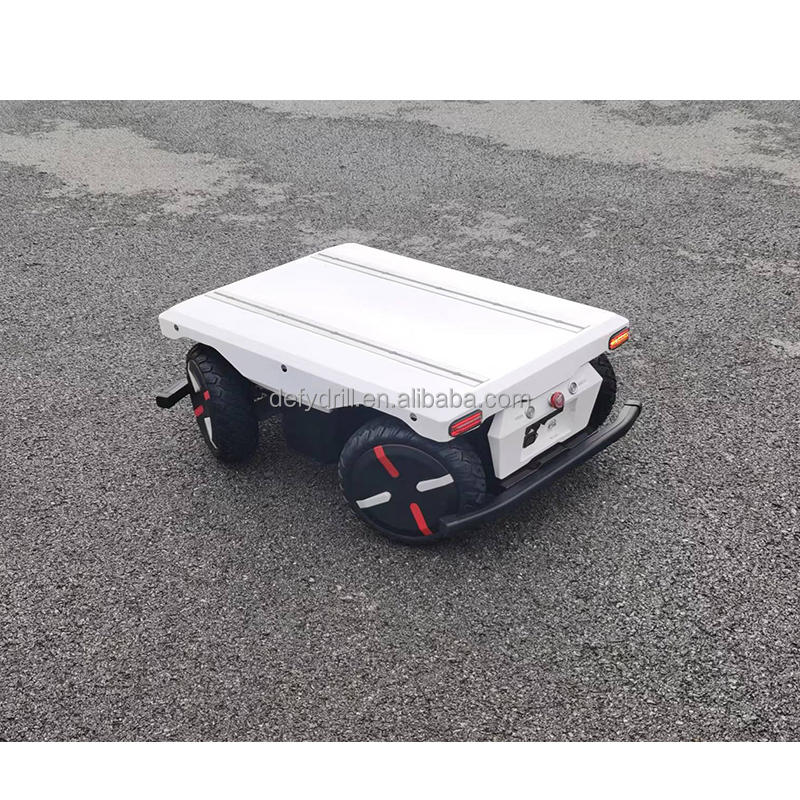

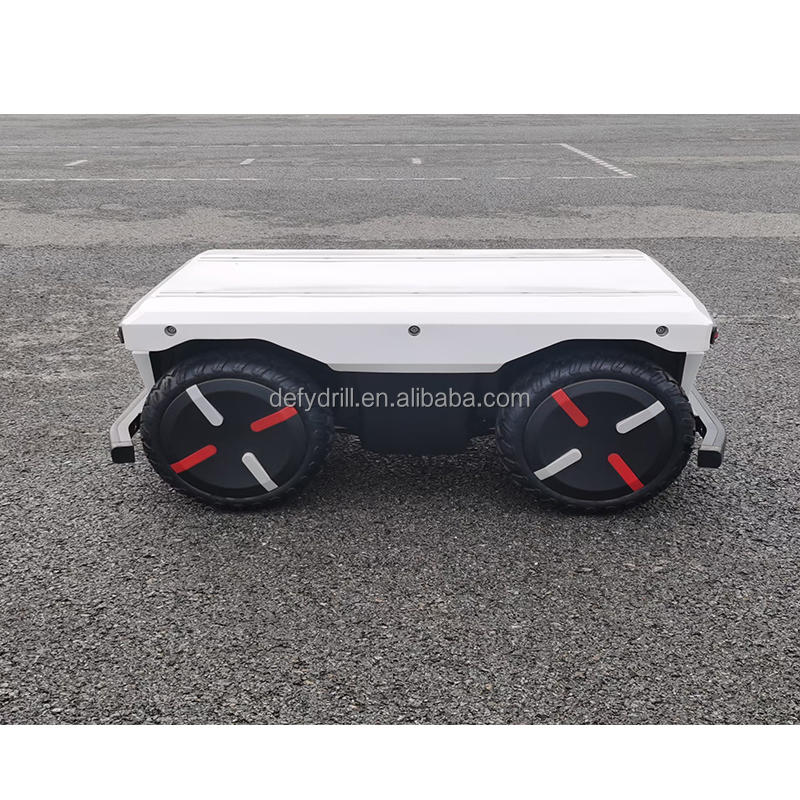

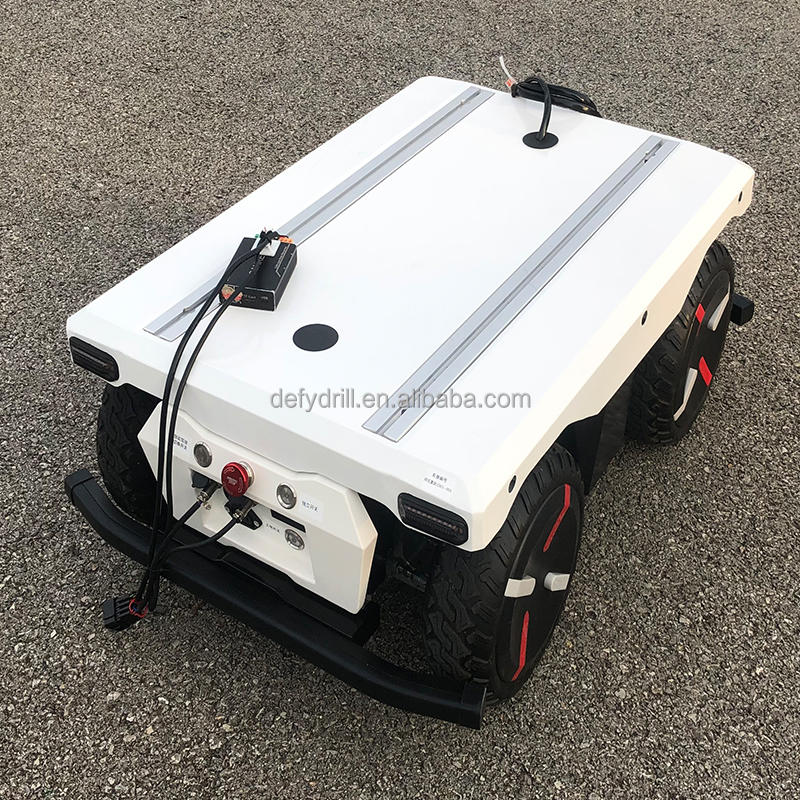

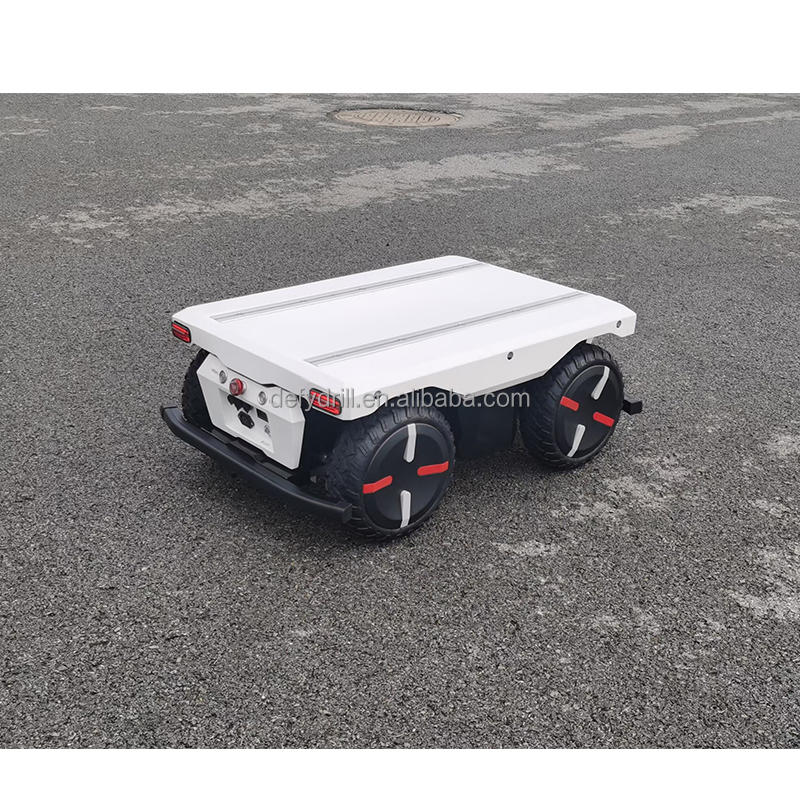

UGV-8 It is a small robot chassis and a mobile robot development platform built with lightweight, modular and intelligent design concepts. Strong load capacity, stable control performance, wide application range, and flexible movement in various occasions

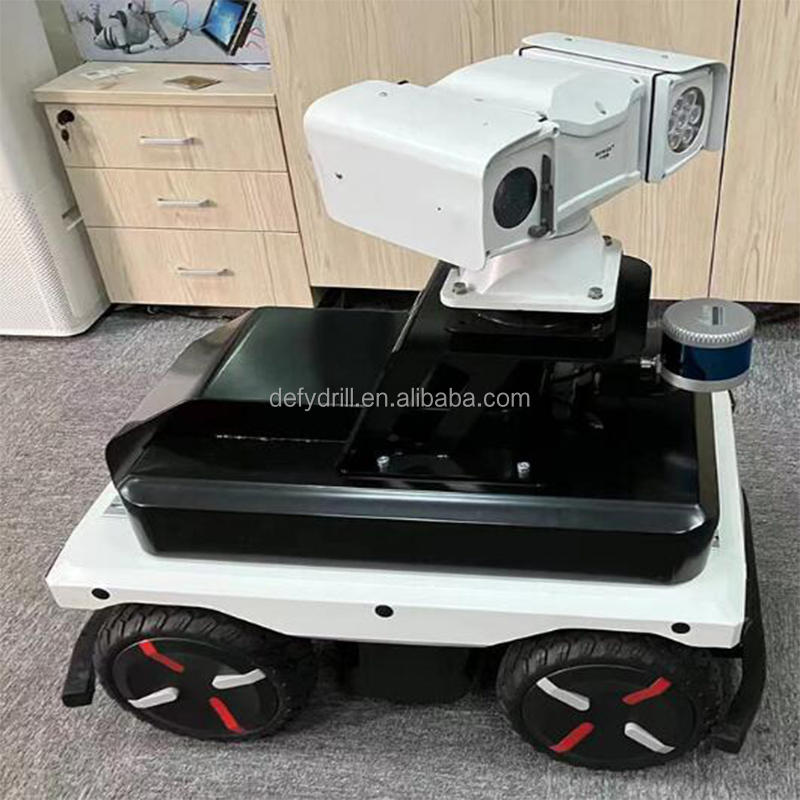

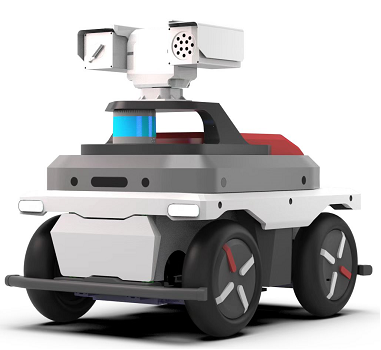

Typical road surface. Stereo cameras, lidar, GPS, IMU, manipulators and other equipment can be installed on the chassis as extended applications, and can be used in scientific research, distribution, logistics and other fields.

Vehicle specifications
thing	data
lengthwidthheight	820572310mm
minute. ground clearance	87mm
Overall machine weight	About 43kg
Rated load	80kg
Chassis and performance
thing	data
turn	Front wheel differential steering
Braking form	Anti-drag braking
tire outer diameter	266mm
Running speed	≤5km/h
driving range	5-10 kilometers
braking distance	0.4m
turning radius	0.5m
climbing angle	≤15°
Overcome obstacles	8 cm
Security protection	Touch the stop lever; Emergency stop button
Electric drive
thing	data
Motor type	Hub motor (permanent magnet synchronous motor with encoder)
Motor power	300W*4
Battery parameters	48V/20Ah battery
Battery operating temperature	-10~60℃
charger	AC220V independent charger
Charging time	≤3h (fast charging can be customized)
Protection level	IP35 (IP66 can be customized)
other
Communication protocol	Open underlying CAN protocol
motion control	VCU control
Sensor type	steering feedback sensor Travel wheel speed sensor Front and rear brake feedback sensors

Advantages:

1. Simple and easy to operate.
2. High core hardware configuration.
3. Four 300W high-power wheel hub motors drive each wheel independently, easily achieving four-wheel drive.
4. Car-grade wire-controlled chassis control unit (VCU).
5. Electronic control logic design is more suitable for autonomous driving needs.
6. Read parameters, coordinate power output, and intelligent body system.

Packaging and shipping

Within 3-5 working days

Serve
1 year warranty for main parts	During this period, if there is any damage or failure, we will repair and replace spare parts for free, and the overseas freight will be borne by the buyer.
spare parts	Most of our spare parts comply with international standards. At the same time, we provide spare parts to previous customers at cost price throughout the year.
Operation and maintenance	We will provide you with a detailed operation manual to ensure you can use it perfectly.
Online support	Video technical support
Online services	Your questions will be answered within 24 hours on weekdays and within 48 hours on holidays.

Zhengzhou Defi Mechanical and Electrical Equipment Co., Ltd.
It is China's leading robot manufacturer, providing mobile solutions for robots and robotic products. After tremendous development, we have established a one-stop solution for global customers, with our own R&D department, quality control department, production department, sales department and after-sales department.

20 years of R&D experience;
9 years of professional export experience;
11-50 skilled sales and service personnel;
There are 10 senior engineers and 15 intermediate engineers in the fields of machinery, machinery, electrical and air conditioning.
