GW4 11kv 24kv 36kv outdoor high voltage load circuit breaker air isolating switch

Product details
payment terms:L/C, T/Tproduct name:High voltage load switch
Is it smart:yesport:Ningbo
Certification:CE certificationRated current:630A
maximum. Voltage:36KVmodel:gross weight
Rated voltage:12kvusage:electrical industry
maximum. current:630Package:1/box
weight:250KGMechanical life:20000 times
Supply capacity:10000 sets per monthProcessing:OEM service
Serve:OEM ODM acceptedWarranty:1 year

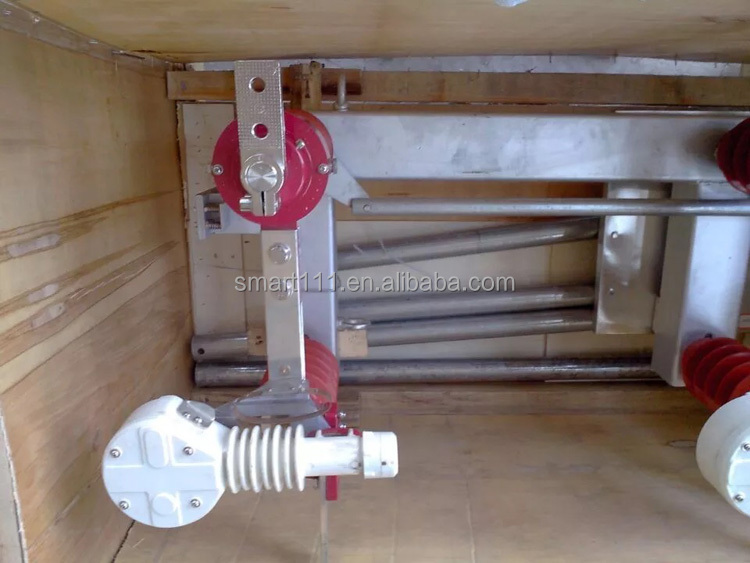

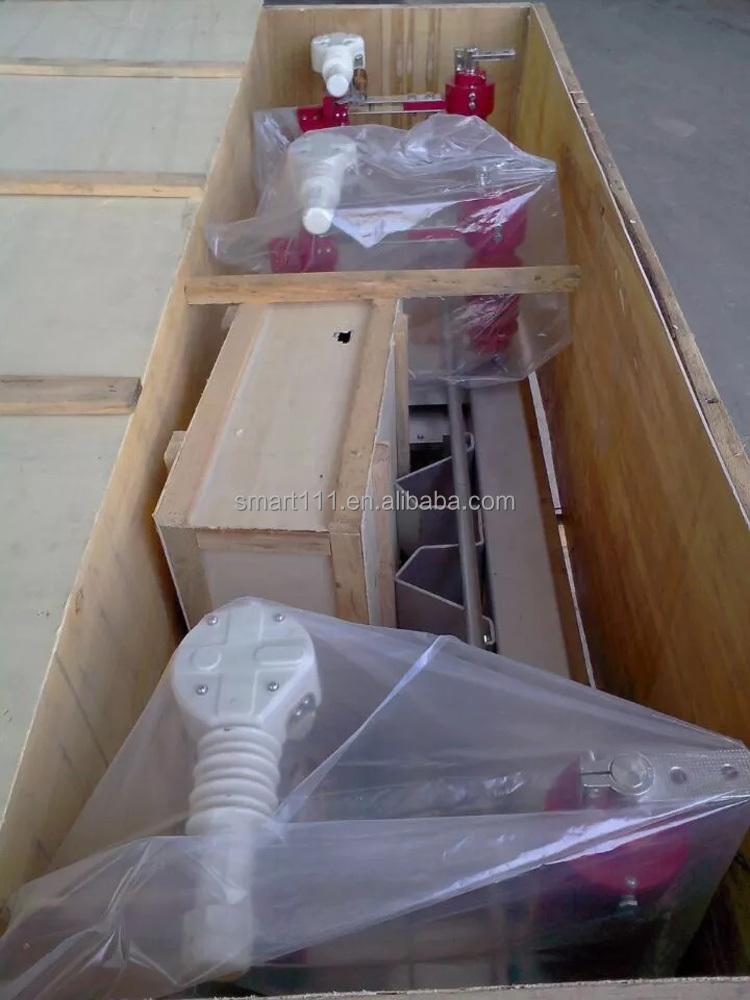

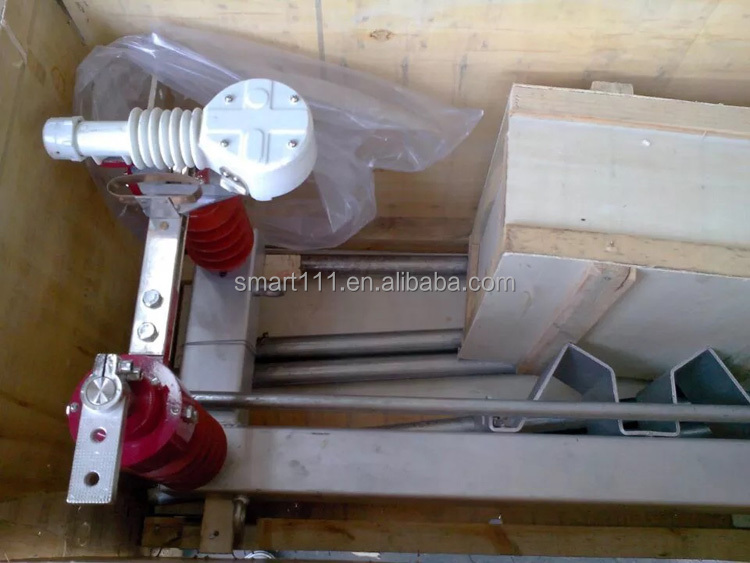

place of origin; place of origin:Zhejiang, ChinaPackaging Details:Cartons and plywood boxes
brand:SIMATE
Product Description

11kv 24kv 36kv outdoor high voltage load circuit breaker air disconnect switch



The outdoor load switch is used in the outdoor 12/24/40.5kV three-phase AC 50/60Hz power system. It consists of an isolation blade, an arc extinguishing chamber and an operating mechanism.

It adopts the principle of compressed gas generation and arc extinguishing. It has the advantages of simple structure, less maintenance, strong arc extinguishing ability, high fracture insulation level, and high reliability. It has reached the level of similar foreign products.

This switch is suitable for outdoor three-phase AC power distribution system with rated voltage below 12kV and rated frequency 50Hz to meet the load current. In the opening position, it can meet the isolation requirements stipulated by the isolation switch.

project

unit

data

Rated voltage

kV

12,24,40.5

rated frequency

hertz

50,60

rated current

A sort of

630

Rated active load breaking current

A sort of

630

Rated circuit breaking current

A sort of

630

5% rated active load breaking current

A sort of

31.5

Rated power transformer breaking current

A sort of

1250

Rated short-circuit making current

Ka

50

Rated short circuit duration

Second

4

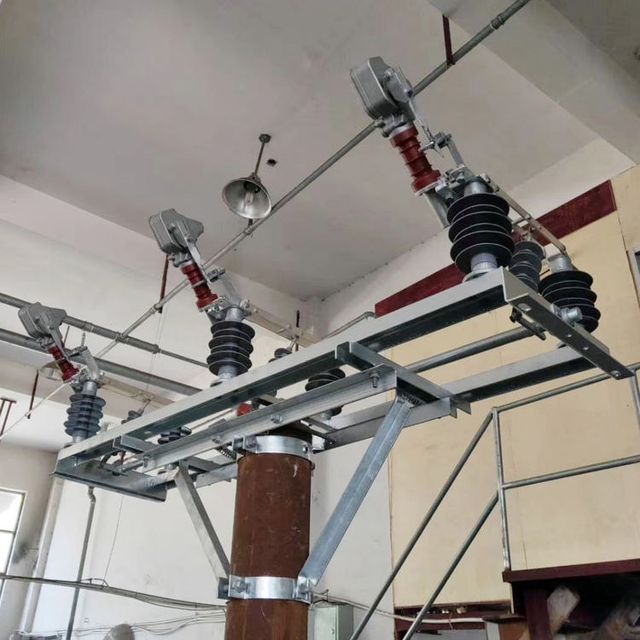

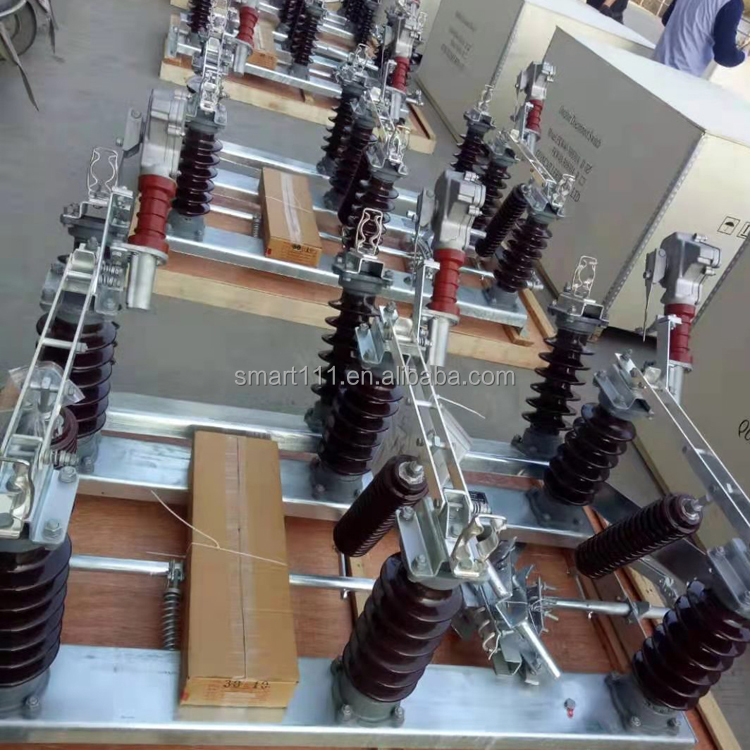

detailed image
