CSQ isolation switch three-phase load isolation switch 380v 800a 50-60HZ outdoor load isolation switch
-
Supplier: SIQI Technology Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Leo He -
Price: $15.00 / >=2 pieces -
Min. Order: 2 pieces
Product details
| Number of poles: | 4 | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| frequency: | 50/60 Hz | Rated voltage: | 380 |
| Rated current: | 800 | Origin: | Zhejiang, China |
| type: | disconnect switch, load break switch | standard: | IEC62271 |
| Rated voltage: | 220V 380V | Function: | isolation |
| application: | Isolation switch | model: | HYCG3Z |
| Packaging Details: | 1. Sturdy export packaging, suitable for long-distance transportation. 2. Customized packing with customer's design, carton, box and tape | Material: | abs |
| color: | Black | Supply capacity: | 2000 pieces per week |
| port: | Ningbo, Shanghai | product name: | Isolation switch |
| brand: | CSQ | Warranty: | 18 months |
Product Description

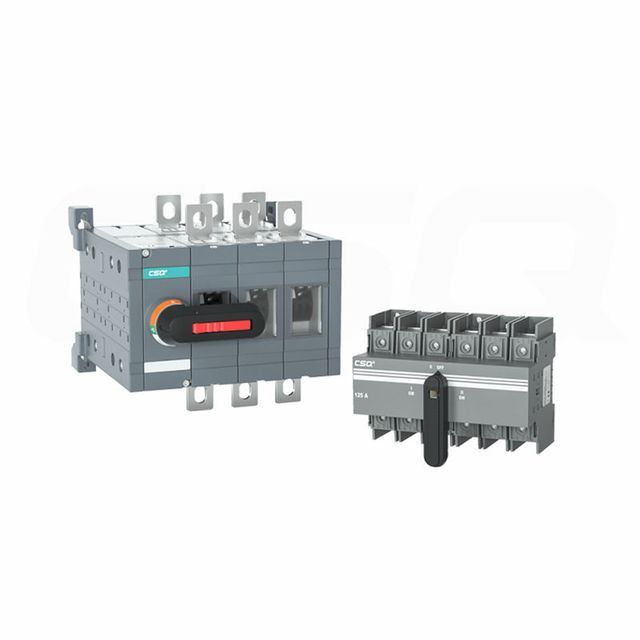

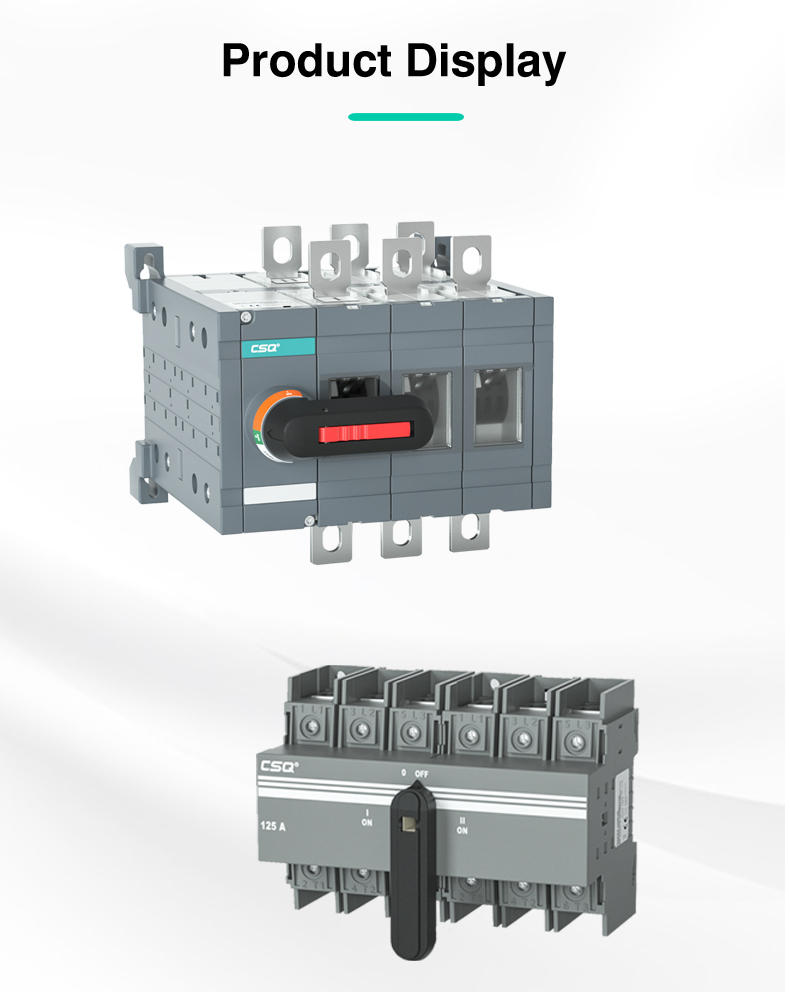

HYCG3Z OTE manual transfer switch
The new OTE load disconnect switch adopts a new contact system and a smaller frame to meet the breaking and isolating requirements. It can replace knife switch and isolating switch to make the product more perfect.
The new OTE load disconnect switch adopts a new contact system and a smaller frame to meet the breaking and isolating requirements. It can replace knife switch and isolating switch to make the product more perfect.

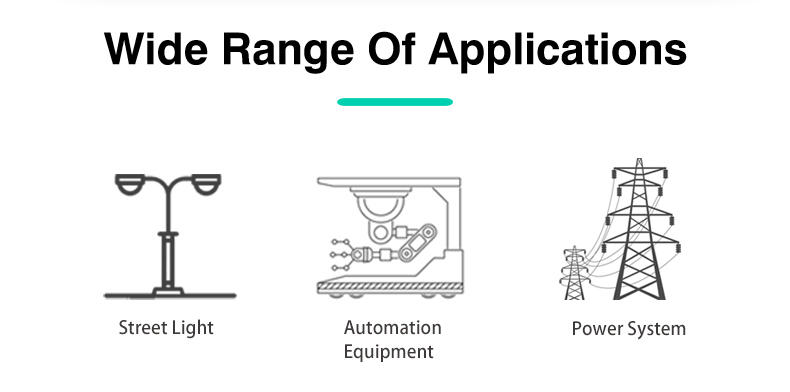

HYCG3ZOTE load disconnectors are widely used in various low-voltage switchgears, motor control centers, power control boxes, cable distribution boxes, and floor distribution boxes that do not require short-circuit and overheating protection as the main switch.
It can also be used as an isolating switch for various motors or a maintenance switch for other electrical equipment. In addition, it can be used in junction boxes, inverters and battery systems at all levels of solar systems. Provide solutions for system disconnection and manual isolation.

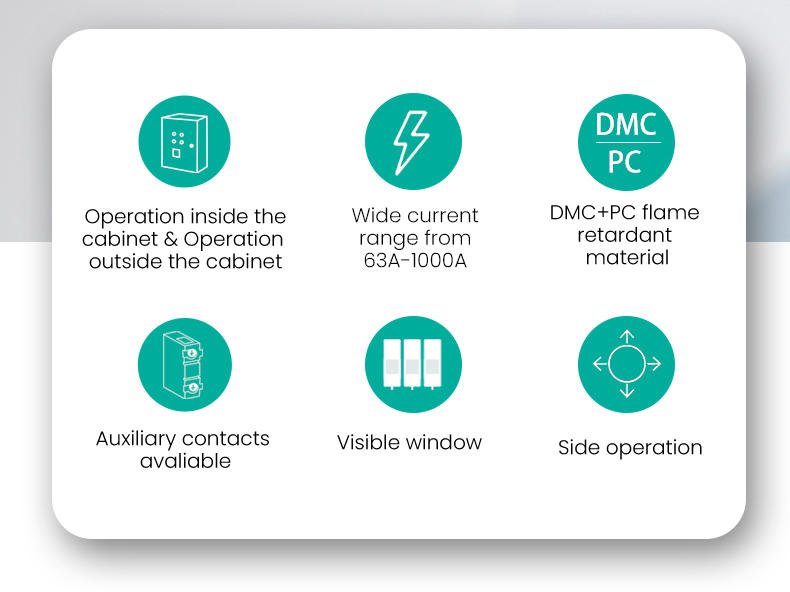

HYCG3ZOTE load isolation switch is novel in design, small in size and more in function. It has a visible window and a padlock handle for maximum security. Even in the off state, there is no need to reduce capacity. It offers 1-8 pole switching and has a modular design. Installation is more flexible and convenient.
It can also be used as an isolating switch for various motors or a maintenance switch for other electrical equipment. In addition, it can be used in junction boxes, inverters and battery systems at all levels of solar systems. Provide solutions for system disconnection and manual isolation.
HYCG3ZOTE load isolation switch is novel in design, small in size and more in function. It has a visible window and a padlock handle for maximum security. Even in the off state, there is no need to reduce capacity. It offers 1-8 pole switching and has a modular design. Installation is more flexible and convenient.

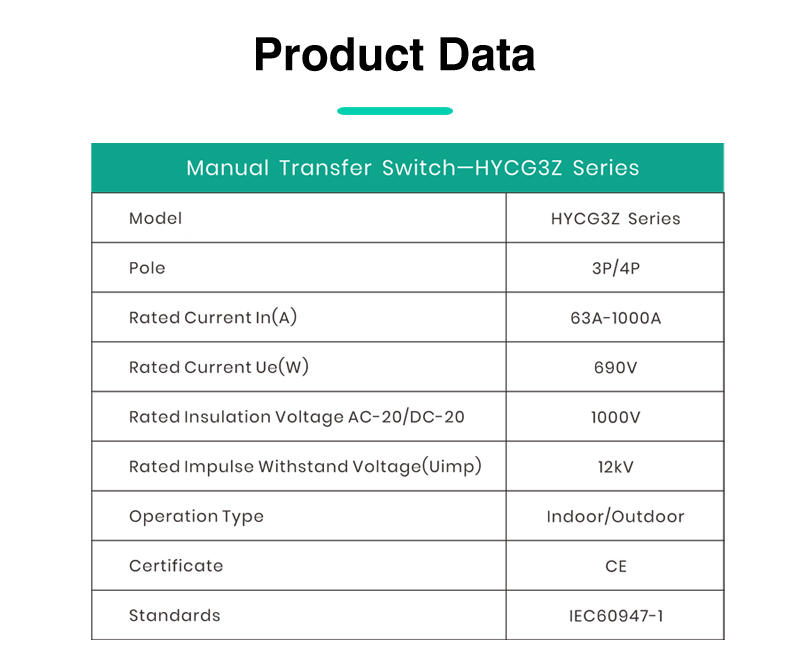

Product parameters
current | 160A | 250A | 400A | 630A | 800A | ||||
Rated insulation voltage Ui | 690V | ||||||||
Rated impulse withstand voltage Uimp | 8KV | ||||||||
Rated working voltage Ue | AC380V | ||||||||
Rated operating current Ie | 160A | 250A | 400A | 630A | 800A | ||||
Location | input Output | ||||||||
Rated making capacity | 10Ie | ||||||||
Rated breaking capacity | 8Ie | ||||||||
Rated limited short-circuit current | 50KA | ||||||||
Rated short-time withstand current Ie | 7KA | ||||||||
polish | 3p & 4p | ||||||||
Control supply voltage | AC220V | ||||||||
Motor energy consumption | 40W | ||||||||
weight kg | 2 | 3 | 5 | 8 | 15 | ||||
