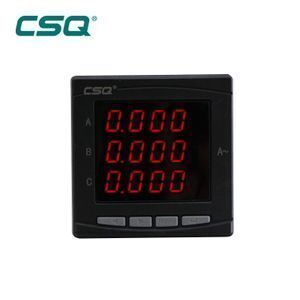

PA652I-9K4 Unprogramable Three Phase LED Display Ammeter
-
Supplier: SIQI Technology Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Leo He -
Price: $6.00 / >=10 pieces -
Min. Order: 10 pieces
| switching output: | optional; | Place of Origin: | Zhejiang China; |
| Packaging Detail: | 1.Strong export package,suitable for long distance transportation. 2.Standard export carton box or pallet 3.Can customized package with customer's design,carton,box,and tape; | Dimensions: | many types; |
| Brand: | CSQ or customized; | phase: | 3 phase/1 phase; |
| Display Type: | Digital Only; | Supply Voltage: | 220V; |
| Model Number: | PA652I-9K4; | Accuracy Class: | 0.5; |
| Port: | Ningbo/Shanghai; | Supply Ability: | 2000 Piece/Pieces per Week power factor meter; |
| Supplier: | Chinese; | Key Words: | current meter; |
| Operating Temperature: | -10℃~+55℃; | Name: | ammeter; |
| Brand Name: | CSQ; | Feature: | Low voltage; |
| Quality: | Excellent; | Product name: | ammeter; |
| relay alarm output: | optional; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash,Paypal; |
| Measuring Range: | 0~9999; |
Why choose us:
1. The top 10 ATS manufacture in China - more than 350 Agents in local market and more than 100 foreign clients make OEM,ODM order from us,some of them are famous brand,such as Kohler,HYUNDAI.
2. We have three companys.Parent company is ZHEJIANG SIQI ELECTRIC CO.,LTD,which located in wenzhou city of China.
one branch company is SHANGHAI MONQE ELECTRIC CO.,LTD(http://www.monqe.com ),which located in Shanghai city.
one branch company is WEIHAI SHINAIDE ELECTRIC CO.,LTD(http://www.whsnd.com),which located in WEIHAI city.
3. Annual sales- The total Annual sales is about USD33333333.
4. Certification - We have passed ISO9001:2008 Quality Management System and CCC, CE,CB.

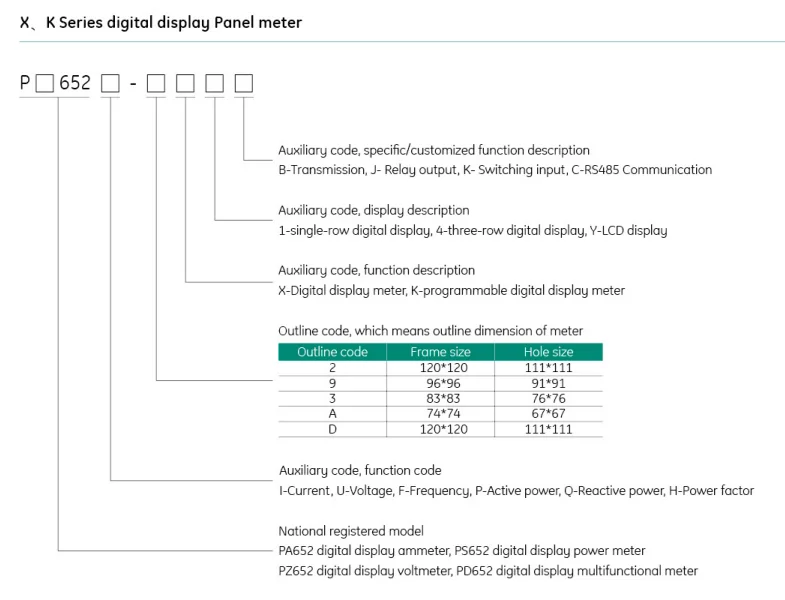

This digital panel voltmeter is applicable for electric power grid and automation control systems, mainly used to measure various
electrical parameters in power grid. According to the additional functions, the meters can be divided into X, K, D and S four series.
X series digital display intelligent voltmeters adopt direct AC sampling, use algorithm of True RMS to measure the voltage, and employ
direct display of LED tube.
K series digital display intelligent meters are designed on the basis of X series, have an increase of one channel of analog transmitting
output (4-20mA, etc) and one channel of RS-485 communication interface output (Modbus-RTU protocol) that is convenient for network
building.
D series digital display intelligent transmitting meters are designed on the basis of X series, have an increase of three channels of analog
transmitting output (4-20mA, etc.) and one channel of RS-485 communication interface (Modbus-RTU protocol), with direct three-row
nixie tube display or single-row nixie tube display.
S series digital alarm measurement and control meters are designed on the basis of X series, have an increase of one channel of RS-485
communication interface (Modbus-RTU protocol), four channels of digital input measuring function (realizing “remote signaling”) and
1~2 channels of relay alarm output function (realizing “remote control”).
The meters also can be divided into single-phase voltmeter and three-phase voltmeter according to the measured power network, display
mode of single-phase voltmeter is single-row nixie tube display, display mode of three-phase voltmeter is three-row nixie tube display.

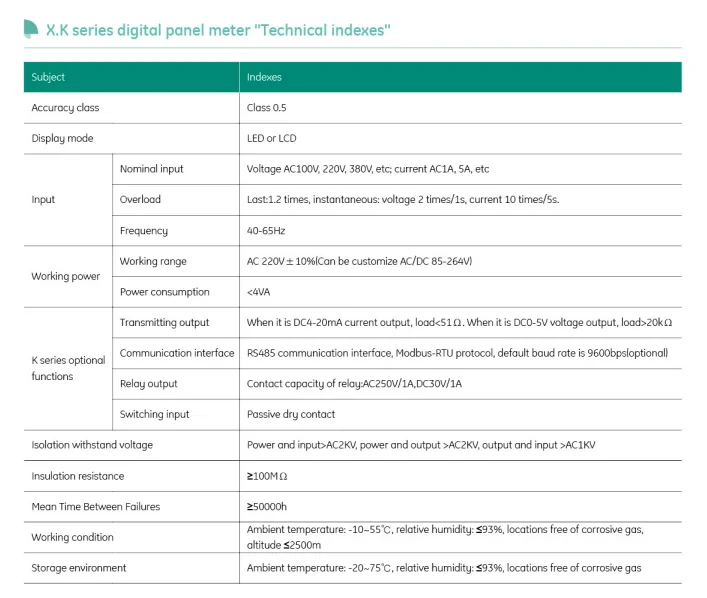

Detailed technical specifications refer to the technical indexes of digital display meter
1. The top 10 ATS manufacture in China - more than 350 Agents in local market and more than 100 foreign clients make OEM,ODM order from us,some of them are famous brand,such as HYUNDAI.
2. We have three companys.Parent company is SIQI TECHNOLOGY ELECTRIC CO.,LTD,which located in wenzhou city of China.
one branch company is SHANGHAI MONQE ELECTRIC CO.,LTD(http://www.monqe.com ),which located in Shanghai city.
one branch company is WEIHAI SHINAIDE ELECTRIC CO.,LTD( http://www.whsnd.com),which located in WEIHAI city.
3. Annual sales- The total Annual sales is about USD33333333.
4. Certification - We have passed ISO9001:2008 Quality Management System and CCC, CE,CB.
5. The feedback from our custormers
There are many objective evaluation from our customers.
Details reference to the link:http://www.aliexpress.com/store/feedback-score/818834.html
* We will reply your enquiry in 12 hours .
* Trade Manager online for service all day.Welcome to contact me at any time.
* OEM & ODM are available
* We have 2 year warranty for each of our products .
To Dear YOU:
After you check the details of our product, maybe you are still confused about it at some points, or you want to have it right now, please kindly send us an inquiry at once. Our service team can solve all your doubts and send you the product ASAP. We will give you 2% discount if you can make deal with us within 4 days. Dear friend, you will never want to lose such a favorable chance!
-
