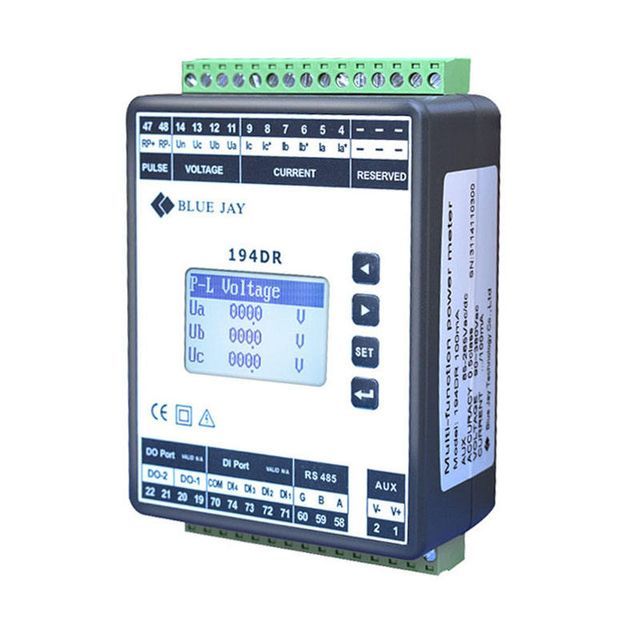

194DR electric power three-phase electric meter energy multifunctional power meter

Supplier: Chongqing Blue Jay Technology Co., Ltd.
Region: Chongqing, China
Contact: Mr Petter Wan
Price: $100.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

humidity:	0 to 95% relative humidity, noncondensing	brand:	blue jay
Measuring range:	0-9999A	payment terms:	Western Union, T/T
model:	194DR	Update time:	1 cycle
Display type:	numbers only	Operating temperature:	-20~60℃

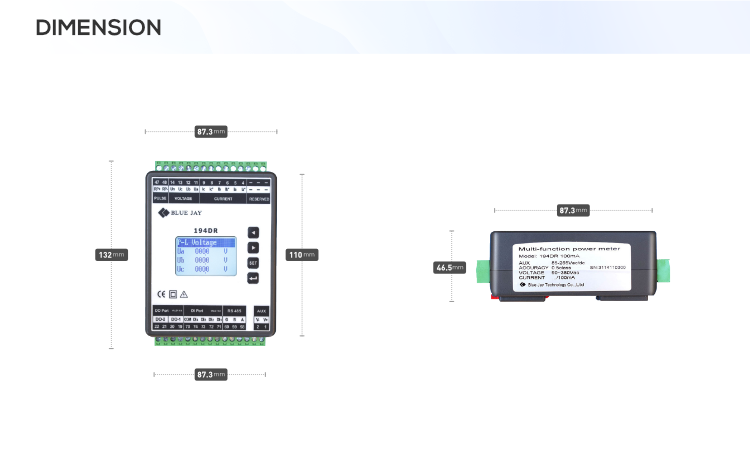

Sampling Rate:	128 samples/cycle	aspect:	8813247 mm
voltage:	85-265V AC/DC	isolation:	2500 VAC for 1 minute
weight:	0.70 kg (1.54 lb)	Origin:	Zhejiang, China
level of accuracy:	0.5	Supply capacity:	10000 pieces per month

194DR multi-function energy meter is one of Bluebird three-phase energy meters. This multifunctional power meter is three-phase and suitable for DIN-rail mounting.

This energy meter is specially designed for DIN-rail installation, and it is a high-end multifunctional energy meter. Using a dot-matrix LCD screen can display more electrical parameters on the same screen more conveniently.

The 194 DR Energy Meter has 0.5 class high precision performance and can replace your old analog indicators or digital single-function products such as ammeter, voltmeter, wattmeter, etc. A built-in virtual alarm trigger detects voltage drop or flicker events and records them in a register for future tracking work.

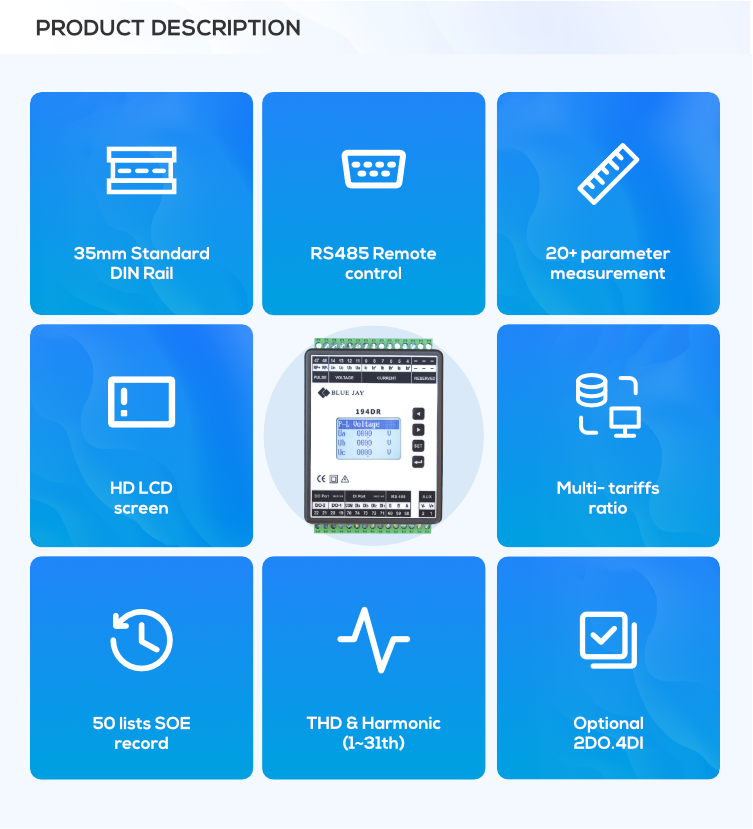

Features of 194DR Multifunctional Power Meter

·Measurement accuracy level 0.5
· Current measurement .../5 or .../1 A
·1.6 inch dot matrix LCD screen
·Universal series power supply (85-265VAC/DC)
ITF technology: input and output current insulation protection
·Provide up to 50 state-owned enterprise filing lists
Provide 5 virtual alarm triggers
Optional advanced electrical parameters*
· Optional record and read multi-rate rate, up to 3 months
·With RS-485 Modbus/RTU communication function
·With 1 pulse output (PO) for active energy counting
·Optional 4-channel digital input (DI) and 2-channel digital output (DO)

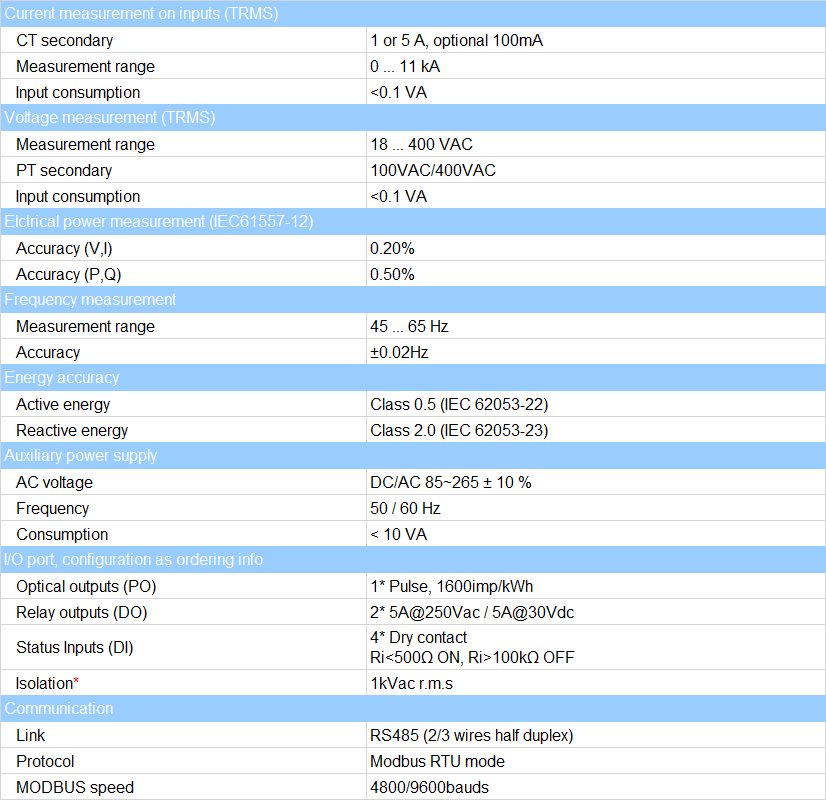

technical features194DR multifunctional power meter
