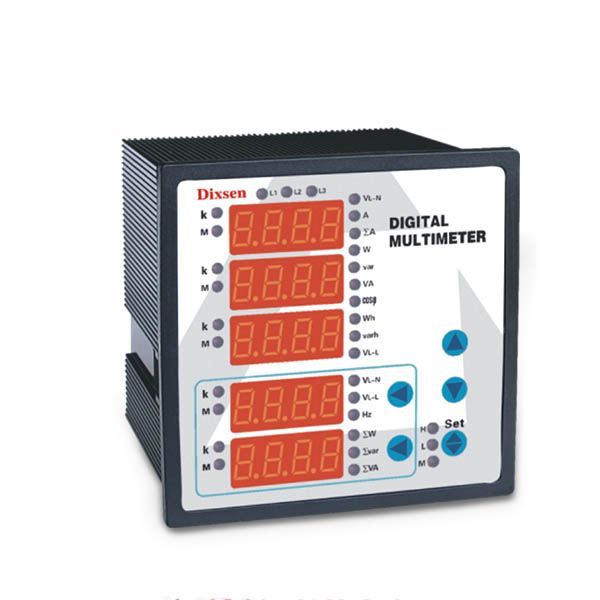

Dixsen LCD LED Digital Multi-Function Panel Meter

This series of instruments has all the functions of DX series digital program-controlled instruments. It can measure nearly 30 electrical parameters such as three-phase voltage, three-phase current, active power, reactive power, apparent power, frequency, power factor, and four-quadrant electric energy; through 3 rows of 4-digit or 2 rows of 6-digit LED digital tubes or LCD display. iT adds keyboard parameters such as alarm and transmission output object, alarm delay time, display object and cycle display time, 2-way electric energy pulse output, and 4-way switch value input. Alarm (or switch value) output and transmission output can be expanded to four channels. This _1t allows viewing of 10 measured messages simultaneously. Get easy to read measurements for practical use and understanding. Parameters are displayed on a 4-line backlit LCD display with optional serial communication. Programming of parameters is easily accomplished via buttons on the front of the instrument.

1-3 modes provide output modules (T&S&D) respectively. The X/1A can also be set via the buttons on the panel. The current ratio can also be programmed to any value within the displayed range
