Place of Origin: | Zhejiang China; | Display Type: | Analog Only; |
Brand Name: | Dixsen; | Payment Terms: | L/C,T/T,Trade Assurance; |
Operating Temperature: | -25℃~40℃; | Weight: | 0.27 kgs/unit; |
Voltage: | 220VAC; | Accuracy Class: | 1.5; |
Port: | Ningbo/Shanghai; | Measuring Range: | 45-65Hz; |
Packaging Detail: | 60 pcs per carton or as per your request; | Model Number: | DT-R96; |
Supply Ability: | 50000 Piece/Pieces per Year; | Dimensions: | 96*96; |

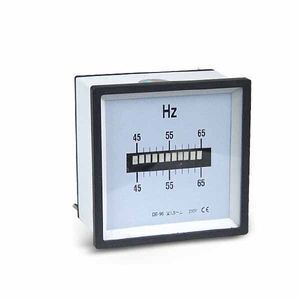

Square Type Analog Frequency Meter With Single Reed
Frequency meter is the instrument, which measures the frequency. Frequency meter shows the number of the cycles in 1 second. Frequency meters are connected parallel to circuit which frequency will be measured like voltmeters.
Model | Frame Size (mm) | Measuring range | Class Index | Case Qty.(Pcs) | Item Code |
DT-R96 | 96x96 | 45~65Hz | 1.5 | 60 | 2390000 |
DT-R72 | 72x72 | 45~65Hz | 1.5 | 100 | 2370000 |

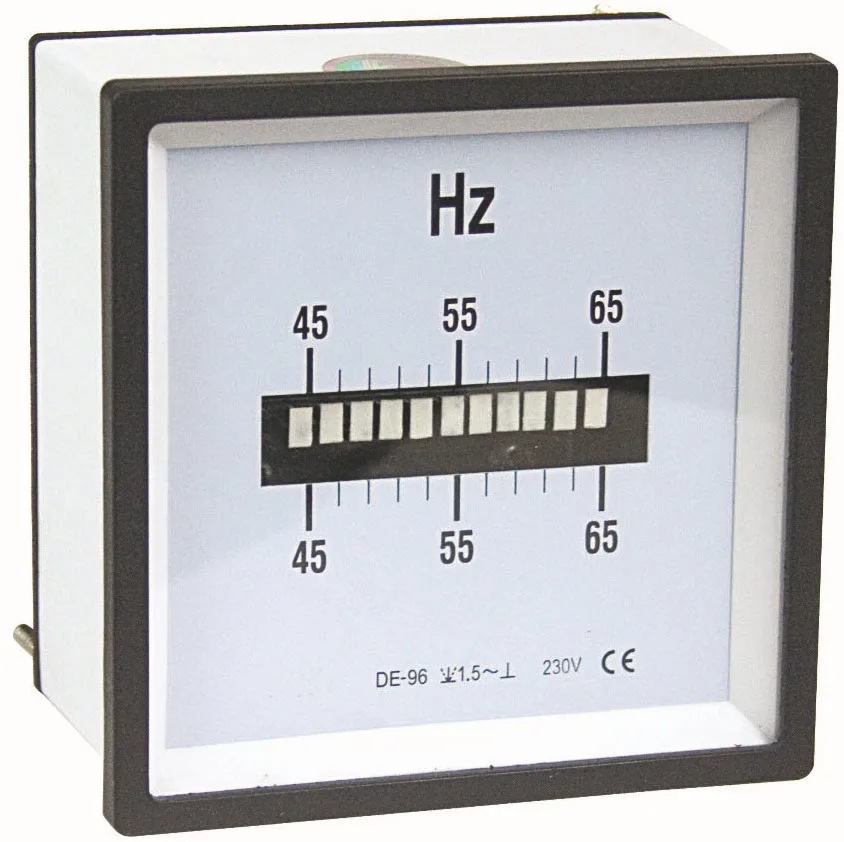

Single Row Reed Frequency Meter
Note: Please mention the voltage when ordering, our standard voltage are 110V, 220V, 380V, 415V, special voltage upon request.
Frame Size | Dimension(mm) | |||||
A | B | C | D | E | F | |
96x96mm | 96 | 92 | 90 | 5.5 | 65 | 43 |
72x72mm | 72 | 68 | 66 | 5.5 | 65 | 43 |
