Factory/Factory Fish Flake Ice Machine, Capacity 1.5 Tons

Product details
Name:Flake ice machineMaterial:Stainless steel
brand:snowy areaApplicable industries:Food and beverage factories, farms, restaurants, retail, food stores, construction works, food and beverage stores
Main selling points:high accuracyWarranty:1 year
Refrigerated components:international well-known brandMarketing Type:normal product
place of origin; place of origin:Guangdong, Chinacapacity:1500kg/day
port:GuangzhouVideo shipment inspection:if
Compressor brand:Bitzerapplication:Family
Core component warranty:1 yearDimensions (L*W*H):1300*1100*1100(mm)
payment terms:L/C, Western Union, D/P, T/T, MoneyGramCooling type:air cooling
Ice shape:flake iceSupply capacity:50 sets per month
Control System:Automatic Control Systemusage:Keep Fresh
weight:700 kgRefrigerant:R404a
Mechanical test report:ifState of health:new
Packaging Details:Standard wooden box.Voltage:220~480V, 3P
Ice Thickness:1~2mmstrength:7.9KW

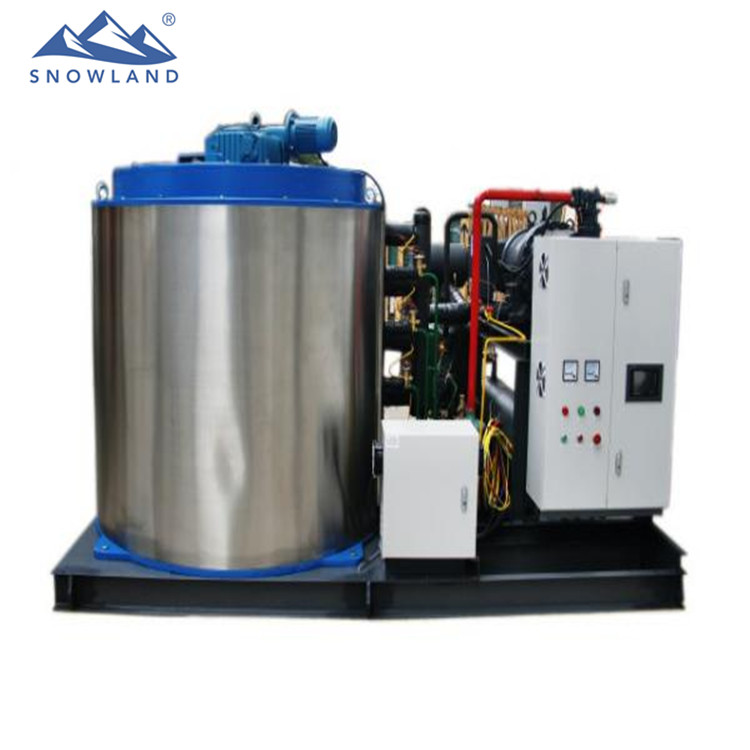

fish ice machine

Product Description

Fish Fillet Ice Machine Biref Instructions

Tall and giant flake ice machines are found in hotels, restaurants, taverns, banquet halls, western restaurants, 7-11, ice cream shops and other places that need cube ice to meet the needs of every customer. The ice cubes made by the flake ice machine are crystal clear and clean healthy. High efficiency, safety, energy saving and environmental protection are your first choice.

The fish flake ice machine complies with HACCP requirements. Advanced technology and new technology have created a high-quality tube ice machine, which you can always rely on. The rugged, heavy-duty design ensures years of trouble-free operation.



Parameters of small fresh water flake ice machine



Model

output capacity

(t/day)

Refrigerant

Operating power

(kilowatt)

working weight

(Kilogram)

Dementia

(mm)

ice storage compartment volume

(Kilogram)

ice bank dementia

(mm)

XF-0.3T0.3R4041.8250900*900*700150900*900*1000

XF-0.4T

0.4R4042.33001200*900*7003001200*900*1000
XF-0.5T0.5R4042.43801200*900*7003001200*900*1000
XF-0.6T0.6R4042.84201200*900*7003001200*900*1000
XF-0.8T0.8R4043.55001200*900*9003001200*900*1000
XF-1.0T1.0R4044.45501200*900*9003001200*900*1000
XF-1.2T1.2R4045.56001200*900*9004001200*900*1000
XF-1.5T1.5R4047.97001300*1100*10005001300*1100*1200
XF-2.0T2.0R4048.78501300*1100*11005001300*1100*1200
XF-2.5T2.5R4049.89501300*1100*12005001300*1100*1200
XF-3.0T3.0R40411.512001700*1400*130010001700*1400*1500

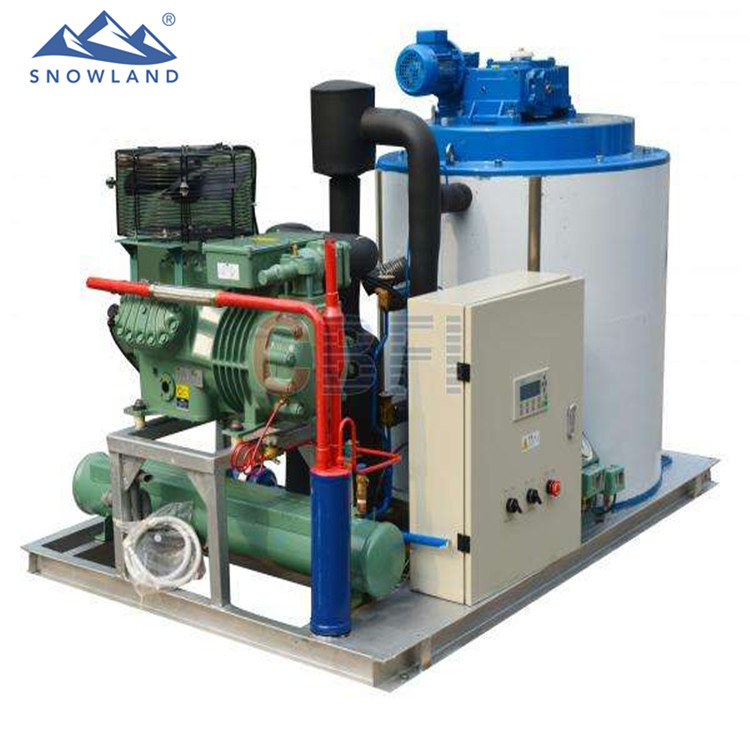

fish ice machine

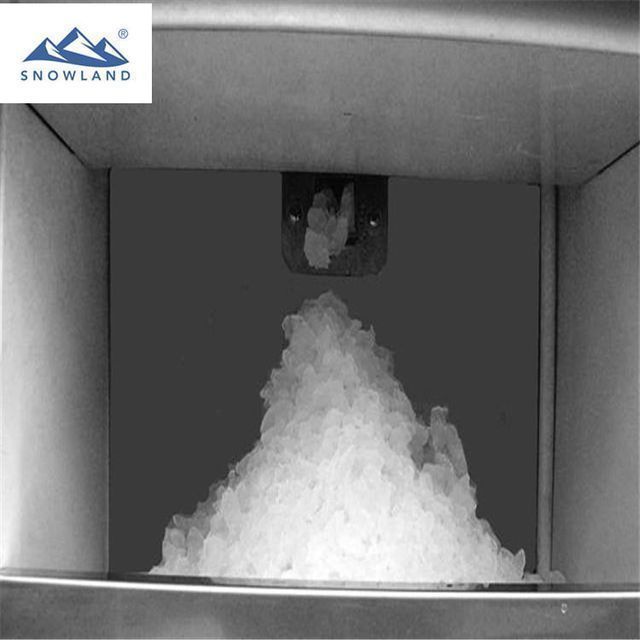

1. The temperature of ice is low, and it can reach minus 8 degrees Celsius

2. The ice cubes are dry and transparent, beautiful in shape, non-caking, good in fluidity and hygienic.

3. In flake shape, it has a large contact area with refrigerated products and has good effect.

4. Flaky, no sharp edges, no damage to refrigerated products, good for storage and transportation.

5. The thickness of flake ice is 1mm-2mm. No need to crush, ready to use.

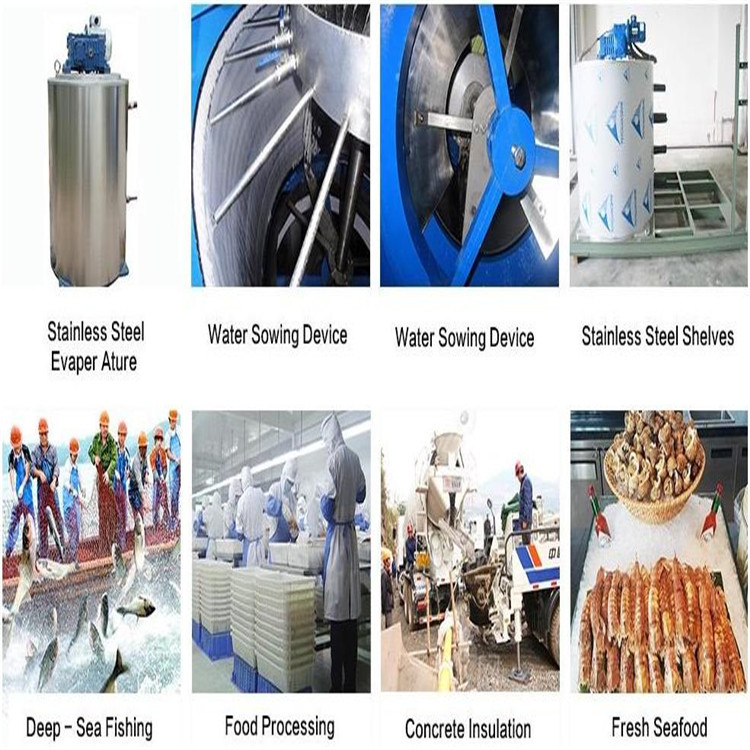

Features of flake ice machine:


1. The internal scraping ice blade is beneficial to reduce energy consumption and prevent refrigerant leakage


2. Stainless steel material, advanced processing equipment and heat treatment ensure the best heat transfer efficiency


3. Large water plate design to prevent water leakage at the bottom of the bucket


4. The photoelectric switch is installed directly at the bottom of the evaporator


5. Direct liquid supply, dry evaporation - simple, safe and reliable control


6. Integrated modular equipment installation, easy maintenance

Advantages of flake ice machine:

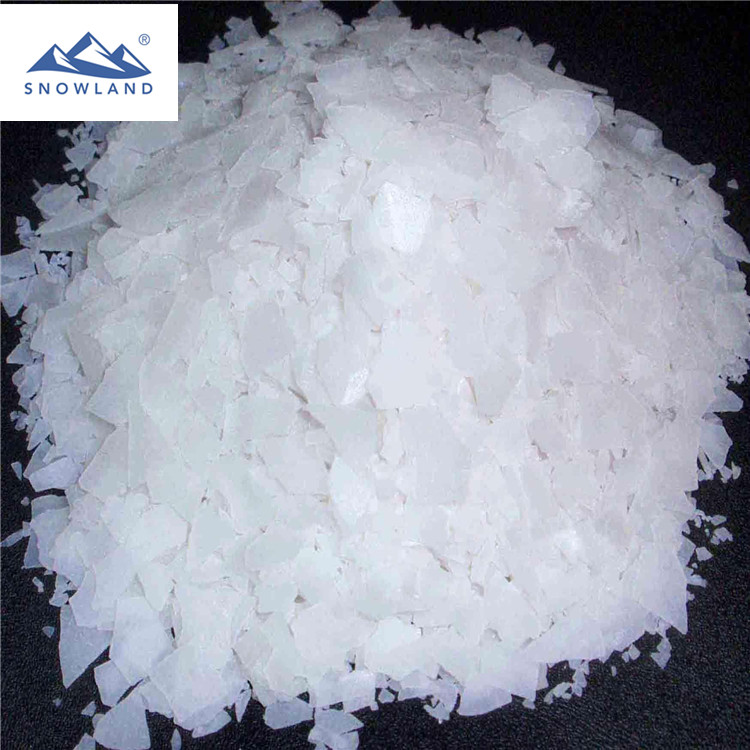

1. Irregular ice flakes, about 40 x 40 in size, about 1.5-2.5mm thick


2. Thin ice can be directly used for string mixing and mixing of refrigerated materials


3. No sharp edges and corners, will not damage the surface of the object to be cooled; the temperature of the ice flower is lower than -8 °C


4. Large contact area and good fluidity can ensure full contact with refrigerated items and achieve a good fresh-keeping effect


5. Easy to crush and form


6. The flake ice machine is small in size and light in weight, convenient to use at any time





If you are interested in our products, please contact us. We are happy to serve you. As the most professional ice machine manufacturer in China, we are glad to try our best to open a good market for you. We will definitely contact you within 3 days after receiving your inquiry.



our service



1. Reply to your inquiry within 24 working hours.

2. Experienced staff can answer all your questions in professional and fluent English.

3. Our well-trained professional engineers and staff can provide our customers with exclusive and unique solutions.

4. Different kinds of customized tube ice machines are available. All sound suggestions are welcome.

5. Overseas service center availale and engineers can service machinery for overseas.

6. Supply high-quality flake ice machines.

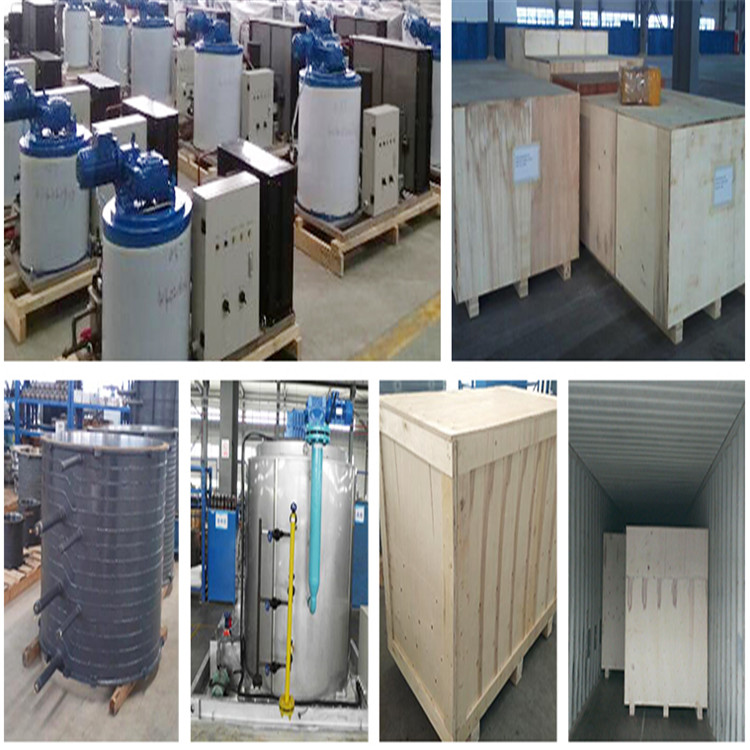

Packaging and Shipping

1. Standard wooden box.
2. The ice forming machine includes: body, machine cover, cooling tower, water pump, water pipe and water pipe accessories.
3. When the machine is put into use, the customer only needs to prepare the power supply for the machine.
4. All components required to install the machine will be provided.
5. Our factory can also produce ice storage cold storage.



other:


1. Payment can be T/T, L/C, Western Union, MoneyGram and cash.
2. The deposit is 30%, after receiving your deposit, we will start to produce the machine for you. The balance 70% should be paid before shipment.
3. The delivery time is usually 30 days after receiving the deposit.

attention:

Prices are for reference only, not actual transactions.

Our price is determined according to the specific requirements of customers, so the specific amount needs to be negotiated separately.
