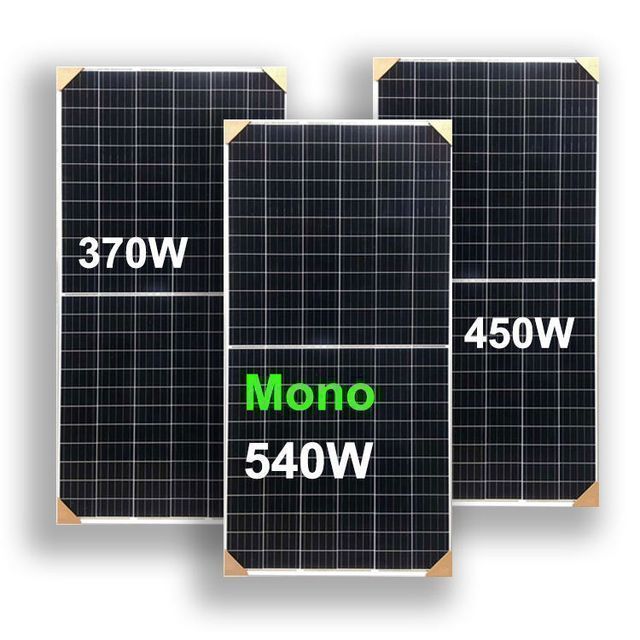

Durable 540W 450W 300W PERC Off Grid Home Use TUV Single Cell Solar System Energy Solar Panel

  • Supplier: Hefei Junmuhe Electric Co., Ltd.
  • Region: Anhui, China
  • Contact: Mr Lucien Zhang
  • Price: $0.27 / 100 - 999 pieces
    $0.25 / 1000 - 4999 pieces
    $0.22 / 5000 - 19999 pieces
    $0.18 / >=20000 pieces
  • Min. Order: 100 pieces
Click here to contact
Product details
Junction Box:IP68 ratingPanel size:2279x1134x35mm

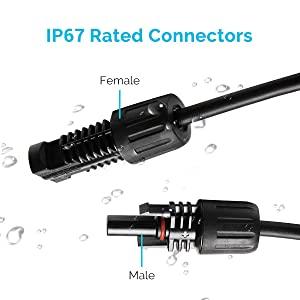

Warranty:30 yearsConnector:Compatible with MC-4/male/female/fuse
Panel Efficiency:>20%,540wframe:Silver/Black Anodized Aluminum Alloy
Types of:PERC, all black, black frame, PERC, double glass, heterojunction, flexibleCertificate:TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
Package preview:payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
application:Solar Power System Homemodel:Army-M540
brand:Junmu RiverGlass:3.2mm, high light transmittance, heat-strengthened AR coating
Unit size:156.75mmx156.75mmcable:4mm2; vertical/landscape length
product name:Monocrystalline Solar PanelPackaging material:EVA/POE
Supply capacity:50000 pieces per dayplace of origin; place of origin:Anhui, China
Packaging Details:Carton with wooden pallet
Specification
Model
JUN-300W
JUN-370W
JUN-450W
JUN-540W
Open circuit voltage (V)
36
41.5
49.6
49.55
Working voltage (V)
30
34.2
41.0
41.62
Short circuit current (A)
11.2
11.37
11.53
13.89
Working current (A)
10
10.85
10.98
12.98
Module efficiency (%)
18.7
19.18
22.3
22.5
system voltage
1500V (International Electrician)
power tolerance
0~+5W
maximum. Fuse rated current
25A
Standard Test Conditions (STC)
lrradiance 1000 W/m 2 , module temperature 25 °C, AM=1.5; Pmax, Voc and Isc are all within +/- 5% tolerance.
detailed drawing

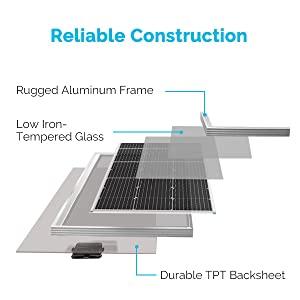

The top of the JUN is made of anti-reflective low-iron tempered glass with a transparency as high as 91.5%.

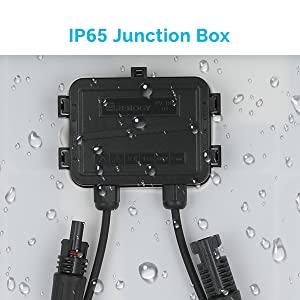

Complete protection from ambient particles and low pressure water jets.
No need to worry about bad weather. Effectively prevent water infiltration. Ideal for your yacht and marine applications.

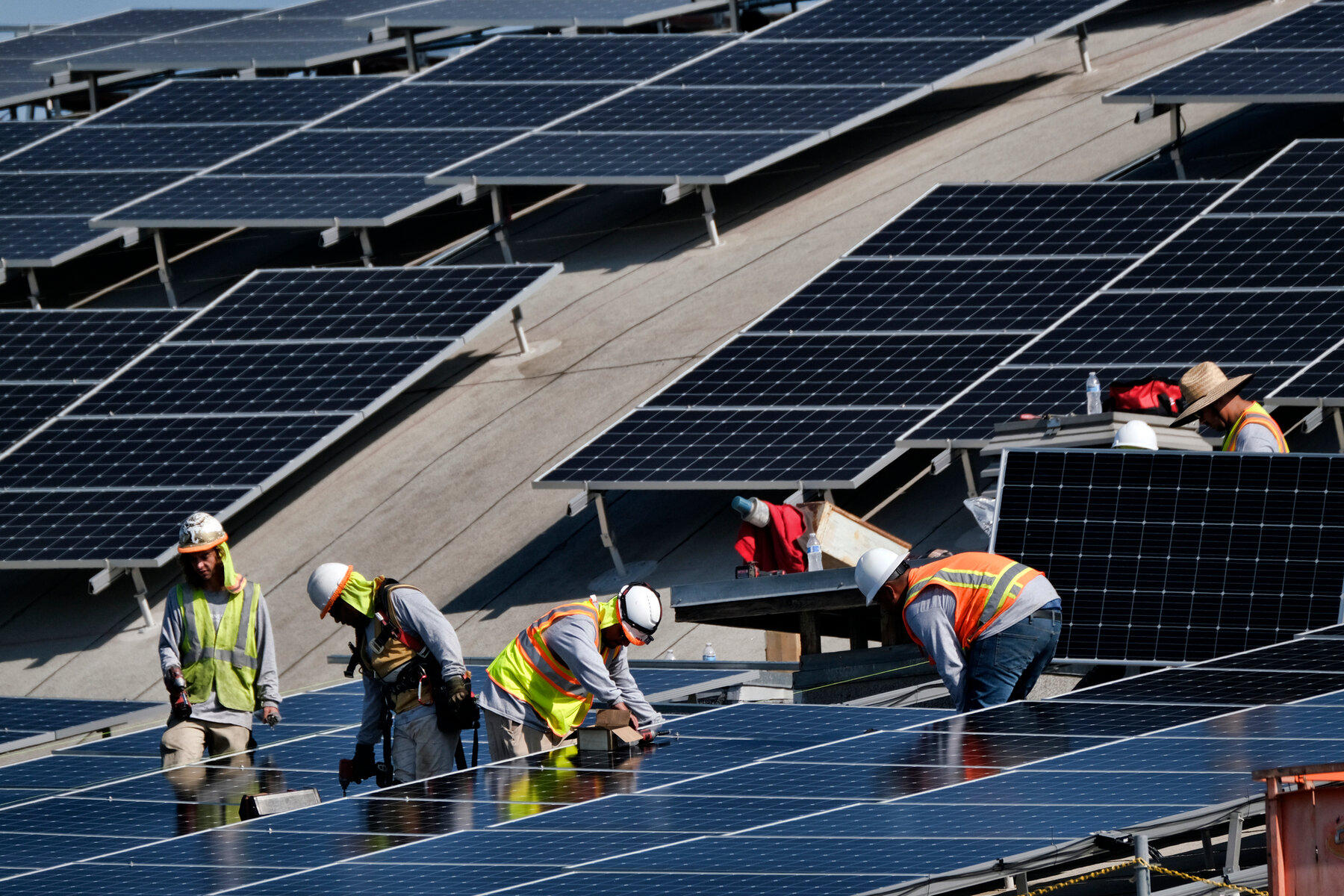

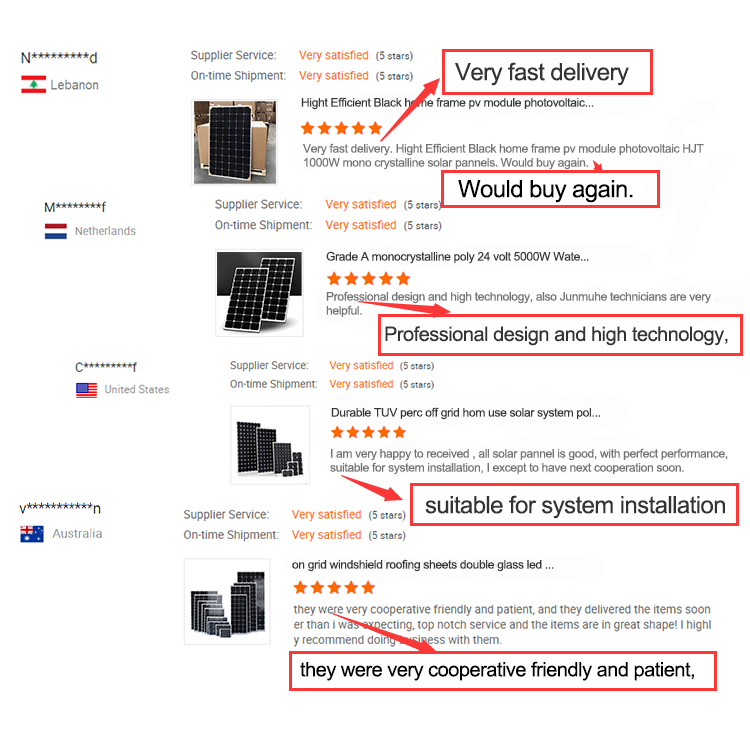

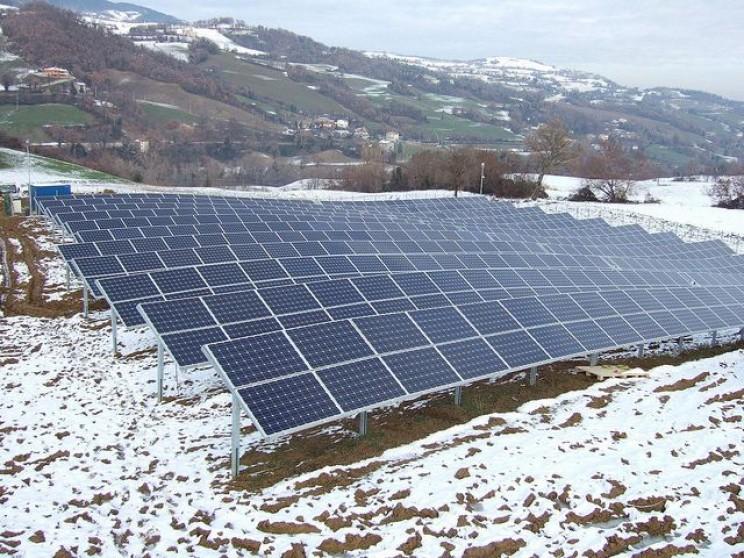

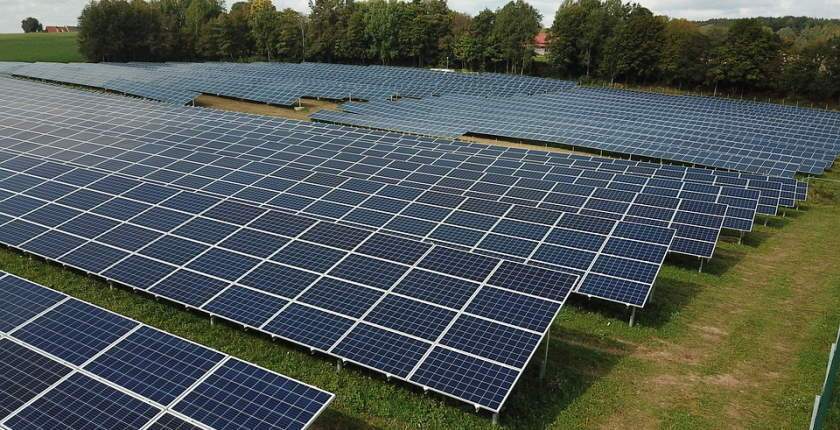

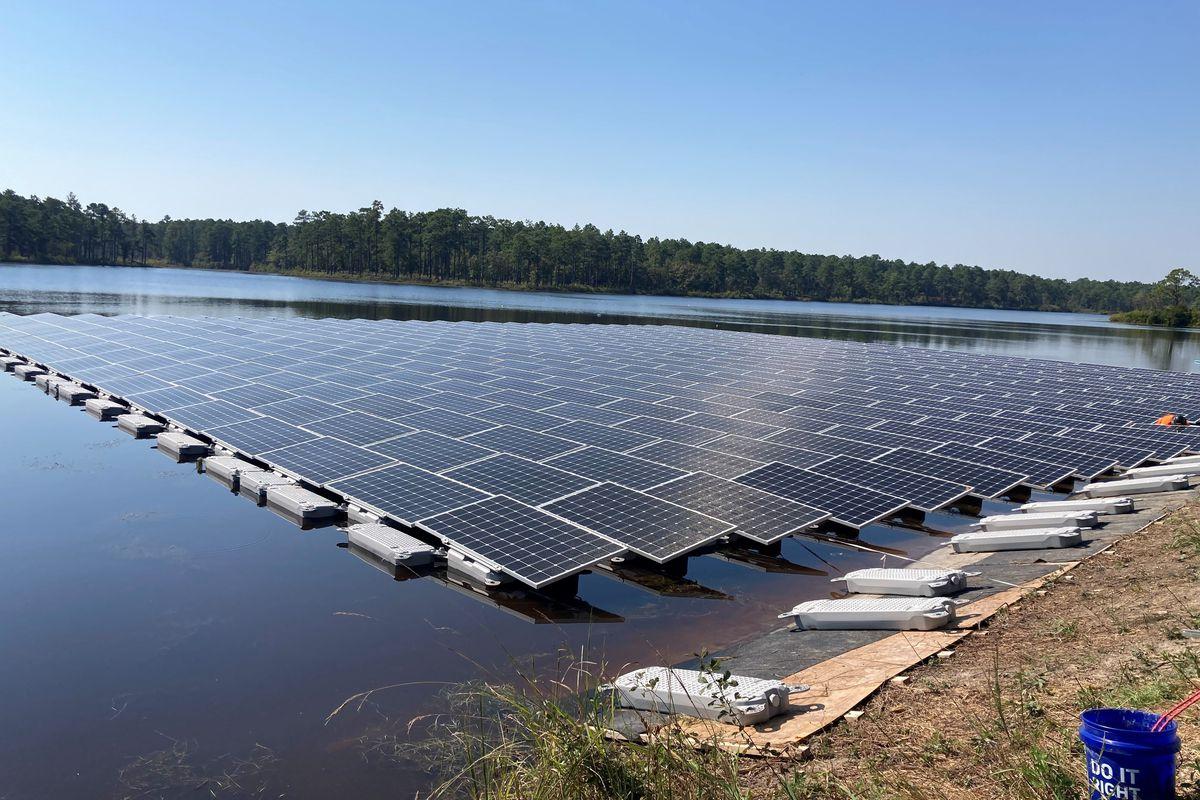

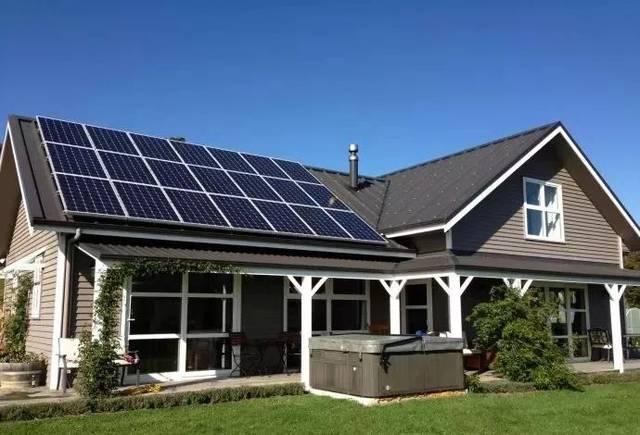

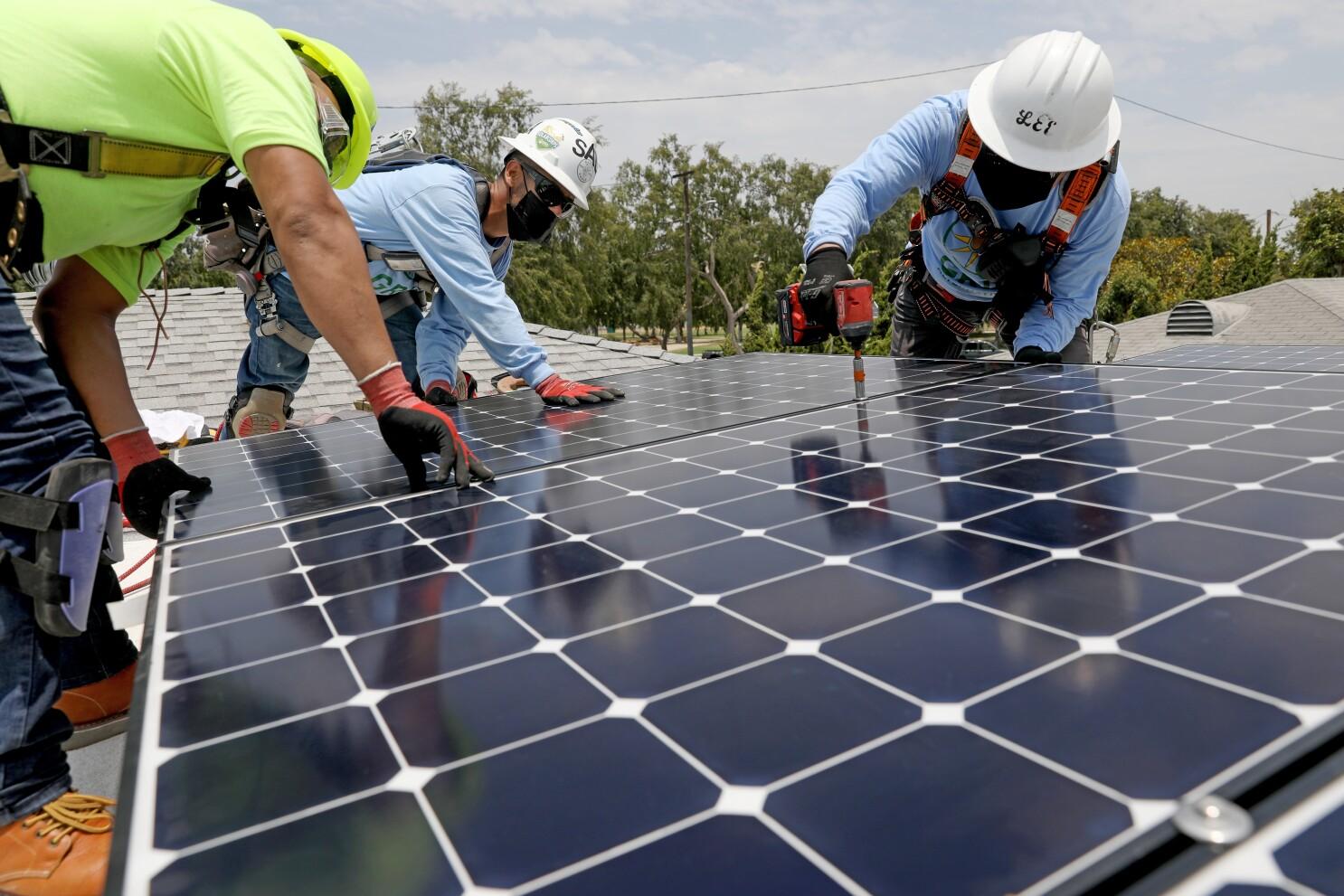

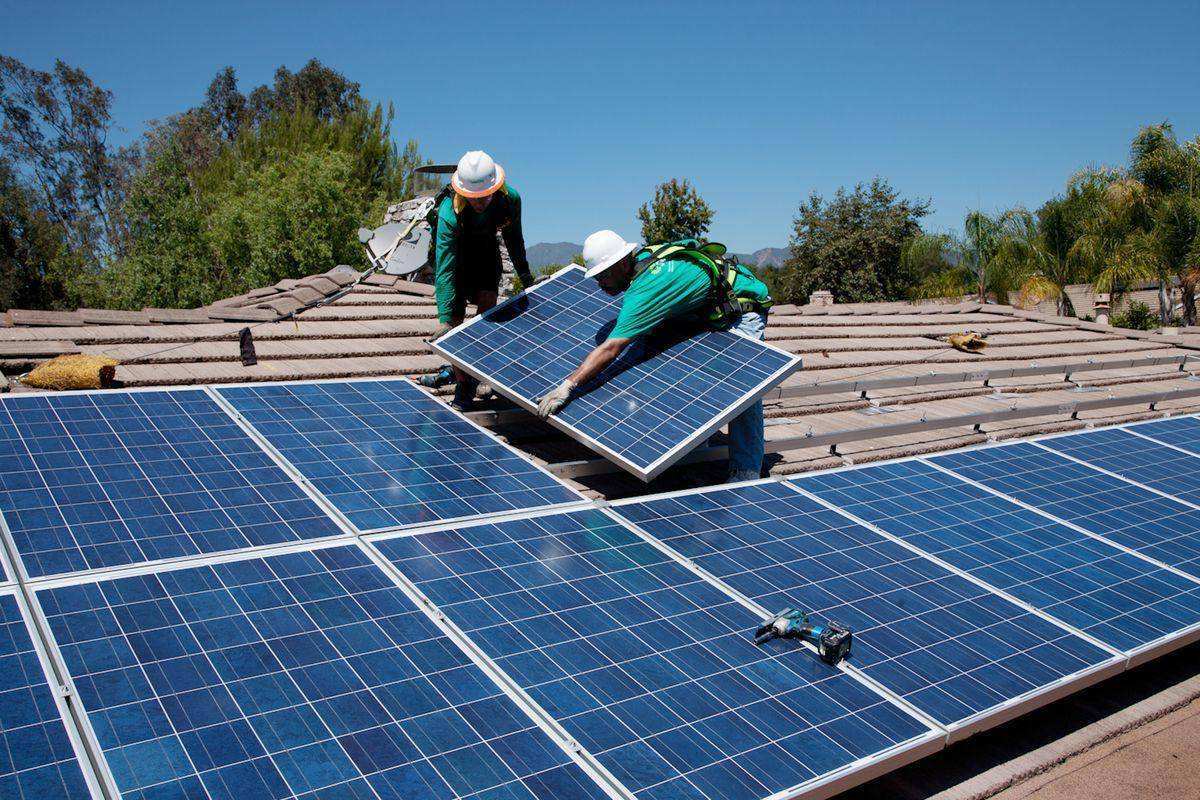

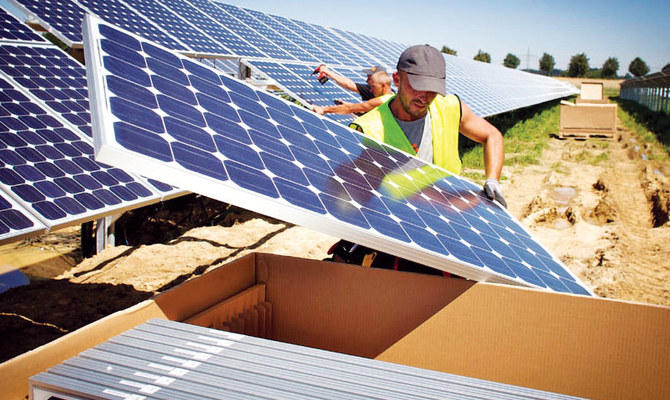

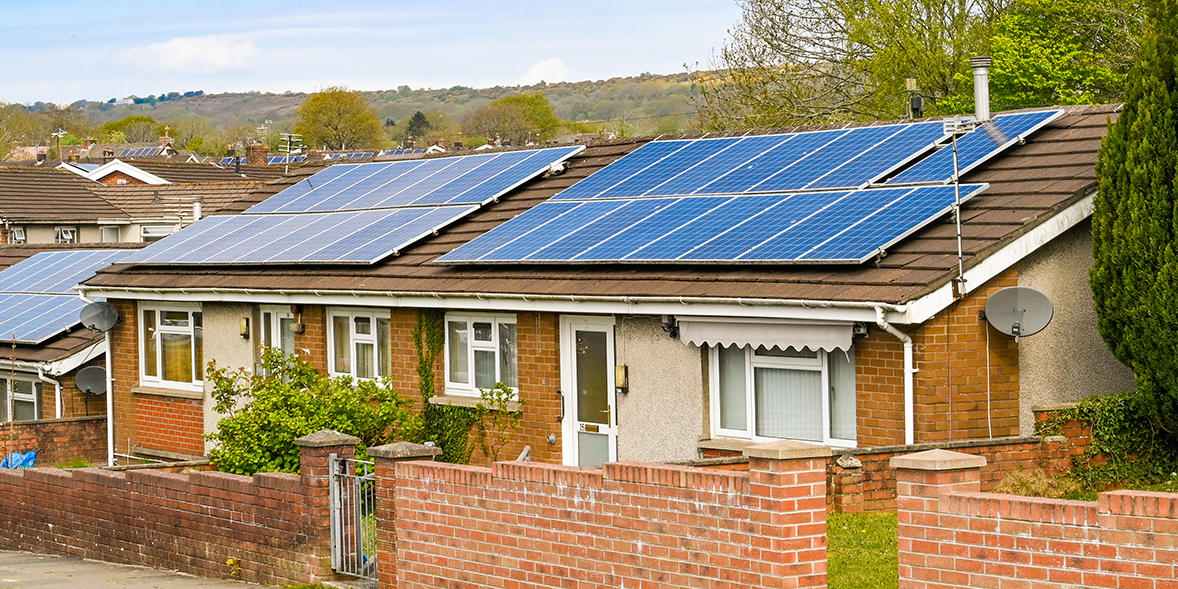

project
Lebanon
Netherlands
United States
Germany
Romania
Indonesia
Thailand
Austria
Brazil
