Customized 400W 450W 500W 600W 650W double-glass double-sided monocrystalline photovoltaic solar panel OEM factory price for home use

  • Supplier: Hebei Angsi Technology Co., Ltd.
  • Region: Hebei, China
  • Contact: Mr Kyle Sagar
  • Price: $0.21 / 100 - 9999 pieces
    $0.16 / >=10000 pieces
  • Min. Order: 100 pieces
Click here to contact
Product details
port:Tianjin/Shanghai/Guangzhou/Shenzhenpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Panel Efficiency:19.4%-21.12%application:The Sun can generate system
brand:AnseSolar battery:Mono 158.75mm
type:Standard Solar Panel, PERC, Half Cell, All Black, HJT, hbc, FlexibleSupply capacity:50000000 sets per month
Panel size:1650*992*40mmPackaging Details:carton
Origin:Hebei chinaUnit size:166mmx166mm
product name:Solar panelsefficiency:19.4%-21.12%
Warranty:25 years, 25 yearsKey words:power solar battery
Material:Monocrystalline Solar Cellmodel:AS-550W
Certificate:TUV/IEC61215/IEC61730/CEC/CE/PID/ISO, TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
Product Description

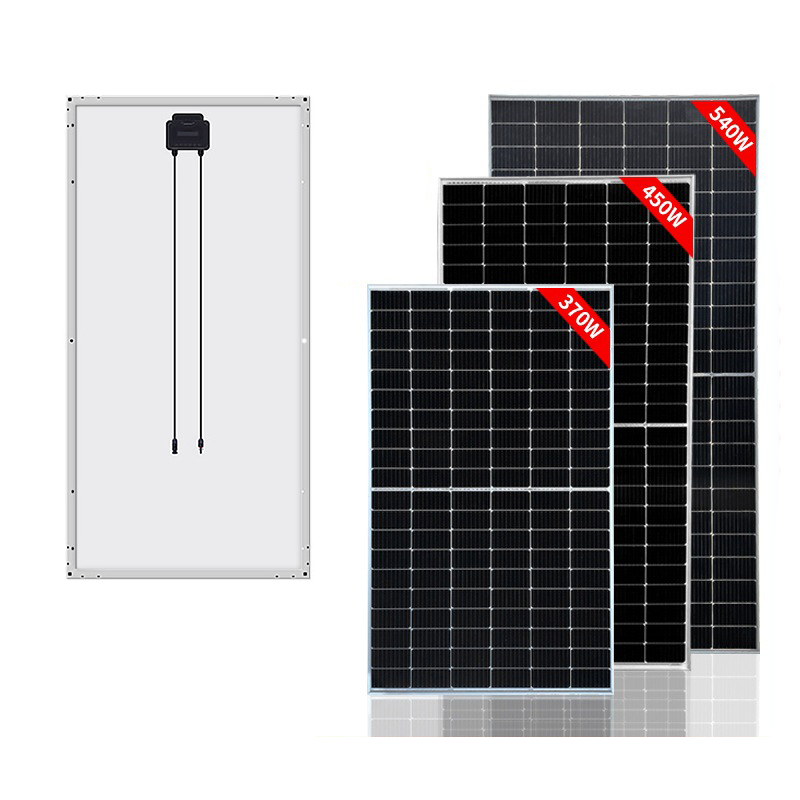

Customized 400W 450W 500W 600W 650W double-glass double-sided monocrystalline photovoltaic solar panel OEM factory price for home use
type
SR-72M535HLPRO
SR-72M540HLPRO
SR-72M545HLPRO
efficiency(%)
20.73
20.93
21.12
Battery Type(mm)
182x91 11BB monocrystalline silicon)
Batteries (pcs)
144(6*24)
Number of diodes
3
Cables & Connectors
4mm2, MC4 or MC4 compatible, 4mm2, EVO2 or EVO2 compatible
cable length
350mm or according to customer requirements
strength
size
(mm)
Voltage
(five)
current
(A)
open circuit voltage
open circuit current
weight
Daily power generation
370W
1755*1038*35
34.2
10.85
41.5V
11.37A
20 kg
1.48°
450W
2094*1038*35
41.1
10.71
48V
11.46A
24.5 kg
1.8°
540W
2279*1134*35
41.62
12.98
49.55V
13.89A
27.3 kg
2.16°
model type
YS550M-72
YS560M-72
YS570M-72
YS580M-72
YS600M-72
Rated maximum power at STC
550W
560W
570W
580W
600W
Maximum supply voltage (Vmp)
40.9V
41.1V
41.3V
41.5V
42.1V
Maximum power current (Imp)
13.45A
13.63A
13.72A
13.98A
14.25A
Open circuit voltage (Voc)
49.62V
49.72V
49.82V
49.91V
49.99V
Short circuit current (Isc)
14.03A
14.33A
14.62A
14.81A
14.97A
module efficiency
21.33%
21.72%
22.1%
22.49%
23.27%
Working Conditions&Working Conditions
Operating temperature
-40℃~+85℃
system voltage
DC 1000V(IEC) / 1500V(IEC)
Maximum series fuse
25A
power tolerance
0~+5W
Temperature coefficient of Pmax
-0.35%/°C
Voc temperature coefficient
-0.29%/°C
Temperature Coefficient of Isc
+0.048%/°c
STC (Standard Test Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5
NOCT (nominal operating battery temperature): lrradiance 800W/m2, ambient temperature 20 'C, spectrum at AMl.5, wind at lm/S
