payment terms: | L/C, Western Union, T/T, MoneyGram | maximum. Working current: | 13.34A |
place of origin; place of origin: | Guangdong, China | Packaging Details: | In well-protected carton or wooden case with pallet. |
brand: | FGET | Panel Efficiency: | 21.98% |
Unit size: | 210mmx210mm | Solar battery: | Single battery 210*210mm |
Maximum power: | 510W | Types of: | Watt Solar Panels |
Package: | 32PCS/pallet; packing size (L*W*H):2170*1100*1220MM | Package preview: | |
Module efficiency (%): | 21.98% | product name: | 495W 505W 510W 500W Solar Cell Watt Single Panel |
port: | Huangpu Nansha Shekou Salt Field | weight: | 25.52KG |
Panel size: | 2148*1188*35mm | maximum. Operating Voltage: | 41.33V |
model: | Sh-500W-01 | Cell number: | 210*30; 10*36 arrangement |
Supply capacity: | 10000 pieces per month | | |

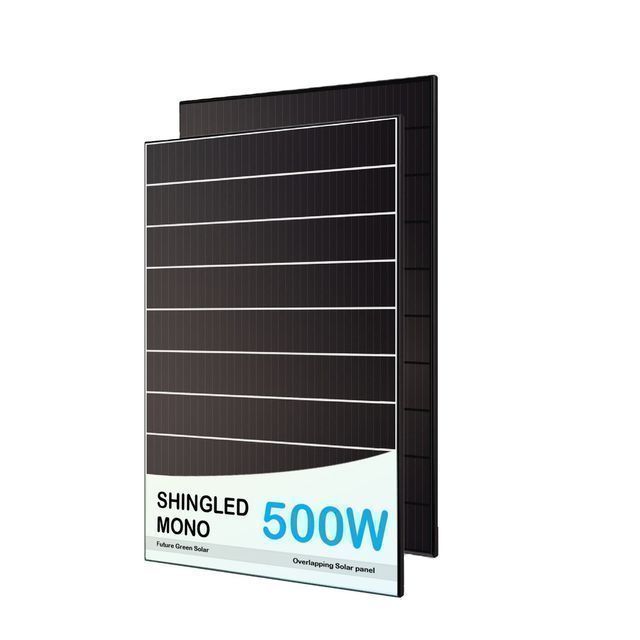

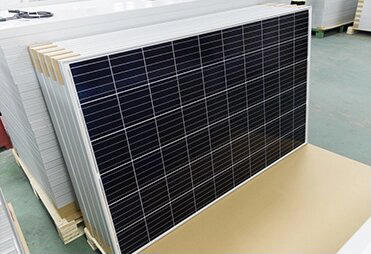

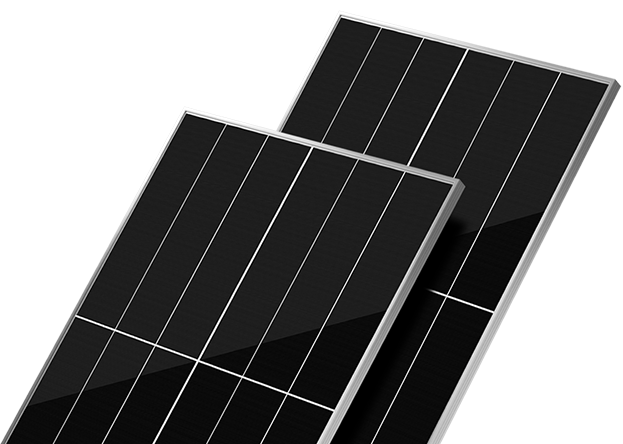

New promotion A grade 24V 500w 495W 500W 505W 510W watt solar cell watt single panel manufacturer china

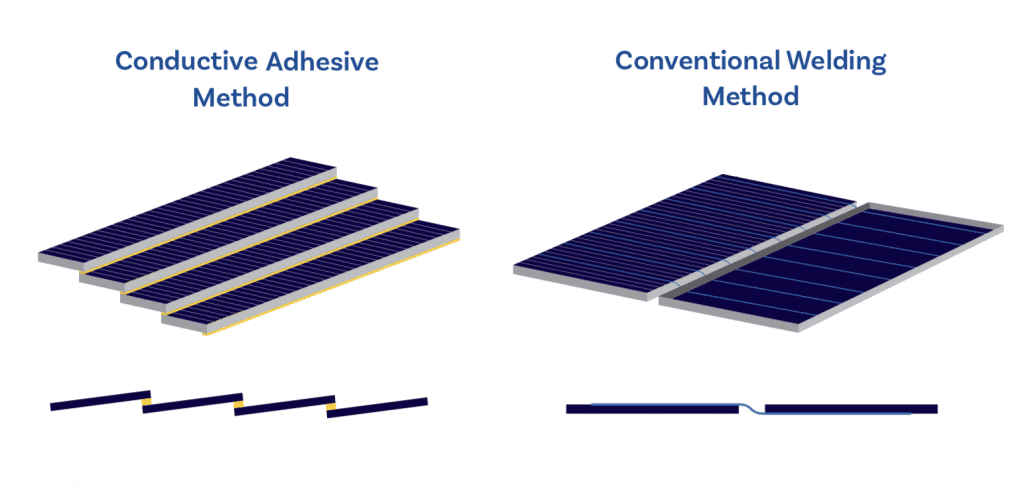

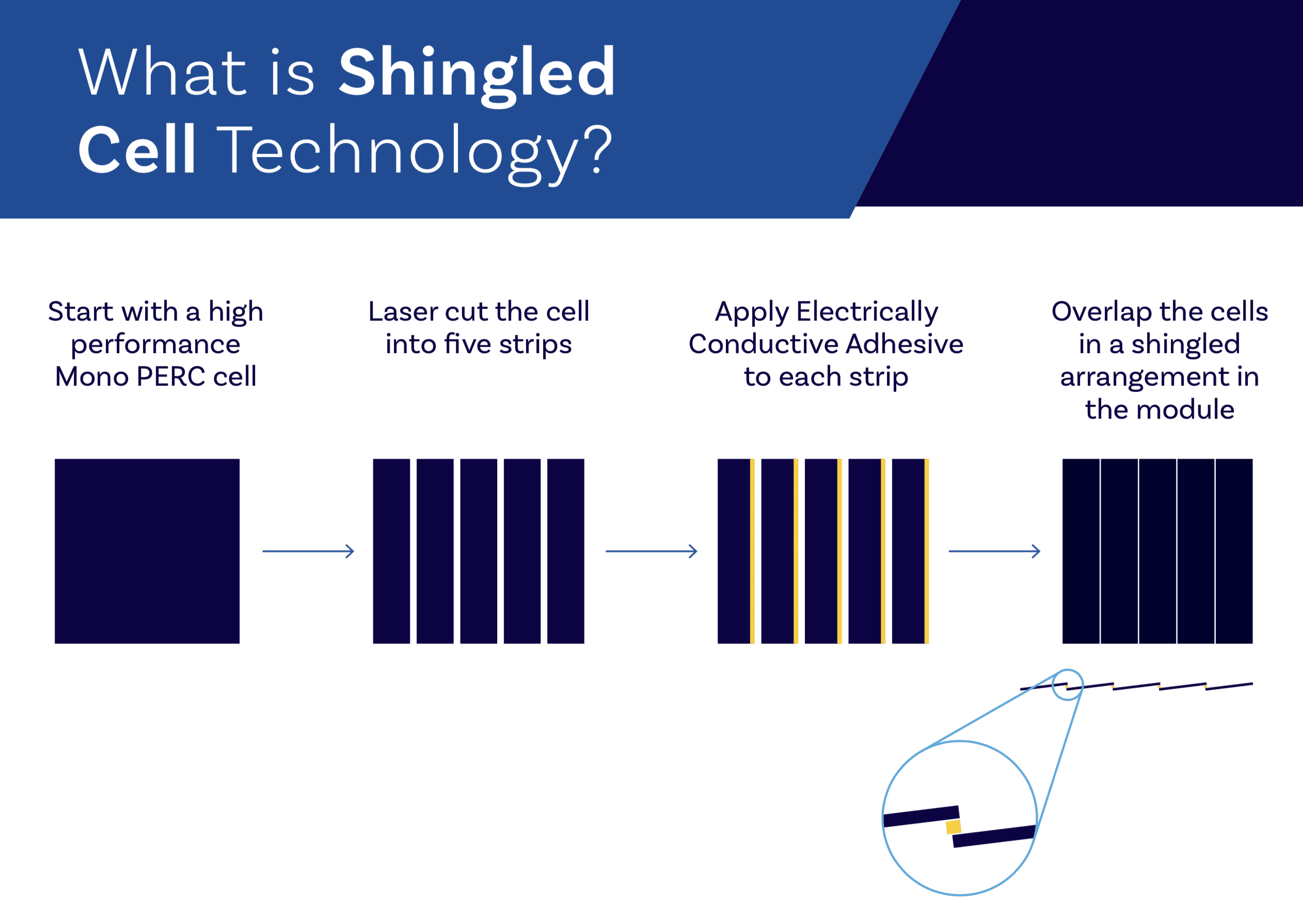

A traditional solar module consists of many solar cells electrically connected using metal bus bars. There are gaps around the solar cells on traditional solar modules, and the busbars usually pass through the cells to connect them together. Shingled solar modules have multiple layers of solar cells that touch each other and are electrically connected using an electrically conductive adhesive (ECA). This eliminates the need for metal busbars. This approach means there are no gaps between the solar cells, increasing the surface area of the silicon cells in the solar module. Also, there are no bus bars covering the cells, reducing light on the solar cells. This improves the electrical and mechanical properties and aesthetics of the solar module.
Component size MM 2148*1080*35MM Component weight Kg 25.52 Solar cell monocrystalline battery 210*210 Cell arrangement 210*30;10*36 arrangement Packaging 32PCS/pallet; Packing size(L*W*H): 2170*1100*1220MM
Versatile
Solar panels support multiple mounting options, panels can be adapted for flat mounts (Z-brackets, tilt-adjustable mounts) and pole/wall mounts
high efficiency
Minimizes power drop due to shading using high performance solar cells encapsulated in EVA (Ethylene Vinyl Acetate) Pre-installed bypass diodes in the junction box

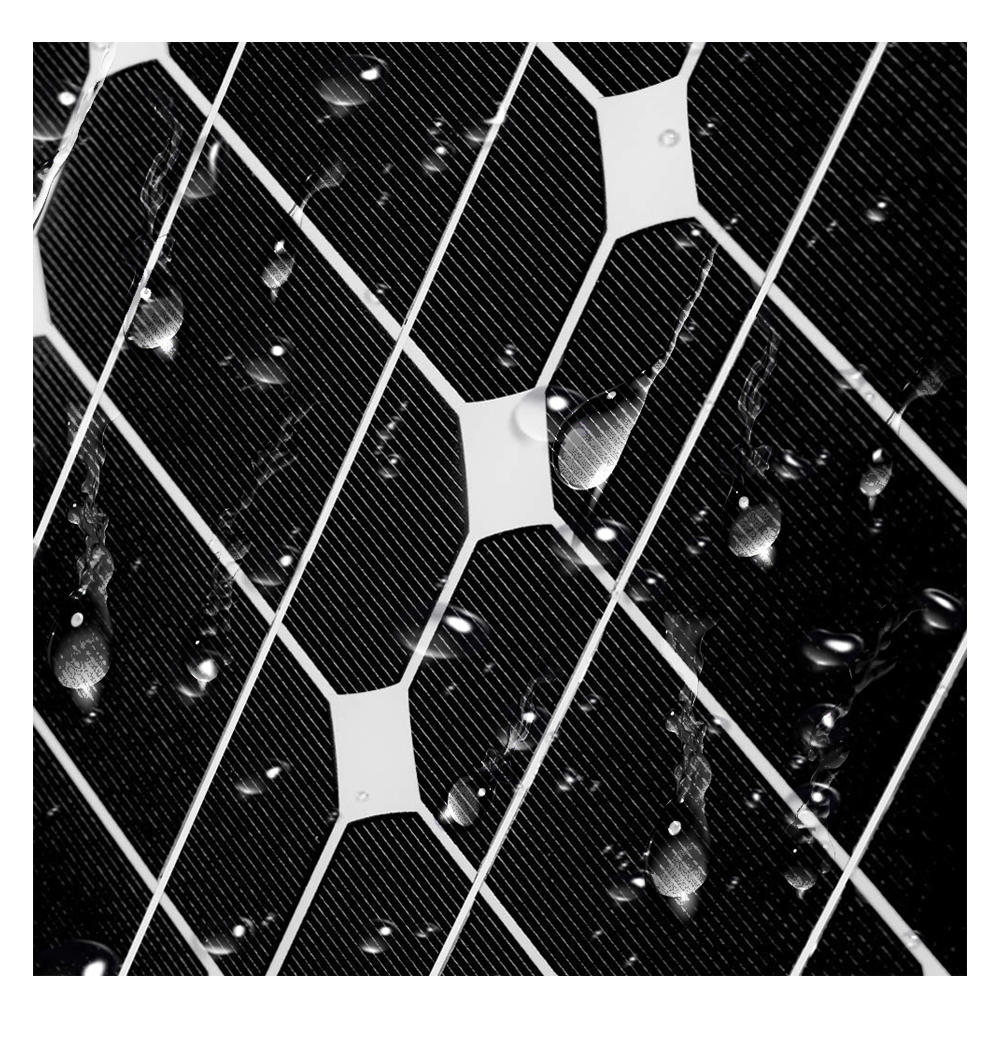

waterproof
The solar modules are anti-reflection, high transparency, low iron tempered glass. IP65 rated junction box provides full protection against environmental particles and low pressure water jets.
Specification
Panel sizeMM | 2148*1080*35MM | | | |
Panel weight Kg | 25.52 | | | |
Solar battery | Single battery 210*210 | | | |
cell arrangement | 210*30; 10*36 arrangement | | | |
Package | 32PCS/pallet; packing size (L*W*H): 2170*1100*1220MM | | | |
maximum. Working power (W) | 510 | 505 | 500 | 495 |
maximum. Working voltage (V) | 41.33 | 41.26 | 41.18 | 41.11 |
maximum. Working current (A) | 12.34 | 12.24 | December 14 | 12.04 |
Turn on voltage (V) | 48.35 | 48.27 | 48.19 | 48.10 |
Short circuit current (W) | 13.01 | 12.90 | 12.80 | 12.69 |
module efficiency | 21.98 | 21.77 | 21.55 | 21.34 |
Test Conditions | Radiation 1000 W/m2; AM 1.5; Ambient temperature 25°C. | | | |
Shingled Solar Panel Date Sheet | | | | | | |
Model | Power (watts) | Voltage (v) | Material | Module efficiency (%) | Dimensions (mm) | arrange |
FG550W-Sh | 540-555W | 36V | 21.75 | 2148*1188*35 | 210*30 | 10*40 |
FG500W-Sh | 495-510W | 36V | 21.98 | 2148*1080*35 | 210*30 | 10*36 |
FG470W-Sh | 465-480W | 36V | 21.91 | 2148*1020*35 | 210*30 | 10*34 |
FG450W-Sh | 435-450W | 36V | 21.82 | 2148*960*35 | 210*30 | 10*32 |
FG400W-Sh | 390-405W | 36V | 21.68 | 1730*1080*35 | 210*30 | 8*36 |
FG380W-Sh | 365-380W | 36V | 21.58 | 1730*1018*35 | 210*30 | 8*34 |
FG350W-Sh | 345-360W | 36V | 21.68 | 1730*960*35 | 210*30 | 8*32 |
FG340W-Sh | 325-340W | 36V | 21.84 | 1730*900*35 | 210*30 | 8*30 |
FG320W-Sh | 290-305W | 36V | 21.56 | 1310*1080*35 | 210*30 | 6*36 |
FG280W-SH | 275-290W | 36V | 21.7 | 1310*1020*35 | 210*30 | 6*34 |
FG275W-SH | 260-275W | 36V | twenty one | 1320*992*35 | 210*30 | 6*33 |
FG250W-SH | 250W | 36V | 21.2 | 1310*900*35 | 210*30 | 6*30 |
FG240W-SH | 240W | 18V | 21.33 | 1080*1020*35 | 210*30 | 5*34 |
FG220W-SH | 220W | 18V | 21.22 | 1080*960*35 | 210*30 | 5*32 |
FG200W-SH | 200W | 36V | 21.16 | 875*1080*35 | 210*30 | 4*36 |
FG190W-SH | 190W | 18V | 21.29 | 875*1020*35 | 210*30 | 4*34 |
FG180W-SH | 180W | 18V | 21.43 | 875*960*35 | 210*30 | 4*32 |
FG150W-SH | 150-160W | 18V | 20.73 | 670*1080*30 | 210*30 | 3*36 |
FG140W-SH | 140W | 18V | 20.49 | 670*1020*30 | 210*30 | 3*34 |
FG130W-SH | 120-130W | 18V | 20.21 | 670*960*30 | 210*30 | 3*32 |
FG100W-SH | 100W | 18V | 20.58 | 450*1080*30 | 210*30 | 2*36 |

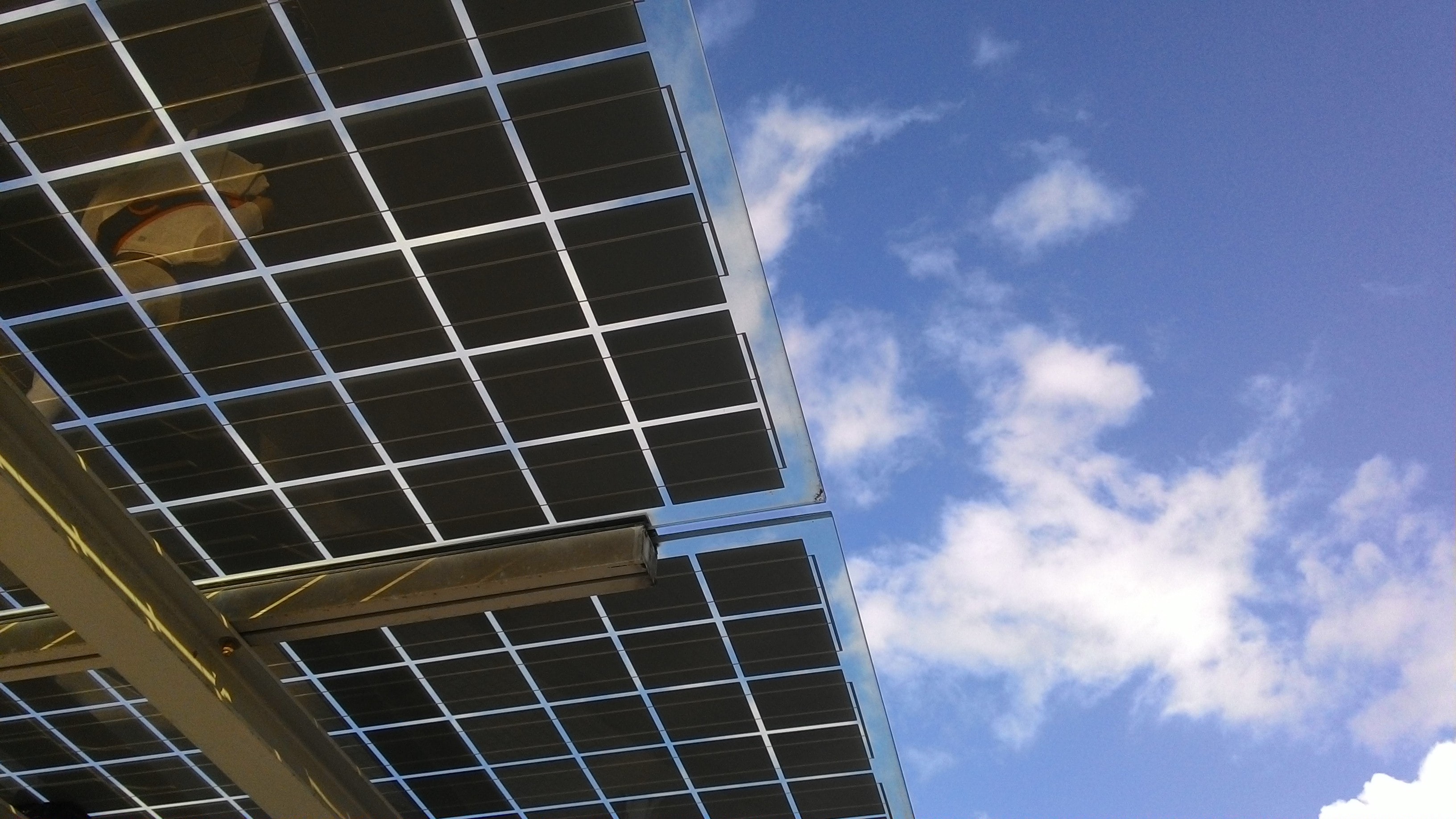

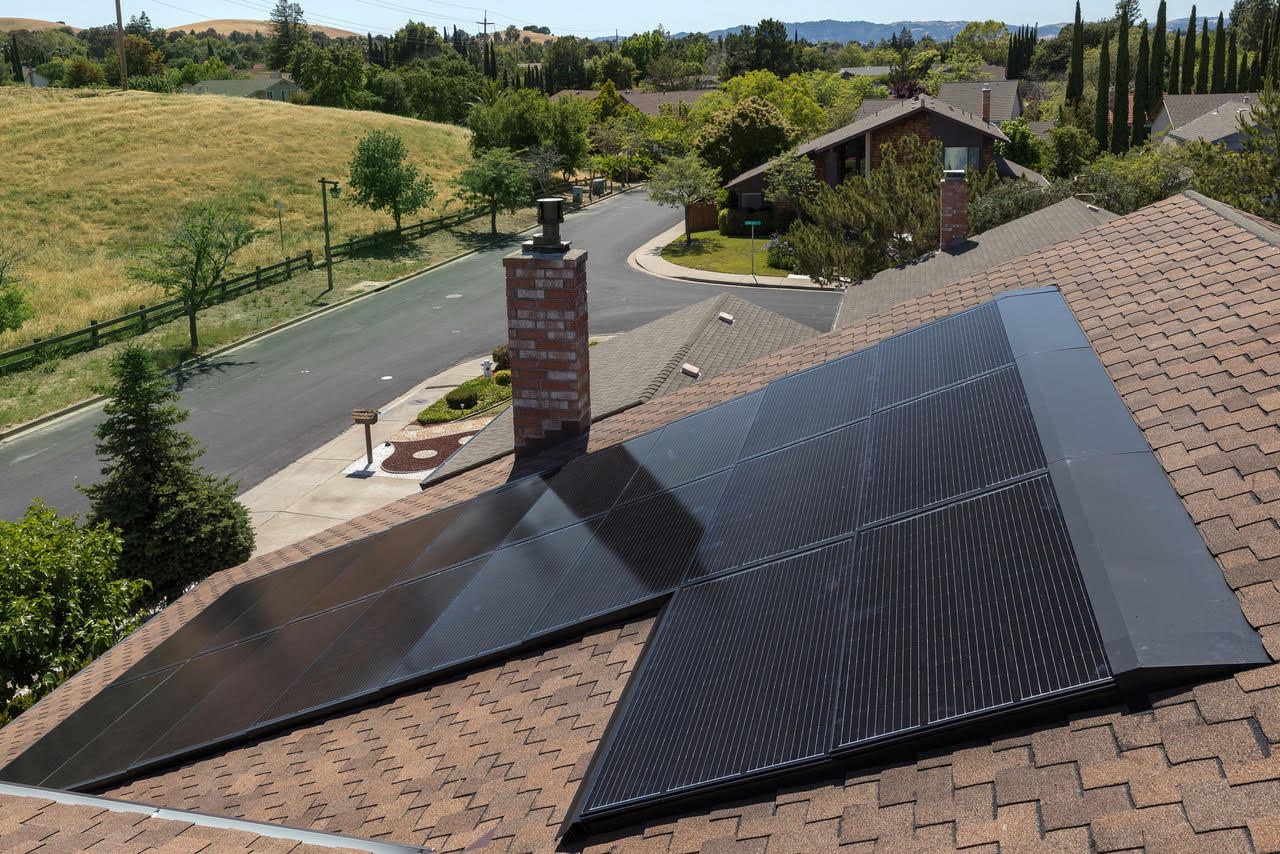

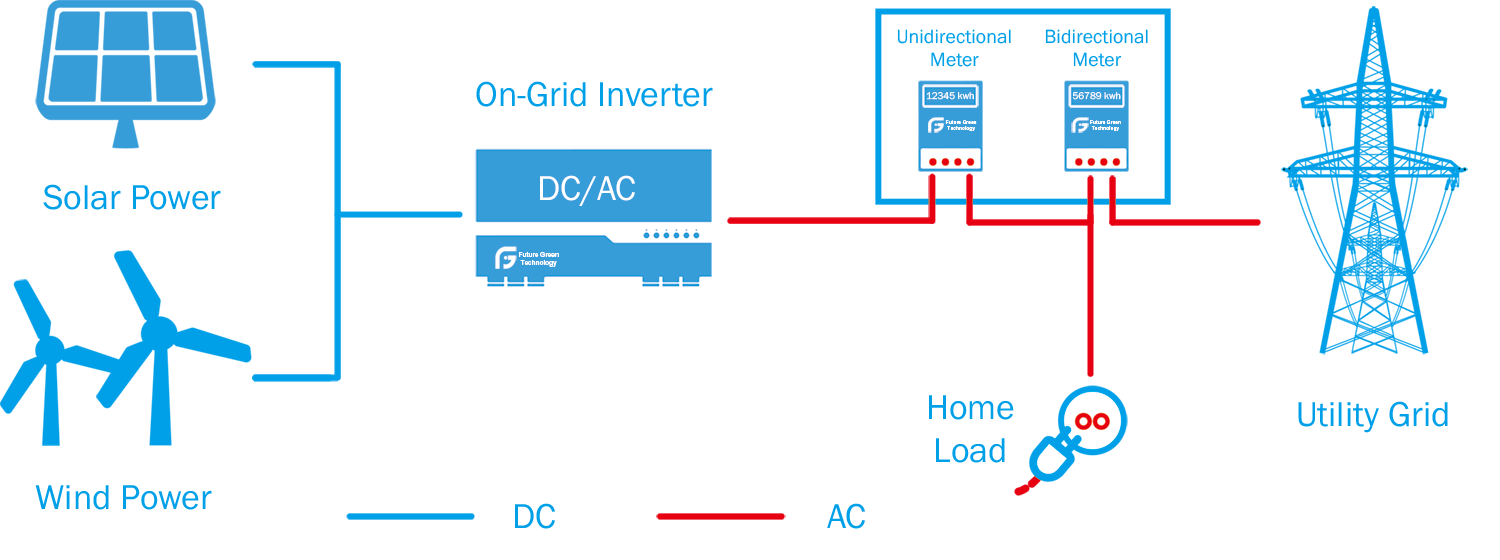

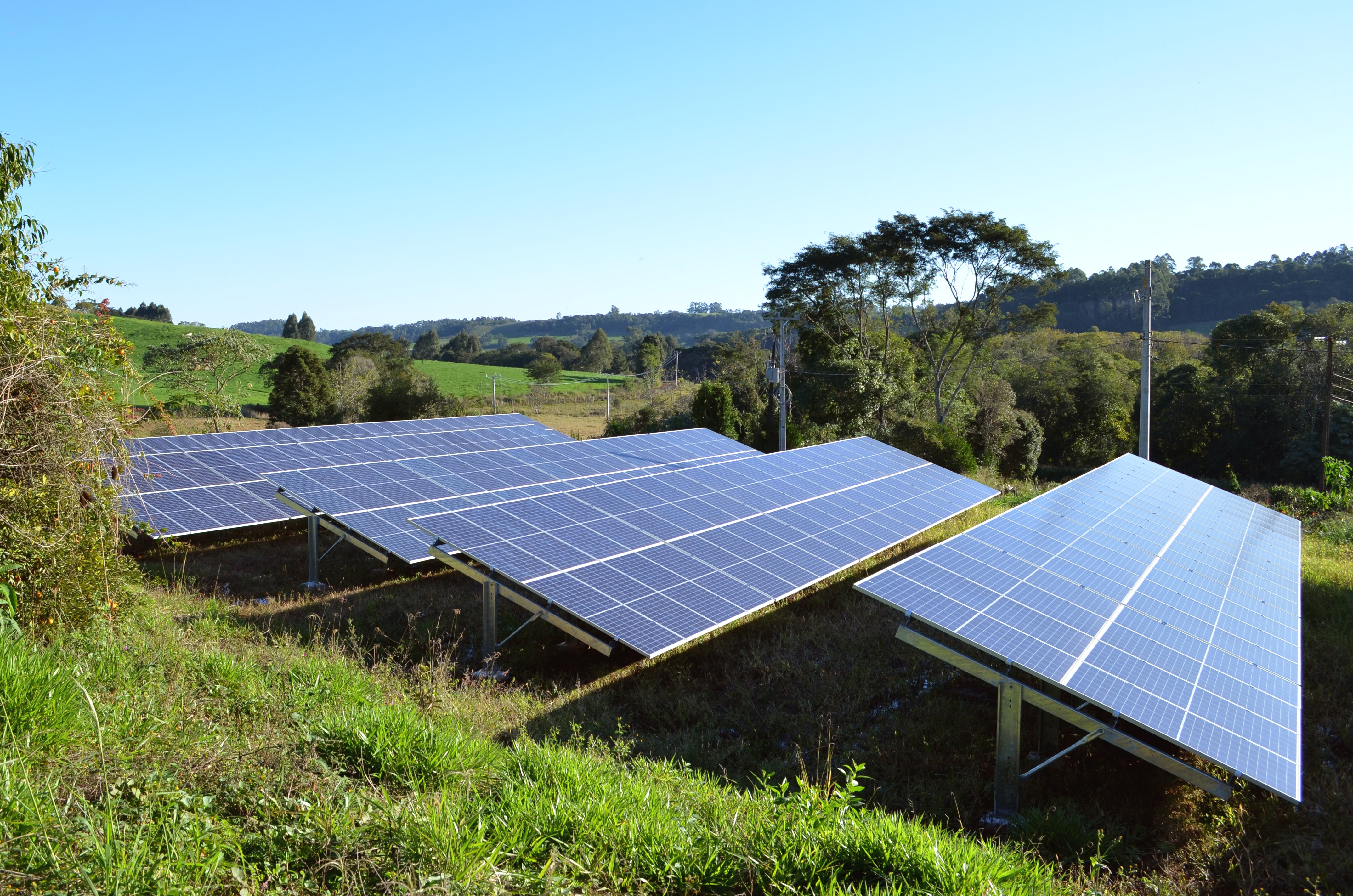

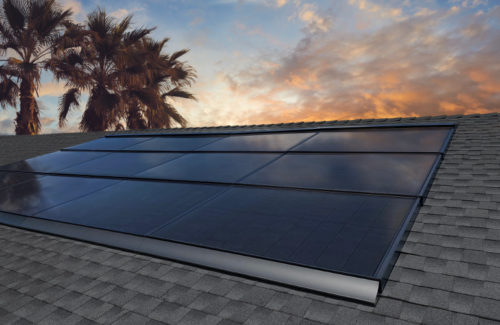

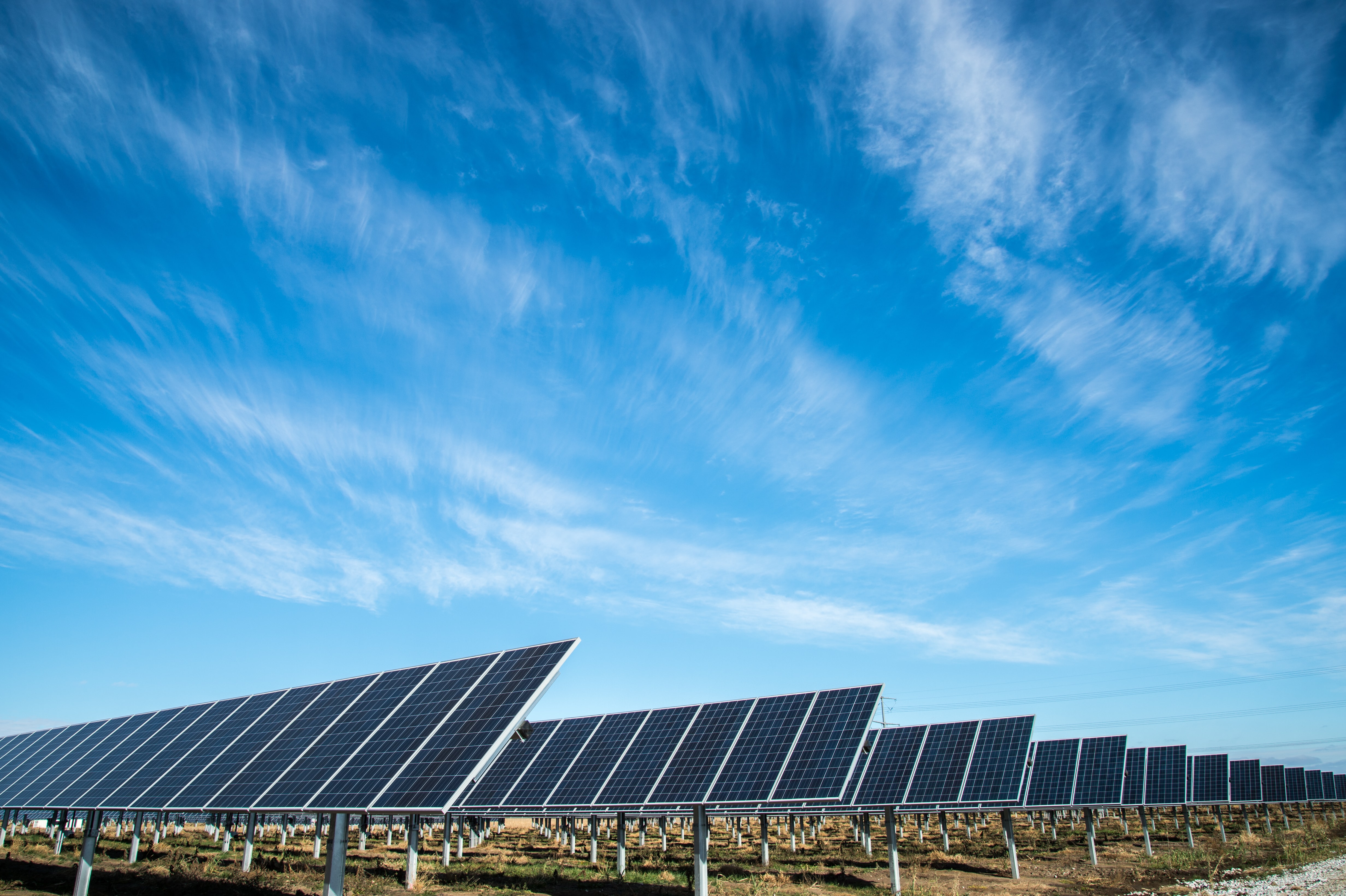

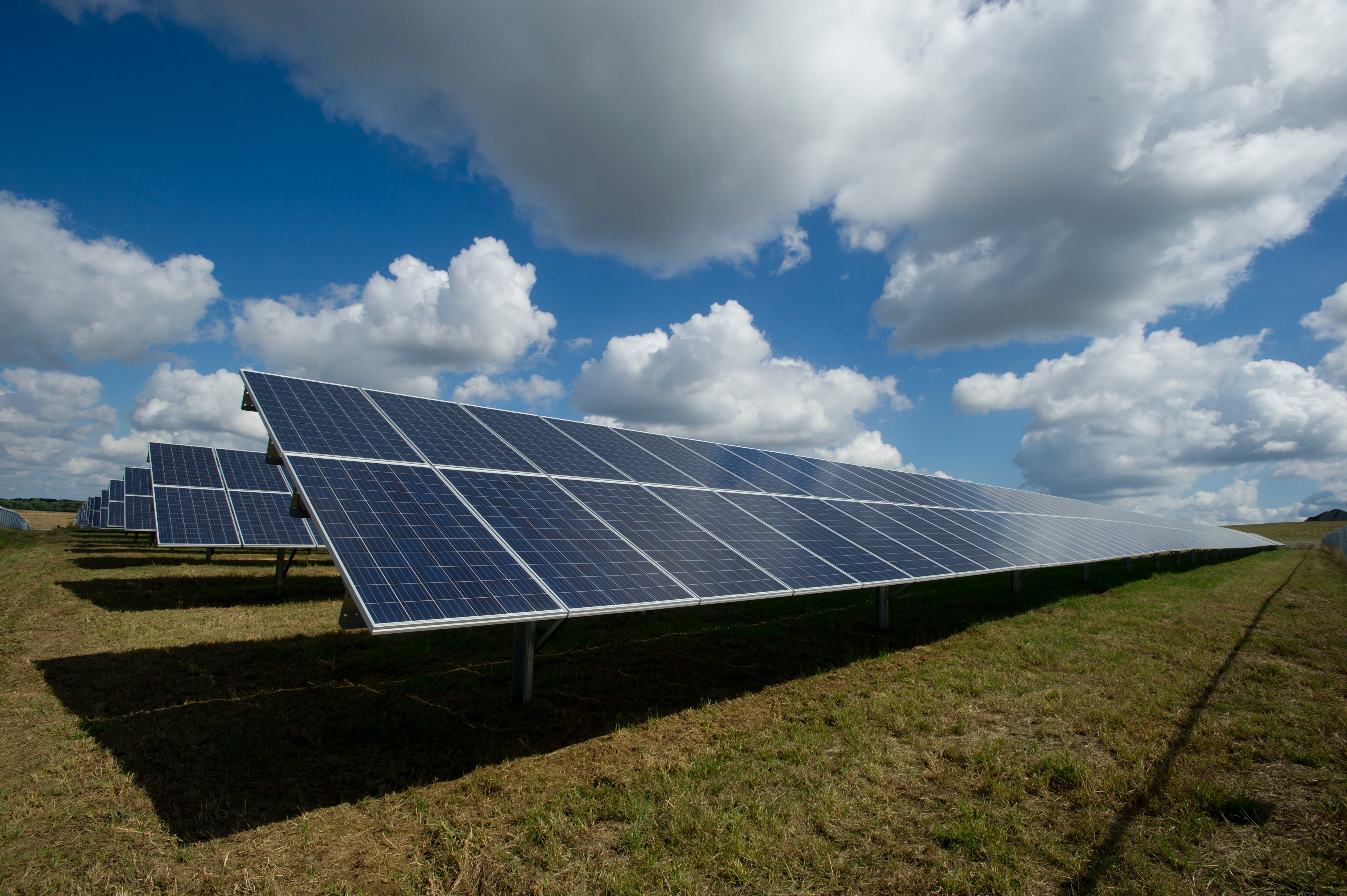

application

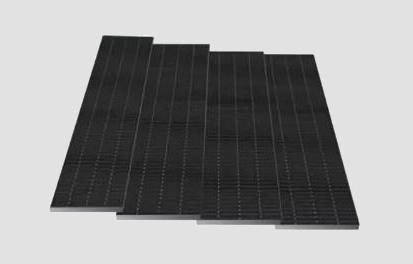

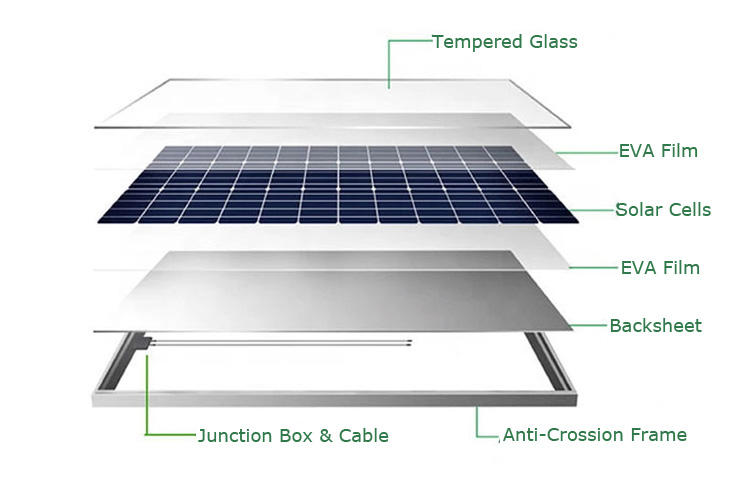

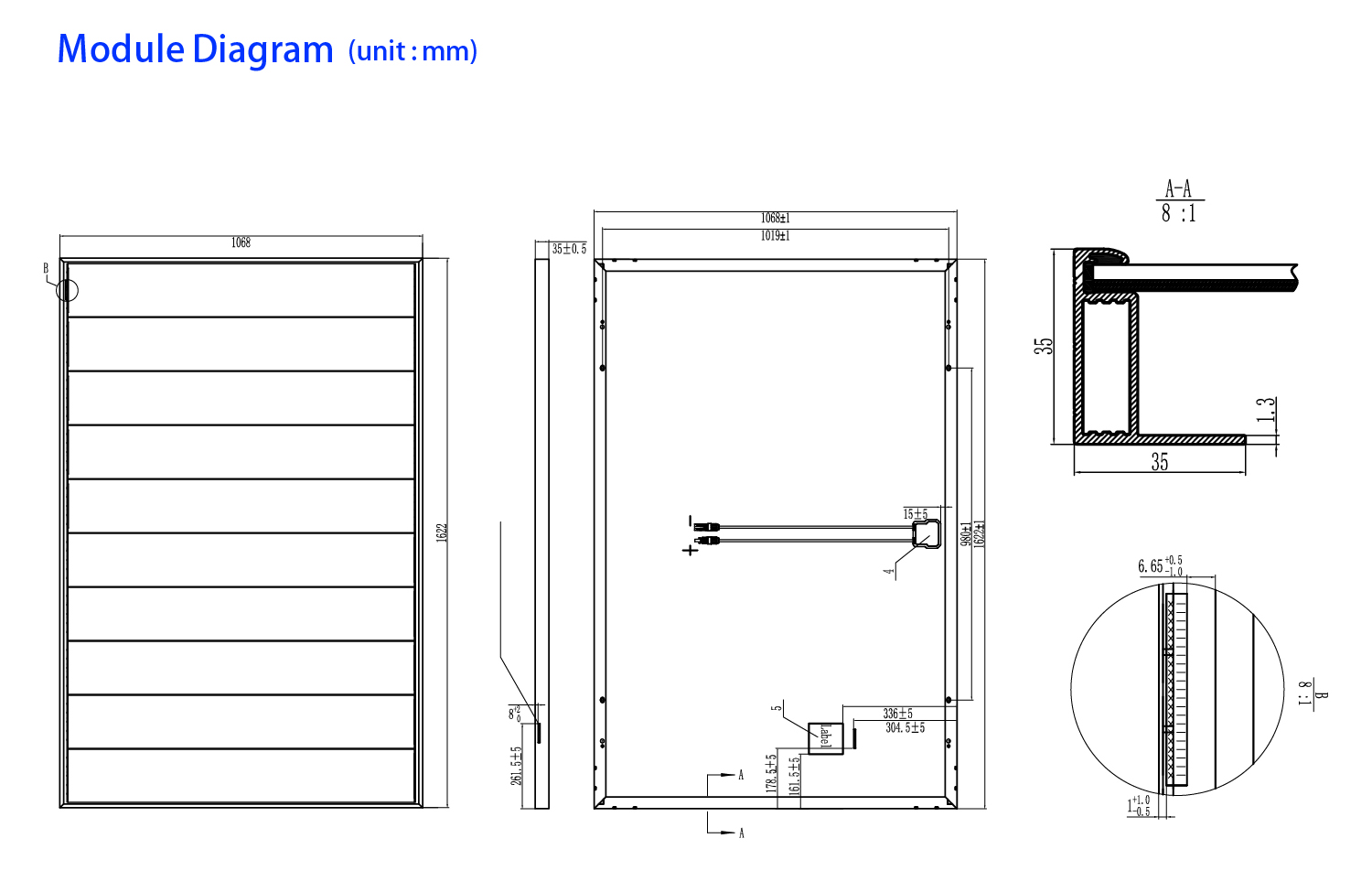

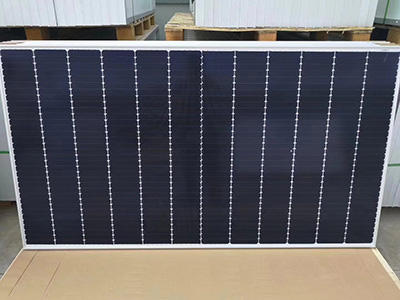

detailed drawing
PERC Monocrystalline Solar Cell
>Shingling components of the same area can fit into more cells>Conductive glue connects to conduct electricity and reduce resistance>Reduces power loss and hot spots caused by shading

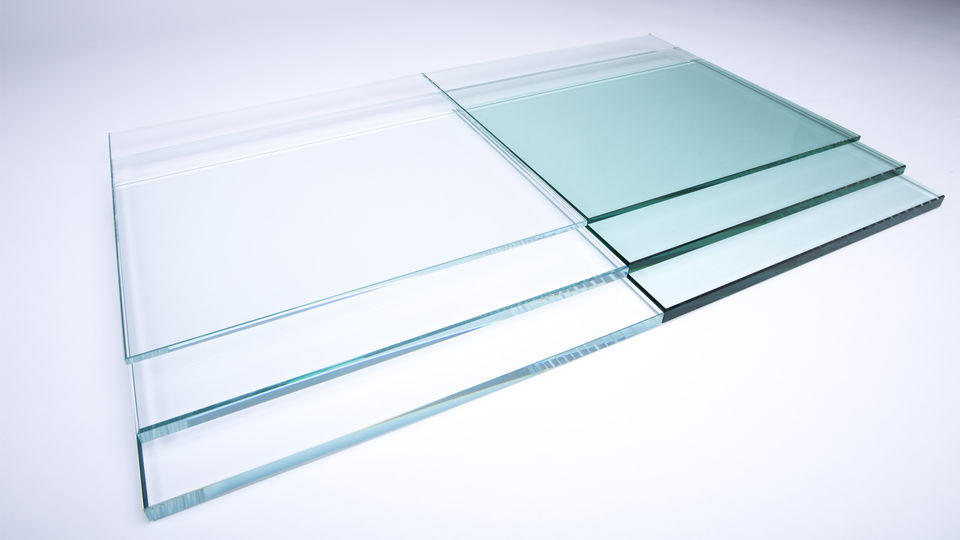

Glass
> Pure clear low-iron glass > Translucency increased by 2% at normal brightness
> Module efficiency increased by 2%
> Self-cleaning function
> Service life of 25 years

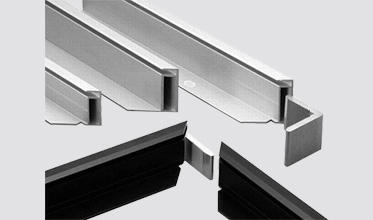

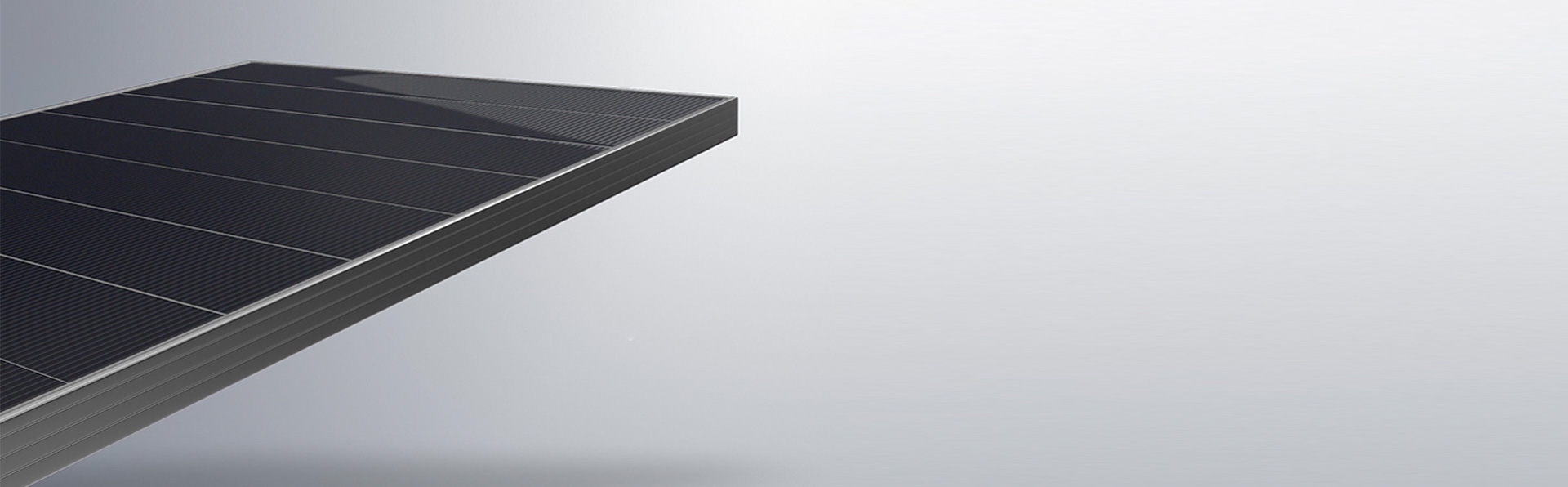

frame
> Stock size
> silver and black
> Thickness 30/35/40/45/50mm
> Stress testing.

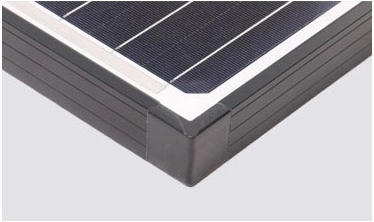

humanized design
> Practical and effective design provides more protection
> Prevent the aluminum frame from scratching your hands
> Use rainwater to clean dirt left on solar modules

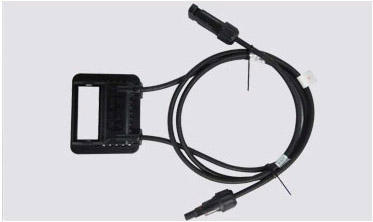

Junction Box
>General stand-alone version and engineering customized version
> High-quality diodes ensure safe operation of the module
> IP67 degree of protection
> Heat dissipation
> Long service life

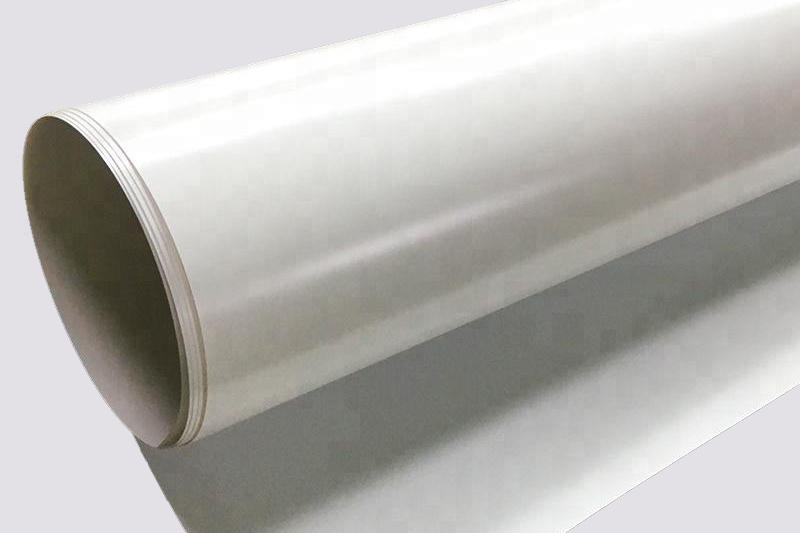

Backplane
>Low moisture permeability prevents snail marks defects
>Excellent electrical insulation for high system voltages up to 1500v
>Outstanding weatherproof performance

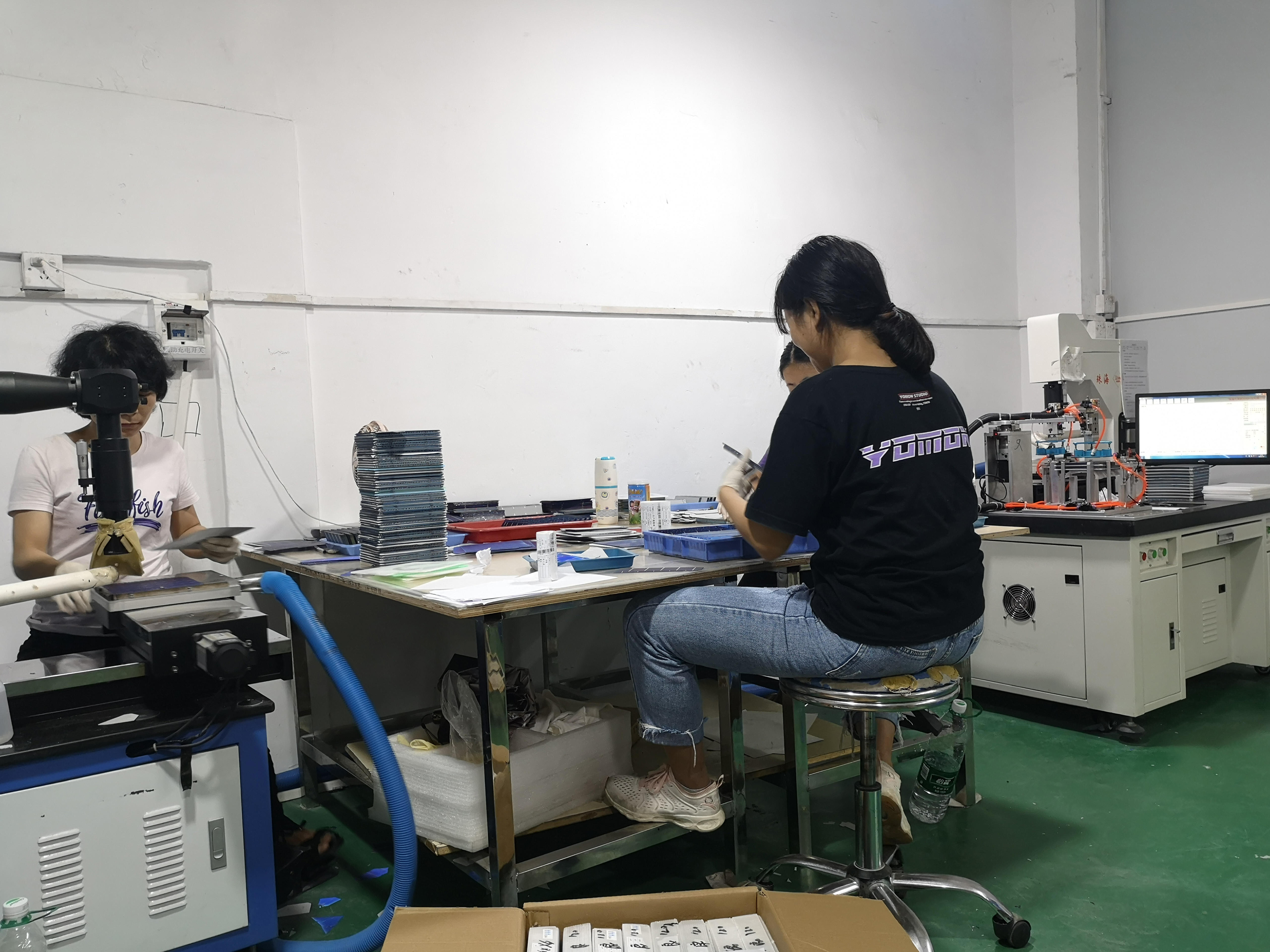

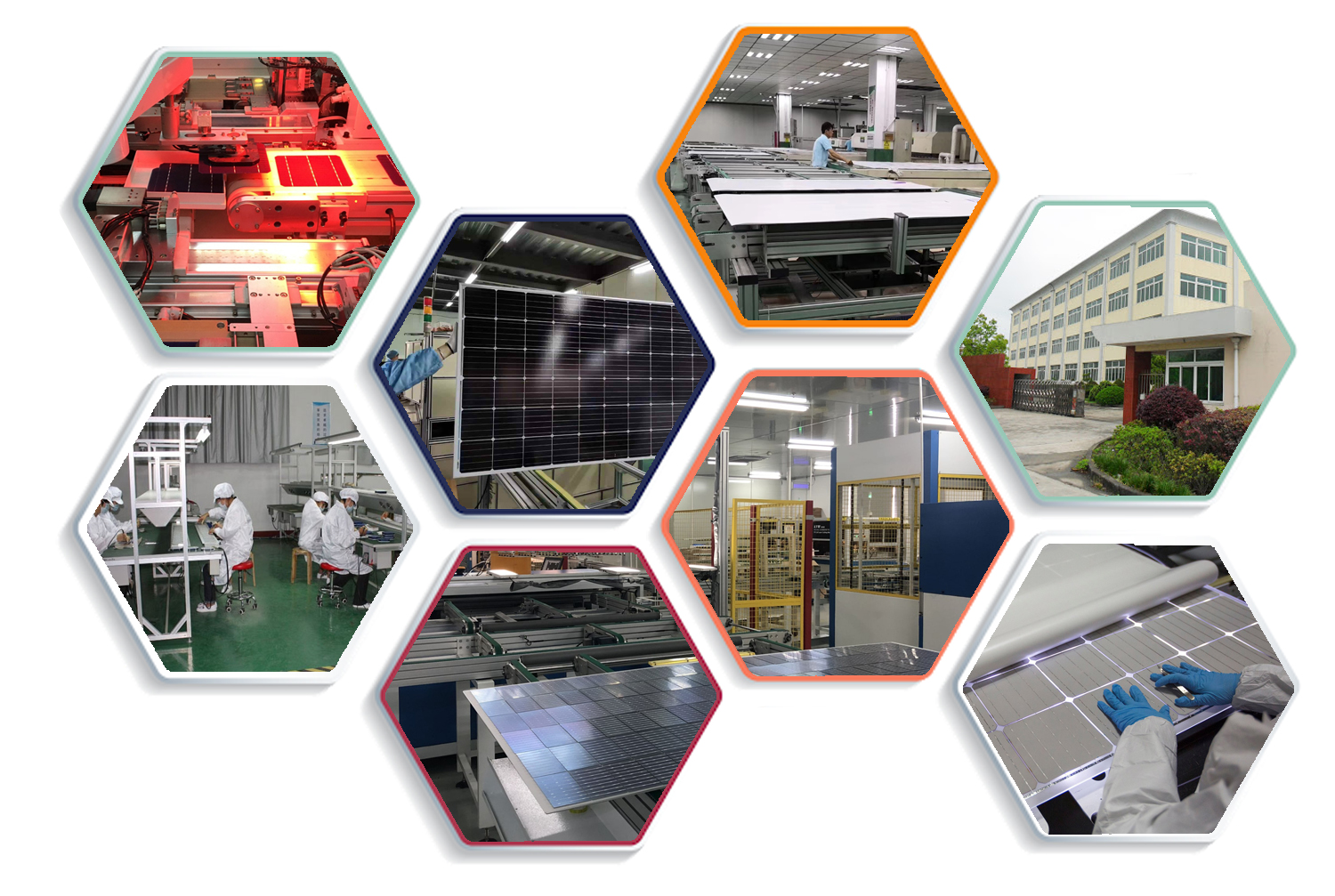

production process

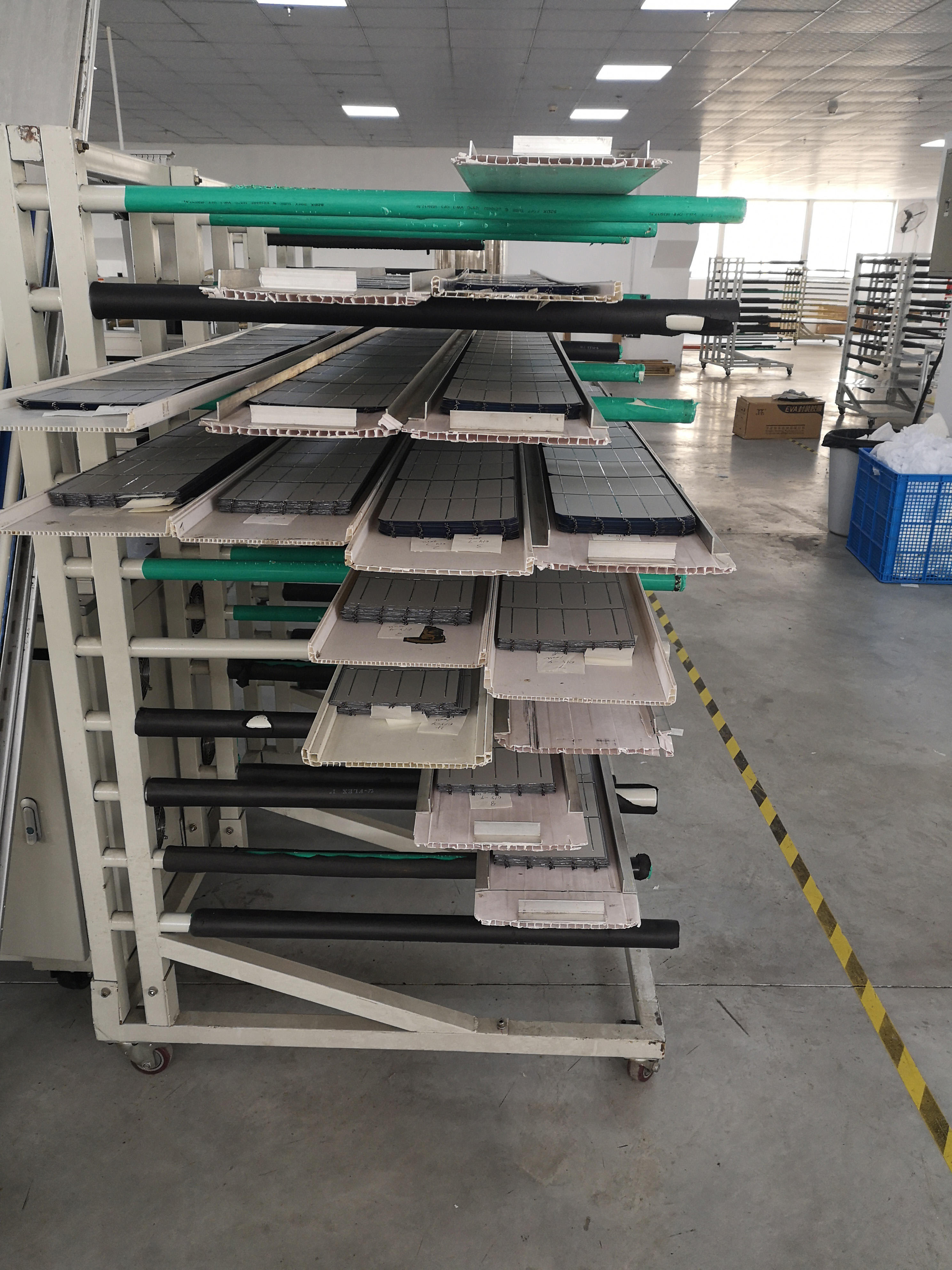

Battery Chip Receiving Area

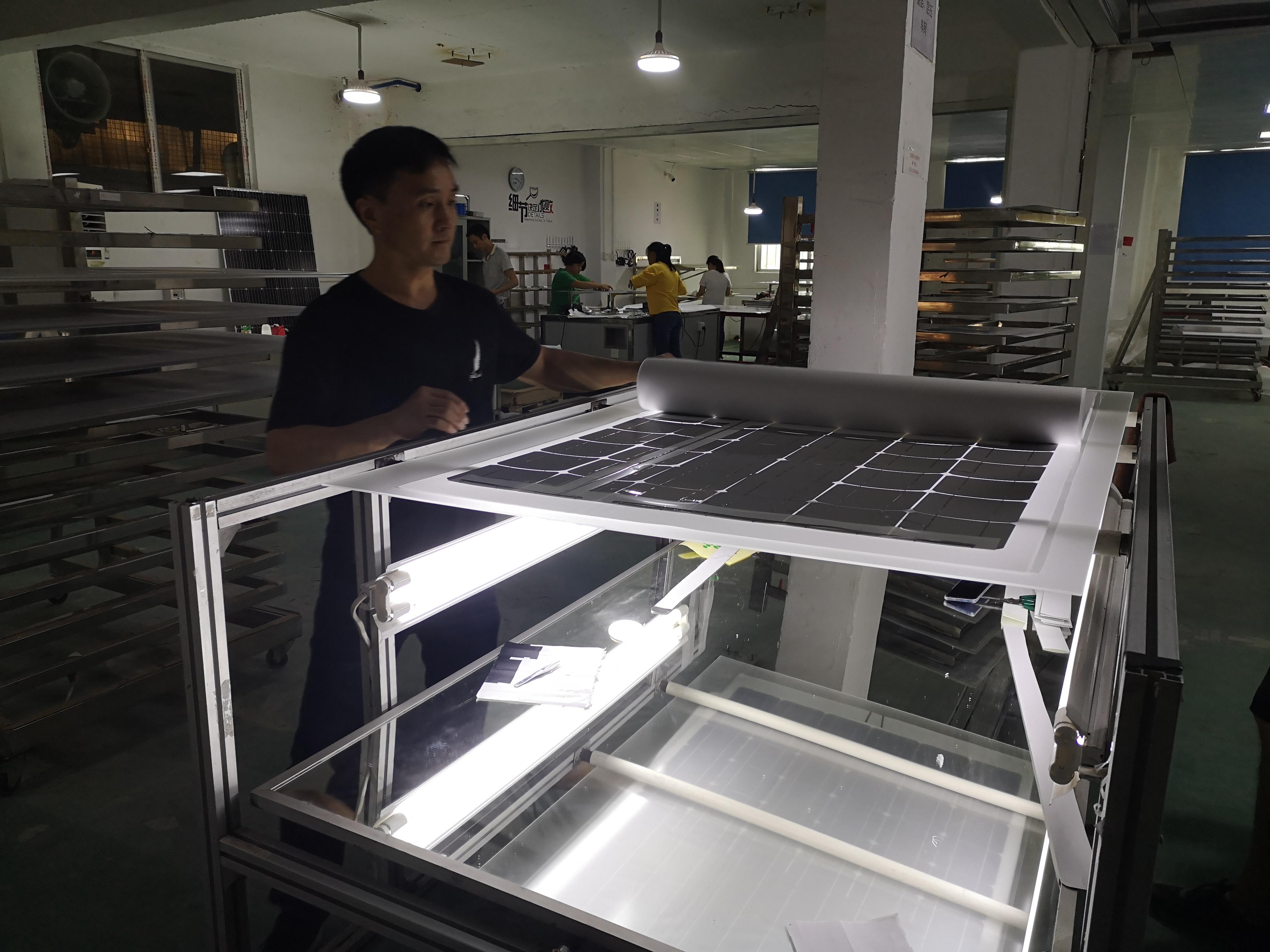

Solar Panel Kanban Inspection

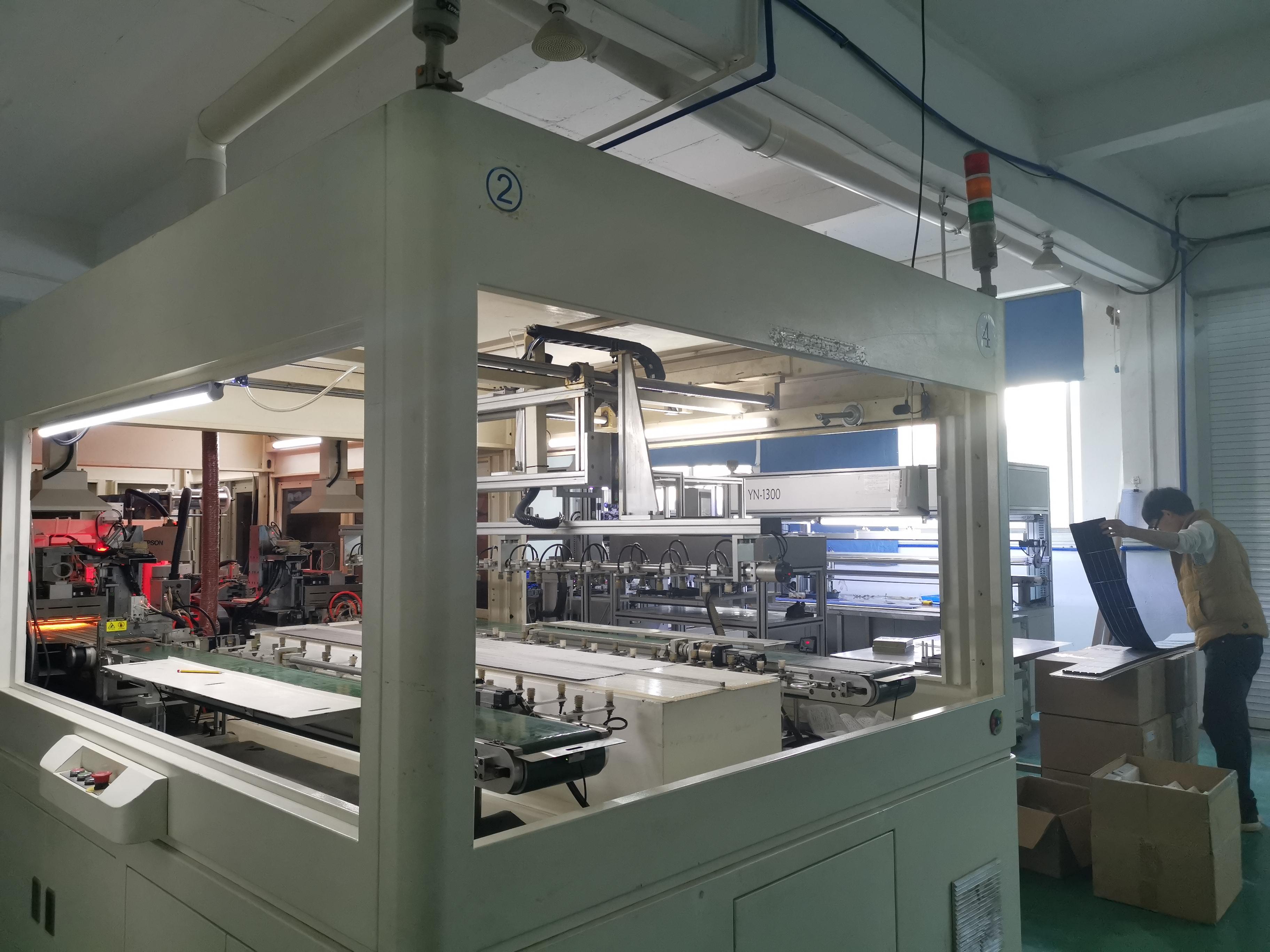

Fully automatic lamination of solar panels

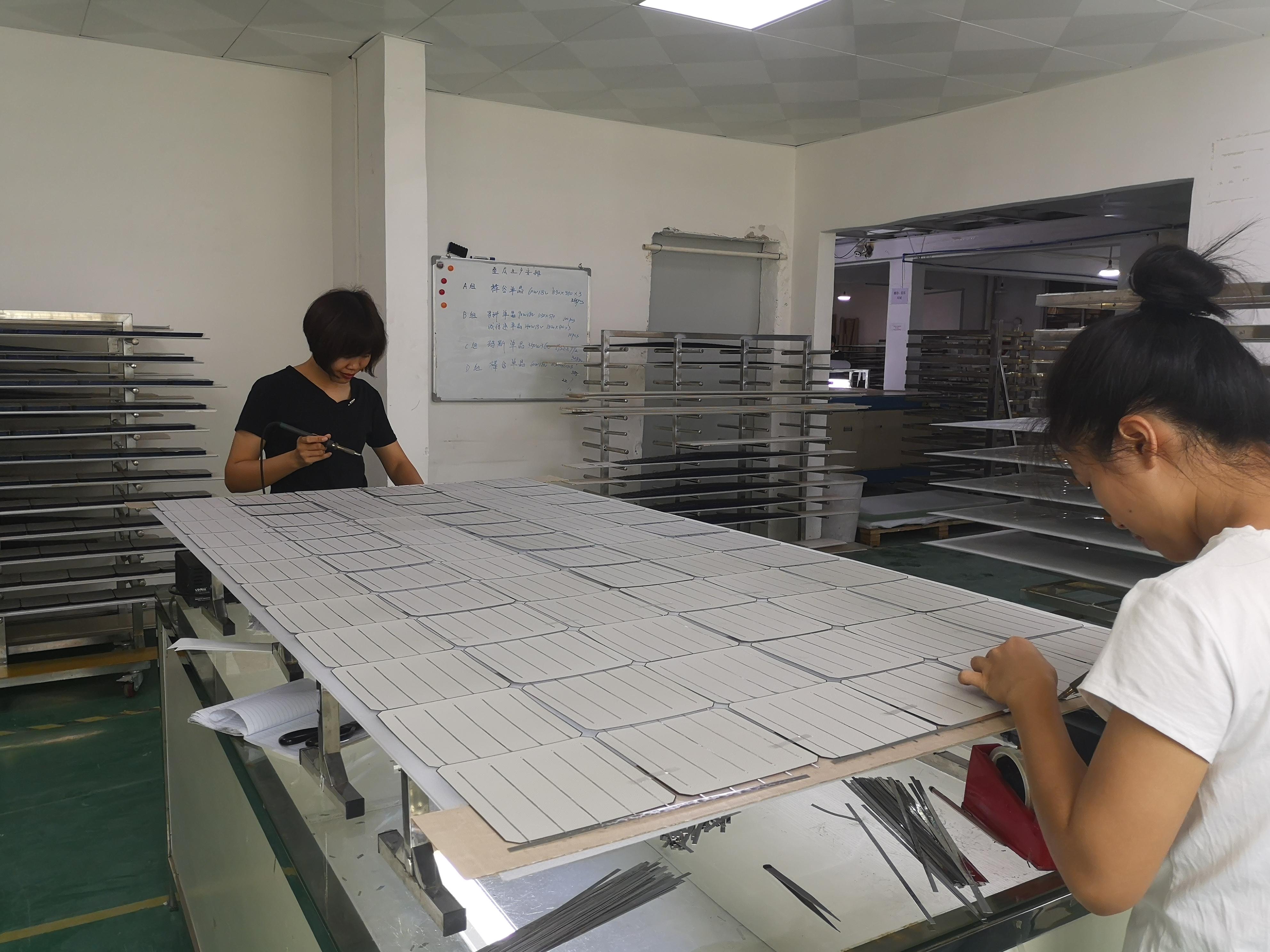

Solar cell welding--automatic typesetting machine--Automatic welding --EL test--appearance test--Flash test
Place the EVA and the base, and automatically cut off the excess substrate. The whole production process is a combination of automation and semi-automation

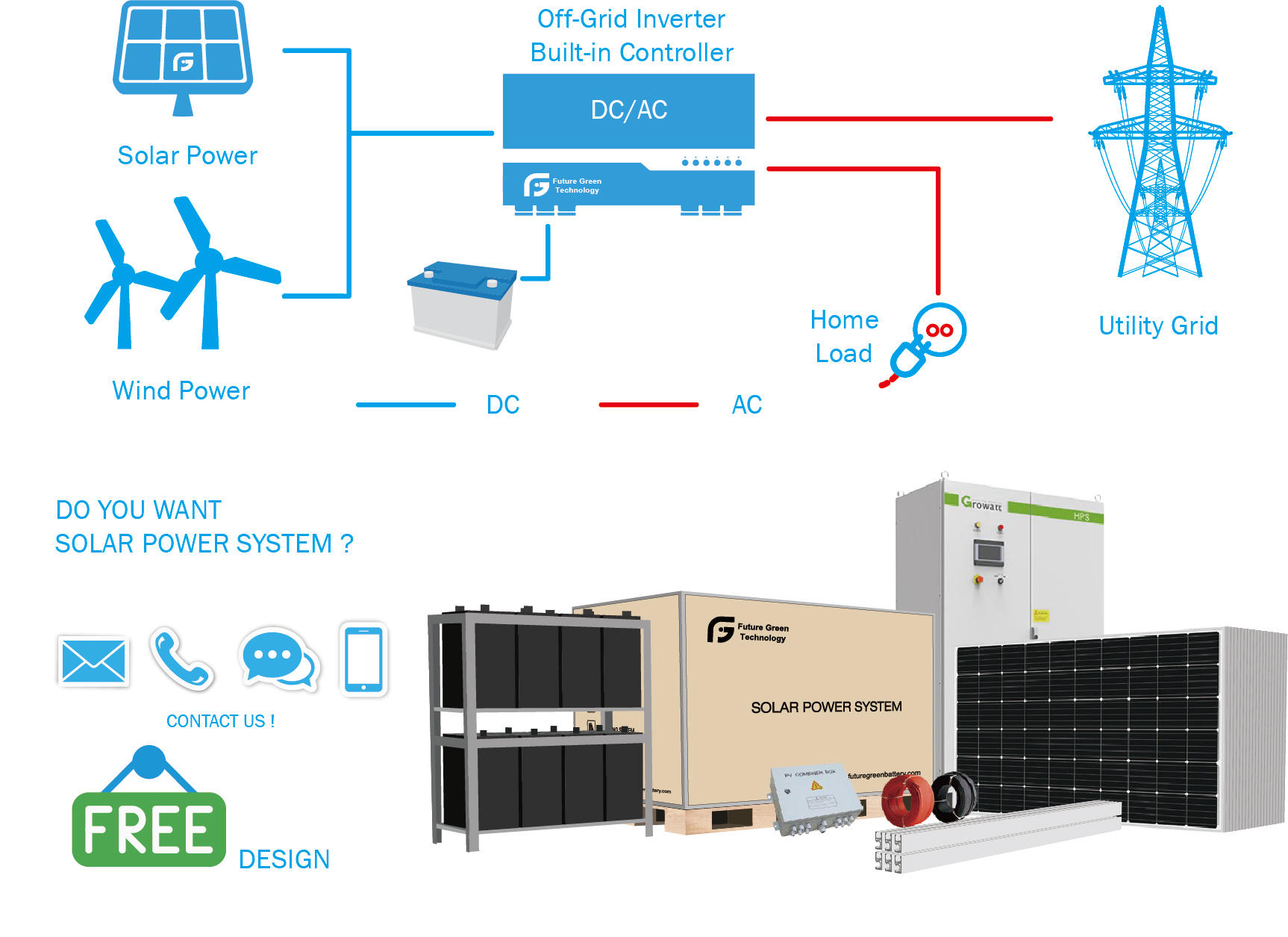

Contact us for a solar system design! !

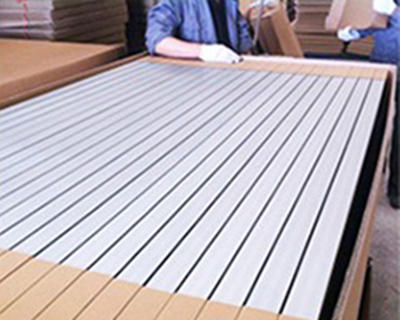

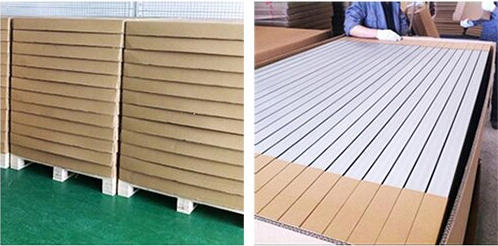

Product packaging
Packing: Carton packing or wooden case is recommended to protect samples during transportation. Customer designed packaging is welcome.

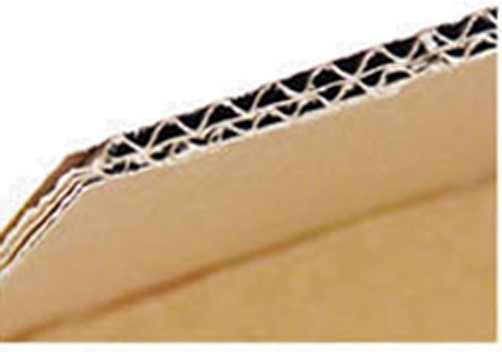

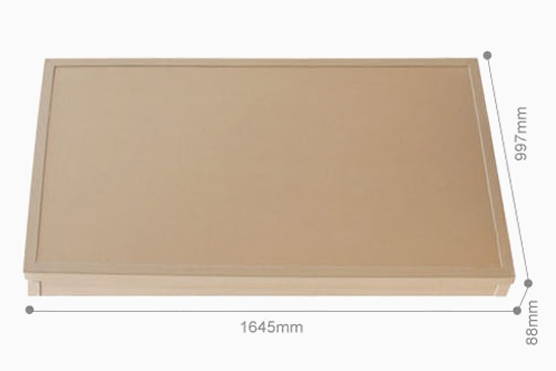

CARTON five-layer anti-pressure carton
CARTON 2 PCS a box
1680*997*88mm (60 grids)
2000*997*88mm (72 grids)

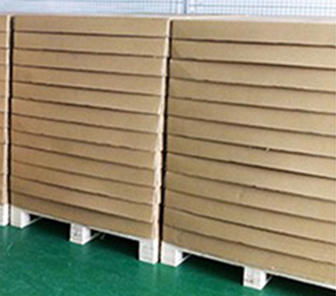

10 to 20 cartons on a pallet
top protector
60 panels 1640*992*35mm
72 panels
1960*992*40mm
60 pieces-30 pieces in a box 1680*1150*1090mm72 pieces-27 pieces in a box
2000*1150*1110mm

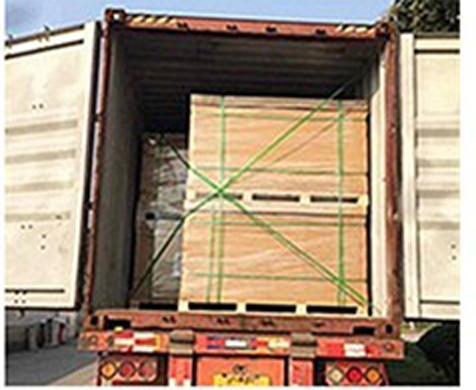

60 units in 40 HQ 28 pallets, 840
72 cells in 40 headquarters
24 pallets, 648
