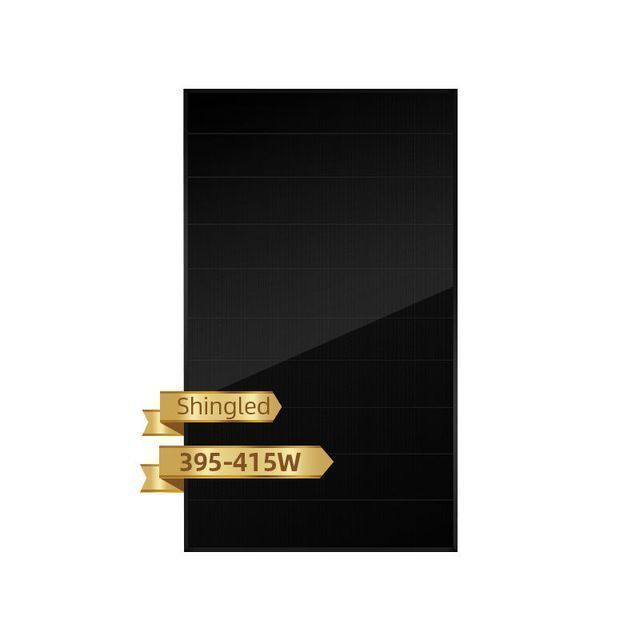

Shingle Solar Panels 395W 400W 405W 410W 415W All Black Solar Panels

  • Supplier: Sunrover Power Co., Ltd.
  • Region: Anhui, China
  • Contact: Ms Aimee Ding
  • Price: $0.27 / 1 - 99999 pieces
    $0.24 / 100000 - 9999999 pieces
    $0.23 / >=10000000 pieces
  • Min. Order: 1 piece
Product details
Packaging Details:1. Standard export wooden box and carton 2. 31 pcs/pallet, 780pcs/40' container, 3. Packaging can be customized according to different customers' needsWarranty:25 years
Panel Efficiency:22.8%frame:Anodized aluminum alloy
Package preview:Unit size:158.75mmx158.75mm
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramSolar battery:Shingled Mono
Panel size:1690x1160x35place of origin; place of origin:Anhui, China
OEM/Design Manufacturer:acceptableGlass:3.2mm white tempered safety glass
product name:Shingled solar panel 415wJunction Box:IP67, rated current: 18A
weight:20.5 kgSupply capacity:Monthly production of 500,000 kilowatts shingled all black 395W 400W 405W 410W 415W solar panels
port:China Shanghaimodel:SUN415PM5-60fb
brand:sun carFront load:5400Pa
application:The Sun can generate system
Product Description
Specification
module type
SUN395-60FB
SUN400-60FB
SUN405-60FB
SUN410-60FB
SUN415-60FB
Maximum power (W)
395
400
405
410
415
Maximum supply voltage (V)
38.50
38.60
38.70
38.80
38.90
Maximum supply current (A)
10.26
10.36
10.47
10.57
10.67
Open circuit voltage (V)
46.30
46.40
46.50
46.60
46.70
Short circuit current (A)
10.92
10.97
11.02
November 07
November 12
Module efficiency STC(%)
21.10%
21.30%
21.60%
21.80%
22.20%

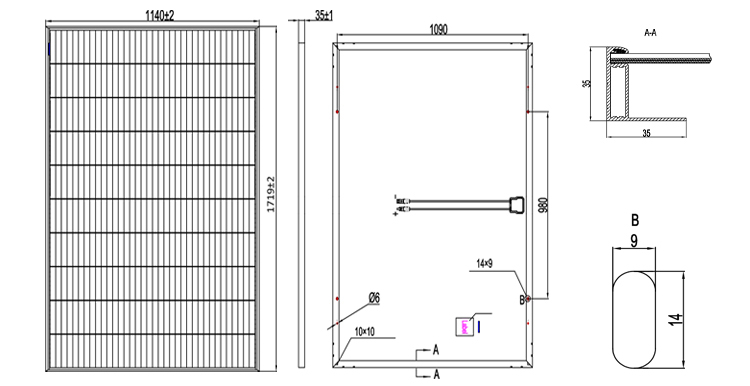

Dimensions (mm)
1719x1140x35
Weight (kg)
20.5
power tolerance
0-5W
Working temperature (℃)
-40℃-85℃
