ISO6432-Double Acting Stainless Steel Mini Pneumatic Cylinde

Product details
Model Number:MA;Power:Pneumatic;
Product type:ISO6432-Double Acting Stainless Steel Mini Pneumatic Cylinder;Working temperature:-5-70 degree;
Shaft Diameter:6-16mm;Supply Ability:500 Piece/Pieces per Day;
Body Material:Stainless Steel;Maximum Stroke:500mm;
Working pressure:0.1-1.0MPa;Acting type:double acting and single acting;
Payment Terms:L/C,T/T,Western Union,MoneyGram,PAYPAL;Proof pressure:1.5MPa;
Standard or Nonstandard:Standard;Port:ningbo or shanghai;
Packaging Detail:1)with our logo on inner box,outside carton without any logo; 2)OEM: without any logo; 3)Clients designed packages;Delivery Detail:within 7 to 10 days after payment;
Working medium:compressed air;Structure:Piston Cylinder;
Brand Name:CW;Place of Origin:Zhejiang China (Mainland);
Speed range:30-800mm/s;Cushion:rubber bumper;

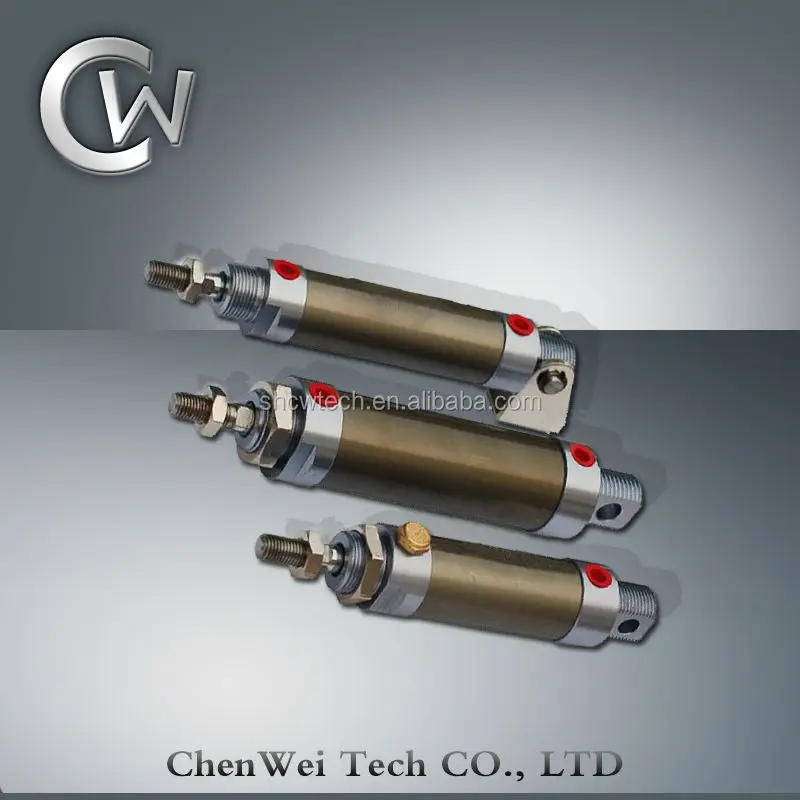

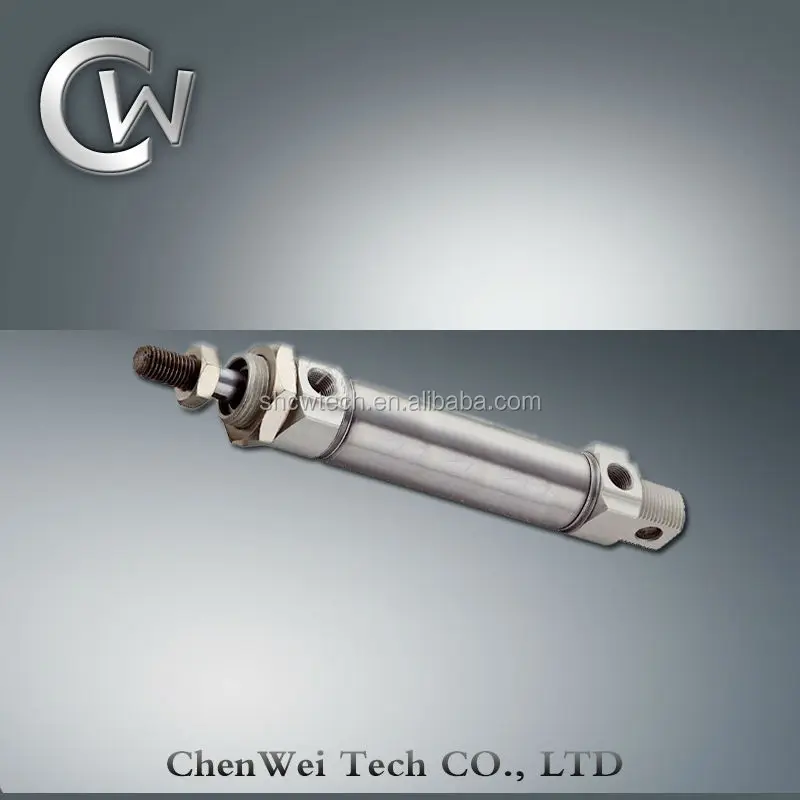

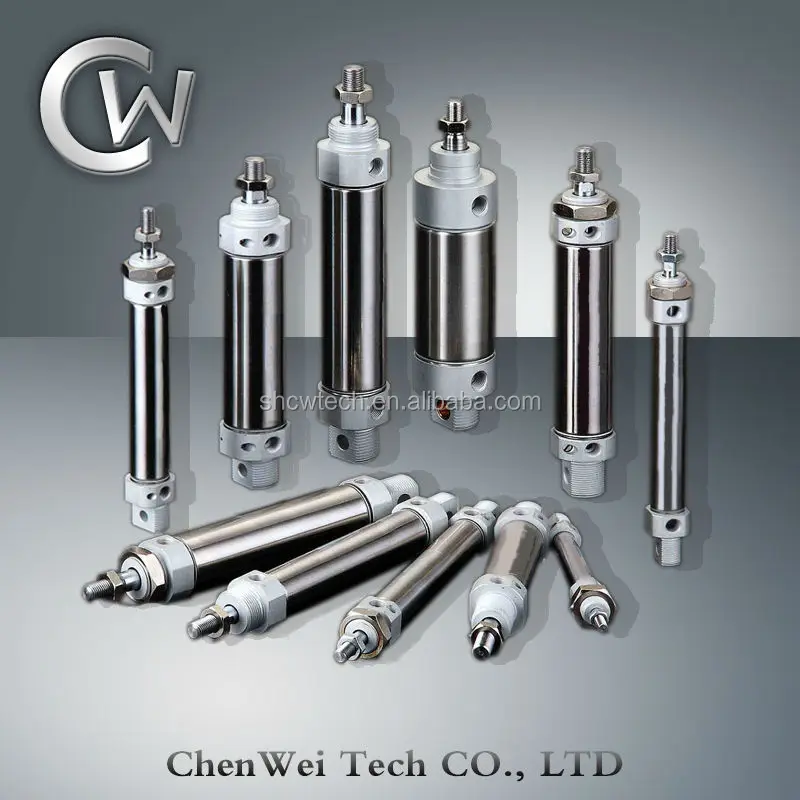

ISO6432-Double Acting Stainless Steel Mini Pneumatic Cylinder

Features:

1.MA Series Magnetic Cylinder Pneumatic .

2.Equivalent to AIRTAC MA Series Magnetic Cylinder Pneumatic , with the same appearance.

3.Bore size(mm): 16, 20, 25, 32, 40, 50, 63.

4.Double acting, Single/Double rod

5.Rubber bumper, or with adjustable air cushion at both ends(Option).

6.Built-in magnet is optional.

7.Cylinder kits, barrel, piston is available.

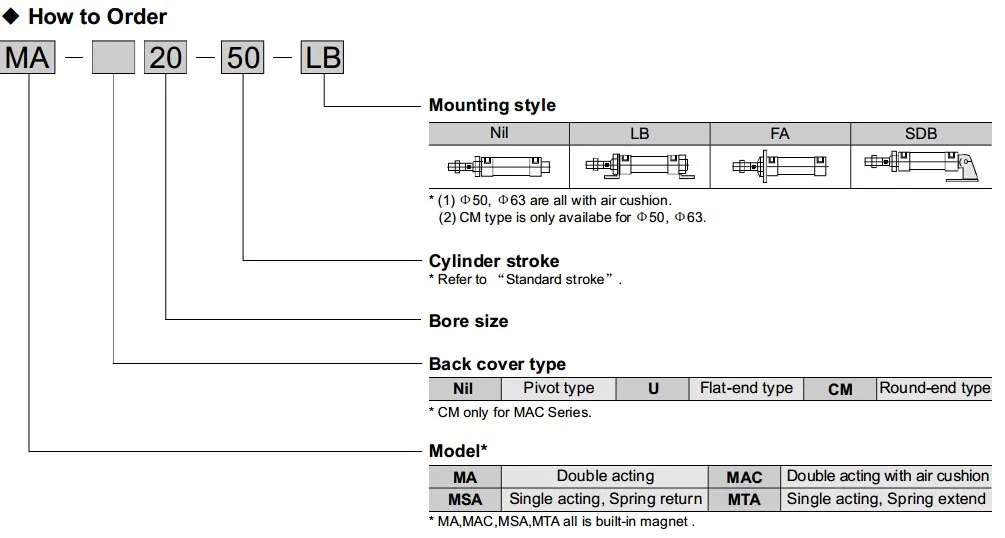

How To Order:


Specification:



Bore size (mm)16202532405063
FluidAir
ActionMA/MAD/MAJDouble acting, Single/Double rod-
MSA/MTASingle acting, Single rod, Spring return/extend-
MAR-Double acting, Single rod
MAC/MACD/MACJ-Double acting, Single/Double rod
Minimum operating pressureDouble acting0.1 Mpa
Single acting0.2 Mpa
Maximum operating pressure1.0 Mpa
Proof pressure1.5 Mpa
Ambient and fluid temperature -20 to 80°C (No freezing)
CushionMA/MAD/MAJRubber bumper-
MSA/MTARubber bumper-
MAR-Rubber bumperAdjustable air cushion at both ends
MAC/MACD/MACJ-Adjustable air cushion at both ends
LubricationNon-lube
Piston rod dia.6 mm8 mm10 mm12 mm16 mm16 mm16 mm
Piston rod threadM6x1.0M8x1.25M10x1.25M12x1.25M14x1.5
Port sizeM5x0.8 1/81/4

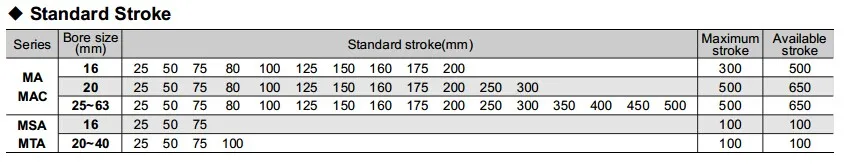

Standard Stroke:


 Material:

No.DescriptionMaterialNote
1.Cylinder barrelStainless steel-
2.Piston rodHigh-alloy steelHard chrome plated
3.Rod coverAluminum alloyClear anodized
4.End coverAluminum alloyClear anodized
5.PistonBrass/Aluminum alloyChromated
6.SealNBR-

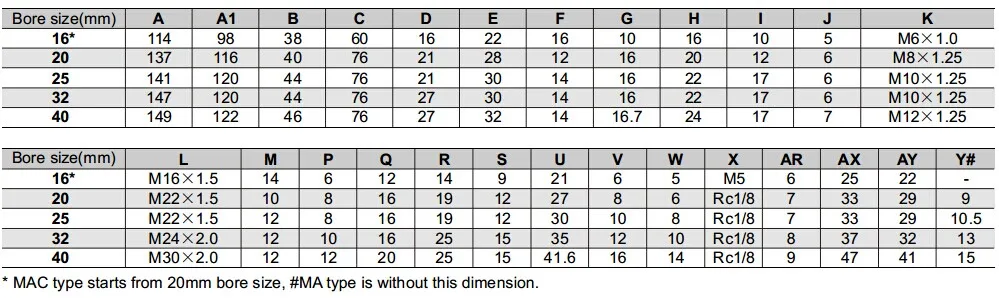

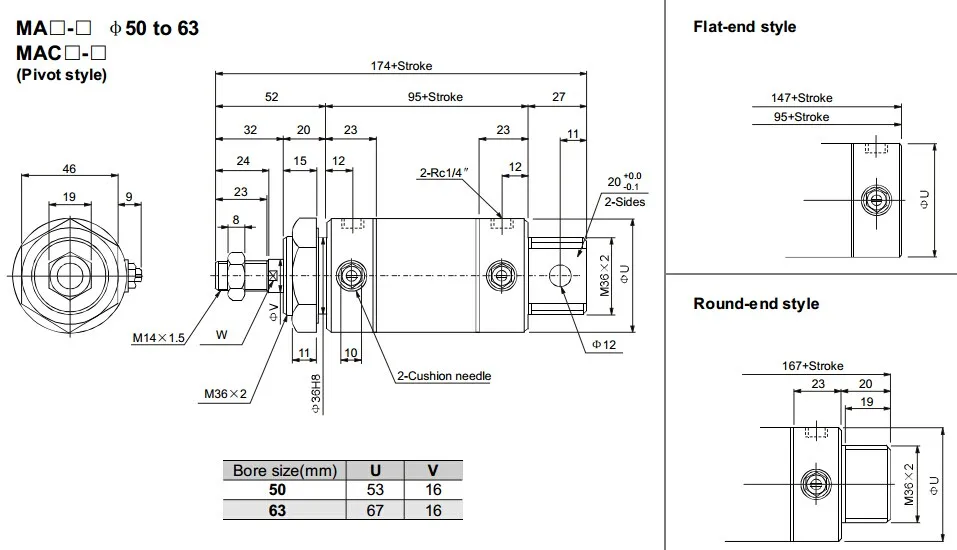

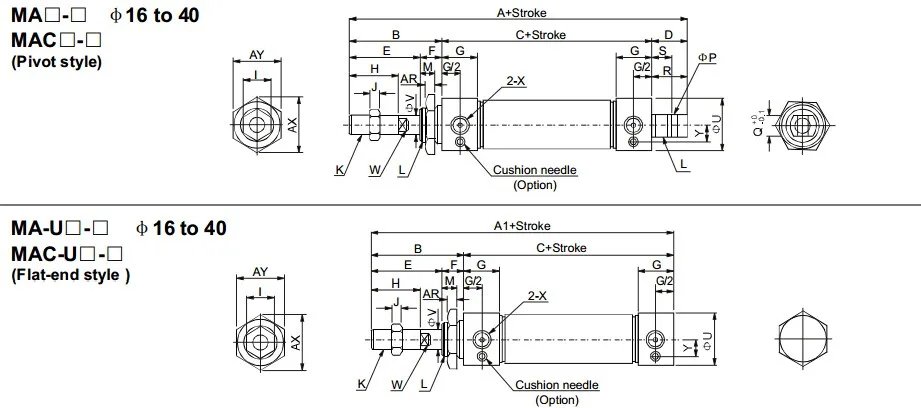

Dimensions and Sizes:
