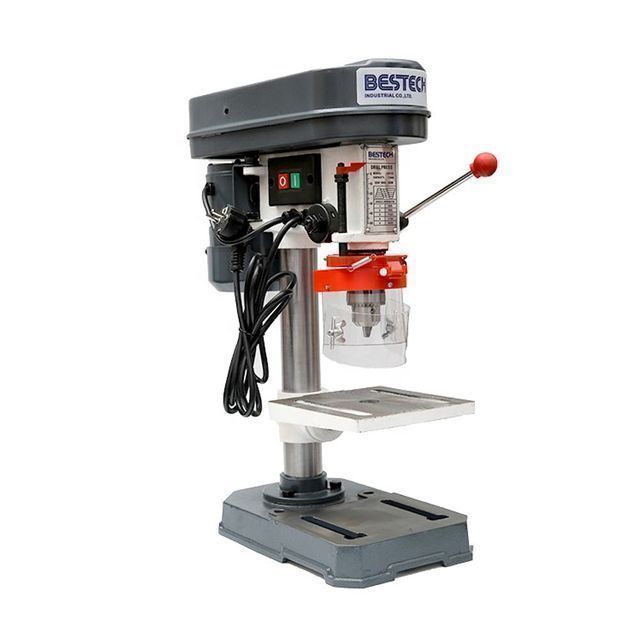

Hot Sale ZJ4113 13mm Mini Bench Drilling Machine Drilling Machine

Product details
Warranty:1 yearSpeed ​​class:5
brand:Jiebo TechnologyWeight (kg):17 kg
Speed ​​50/60Hz:620~2620/740~3140rpmTypes of:bench drill
Mechanical test report:ifPower (kW):0.35
place of origin; place of origin:Jiangsu, Chinaport:Shanghai, Ningbo
CNC or not:normalMarketing Type:New Products 2023
State of health:newApplicable industries:Manufacturing plant, mechanical repair shop, household, retail, construction
Main selling points:competitive priceShowroom location:not any
model:ZJ4113Packaging Details:Carton
Supply capacity:1500 drilling machines per monthpayment terms:L/C, Western Union, T/T
Core components:Bearings, pumps, gears, motors, gearboxes, PLCs, pressure vessels, enginesmaximum. Drilling diameter (mm):13mm
table size:160x160mmChuck capacity:1.5-13mm
Video shipment inspection:ifSpindle travel:50mm
swing:210mmMotor Power:250/350w
Spindle taper:B16Maximum drilling diameter:13 mm (1/2 in)
Dimensions (L*W*H):430*340*230 mmSpindle speed range (rpm):740 - 3140 rpm
weight:17 kgDrilling speed:620~2620/740~3140rpm
Voltage:220V/230VCore component warranty:1 year
Product Description
● Machine approval "CE"
● The height of drill floor is adjusted by rack
● The workbench can be tilted ±45° and rotated 360°
● Large size adjustable height screen with safety switch
● Guarantee the real running accuracy of the drill bushing less than 0.02
● Heavy duty for home stores, repair shops and light industrial applications
Specification
Model
ZJ4113
Maximum drilling diameter
Φ13mm(1/2'')
Motor Power
250/350w
Chuck Capacity
1.5-13mm
Spindle travel
50mm
speed class
5
Speed ​​50/60Hz
620~2620/740~3140rpm
Spindle taper
B16
Maximum distance from spindle axis to column surface
105mm
The maximum distance from the spindle end to the table surface
220mm
Maximum distance from spindle end to base surface
300mm
swing
210mm
table size
160×160mm
basic size
300×195mm
Column diameter
Φ46mm
high
580mm
Net weight Gross weight
16/17 kg
Package dimensions
430×340×X230mm
Standard accessories
Optional accessories
drill chuck
copper motor
wrench set
Power off chuck guard
aluminum motor
Micro Switch
vice
keyless drill chuck
laser light
Product packaging
